Overview

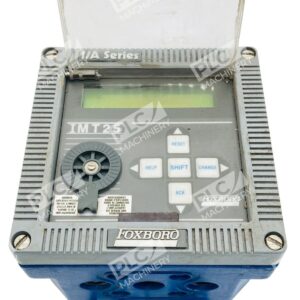

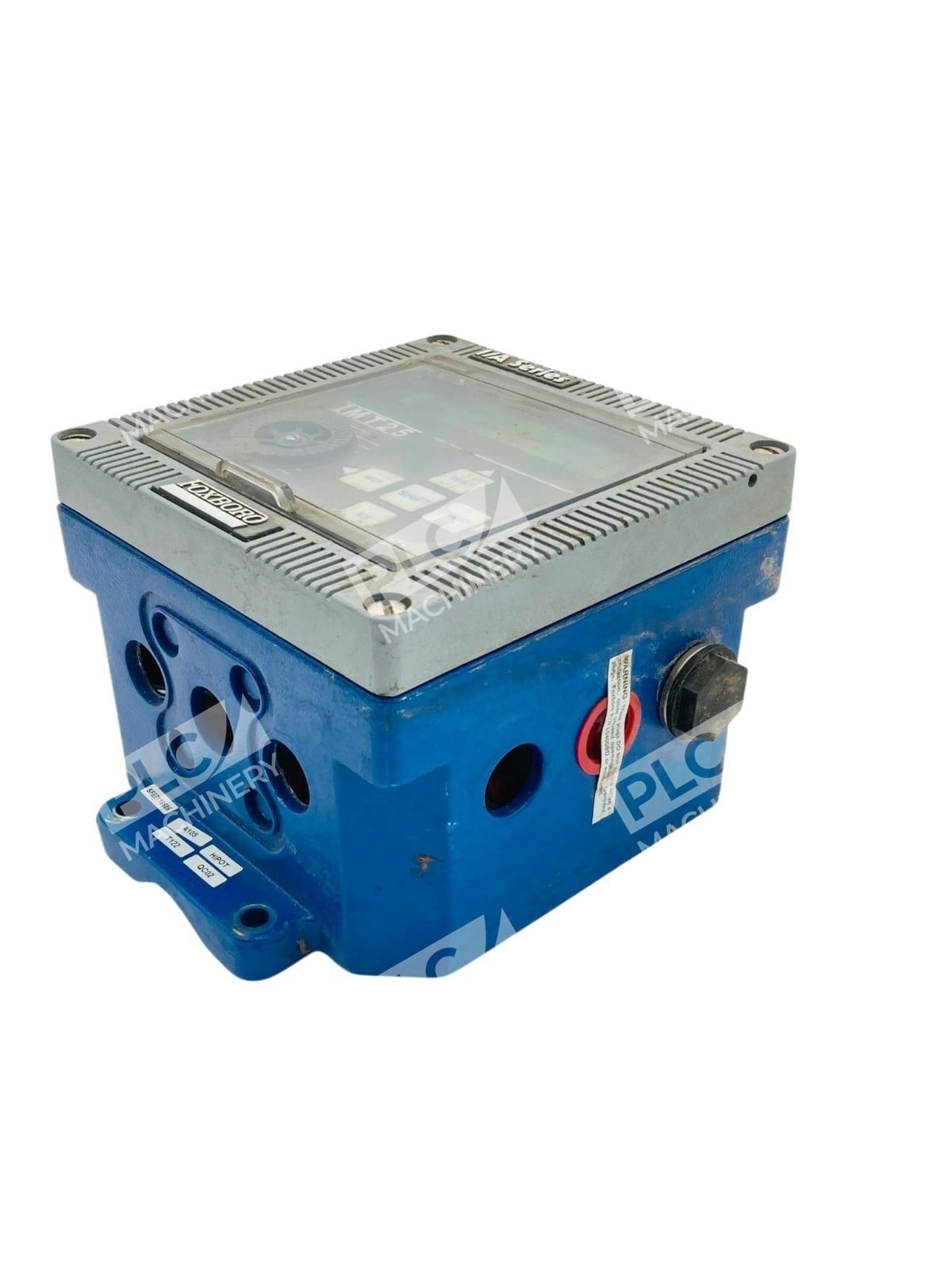

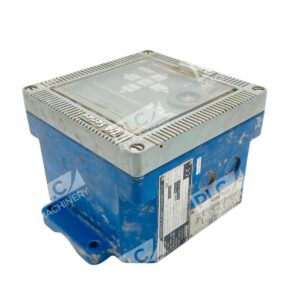

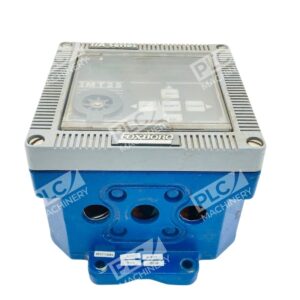

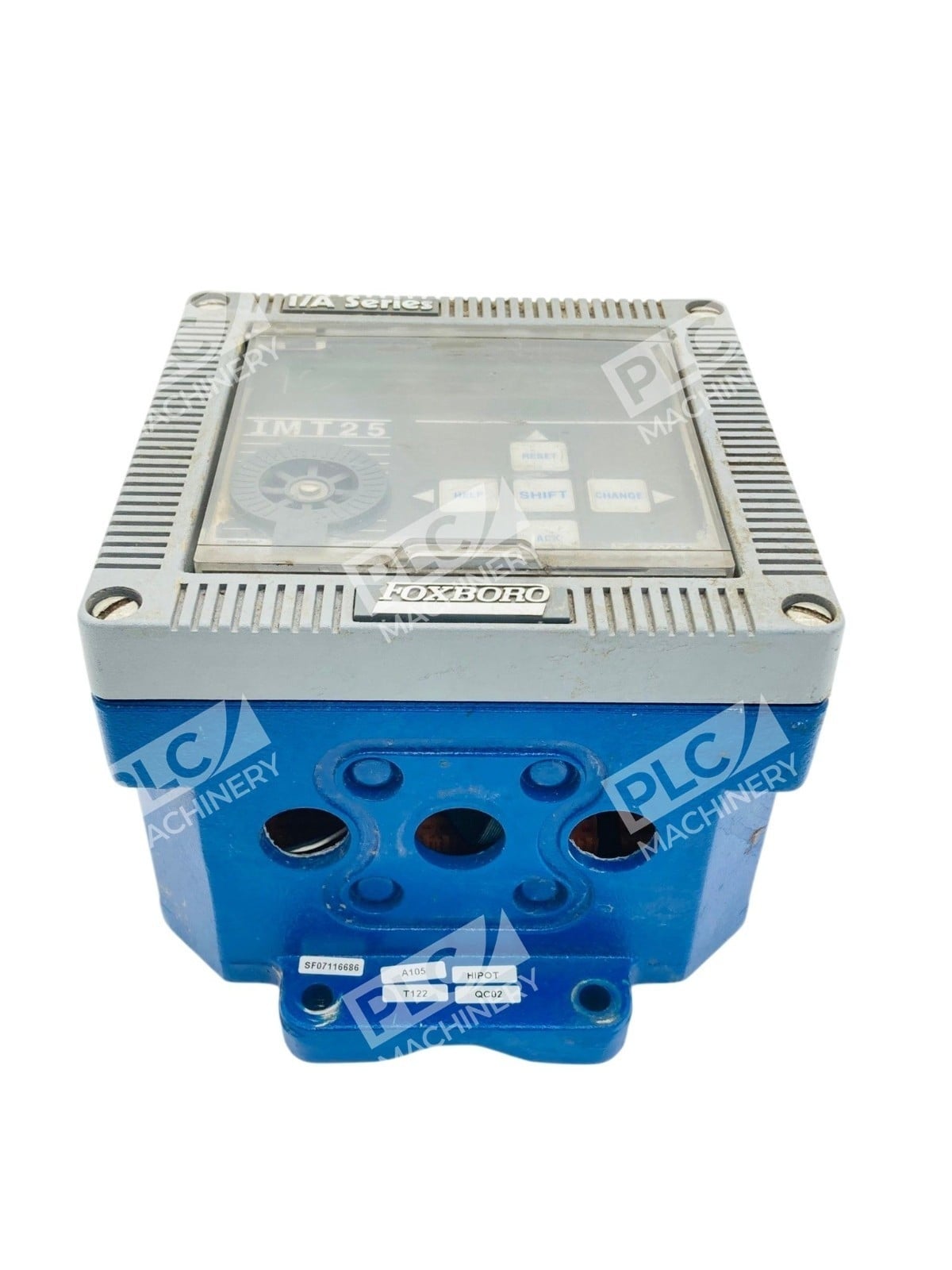

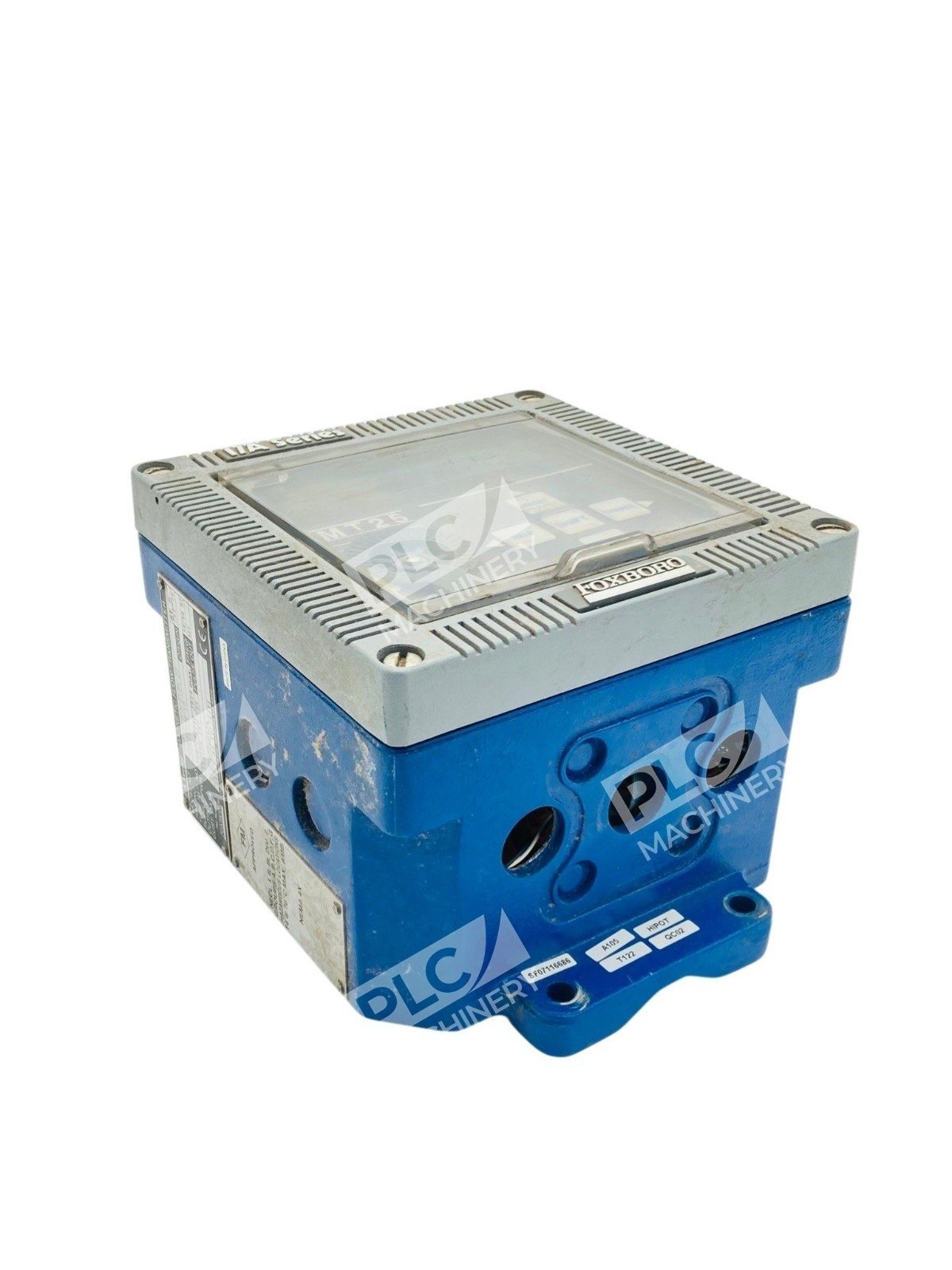

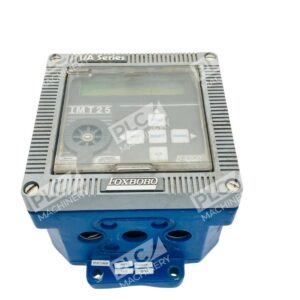

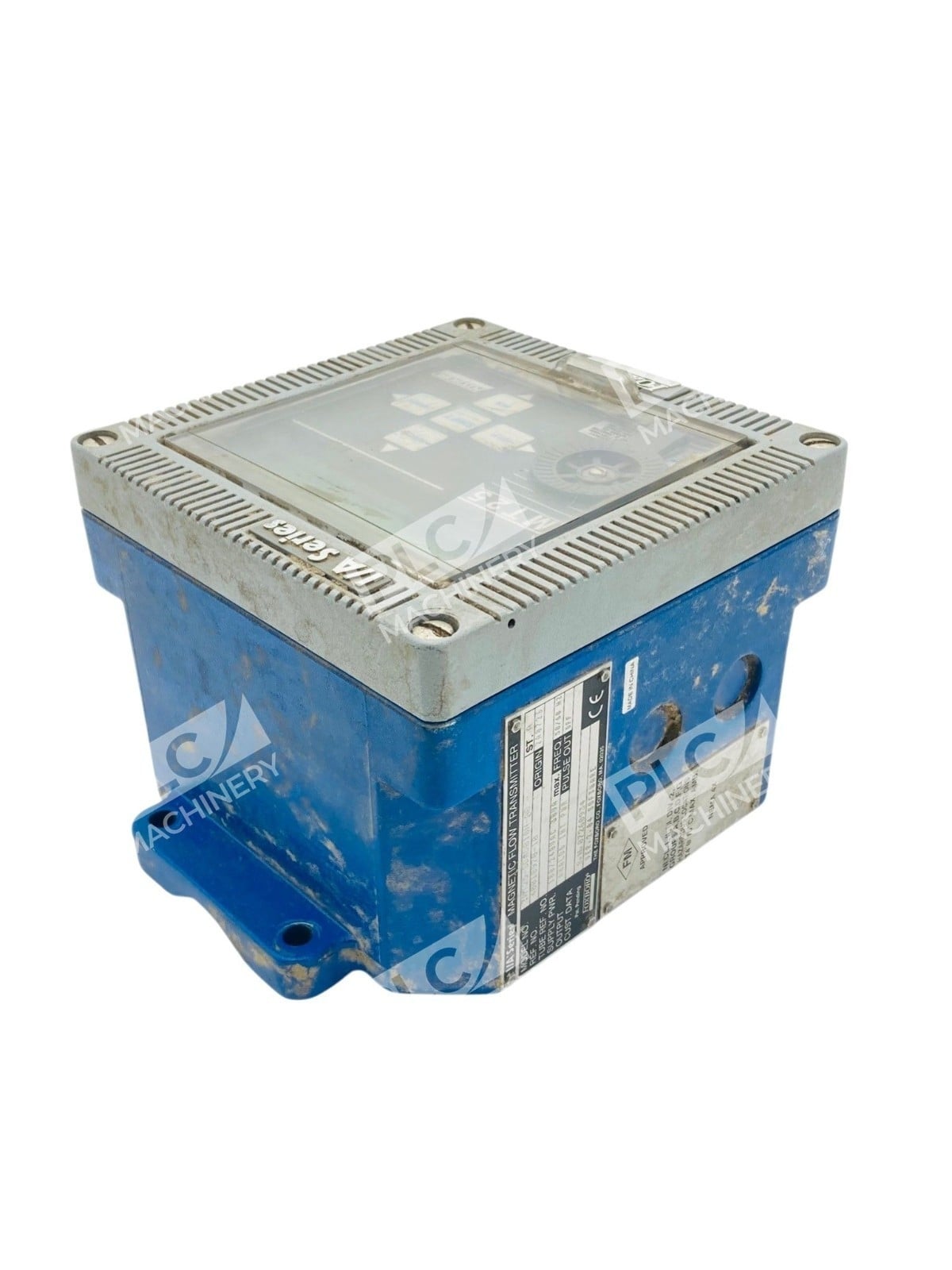

The Foxboro IMT25-SDADB10N-AB is an intelligent magnetic flow transmitter from the Foxboro I/A Series. This transmitter combines with an 8000A Wafer Body, or 2800, 8300, 9100A, 9200A, or 9300A Flanged Body Flowtube to form a magnetic flowmeter with pulsed dc excitation. This configuration delivers reliable flow measurement for conductive liquids in diverse industrial and commercial applications.
Key Features
- Digital precision, stability, and resolution ensure top measurement performance
- Remote communication via FoxCom or HART Communication Protocol

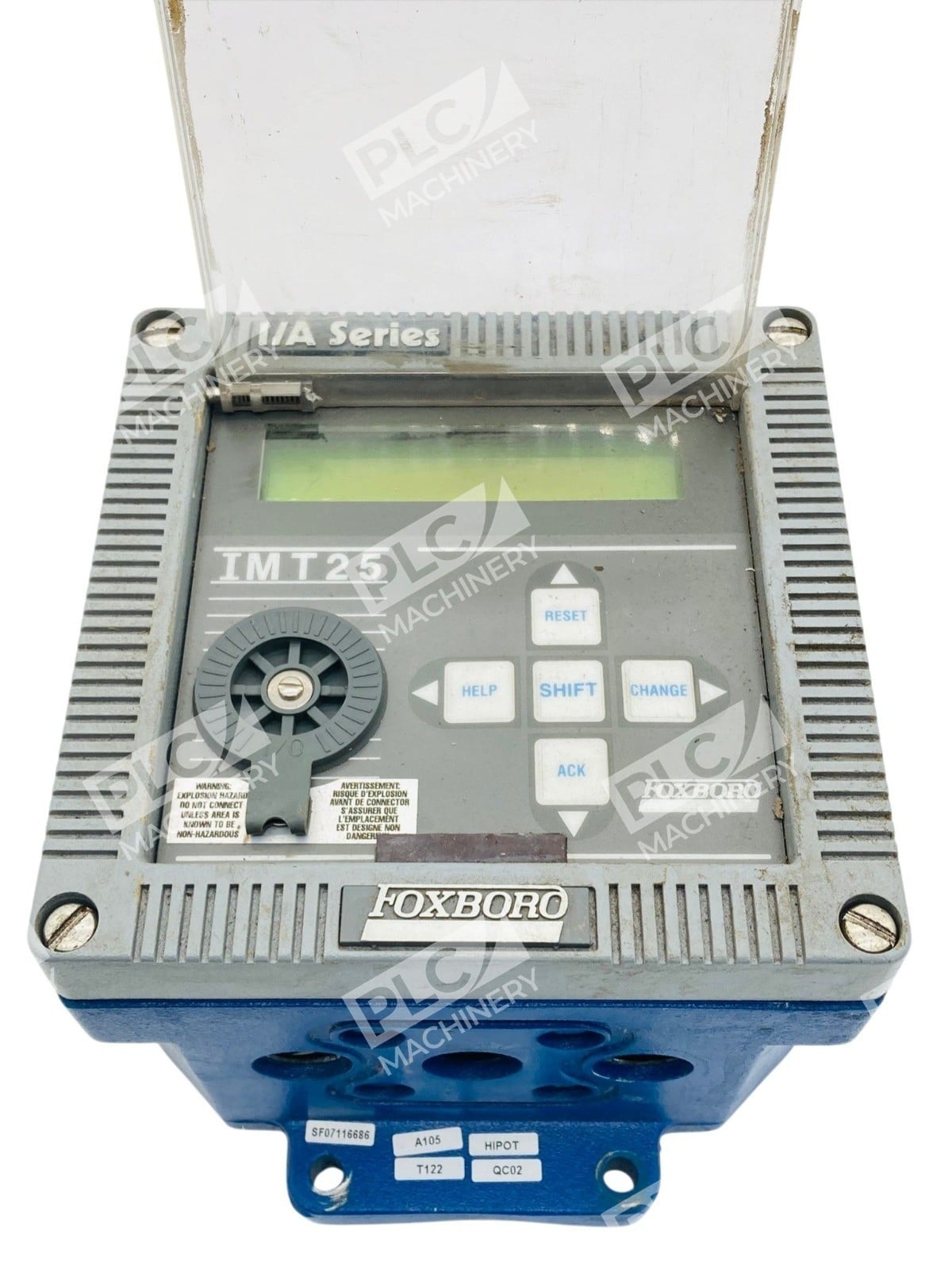

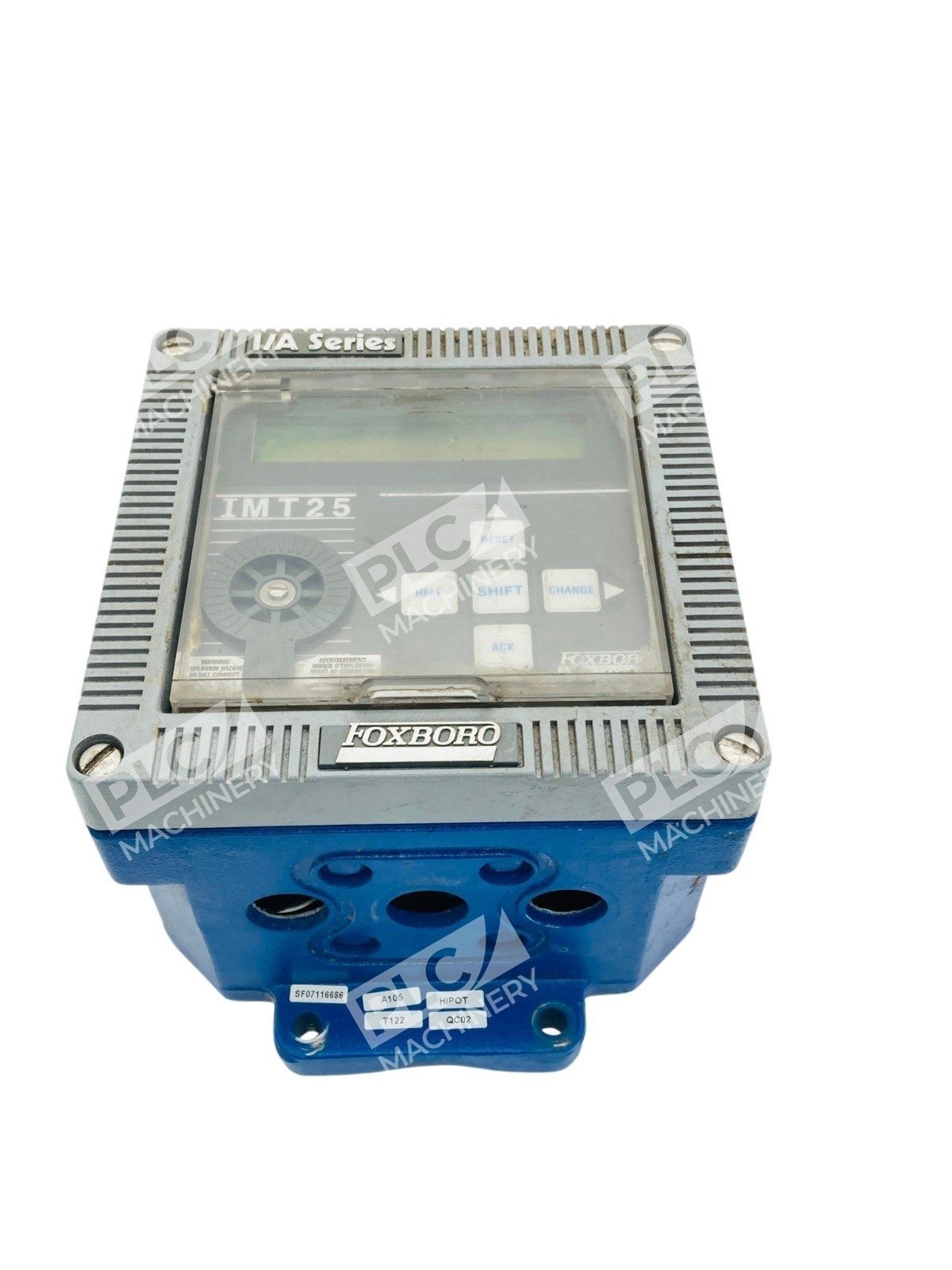

- Local configuration using optional integral keypad with backlighted, 2-line LCD display
- Enclosure meets NEMA 4X and IEC IP66
- Scaled or frequency pulse output; unidirectional or bidirectional flow
- Internally powered, 4-20 mA + superimposed digital output
Technical Specifications
The IMT25-SDADB10N-AB is configured with the following specifications based on model suffix decoding:
- Supply Voltage: 120/240 VAC, 50/60 Hz
- Output: 4-20 mA + superimposed digital (FoxCom)
- Mounting: Surface mount
- Display: LCD with integral keypad, 2-line backlighted
- Communications: FoxCom or HART Protocol
- Enclosure Rating: NEMA 4X / IP66
- Excitation Method: Pulsed DC
- Options: I/O access port, protective guard
Typical Applications
The Foxboro IMT25-SDADB10N-AB is suited for:
- Water and wastewater treatment facilities
- Chemical processing plants
- Beverage and food production
- Pulp and paper manufacturing
- Pharmaceutical and biotech production
- HVAC system monitoring
- Industrial cooling loops
Compatibility & Replacements
Compatible With
- Foxboro magnetic flowtube models: 8000A, 2800, 8300, 9100A, 9200A, 9300A
- Foxboro I/A Series instrumentation and control systems
- HART-enabled distributed control systems (DCS)
- Industrial process monitoring and SCADA systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering replacement units. The IMT25 series has several similar models (IMT25-SDADB10M-AB, IMT25-SDADB10N-A) with minor differences in output configuration and mounting options.
Works With
- FoxCom proprietary protocol
- HART (Highway Addressable Remote Transducer) Protocol
- FOUNDATION Fieldbus Protocol (refer to PSS 1-6F5 B documentation)
- 4-20 mA analog instrumentation loops
- Digital pulse count systems
