Overview

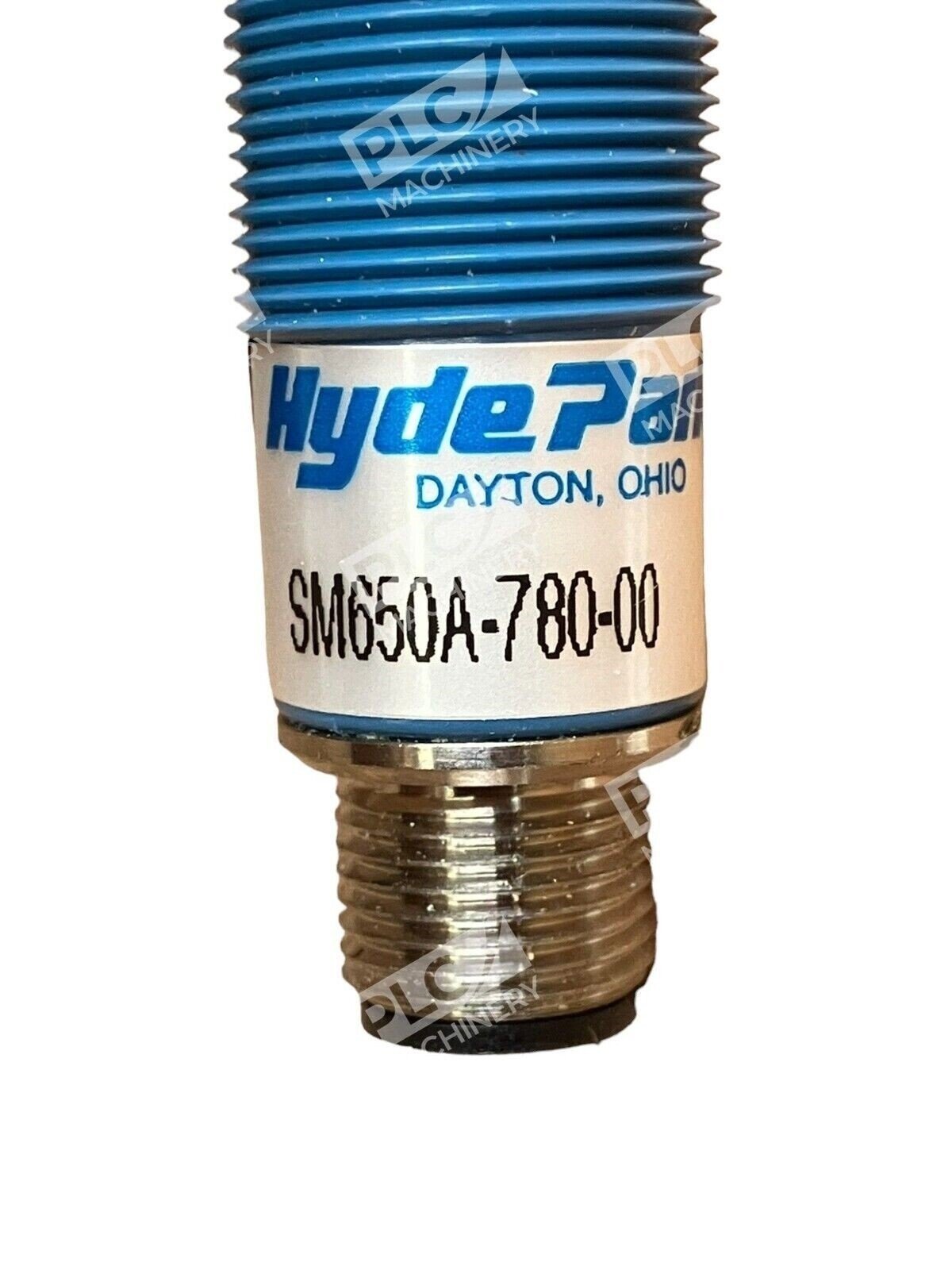

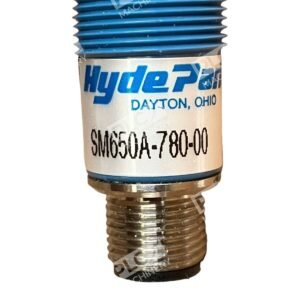

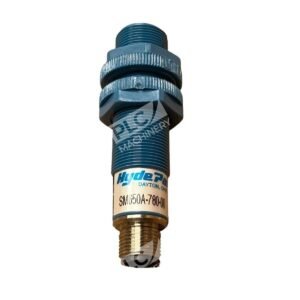

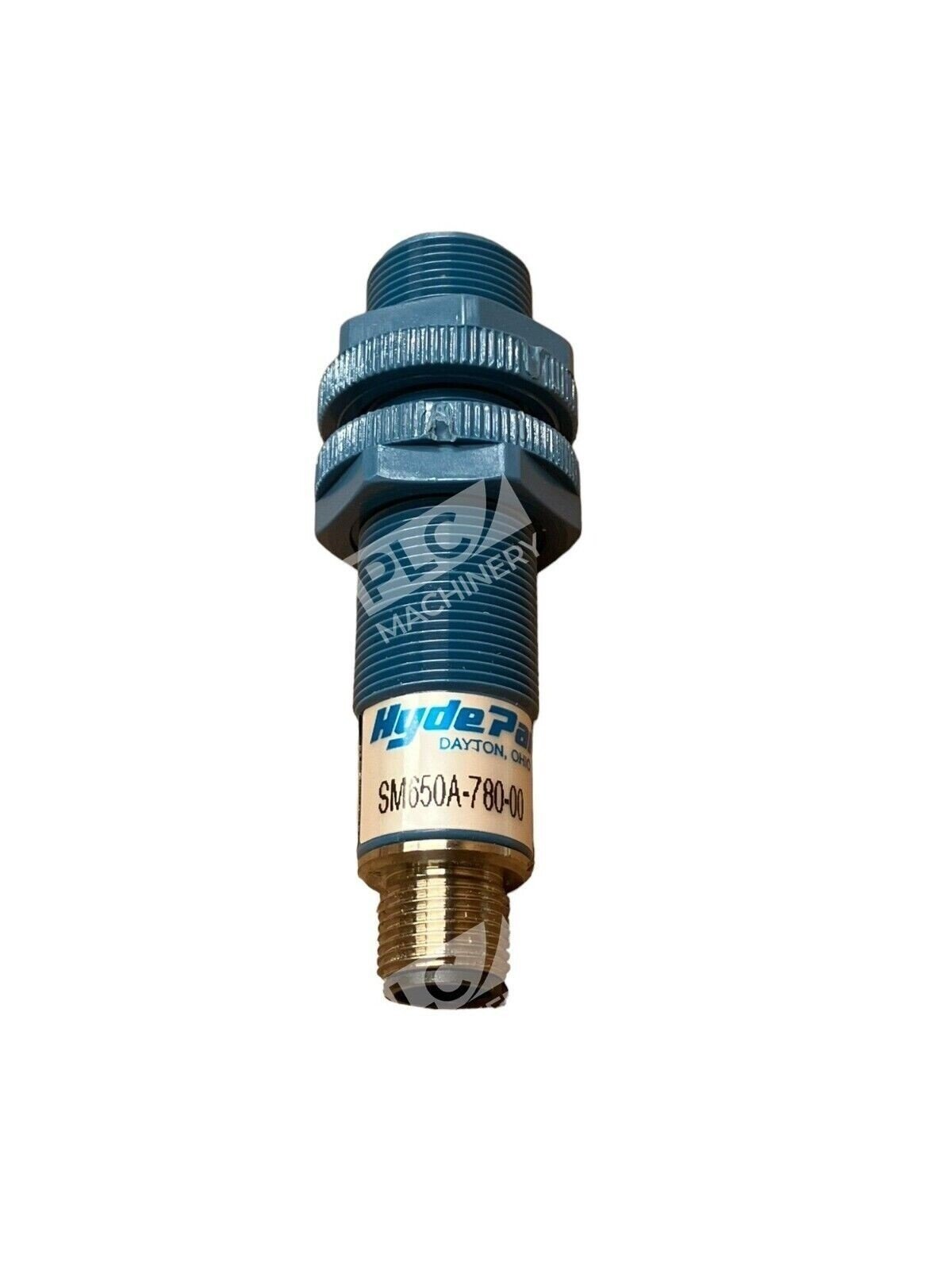

The Hyde Park SM650A-780-00 is an ultrasonic proximity sensor from the established SM650A series. Manufactured as part of the Telemecanique/Schneider Electric product line, this sensor provides discrete output detection suitable for a variety of industrial automation and material handling applications. The SM650A-780-00 delivers consistent sensing performance in environments where traditional inductive or capacitive sensors may not be suitable.
Key Features
- Ultrasonic sensing technology for non-contact object detection
- Discrete output configuration for binary signal integration
- M18 cylindrical barrel design for standard mounting
- 12-24 VDC operating voltage range
- M12 connector for quick electrical connection
- Suitable for plastics, liquids, powders, and distance sensing applications
Technical Specifications
| Sensor Type | Ultrasonic proximity sensor, discrete output |

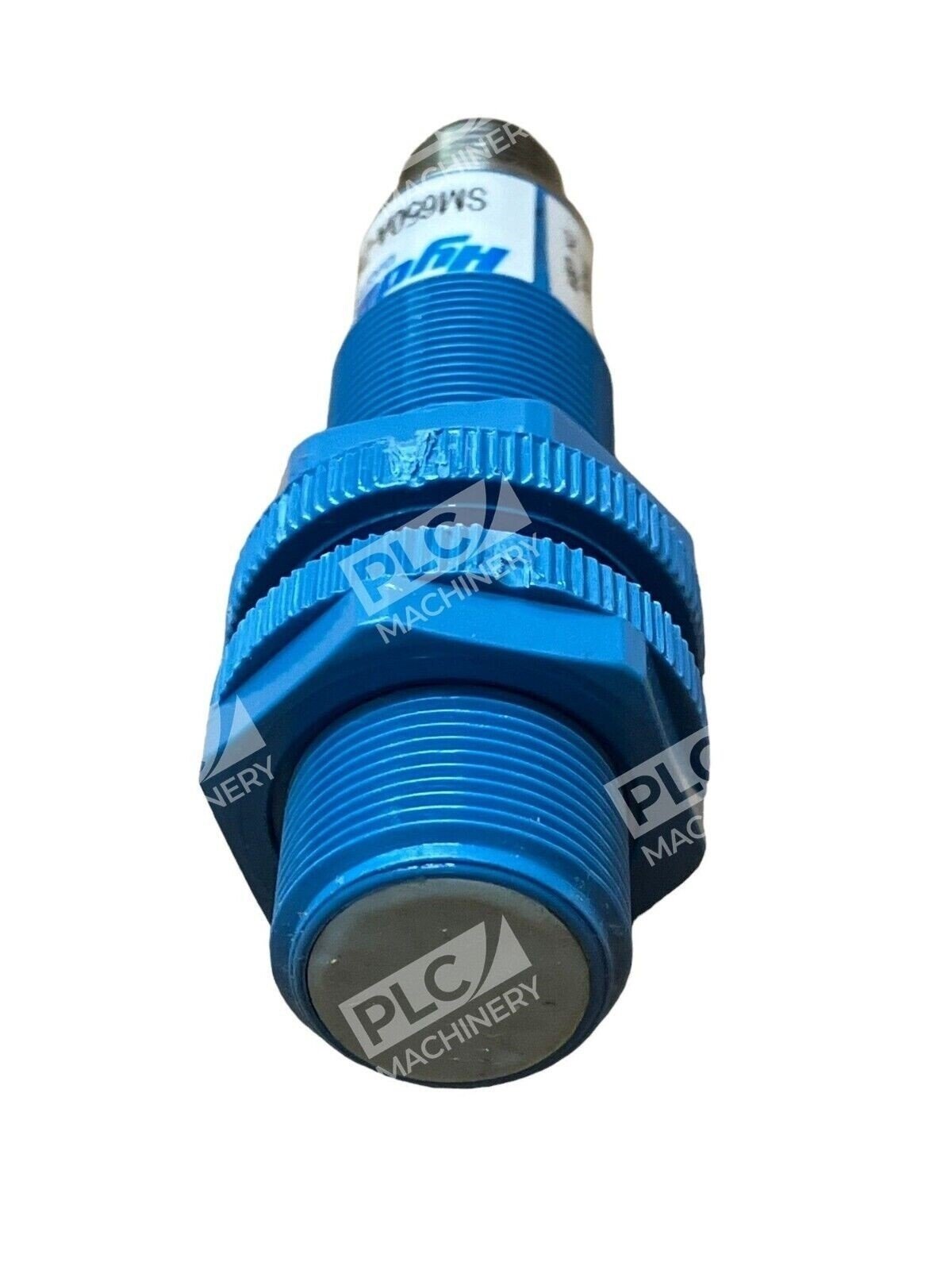

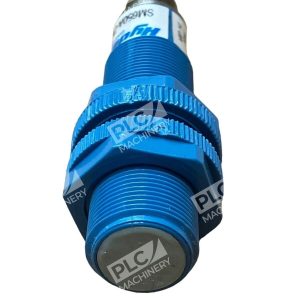

| Housing Style | M18 cylindrical barrel |

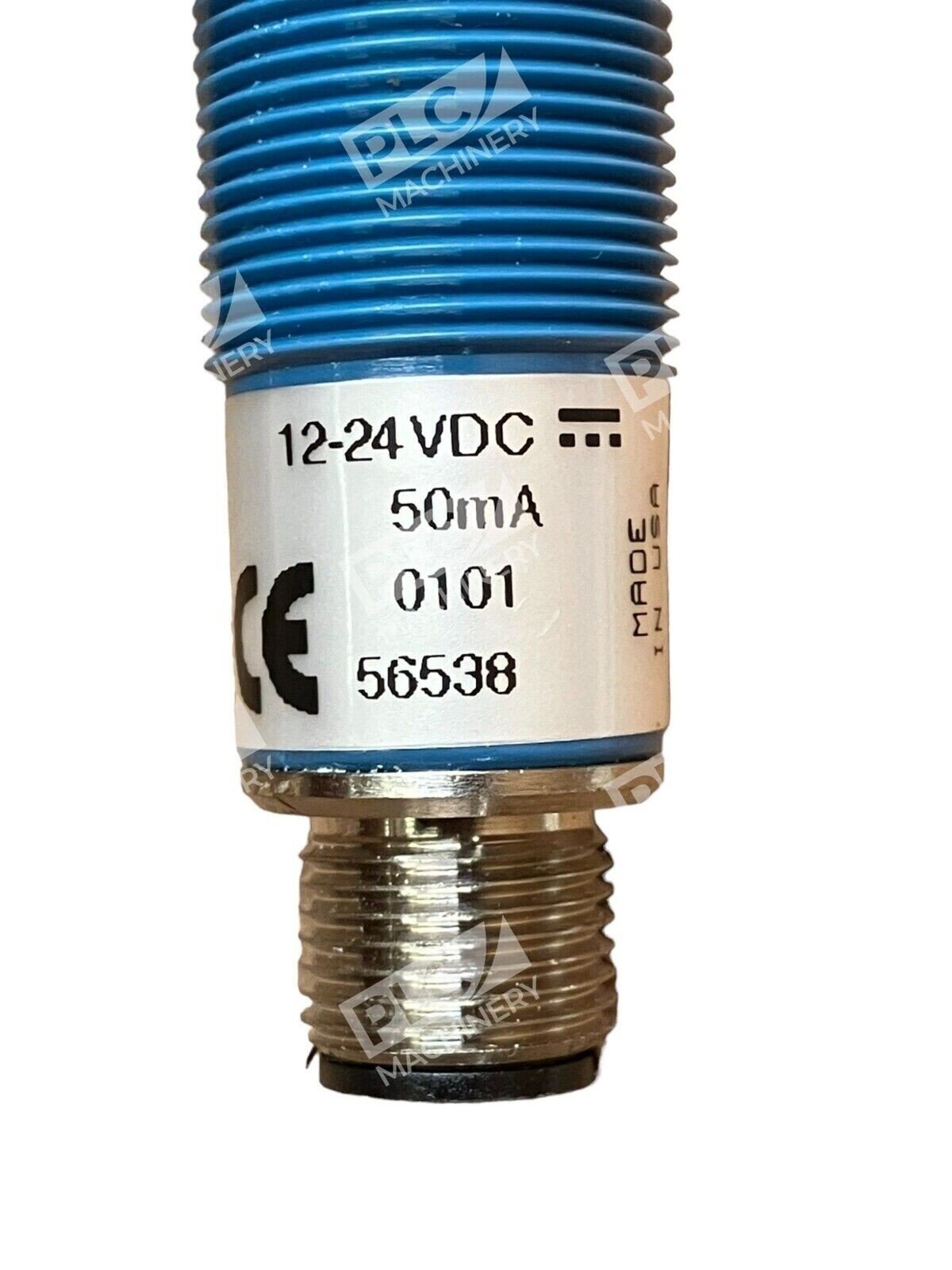

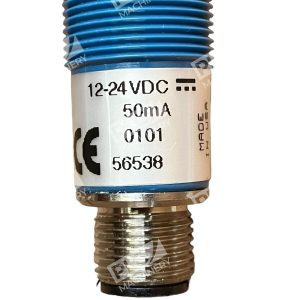

| Operating Voltage | 12–24 VDC |
| Output Type | PNP/NPN discrete |

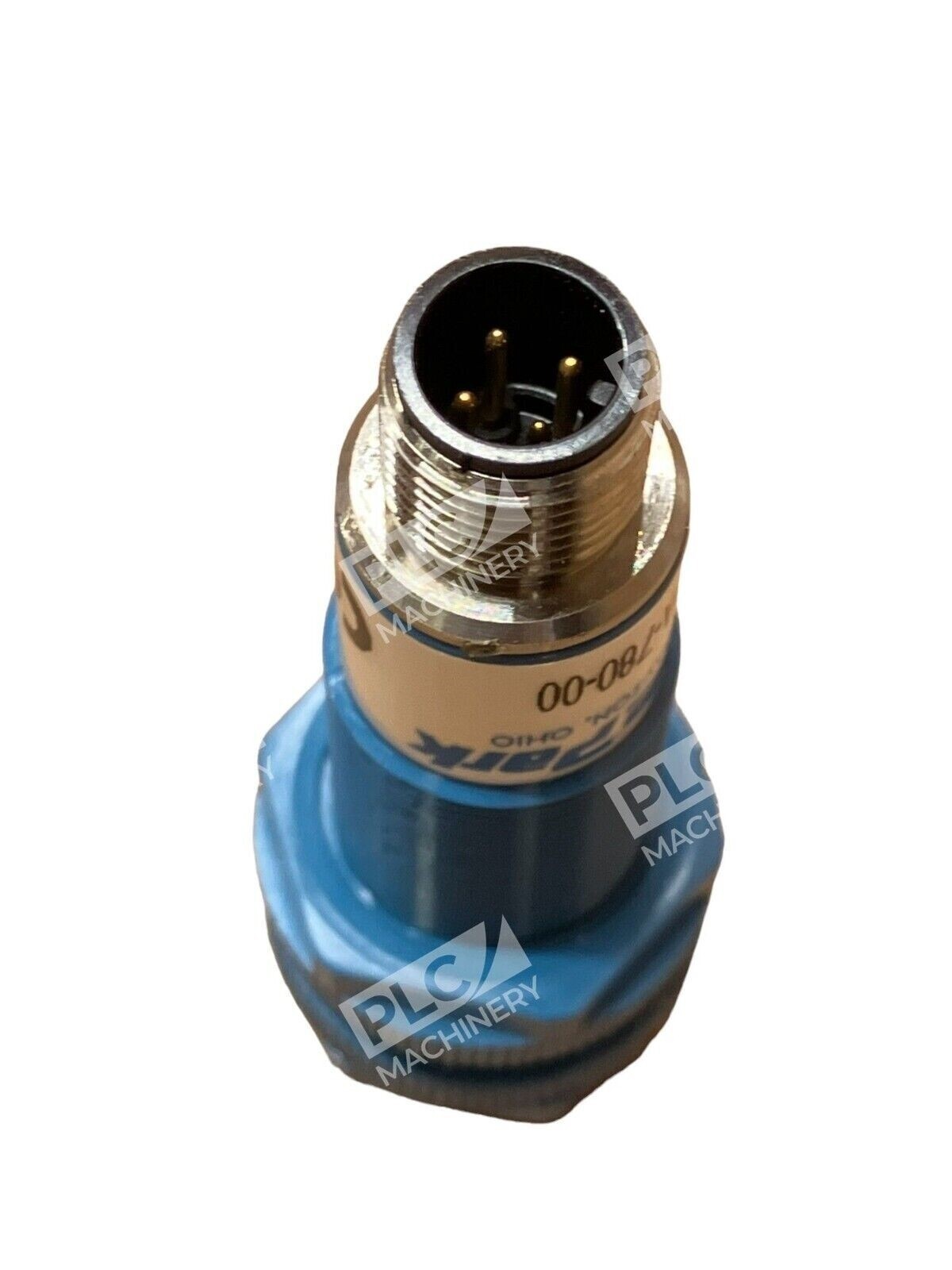

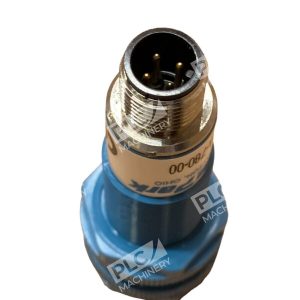

| Electrical Connection | M12 4-pin connector |
| Sensing Technology | Ultrasonic |
| Manufacturer | Hyde Park / Telemecanique |
| Product Series | SM650A |
| Condition | New in Box |
Typical Applications
- Proximity detection for conveyors and material handling systems
- Liquid level sensing in tanks and containers
- Object counting and position detection
- Packaging line automation
- Assembly line sensor networks
- Distance measurement in challenging environments
Compatibility & Replacements
Compatible With
- Schneider Electric / Telemecanique automation controllers
- Allen-Bradley PLC input modules (via standard discrete 12-24 VDC wiring)
- Siemens SIMATIC control systems
- Mitsubishi automation platforms
- Most industrial PLC systems accepting 12-24 VDC discrete sensor inputs
- EtherNet/IP and PROFIBUS gateways (via discrete I/O modules)
Replaces / Drop-In Replacement For
The SM650A-780-00 shares the M18 form factor and M12 connection with other SM650A ultrasonic sensor variants. Verify compatibility with your system integrator before ordering. Other SM650A variants include SM650A-216-00, SM650A-700-00AA, and SM650A-448-00 configurations.
Works With
- Discrete I/O input modules on control systems
- Standard 24 VDC power supplies
- Rockwell Automation CompactLogix and ControlLogix systems (via input terminals)
- Siemens TIA Portal and SIMATIC projects (discrete input wiring)
- Any PLC accepting standard 24 VDC digital inputs
