Overview

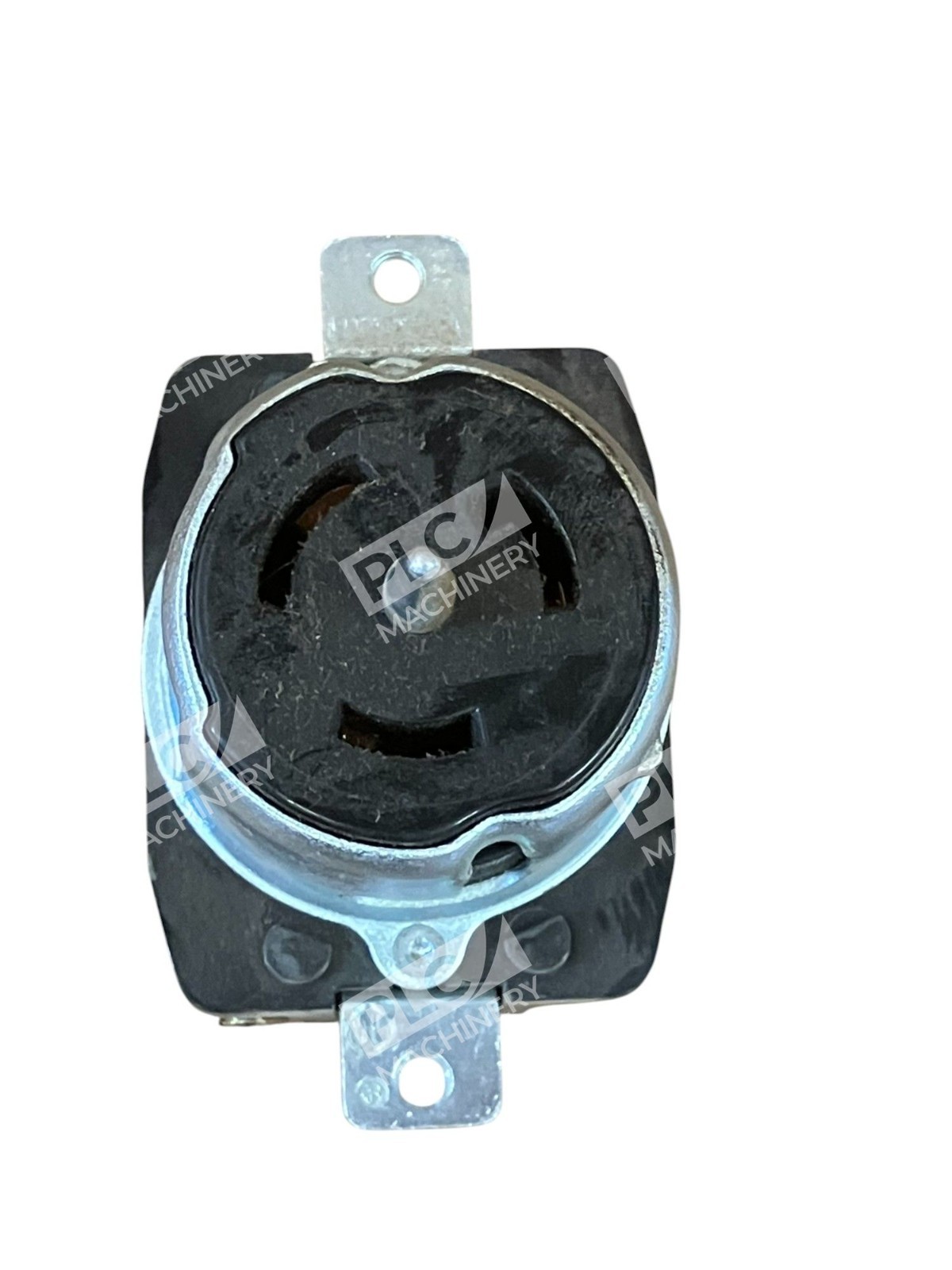

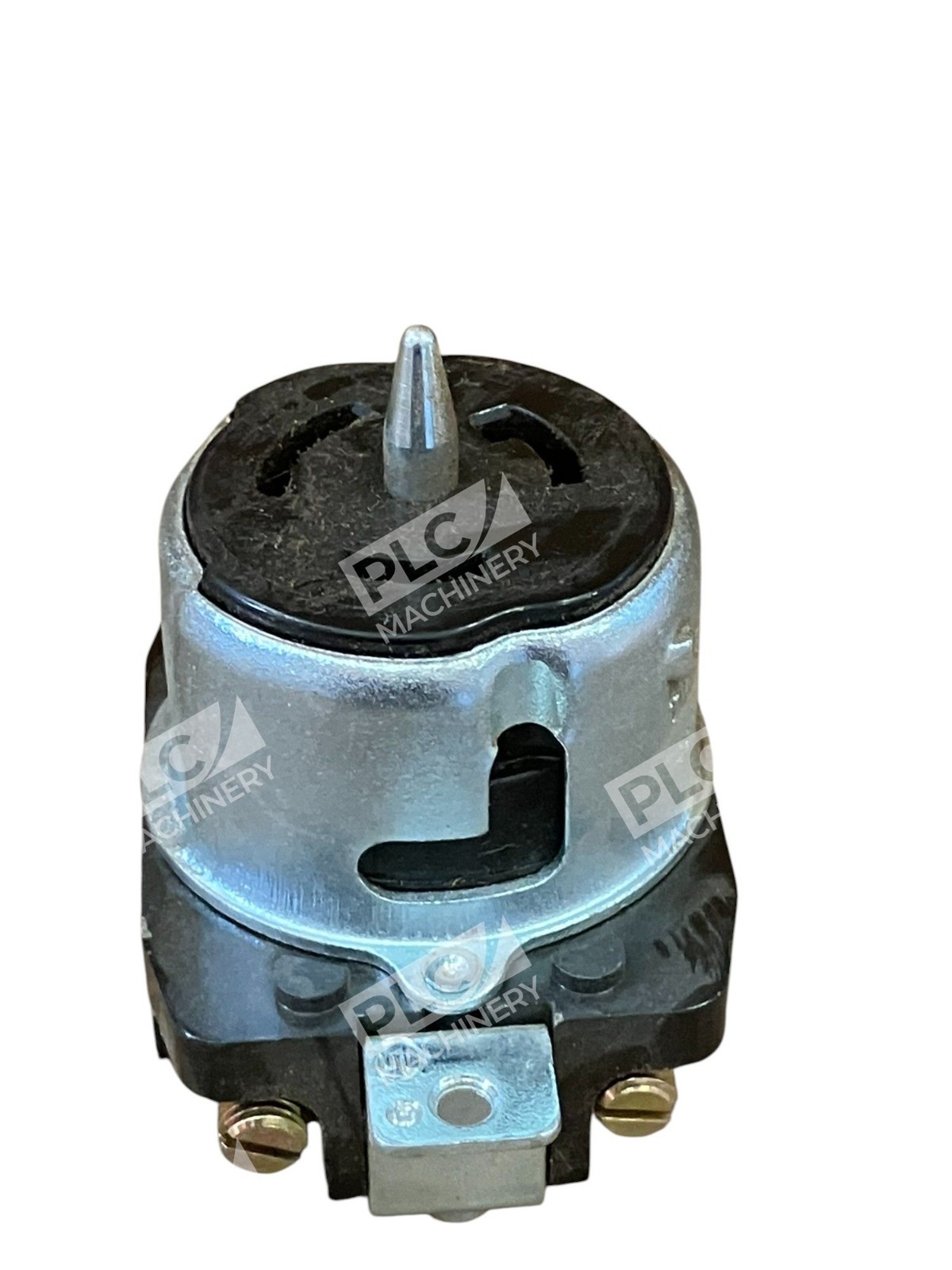

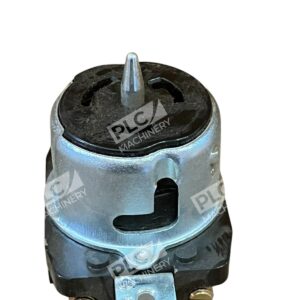

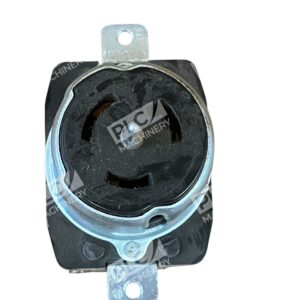

The Hubbell CS8469 is a 50-amp twist-lock receptacle designed for demanding industrial and commercial power distribution. Built by Hubbell Wiring Device-Kellems, this 50A 480V AC unit features 2-pole 3-wire grounding configuration with non-NEMA screw terminals. Hubbell’s 50 Amp Twist-Lock devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. This receptacle pairs with Hubbell’s matching plugs to deliver secure, turn-and-lock connections that prevent accidental disconnection.
Key Features

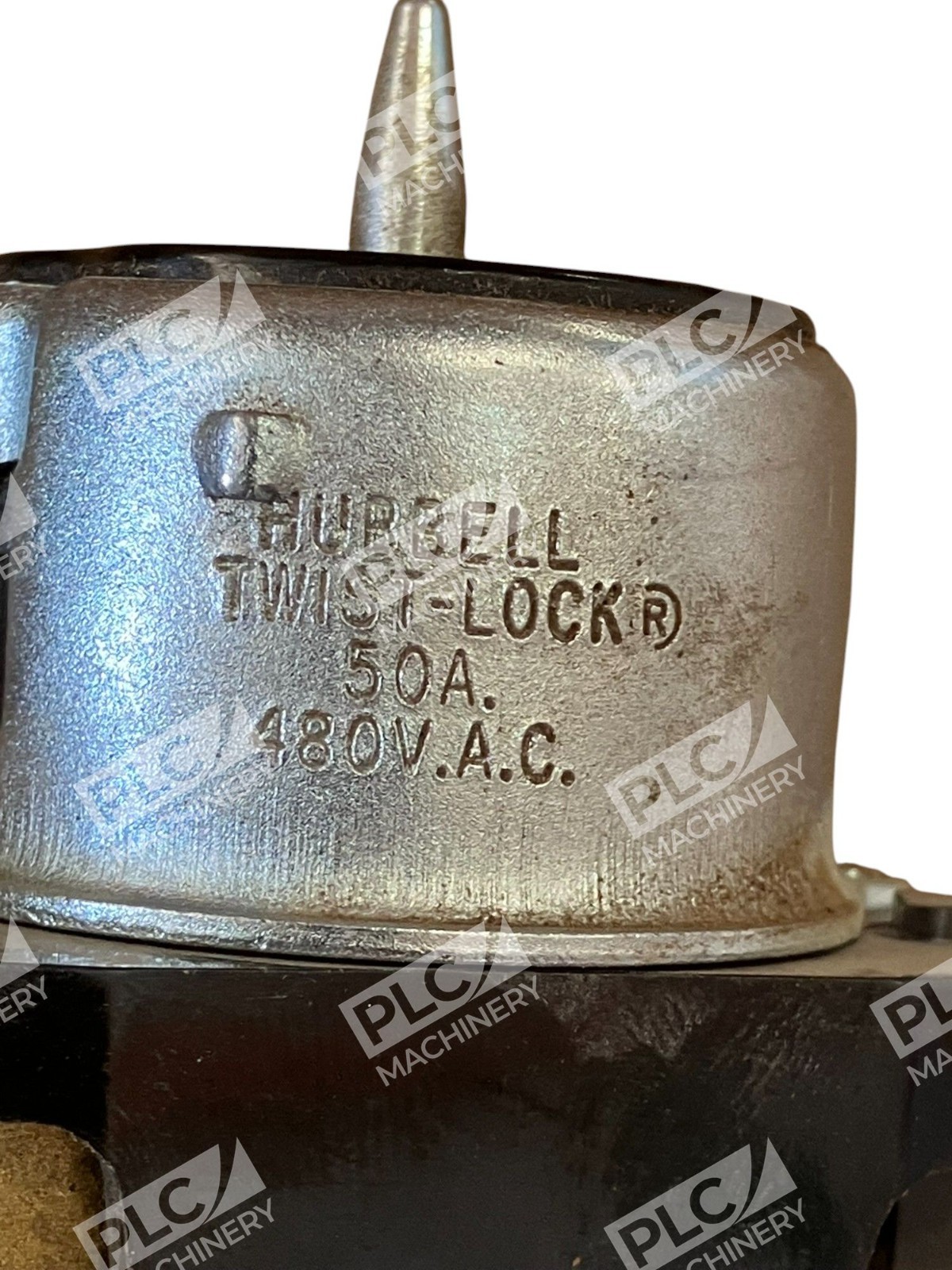

- 50A rating at 480V AC three-phase
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- Cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief
- Rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices
- Non-NEMA configuration for industrial twist-lock applications
- Black melamine finish for durability and visual identification
Technical Specifications
The Hubbell CS8469 meets industrial electrical standards with the following verified specifications:

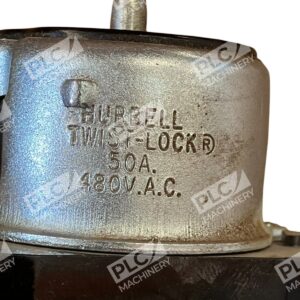

- Current Rating: 50 A
- Voltage Rating: 480V AC
- Phase: Single
- Poles: 2
- Wire Ground: 3-wire grounding
- Configuration: Non-NEMA

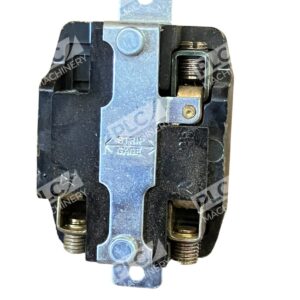

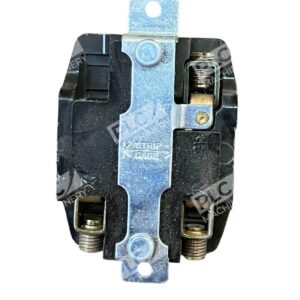

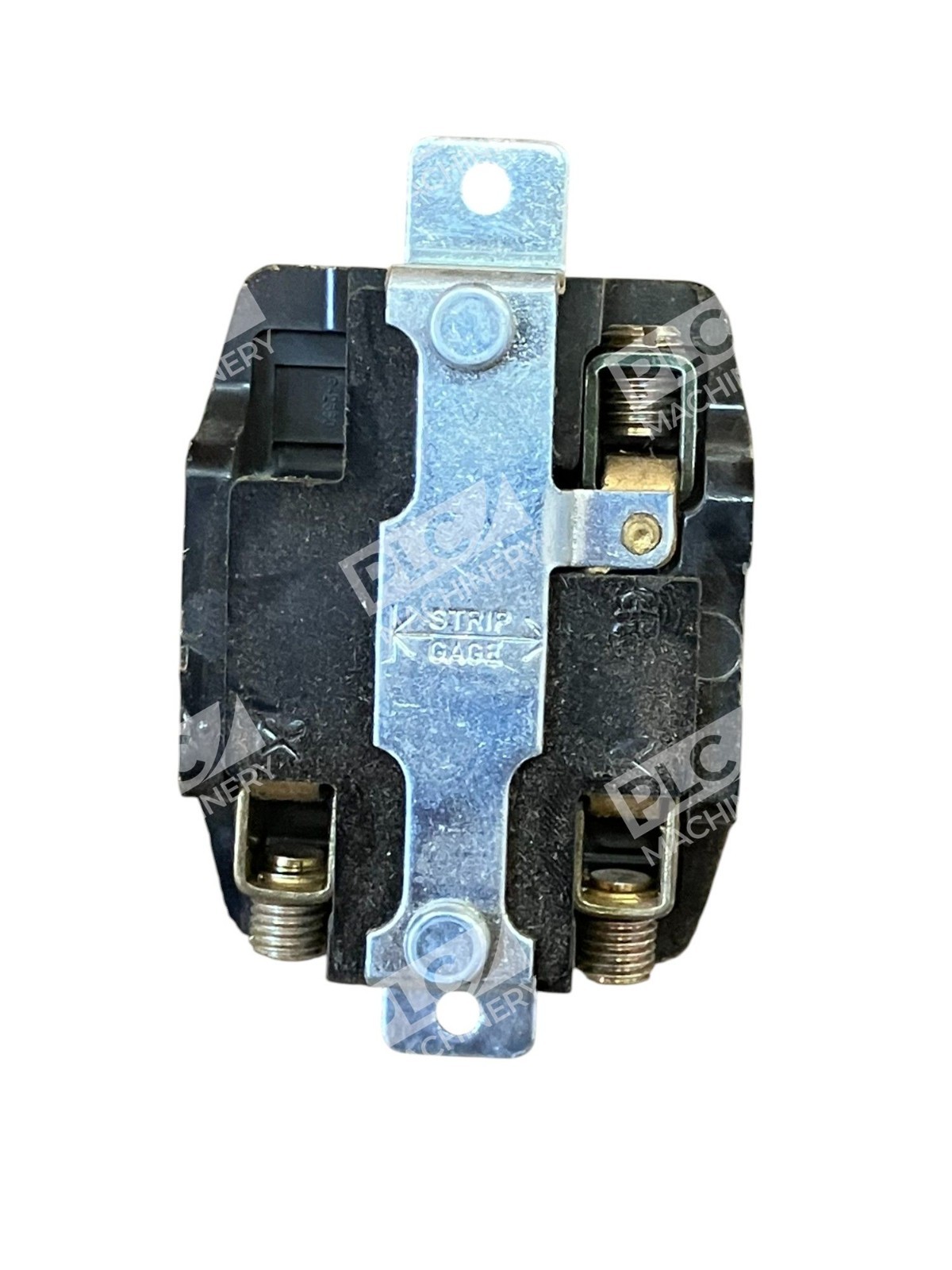

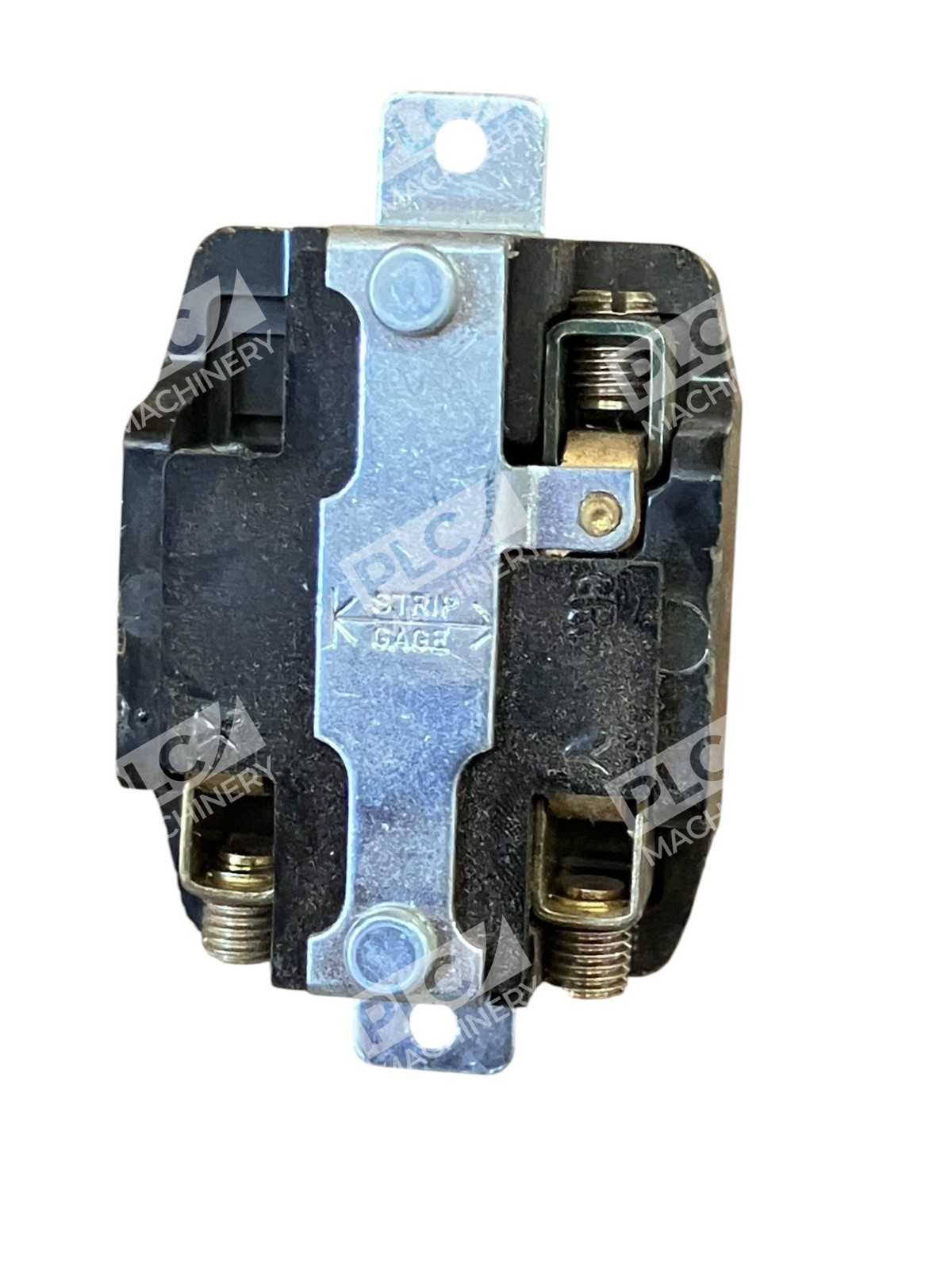

- Terminal Type: Screw terminal
- Wire Size Range: #10 AWG – #6 AWG solid or stranded copper wire only
- Dimensions: 2.69 in x 2.12 in x 2.36 in
- Weight: 6.4 ounces
- Housing Material: Thermoset nylon with armored design
- Color: Black

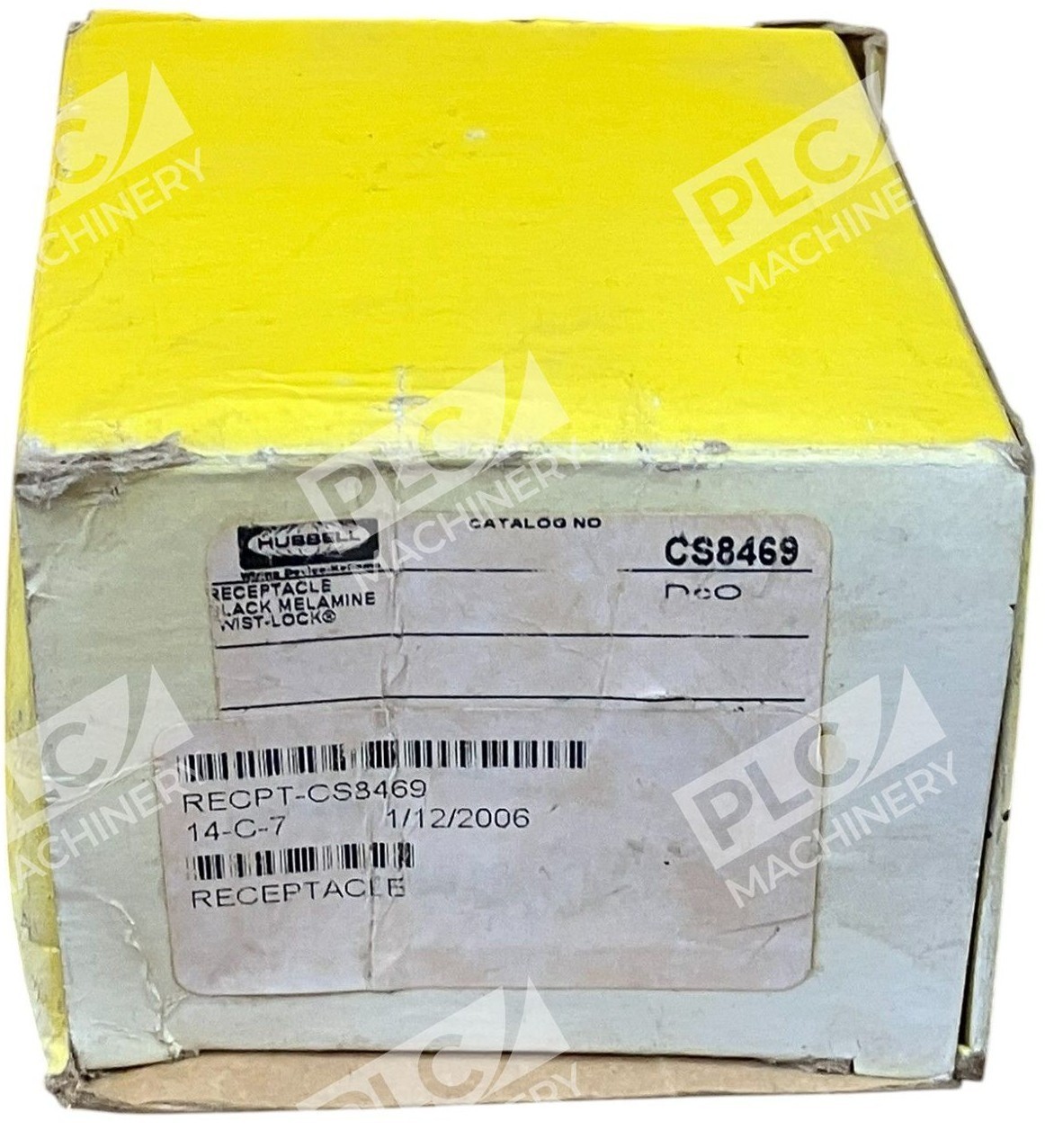

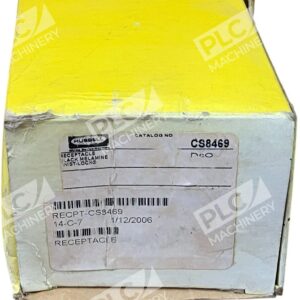

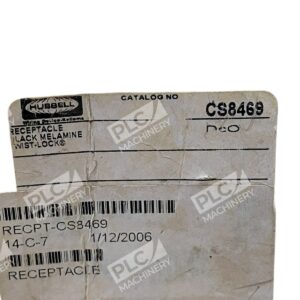

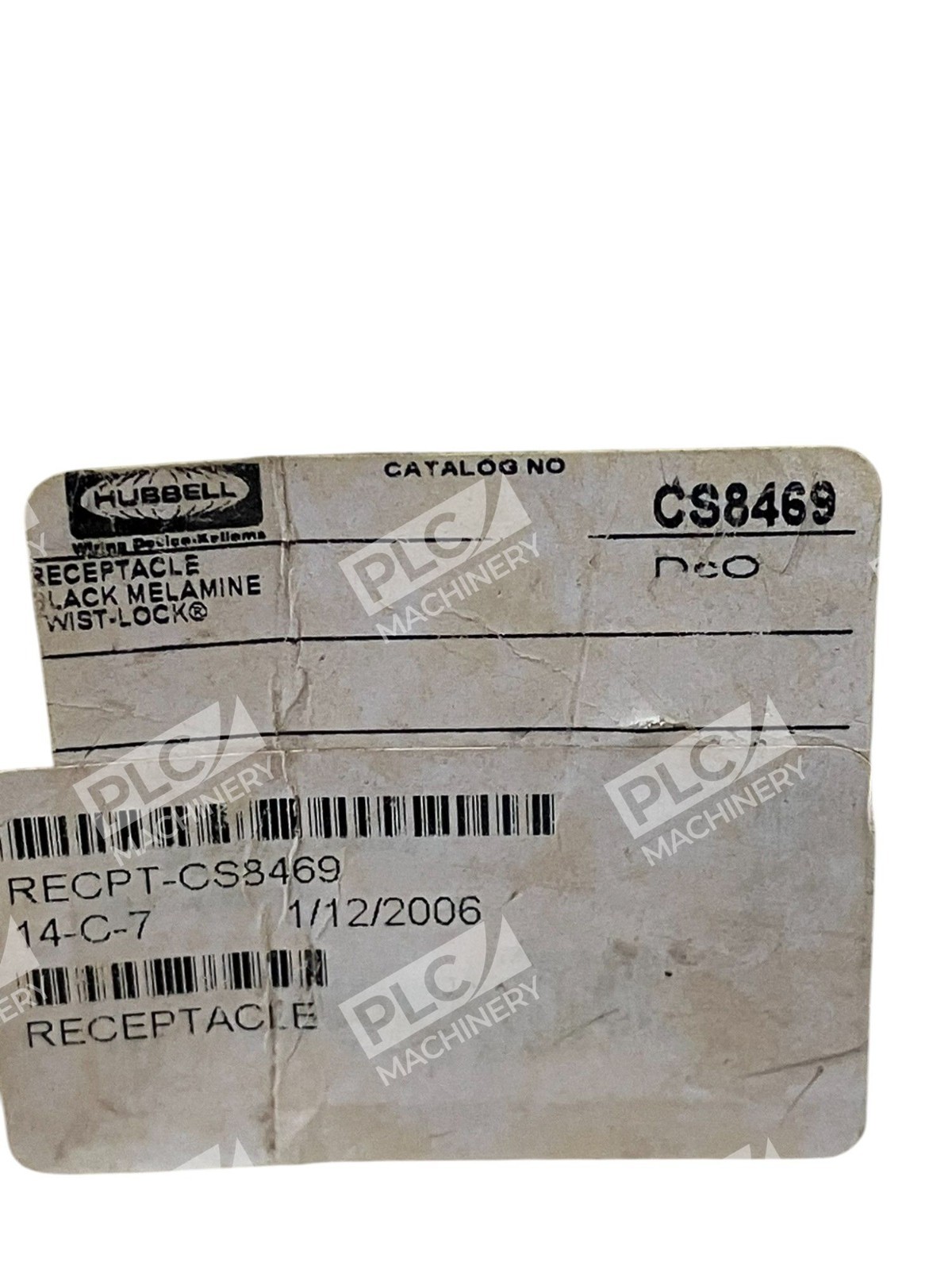

- Manufacturer Part Number: CS8469
- UPC: 783585876757
Typical Applications
The Hubbell CS8469 is engineered for demanding industrial environments where heavy-duty, reliable power connections are essential. Common applications include:
- Industrial machinery and motor control circuits
- Heavy equipment power distribution
- Construction and temporary power installations
- Data centers and facility infrastructure
- Manufacturing and production environments requiring 480V three-phase power
- Outdoor and harsh-environment electrical systems
Compatibility & Replacements
Compatible With
- Hubbell Wiring Device-Kellems 50A twist-lock plugs and connectors
- Industrial 480V AC three-phase power systems
- Non-NEMA twist-lock ecosystems and portable power equipment
- Heavy-duty temporary and permanent power distribution installations
Replaces / Drop-In Replacement For
- Earlier versions of Hubbell 50A 480V twist-lock receptacles
- Verify compatibility with your specific equipment before ordering for exact replacement applications
Works With
- Hubbell CS8465C and similar 50A 480V twist-lock male plugs
- Standard #10 to #6 AWG copper conductor cables
- Industrial electrical distribution systems and temporary power setups
