Overview

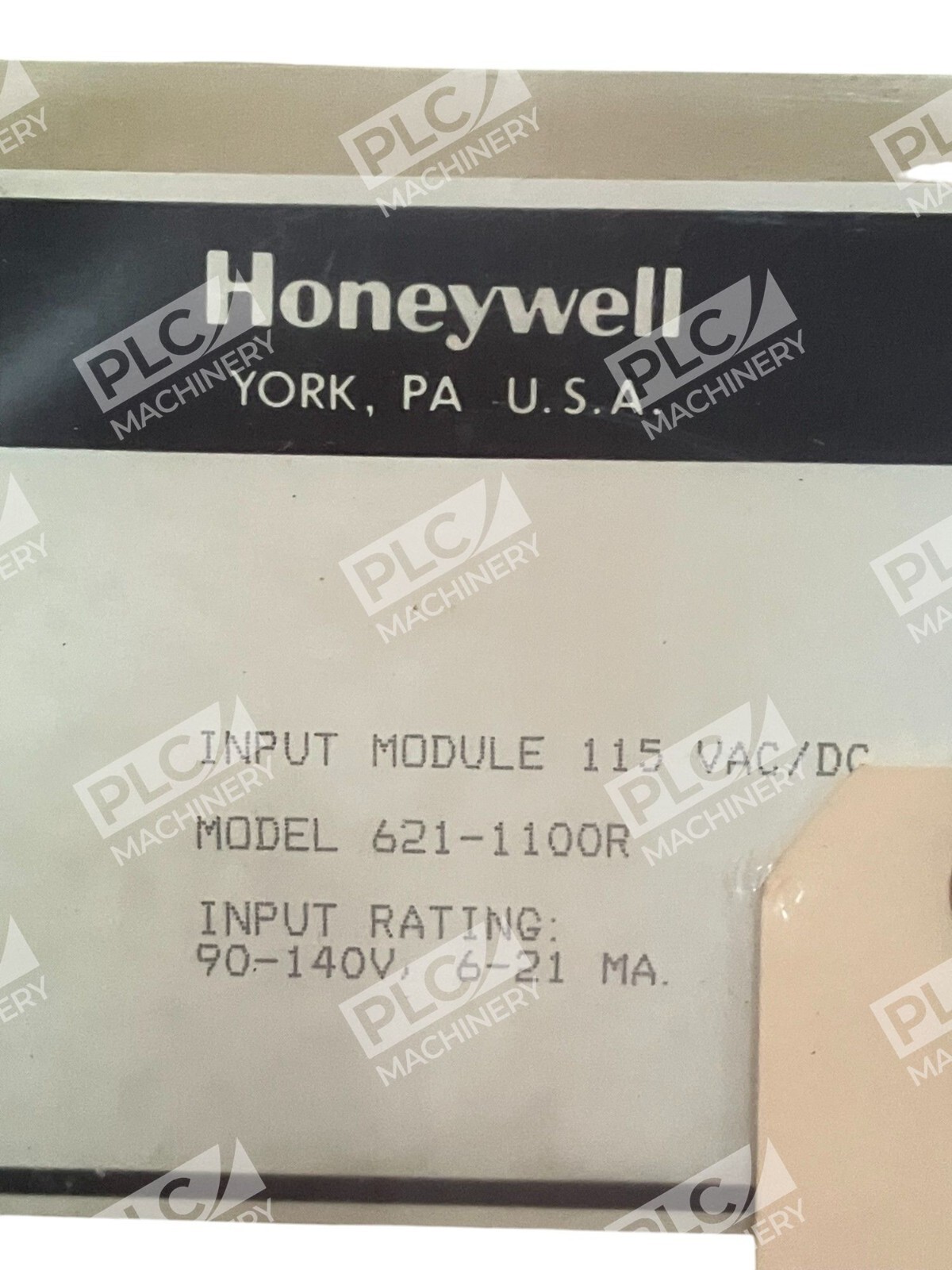

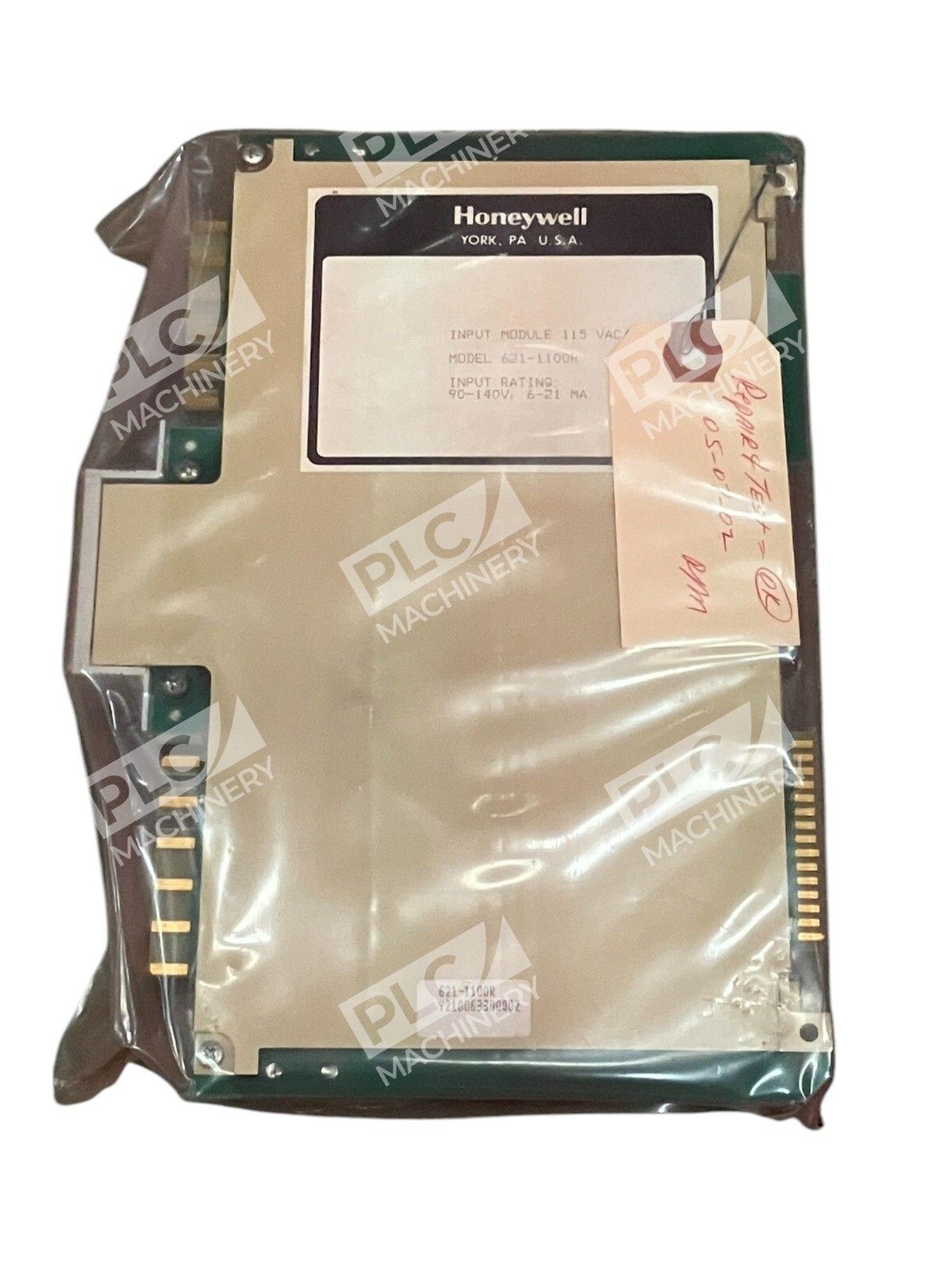

The Honeywell 621-1100R is an 8-channel discrete input module engineered for integration into Honeywell 620/621 Distributed Control Systems. This module converts field digital signals from switches, sensors, and contact closures into data the controller can process. Its dual input voltage rating (115VAC and 115VDC isolated) provides flexibility for diverse field device applications without requiring separate modules.
Key Features
- 8 discrete input channels with isolated sensing
- 115VAC/115VDC input voltage support (selectable per channel)
- Hot-swap capable (“R” suffix design) – replace without powering down the rack
- DATA 3 signal classification for accurate edge detection and debouncing
- Point-to-point isolation reduces noise interference in industrial environments
- Standard DIN-rail mountable backplane connection
Technical Specifications
- Input Channels: 8
- Input Voltage Range: 115VAC or 115VDC (configurable per point)
- Input Current: 6–21 mA (per the module designation)
- Isolation: AC/DC isolated between channels
- Signal Classification: DATA 3
- Hot-Swap Capable: Yes (R variant)
- Mounting: Standard Honeywell 620/621 backplane
- Operating Environment: Industrial control enclosure
Typical Applications
- Discrete process monitoring and equipment status detection
- Alarm and interlock signal acquisition from field devices
- General purpose digital input for legacy DCS retrofit and upgrades
- Integration with existing Honeywell TDC 2000/3000 systems
- Manufacturing plant floor automation requiring reliable AC/DC switching signal capture
Compatibility & Replacements
Compatible With
- Honeywell 620 Series controllers
- Honeywell 621 Series controllers
- Honeywell TDC 2000 distributed control systems
- Honeywell TDC 3000 distributed control systems
- Standard Honeywell Logic Manager I/O backplanes
Replaces / Drop-In Replacement For
- Honeywell 621-1100 (non-hot-swap version – verify backplane compatibility)
- Legacy Foxboro EVO I/O modules with equivalent pin configurations (verify with system integrator)
Works With
- Honeywell Control Station software and engineering tools
- Honeywell Advanced Process Manager (APM) systems
- Field devices: DC voltage switches, AC-rated sensors, contact closures, limit switches
- Standard industrial field wiring (verify terminal capacity and gauge compatibility)
