Overview

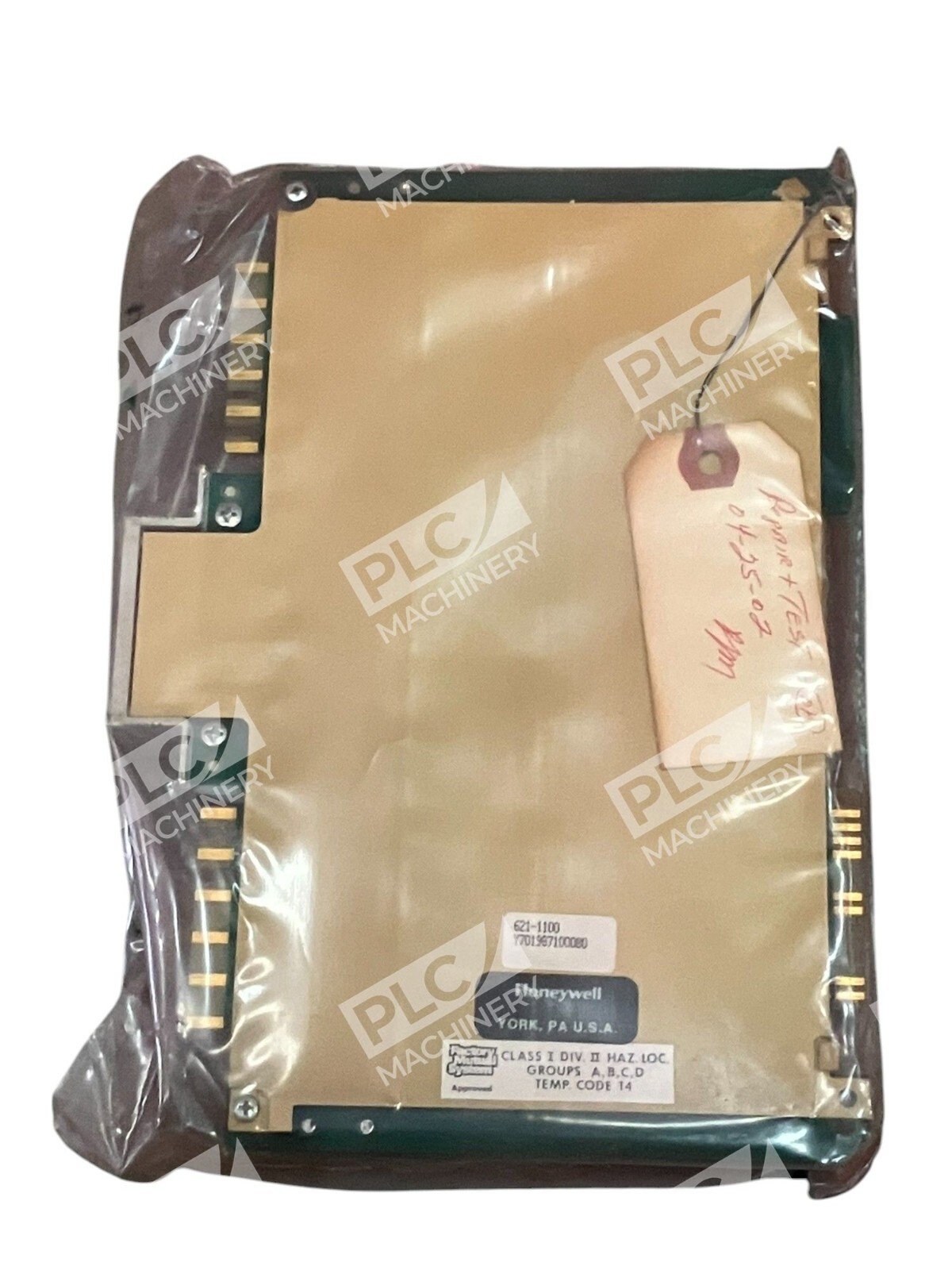

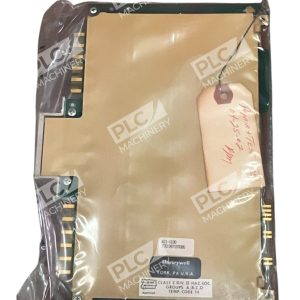

The Honeywell 621-1100 is a discrete input module engineered for integration with Honeywell 620/621 Distributed Control Systems (DCS) and TDC systems. This 8-channel input module provides isolated signal acquisition from industrial field devices, making it essential for process control and monitoring applications where reliable digital input capture is critical.
Key Features
- 8-channel discrete input module with 115VAC/DC isolated inputs
- Compatible with Honeywell 620/621 and TDC 2000/3000 backplanes
- Flexible AC/DC voltage input support for diverse field device interfacing
- Form-fit replacement for legacy Honeywell I/O modules
- Hot-swap capable (R-suffix versions) for unplanned downtime reduction
- Robust industrial design for harsh process environments
Technical Specifications
| Input Channels | 8 |
| Input Voltage | 115VAC/DC isolated |
| Signal Type | Discrete (digital) — switches, sensors, contact closures |
| Isolation | Isolated inputs per IEEE 518 |
| Module Type | Discrete Input Module |
| Compatible Backplane | Honeywell 620/621, TDC 2000/3000 |
| Mounting | Plug-in module for rack-based systems |
| Related Model (Hot-Swap) | 621-1100R (hot-swap capable) |
Typical Applications
- Oil and gas production control systems with legacy DCS infrastructure
- Petrochemical plant process monitoring and shutdown logic
- Power generation and fossil fuel plant safety interlocks
- Discrete event monitoring in manufacturing and batch processes
- Sensor and switch input acquisition for TDC 2000/3000 systems
- Equipment status monitoring and fault detection networks
Compatibility & Replacements
Compatible With
- Honeywell 620 Series Distributed Control Systems
- Honeywell 621 Series Distributed Control Systems
- Honeywell TDC 2000 Process Control Systems
- Honeywell TDC 3000 Process Control Systems
- Honeywell Logic Controller 621 backplanes
- Foxboro EVO I/O migration platforms (plug-and-play compatibility)
Replaces / Drop-In Replacement For
- Honeywell 621-1100R (identical function, with hot-swap capability)
- Legacy 620-series discrete input modules requiring form-fit compatibility
- TDC 2000/3000 8-point 115VAC/DC input modules
Works With
- Honeywell IPC 620 and 621 programmable logic controllers
- Field devices: limit switches, proximity sensors, flow switches, push-buttons
- Honeywell process control networks and SCADA systems
- Standard termination assemblies and I/O racks (no rewiring required)
- Existing process wiring and field device connections (plug-and-play migration)
