Overview

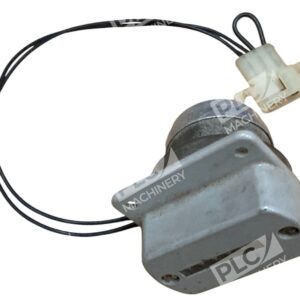

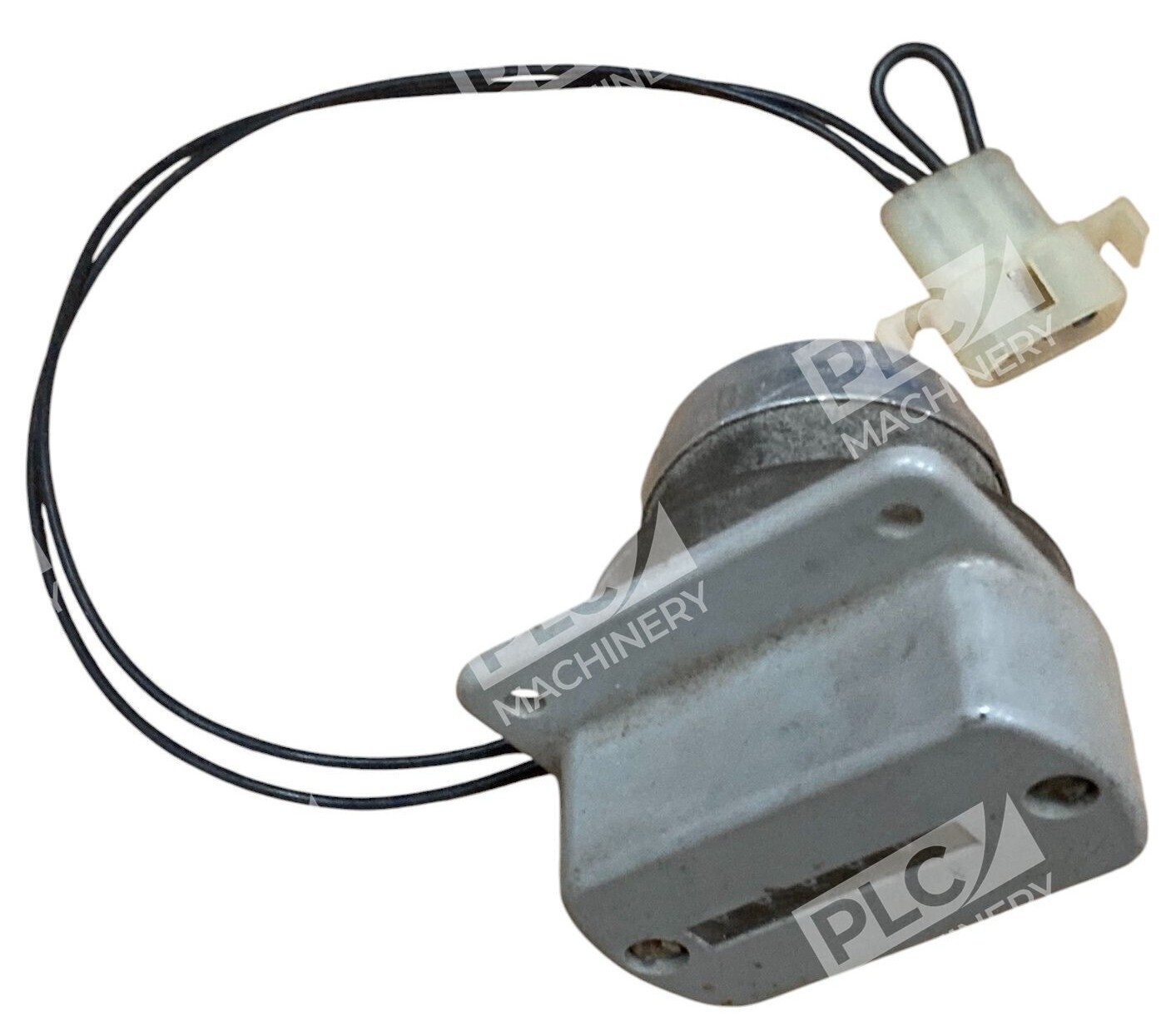

The Haydon P1072B1 is a robust 6-digit electronic counter totalizer manufactured by Haydon Switch & Instrument, a division specializing in precision timing and counting devices for industrial applications. This electronic counter is engineered to provide accurate pulse accumulation and running totals in manufacturing, automation, and process control environments. Operating at 2.1W power consumption with 24V DC input at 60Hz, the P1072B1 delivers dependable counting performance in compact form.
Key Features
- 6-digit LED or mechanical display for clear count readout
- 2 RPM motor drive for incremental counting and reset functions
- Low power consumption (2.1W) suitable for continuous operation
- 24V DC 60Hz power supply compatibility
- Industrial-grade construction for harsh shop-floor environments
- Manual reset capability for batch count applications

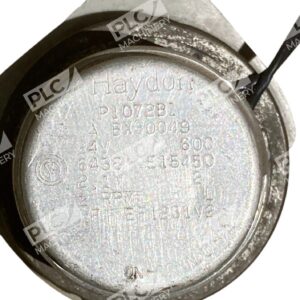

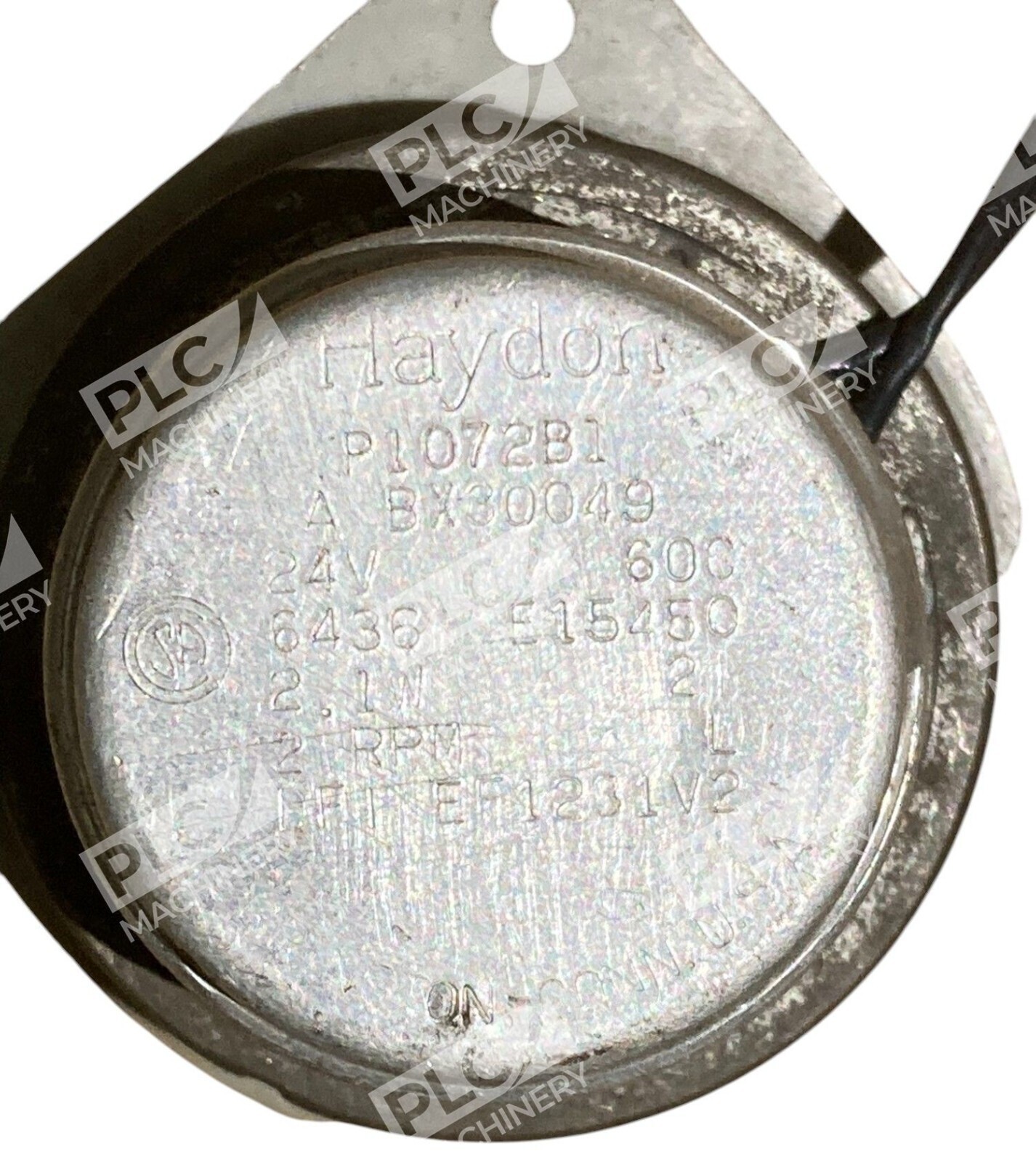

Technical Specifications
- Manufacturer: Haydon Switch & Instrument
- Part Number: P1072B1
- Display: 6-Digit Counter
- Power Rating: 2.1W
- Supply Voltage: 24V DC
- Frequency: 60Hz
- Motor Speed: 2 RPM
- Function: Electronic Totalizer / Pulse Counter
- Mounting: Panel or shaft-mount configuration
Typical Applications
- Production line batch counting and part accumulation
- Machine cycle monitoring and run totals
- Bottling, packaging, and cut-to-length processes
- Conveyor system product counting
- Industrial automation and control system integration
- Retrofit upgrades for legacy timing and counting systems
Compatibility & Replacements
Compatible With
- Haydon Switch & Instrument control systems and drive motors
- 24V DC industrial automation circuits
- 60Hz AC power distribution in North American facilities
- Shaft-drive and electronic pulse input counting applications
Replaces / Drop-In Replacement For
- Original equipment Haydon P1072B1 units
- Compatible with legacy Haydon totalizer and counter modules of the same form factor
- Verify compatibility with your system integrator or original equipment documentation before ordering
Works With
- Haydon synchronous motor drive assemblies
- Industrial 24V DC control relay logic and PLC systems
- Manual reset shafts and mechanical clutch mechanisms
- Panel-mounted indicator and display mounting brackets
