Overview

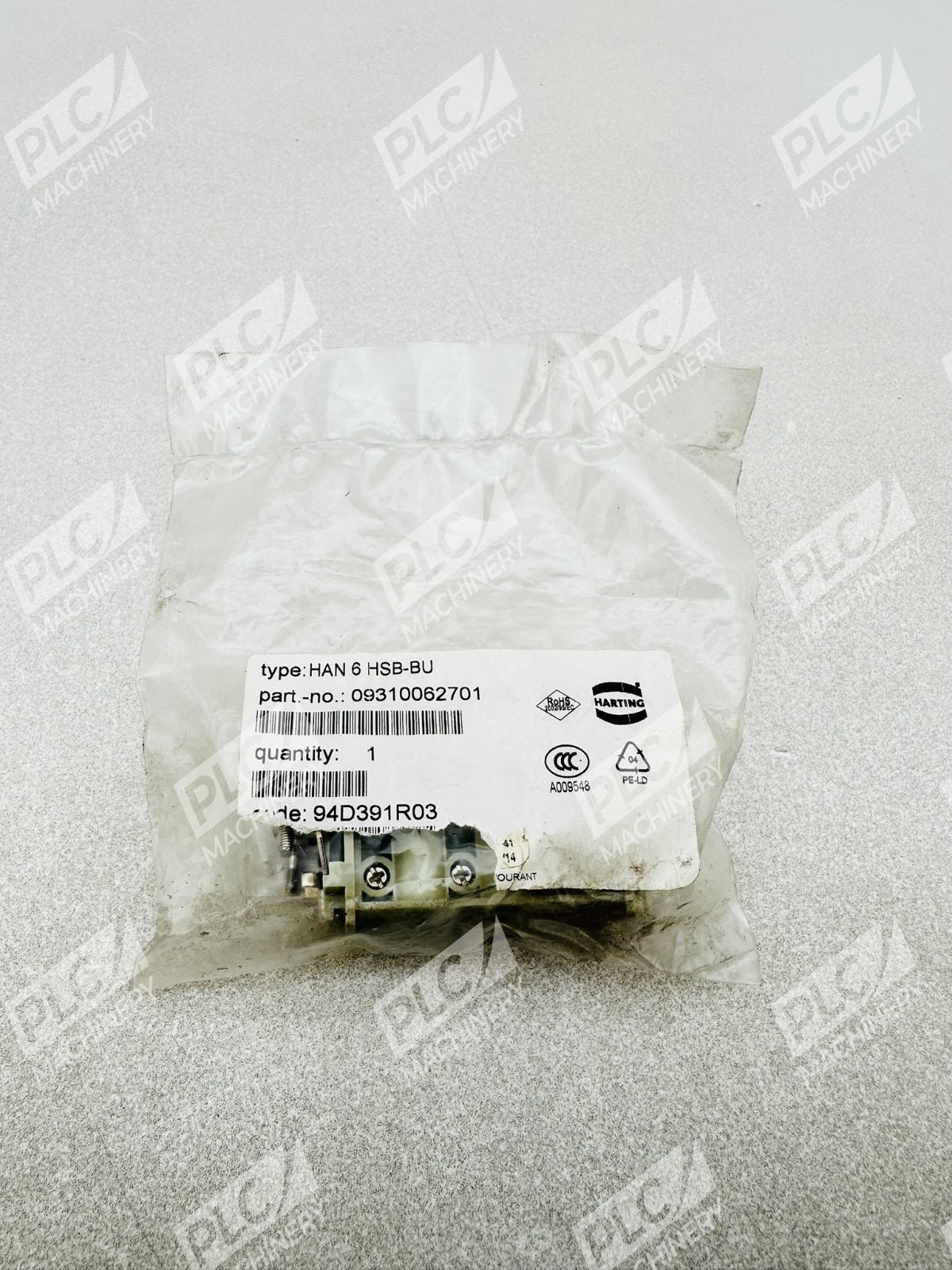

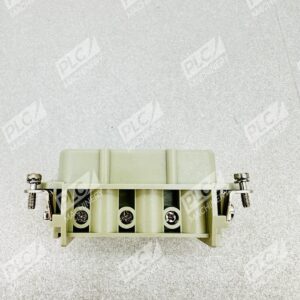

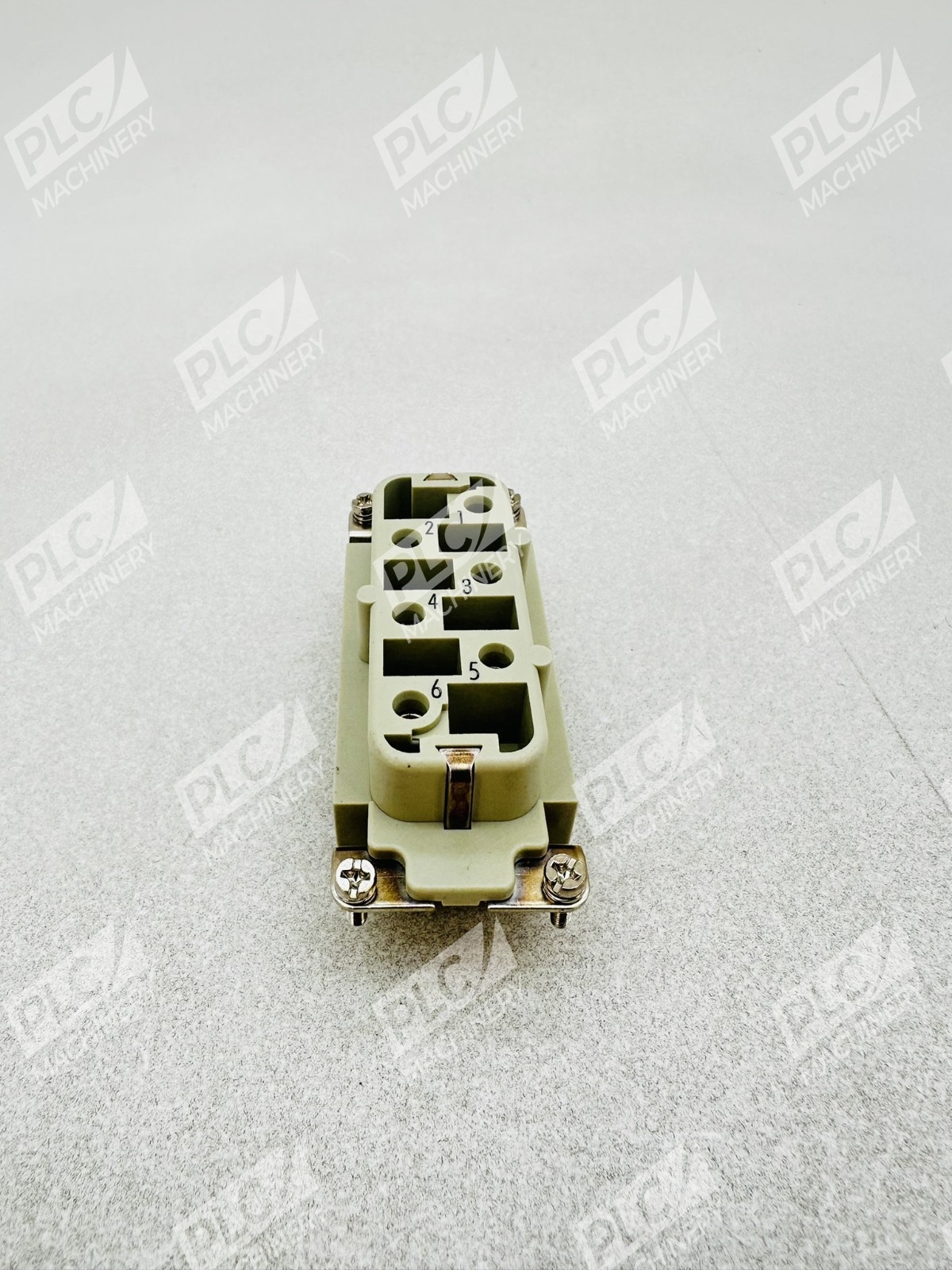

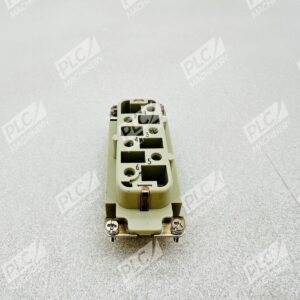

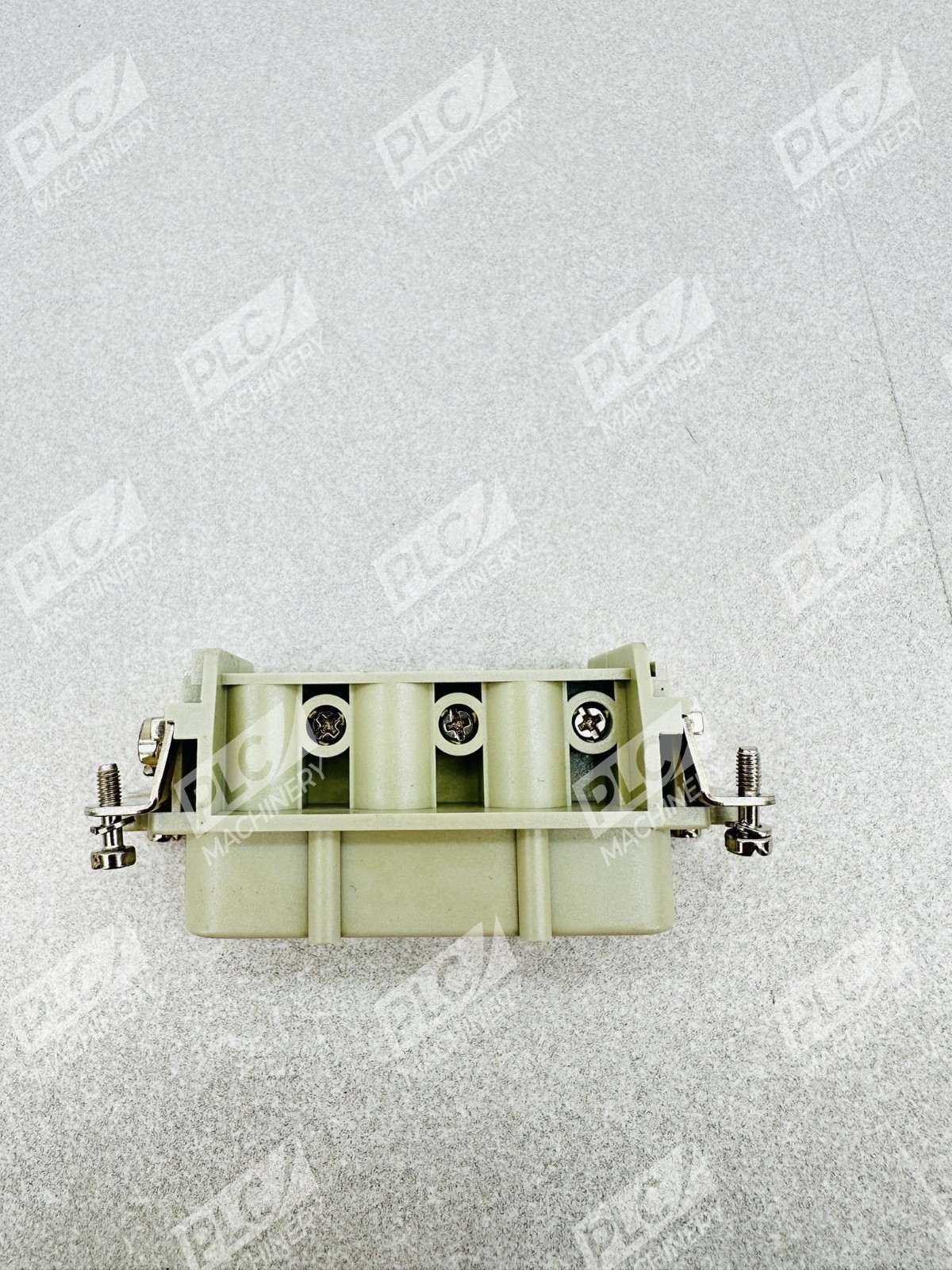

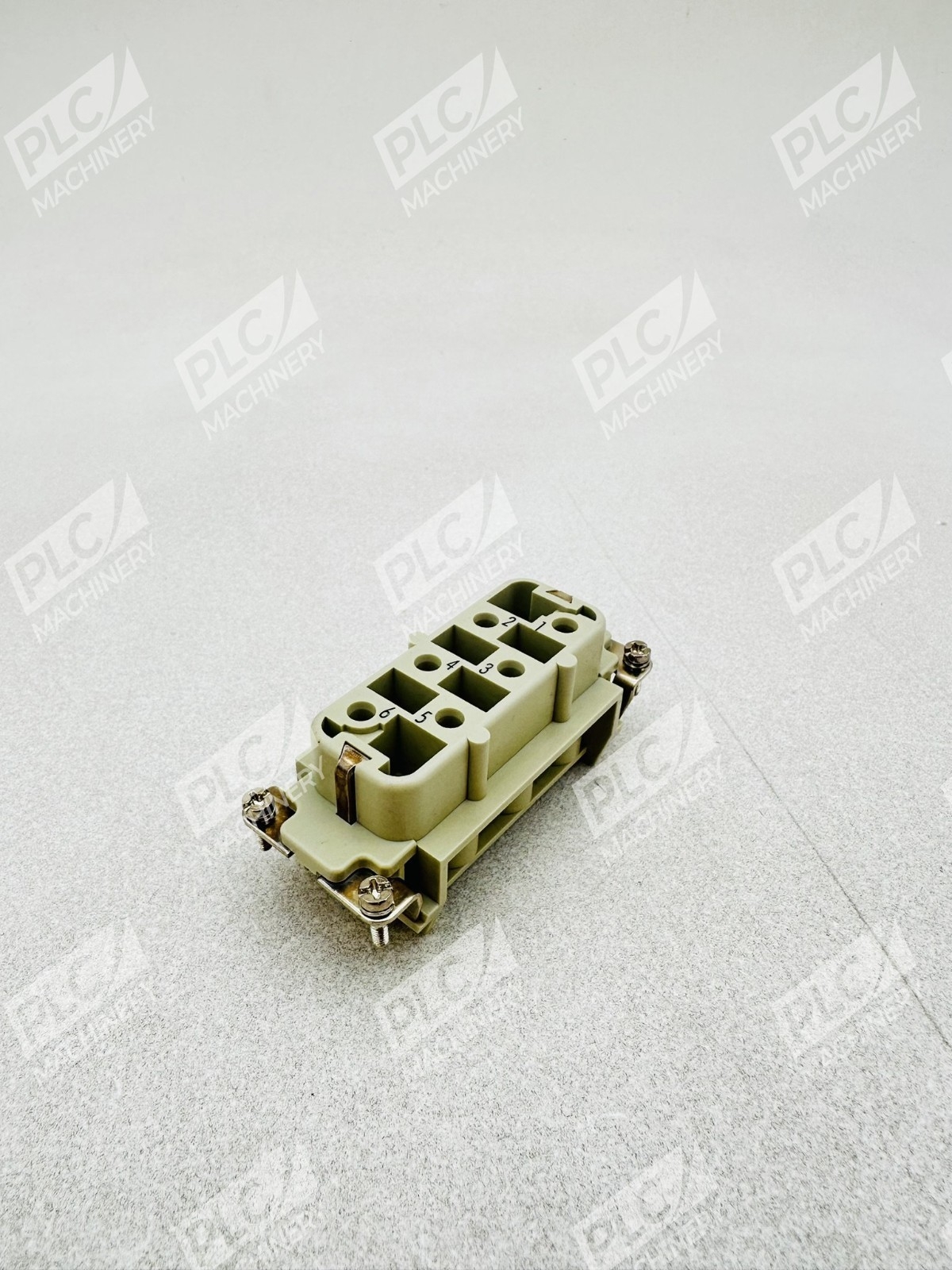

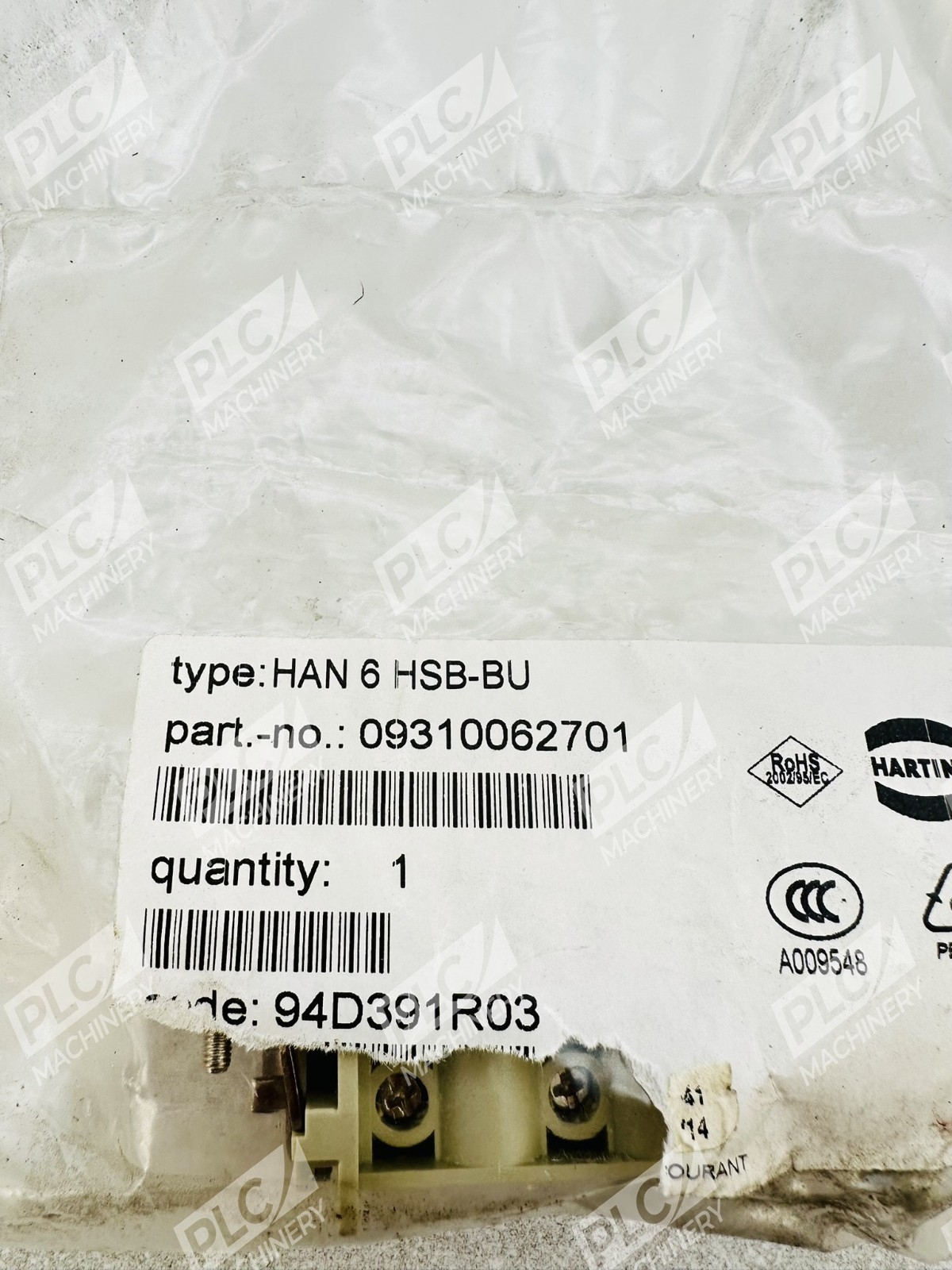

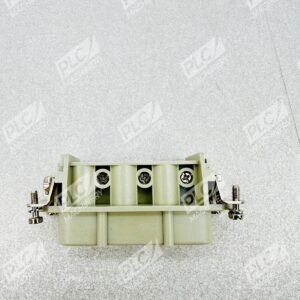

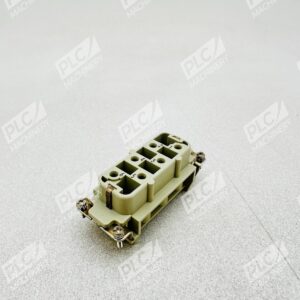

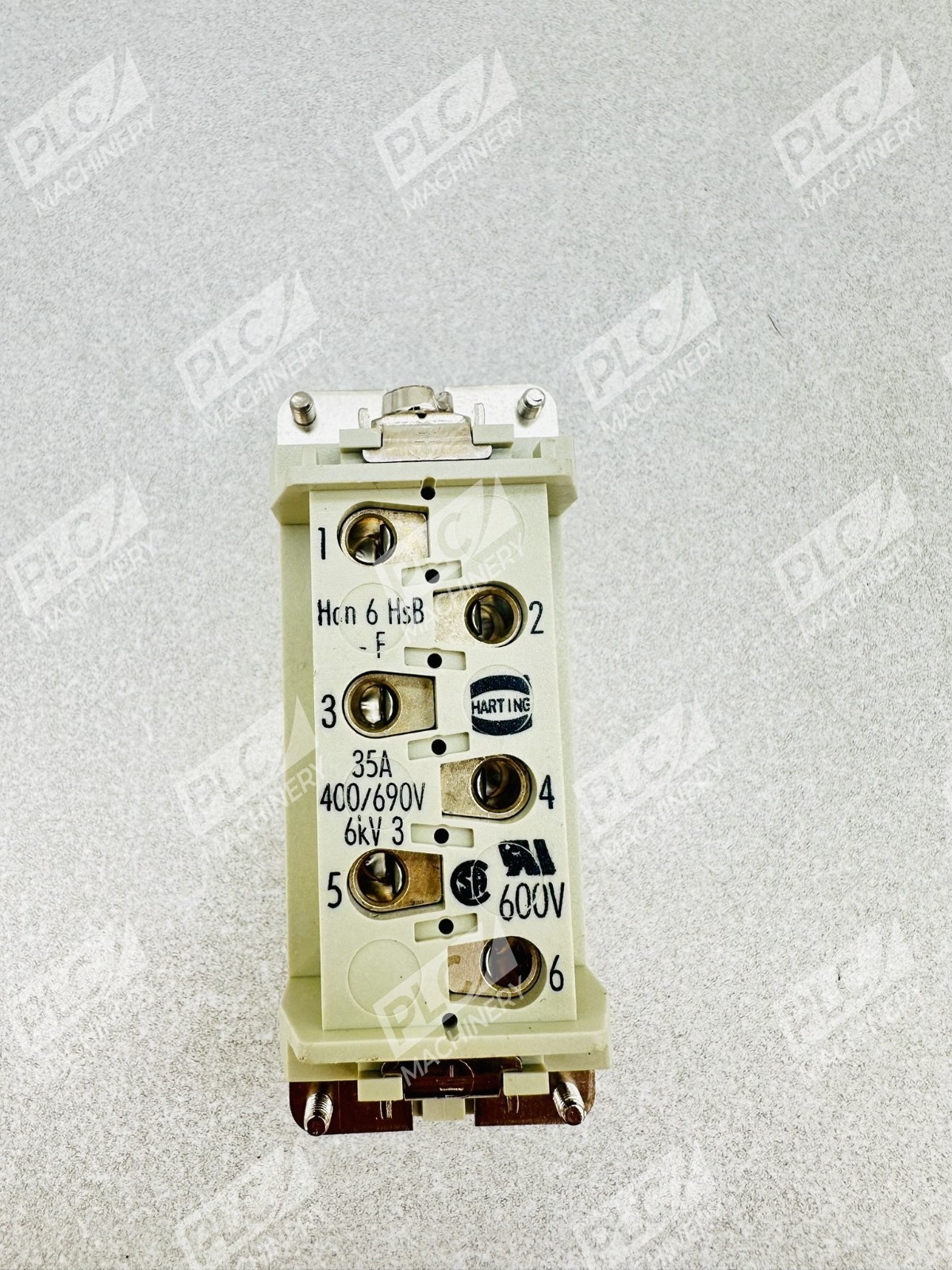

The Harting HAN 6 HSB-BU 09310062701 is a robust female insert connector designed for heavy-duty industrial power and signal transmission. This 6-position + PE (protective earth) contact insert integrates seamlessly into the Harting Han® HsB Series connector system for 16 B rectangular housings. With polycarbonate construction and silver-plated copper alloy contacts, the HAN 6 HSB-BU provides dependable connectivity in demanding machine-tool, automation, and energy-distribution environments.
Key Features
- 6 power contacts plus protective earth (PE) contact for safety-critical circuits
- Screw terminal design accommodates wire cross-sections from 1.4 to 6 mm²
- Rated for 35 A continuous current and up to 690 V (line-to-line) AC supply
- Polycarbonate insert body resists vibration, moisture, and thermal stress
- Silver-plated contacts ensure low contact resistance and corrosion resistance
- Heavy-duty rectangular profile integrates with Han® HsB Series 16 B connectors
Technical Specifications

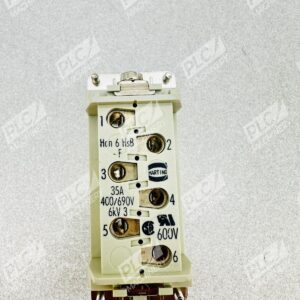

- Rated Current: 35 A
- Rated Voltage: 400 V (line-to-earth) / 690 V (line-to-line)
- Test Voltage: 6 kV

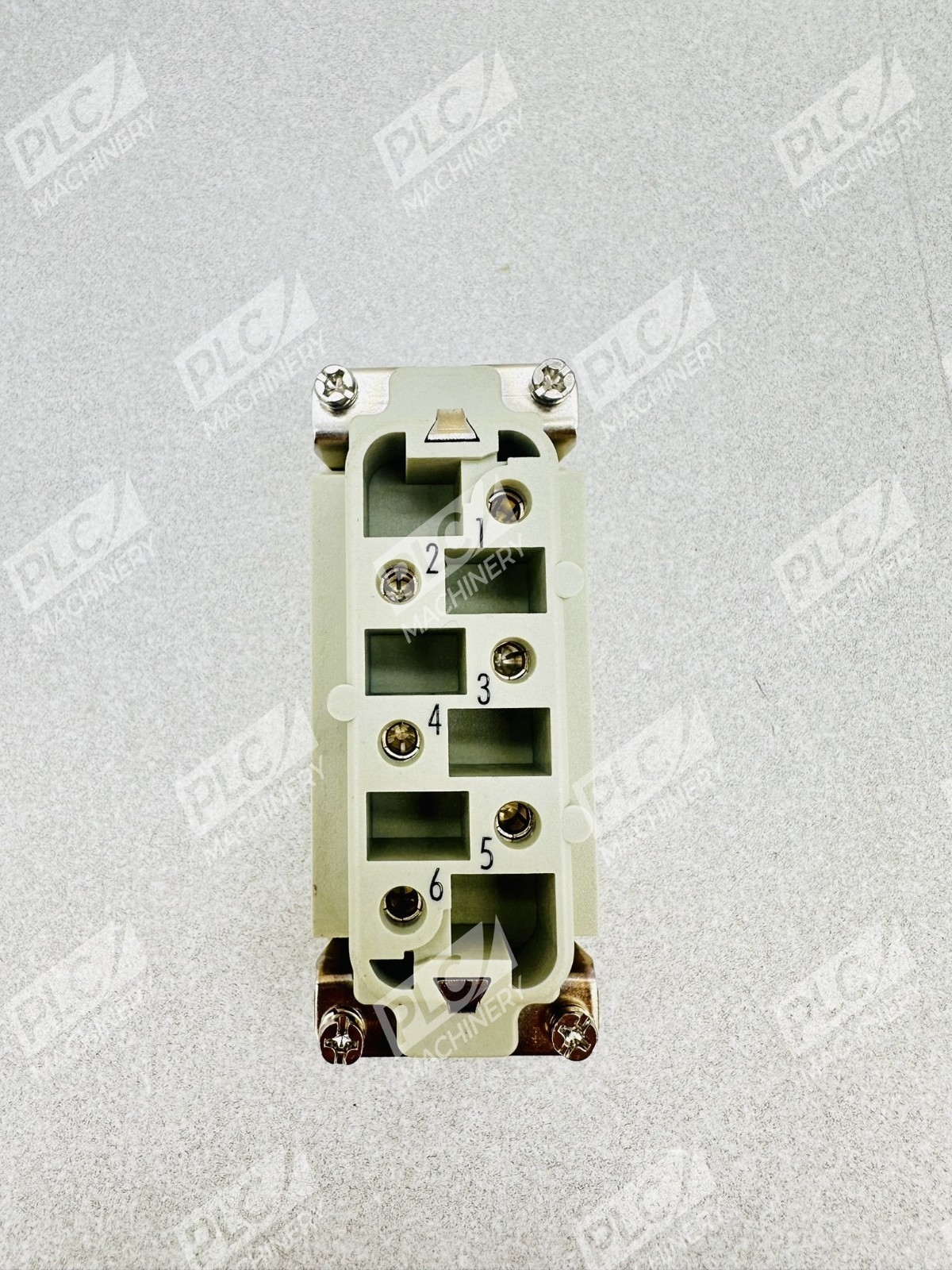

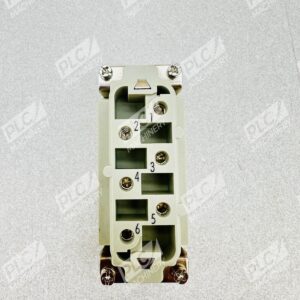

- Contact Configuration: 6 + PE (7 total contacts)
- Wire Cross-Section Range: 1.4 to 6 mm²
- Termination Method: Screw terminals
- Insert Material: Polycarbonate
- Contact Material: Copper alloy, silver-plated
- Gender: Female
- Connector Series: Han® HsB 16 B
Typical Applications
- Industrial machinery and automation control systems
- Three-phase AC power distribution and motor controls
- Machine tool electrical interconnects
- Heavy-duty panel-to-cable connections
- Sensor and signal transmission in harsh environments
- Energy-generation and power-distribution equipment
Compatibility & Replacements
Compatible With
- Harting Han® HsB Series 16 B rectangular connector housings
- Standard industrial three-phase AC power systems (400/690 V)
- Heavy-duty machine automation platforms
- Panel-mounted or field-mounted installations
Replaces / Drop-In Replacement For
- This is the female insert component; verify your existing male connector housing matches Han® HsB 16 B series dimensions before ordering.
- Consult Harting documentation or your system integrator to confirm compatibility with your mating connector.
Works With
- Harting Han® HsB Series 16 B male and female connector housings
- Standard screw-terminal wiring practices for industrial control systems
- CEE/IEC industrial connector ecosystems
- Multi-conductor power and signal cables rated for 35 A service
