Overview

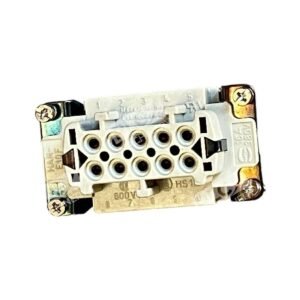

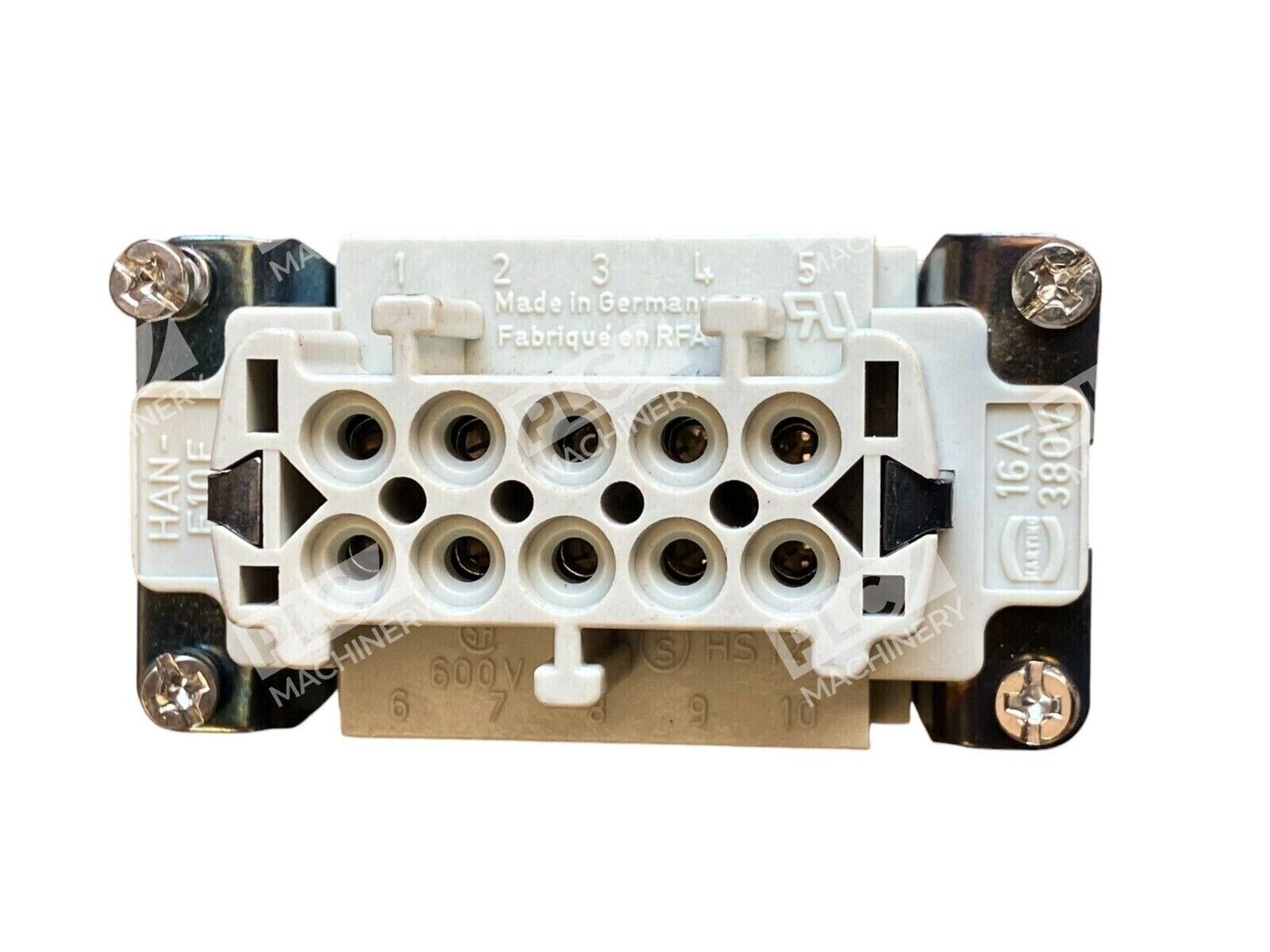

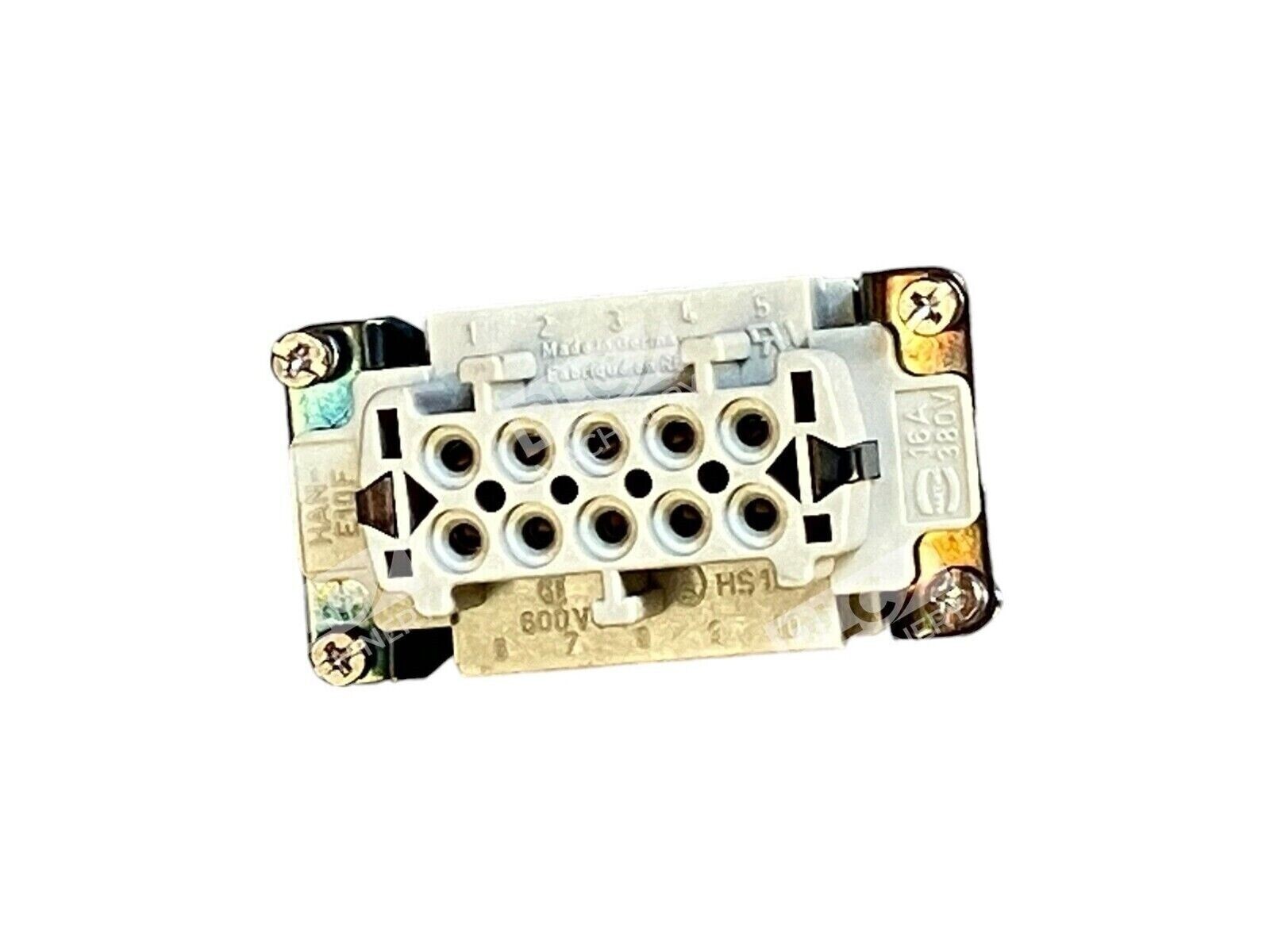

The Harting HAN-E10F connector is a 10-position female receptacle insert designed for reliable electrical distribution in industrial automation environments. With a 16A current rating and 600V maximum voltage rating, this connector accommodates conductor cross-sections from 0.75 to 2.5 mm² (AWG 18 to 14). The HAN-E10F is part of Harting’s HAN E modular connector family, widely used in machine tool controls, motion systems, and industrial power distribution applications.
Key Features

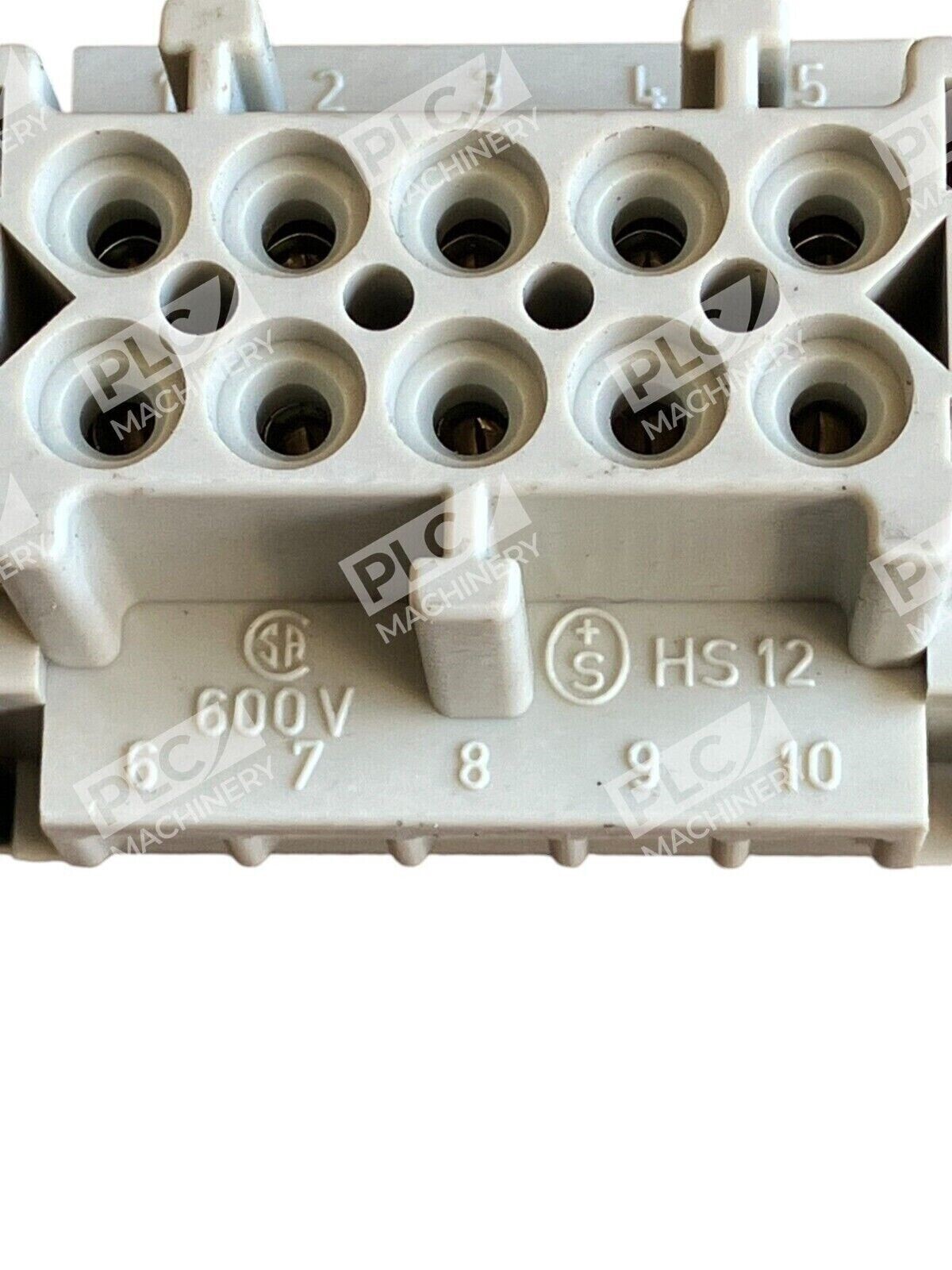

- 10-position female receptacle configuration for secure mating

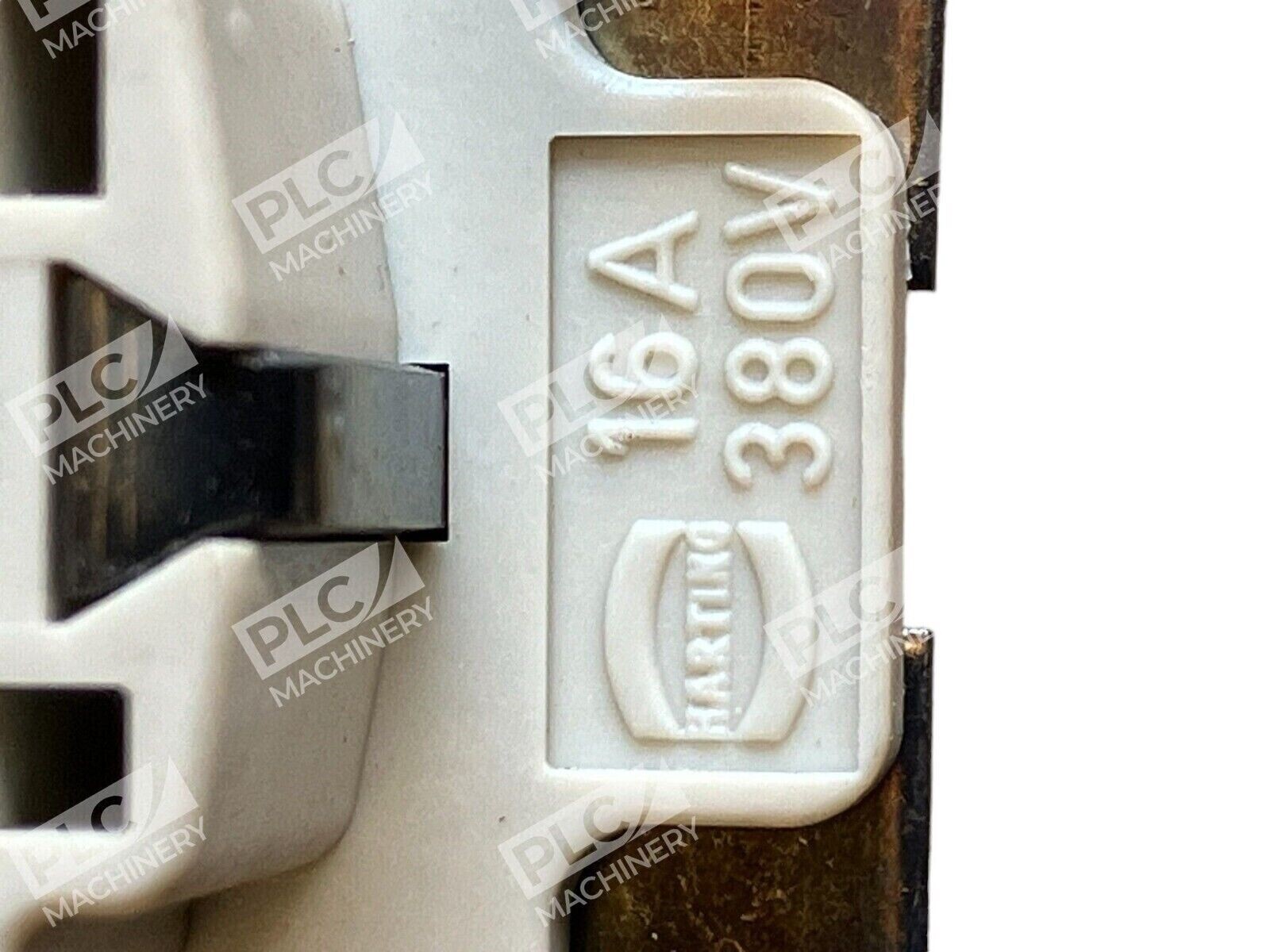

- 16 Amp continuous current rating at 380V / 600V maximum
- Screw-type terminal connections for 0.75–2.5 mm² conductors
- Wide operating temperature range: –40 to +125 °C

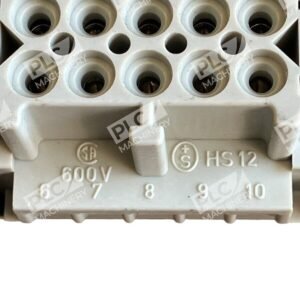

- UL and CSA rated (600V per UL/CSA standards)
- Lever-lock or push-pull coupling options with mating plugs
Technical Specifications
- Manufacturer: Harting Technology Group

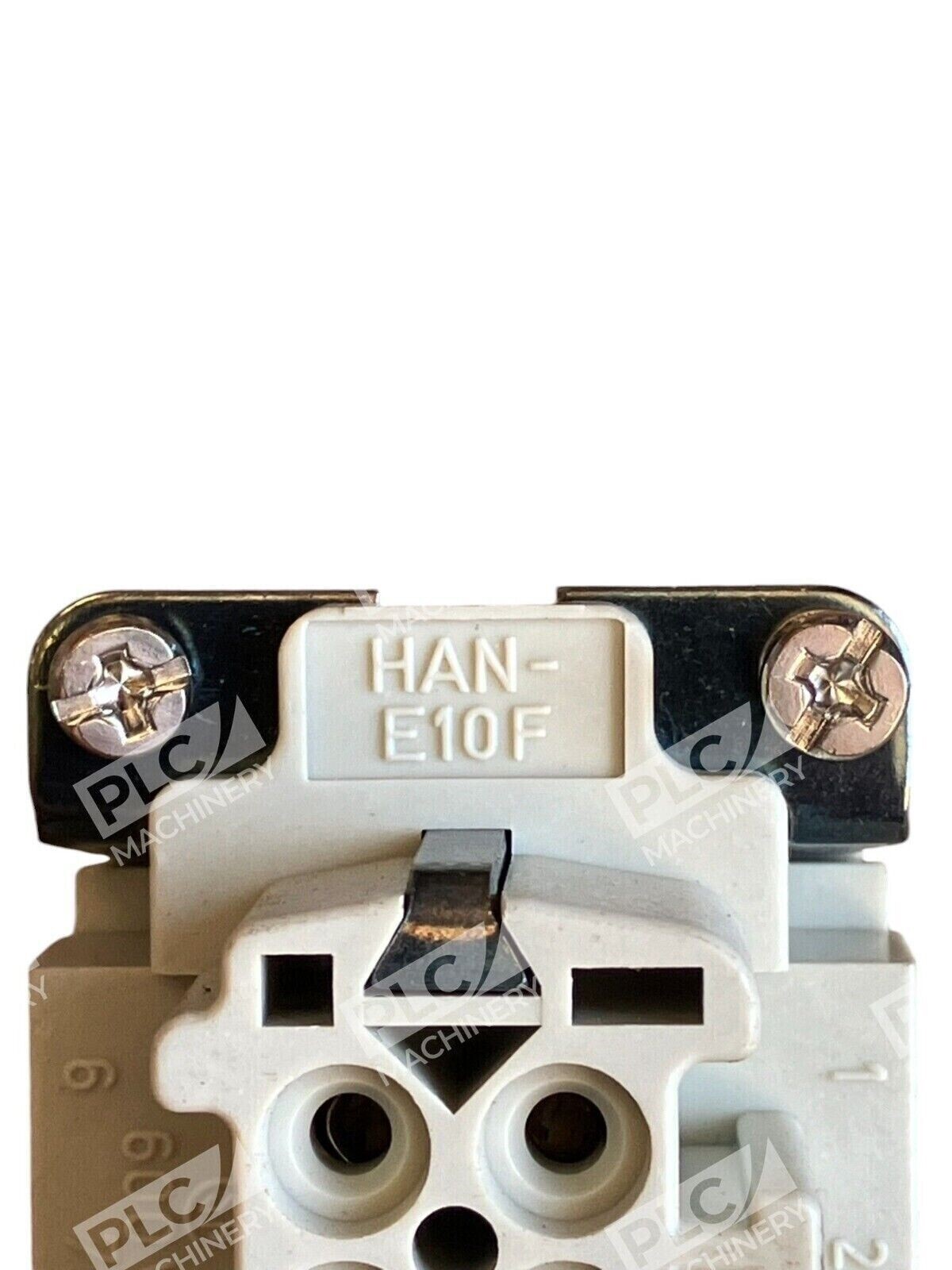

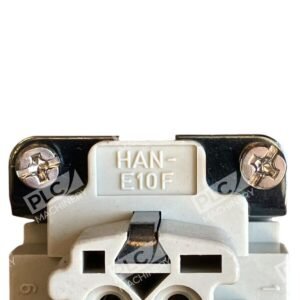

- Part Number: HAN-E10F
- Connector Type: 10-Position Female Insert (Screw Terminal)

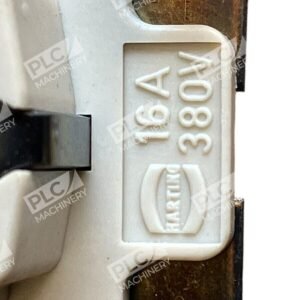

- Rated Current: 16 A
- Rated Voltage: 380V AC nominal; 600V maximum
- Conductor Size: 0.75–2.5 mm² (AWG 18–14)
- Operating Temperature: –40 to +125 °C
- Material Flammability: UL 94 V-0
- Standards: UL and CSA 600V rated; CSA-C22.2 No. 182.3 PVVA8.E318390
- Coupling Type: Lever-lock or push-pull (verify with your mating connector)

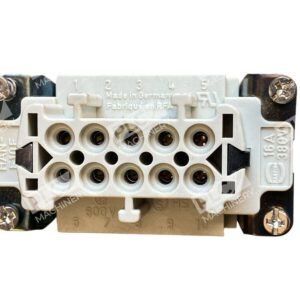

- Country of Origin: Germany
Typical Applications
The HAN-E10F is commonly found in:
- CNC and Machine Tools: Spindle motor power distribution, servo drive interconnects
- Robotics & Automation: Multi-axis motion control systems requiring high-density connectors
- Industrial Power Distribution: Three-phase and control signal distribution in cabinet-mounted systems
- Motion Control: AC servo and stepper motor drive integration
- Factory Automation: Modular assembly and test equipment
Compatibility & Replacements
Compatible With
- Harting HAN E-series plug inserts (male counterparts HAN-A10M or HAN-B10M)
- Harting modular housing shells and couplings (lever-lock or push-pull types)
- Industrial automation controllers using Harting connectors
- Multi-conductor power and control distribution systems rated 380V–600V
- Machine tool control systems (CNC, EDM, grinding, turning centers)
Replaces / Drop-In Replacement For
- Earlier Harting HAN E 10-position female inserts with identical pin-out and ratings
- OEM spare connector inserts for Harting-equipped machinery
- Note: Verify physical coupling type (lever-lock vs. push-pull) before substitution
Works With
- Harting Han E modular connector system (08/16/24-pin configurations)
- Industrial machine control platforms (Siemens, Fanuc, Mitsubishi, etc.)
- Power distribution and motor control integration
- Cabinet wiring and enclosure-to-machine interconnects
