Overview

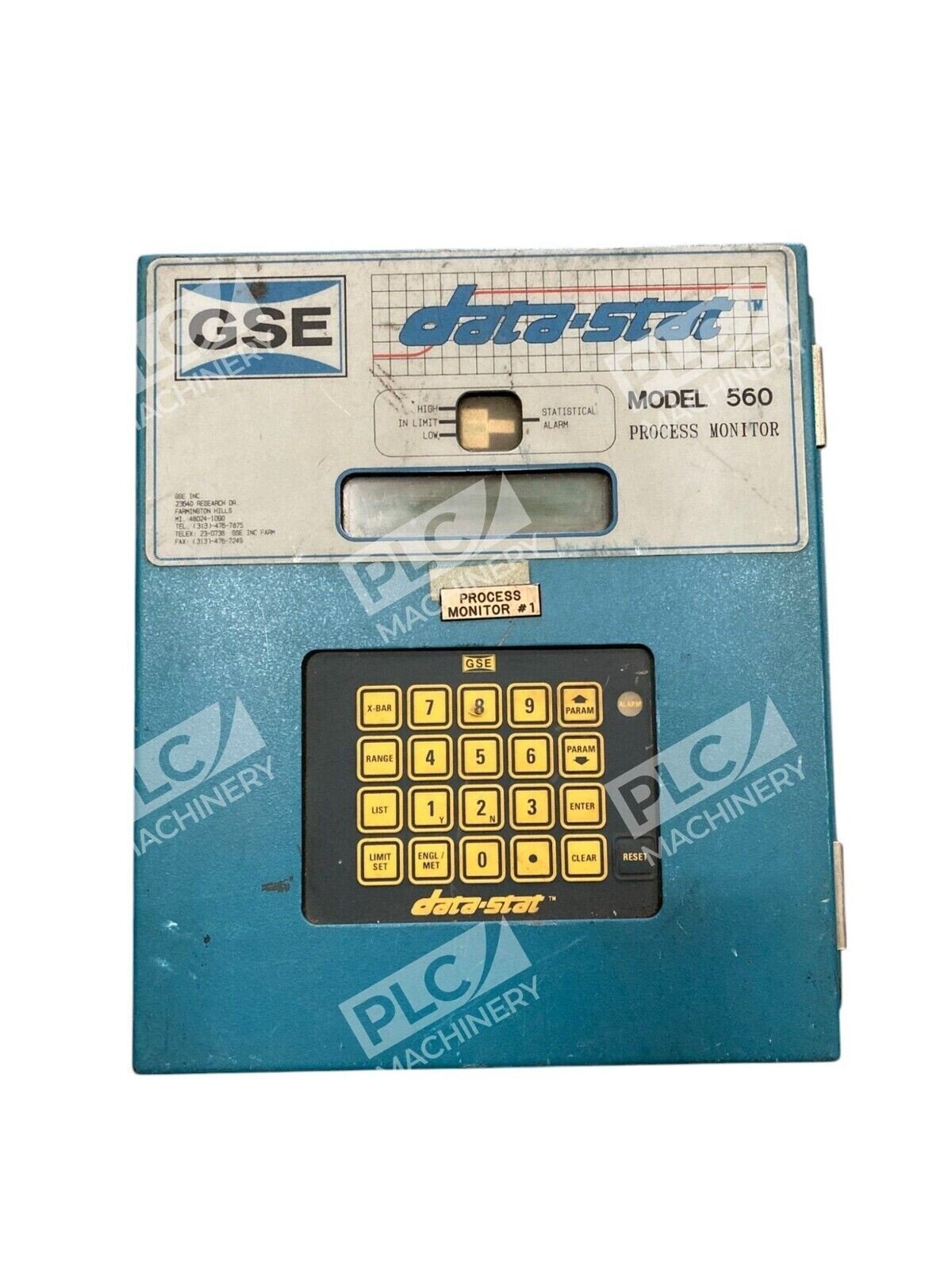

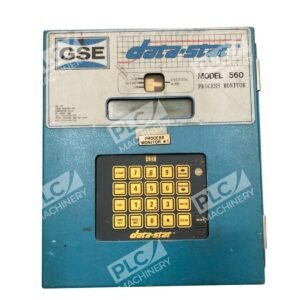

The GSE Data Stat Model 560 is a field-programmable weight process controller engineered for sophisticated operator interface and process control in weighing applications. This mid-range indicator delivers reliable performance across agriculture, food processing, material handling, and chemical industries. The Model 560 combines scalable I/O, flexible communication protocols, and database memory to integrate directly with PLC systems and data management platforms.
Key Features
- 100 variable data registers for complex process logic
- 32 configurable I/O points with variable activation/deactivation states
- Database memory expandable to 256K for large datasets
- 4 scale input signal channels for multi-scale applications
- Programmable in C language or Rabbit Software platform
- Ethernet module with Telnet, FTP, and Modbus TCP/IP protocol support
- 6-digit vacuum fluorescent display (VFD) with status indicators
- Factory-configurable for custom application requirements
Technical Specifications
- Display Type: Vacuum Fluorescent (VFD) — 6 digit, 0.75″ height
- Display Characters: 2 rows × 5 characters (10 total) with dot matrix status
- Data Registers: 100 variable registers
- Scale Inputs: 4 input channels
- I/O Points: 32 configurable (variable activation/deactivation)
- Memory: Database expandable to 256K
- Programming Language: C or Rabbit Software
- Communications: Ethernet (Telnet, FTP, Modbus TCP/IP), Modbus RTU serial
- Operating Temperature: 14–104°F (−10 to 40°C)
- Dimensions: Width 280 mm (11.0″), Height 228 mm (9.0″)
- Panel Mount: Available in standard or panel-mount configurations
Typical Applications
- Batch control and proportioning in food processing and chemical manufacturing
- Check-weighing and quality assurance systems
- Inventory control and material tracking
- Mobile weighing and portable scale operations
- Force measurement and load monitoring
- Data acquisition and logging for process analytics
- Agricultural weighing and commodity grading
- PLC system integration for automated facilities
Compatibility & Replacements
Compatible With
- Allen-Bradley and Siemens PLC systems via Modbus TCP/IP and Modbus RTU
- Standard industrial scale platforms and load cell interfaces
- Ethernet-enabled SCADA and data management systems
- Multi-protocol industrial networks (Telnet, FTP, Modbus)
- Custom relay and discrete I/O control systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. GSE Model 560 and 562 controllers share similar architectures; confirm panel-mount vs. standard-mount orientation and communication module configuration.
Works With
- Rabbit Software development environment (native programming)
- C language programming for advanced logic
- Modbus TCP/IP and Modbus RTU industrial protocols
- Telnet server/client communication
- FTP data transfer for system configuration and backup
- EDS (Electronic Data Sheets) and GSD (Generic Station Descriptions) file configuration utilities
