Overview

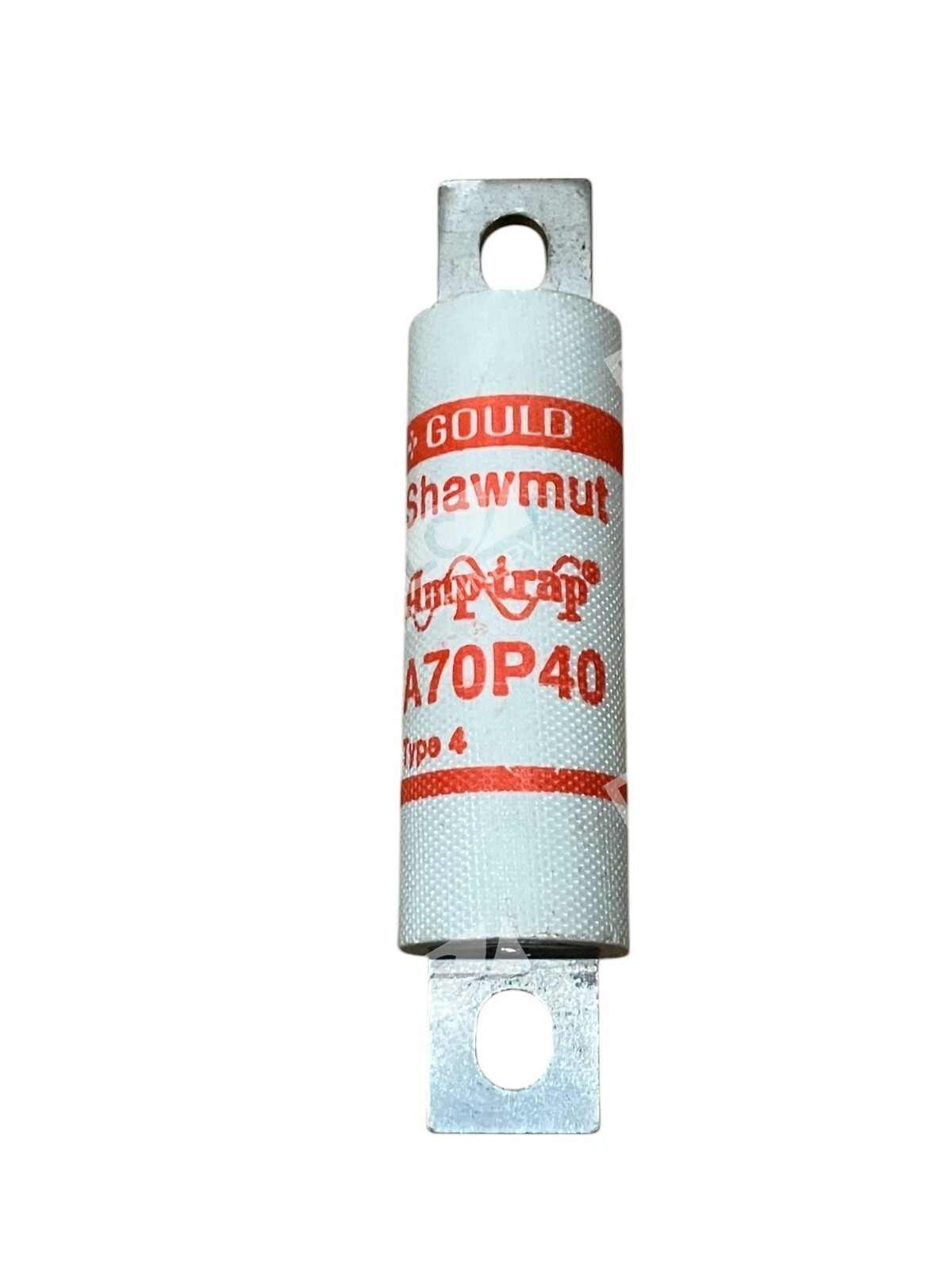

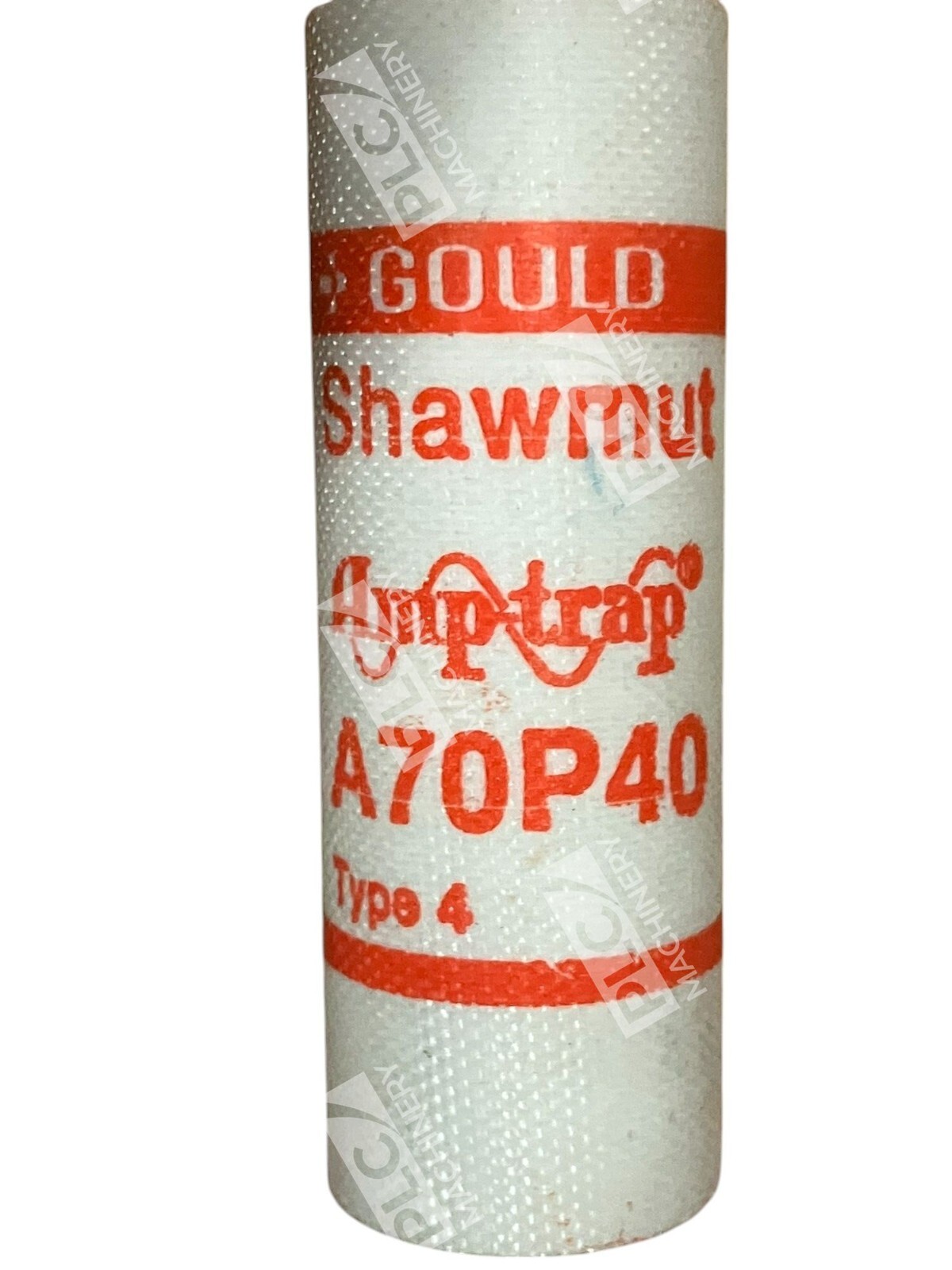

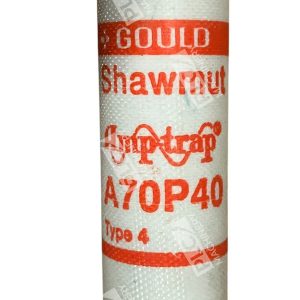

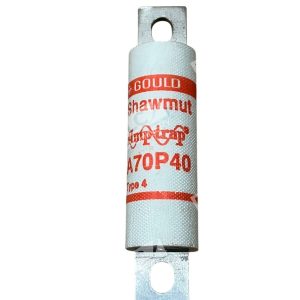

The Gould Shawmut A70P40 is a Form 101 high-speed Amp-Trap semiconductor protection fuse rated at 40 amps, 700VAC/650VDC. Developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. This cartridge-style fuse delivers fast, controlled fault clearing with minimal component damage.
Key Features
- Low I2t minimizes damage to protected components on short circuit
- Controlled arc voltage reduces stress to circuit components during fuse clearing
- High-speed class with 65 kA interrupt rating
- UL recognized component (UL File E60314)
- RoHS compliant
- Cartridge form factor for bolt-down mounting
Technical Specifications
- Current Rating: 40 amperes
- Voltage Rating: 700VAC / 650VDC
- Interrupt Rating: 65 kAIC
- Fuse Class: Semiconductor Protection
- Form: 101 (Cartridge)
- Speed: Very Fast Acting
- Mounting: Bolt-down
- Shape: Cylindrical cartridge (1" diameter × 4.38" long)
- Certifications: UL listed, RoHS
Typical Applications
- AC variable frequency drives and adjustable speed drives
- DC motor control circuits
- Uninterruptible Power Supply (UPS) systems
- Reduced voltage soft starters
- Inverter and power conversion equipment
- High-voltage industrial motor protection
Compatibility & Replacements
Compatible With
- Industrial AC and DC drive systems rated 700V or less
- UPS backup power systems
- Soft starter and reduced voltage motor starter equipment
- Power distribution and control panels
- Any application requiring bolt-down cartridge fuse mounting
Replaces / Drop-In Replacement For
- A70P40-4 (current manufacturer designation)
- Ferraz Shawmut A70P40 (predecessor name)
- Mersen A70P40-4 (current parent company)
Works With
- Bolt-down fuse holders rated for Form 101 cartridges
- Industrial control cabinets and switchgear
- Semiconductor protection schemes per UL 198L standards
- Any 700V or lower-rated distribution system
