Overview

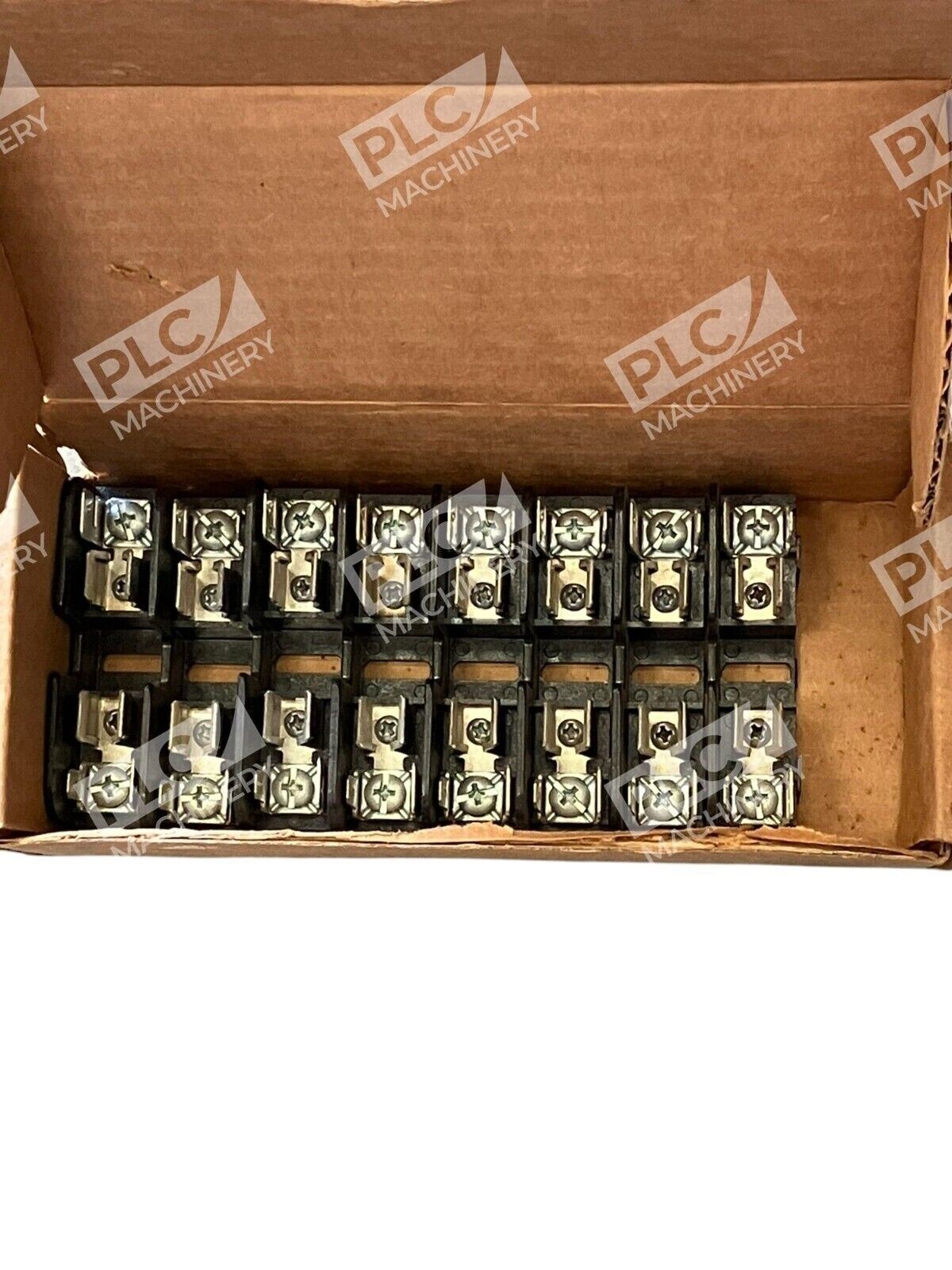

The Gould Shawmut 30320 is a compact, open-style fuse block rated for 30 amperes at 600 volts AC/DC. Built for Class CC and midget fuse applications, this adder-block design allows stacking onto 1-pole, 2-pole, or 3-pole configurations to create segmented multi-pole assemblies. Engineered for industrial control panels, distribution cabinets, and power protection circuits, the 30320 delivers consistent overcurrent protection with minimal footprint.
Key Features
- 30 ampere, 600 volt AC/DC rating with 200,000 amp RMS symmetrical interrupting rating
- Adder-block design for stacking onto 1-, 2-, or 3-pole base blocks
- Pressure-plate connectors with double quick-connects at both ends
- Glassfilled polycarbonate (GFPC) insulators with dielectric strength exceeding 2500V
- Wire range: 10–14 AWG copper conductors
- Torque specification: 20 in/lbs maximum
Technical Specifications
Refer to the specs table below for complete electrical and mechanical details including voltage rating, current capacity, connector type, wire compatibility, and thermal ratings.
Typical Applications
- Motor control centers and soft-starters
- AC/DC drive input protection
- Industrial power distribution and panel assembly
- PLC and control logic protection circuits
- Auxiliary circuit overcurrent protection in manufacturing and process automation
Compatibility & Replacements
Compatible With
- Class CC midget fuses (30A, 1.5″ × 13/32″)
- 1-pole, 2-pole, and 3-pole adder fuse block stacks
- Standard industrial control panels and distribution cabinets
- AC and DC circuits up to 600V
Replaces / Drop-In Replacement For
- Ferraz Shawmut 30320
- Mersen 30320
- Prior-generation single-pole fuse blocks in midget and Class CC applications
Works With
- Class CC and UL-recognized midget fuses rated 30A
- All standard pressure-plate adder-block configurations
- Quick-connect terminals for stranded or solid copper wire
- Verify compatibility with your system integrator before ordering.
