Overview

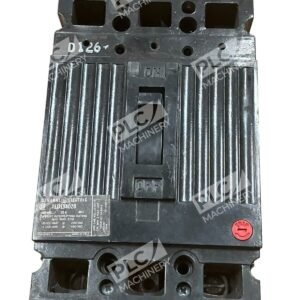

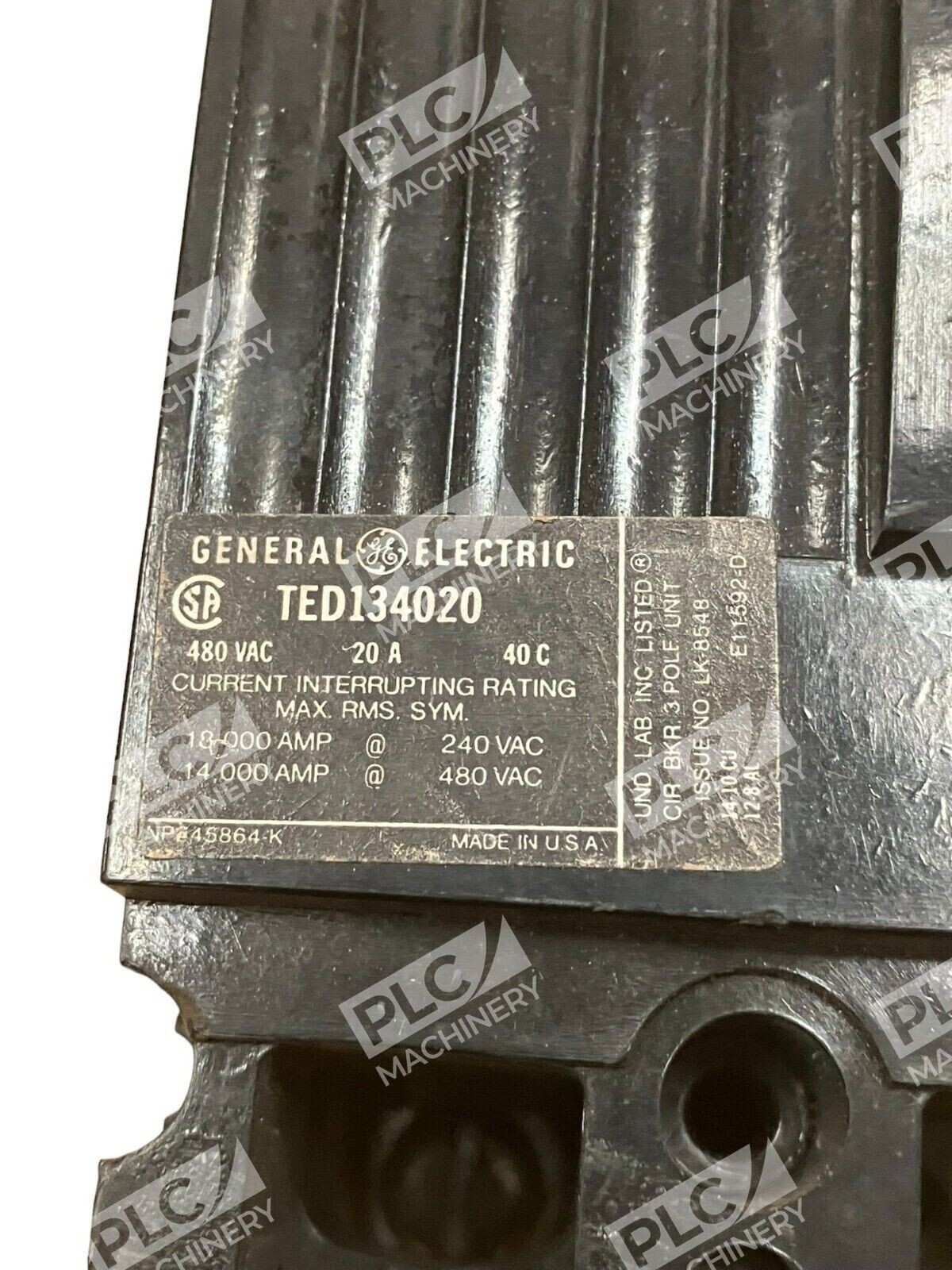

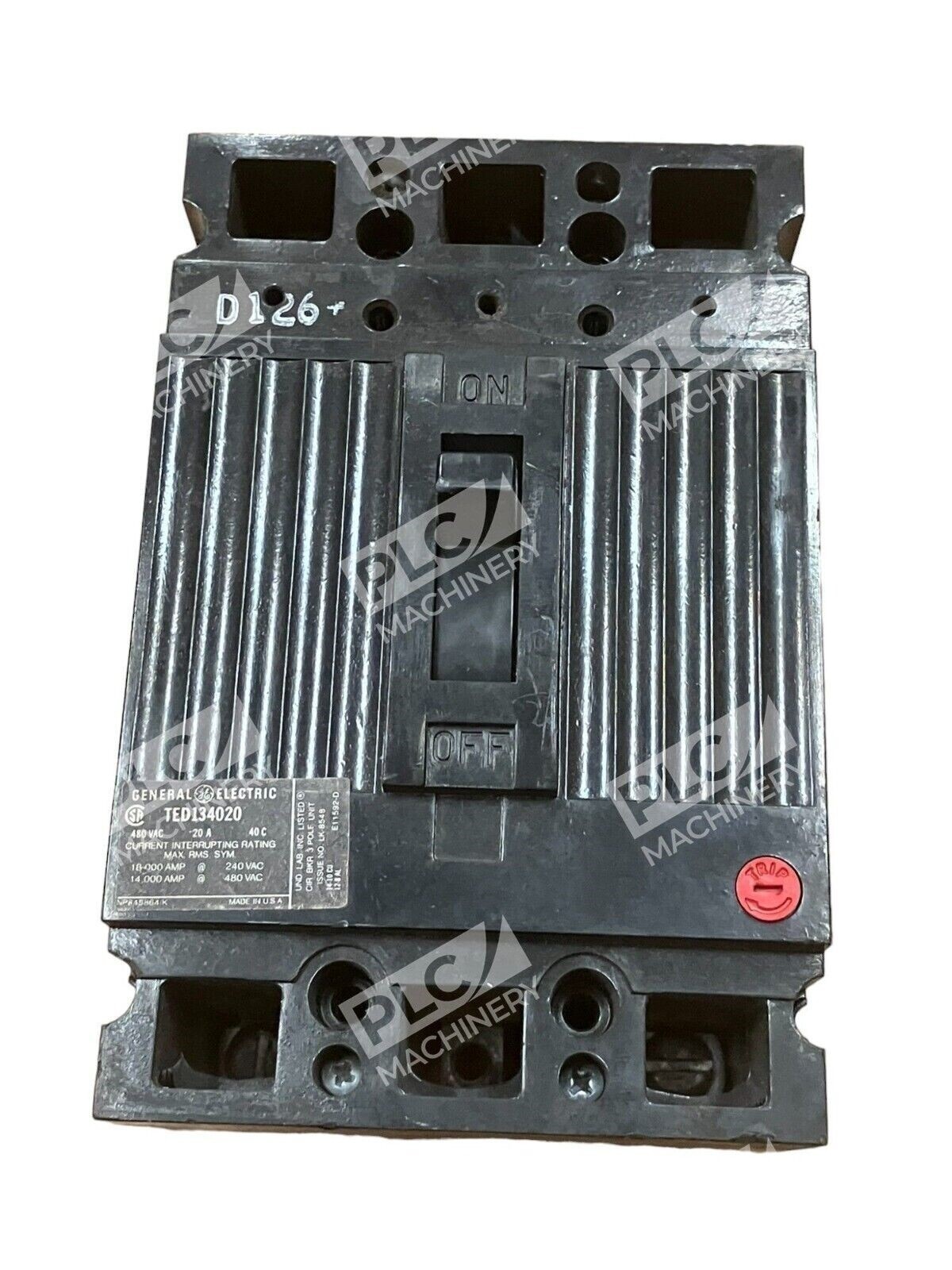

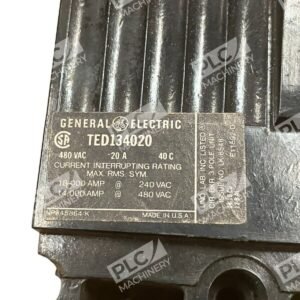

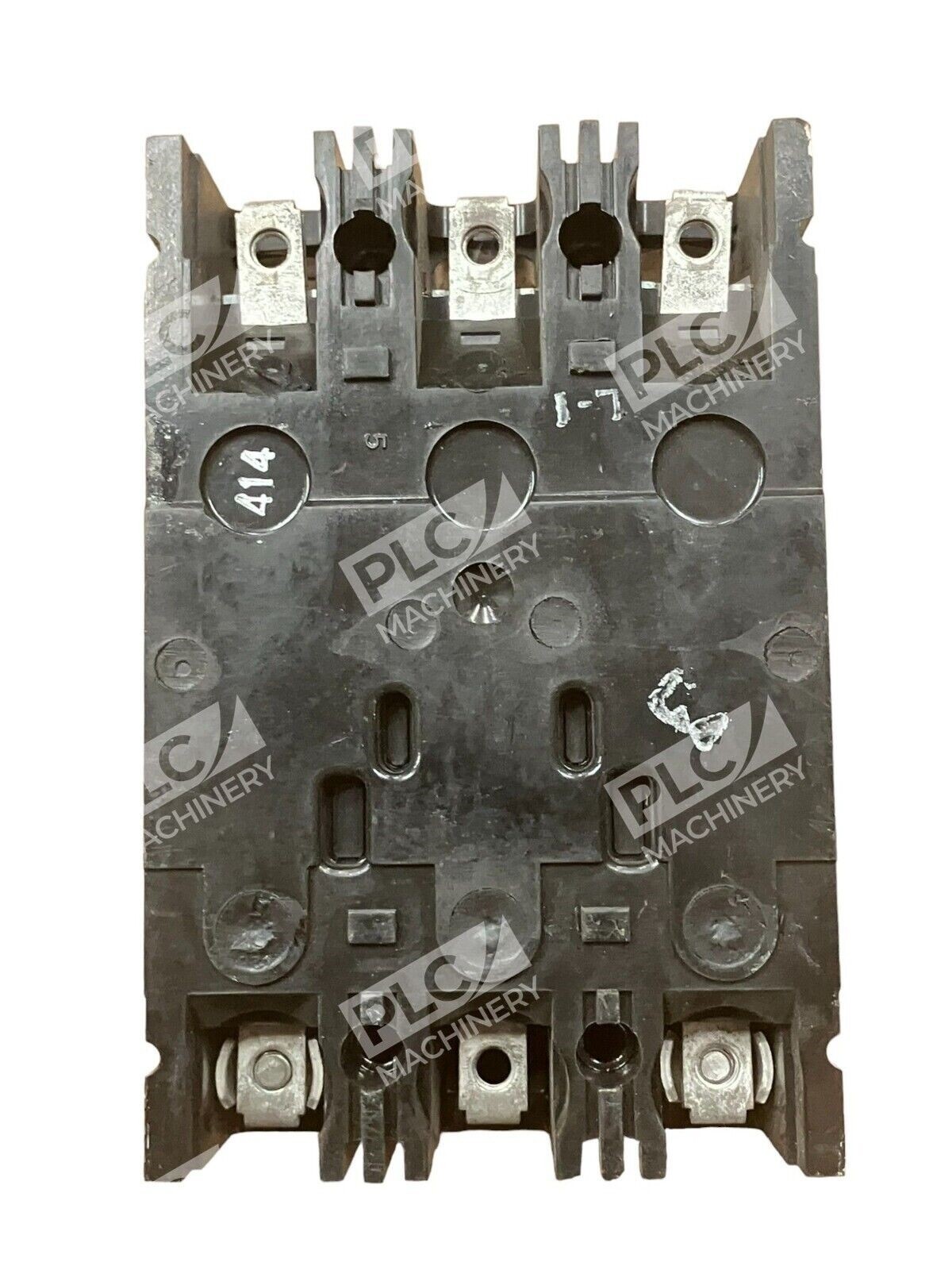

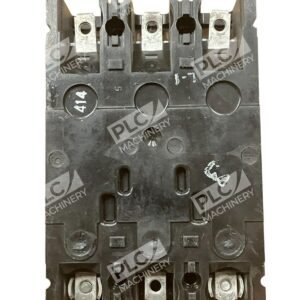

The General Electric TED134020 is a 3-pole molded case circuit breaker from GE’s E150 series, engineered for industrial and commercial electrical distribution systems. Rated at 20A with 480V maximum voltage, this breaker provides thermal-magnetic protection with long-time and instantaneous trip functions. The unit features load side lug terminals and standard interrupting capacity of 18kA at 480V, with bolt-on mounting.
Key Features
- Thermal-magnetic protection with long-time and instantaneous (LI) trip functions
- Fixed thermal and adjustable magnetic trip unit with line and load side lug terminals
- Bolt-on mounting compatible with A-Series and Spectra panelboards
- 18kA interrupting rating at 480V for short-circuit protection
- Compact E-frame design for industrial electrical cabinets and distribution panels
- Panel-mounted design without neutral pole, GFCI, or neutral protection
Technical Specifications
The TED134020 meets industry standards for power distribution and industrial control applications. Electrical and dimensional data are detailed below for system integration and panel layout planning.
Typical Applications
The General Electric TED134020 is designed for industrial electrical distribution and control applications. Common uses include:
- Three-phase industrial power circuits at 480VAC
- Motor feeder protection in commercial buildings
- General-purpose branch protection in manufacturing facilities
- Equipment protection in HVAC and mechanical systems
- Backup power distribution systems
Compatibility & Replacements
Compatible With
- General Electric A-Series panelboards
- General Electric Spectra panelboards
- GE E150 E-frame compatible distribution equipment
- Standard 480VAC three-phase industrial power systems
- Industrial electrical distribution cabinets requiring bolt-on breakers
Replaces / Drop-In Replacement For
- TED134020WL (wire lug variant of same rating)
- Earlier generation GE TED-series 20A/480V breakers in equivalent frame sizes
Works With
- Standard industrial electrical panelboards with TED-frame architecture
- 480/277V three-phase distribution systems
- UL-listed electrical enclosures and switchgear
- Thermal-magnetic protection coordination systems
