Overview

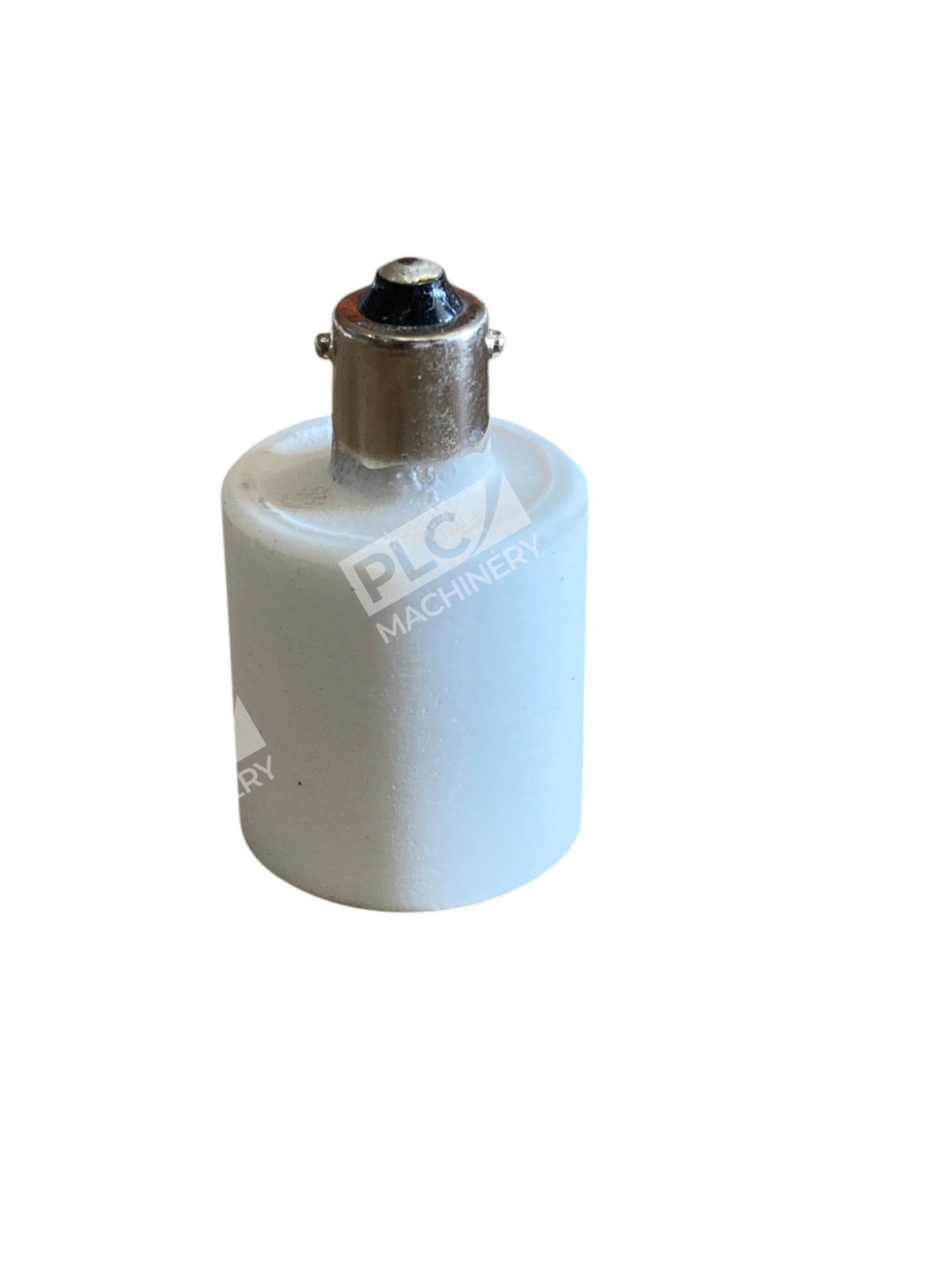

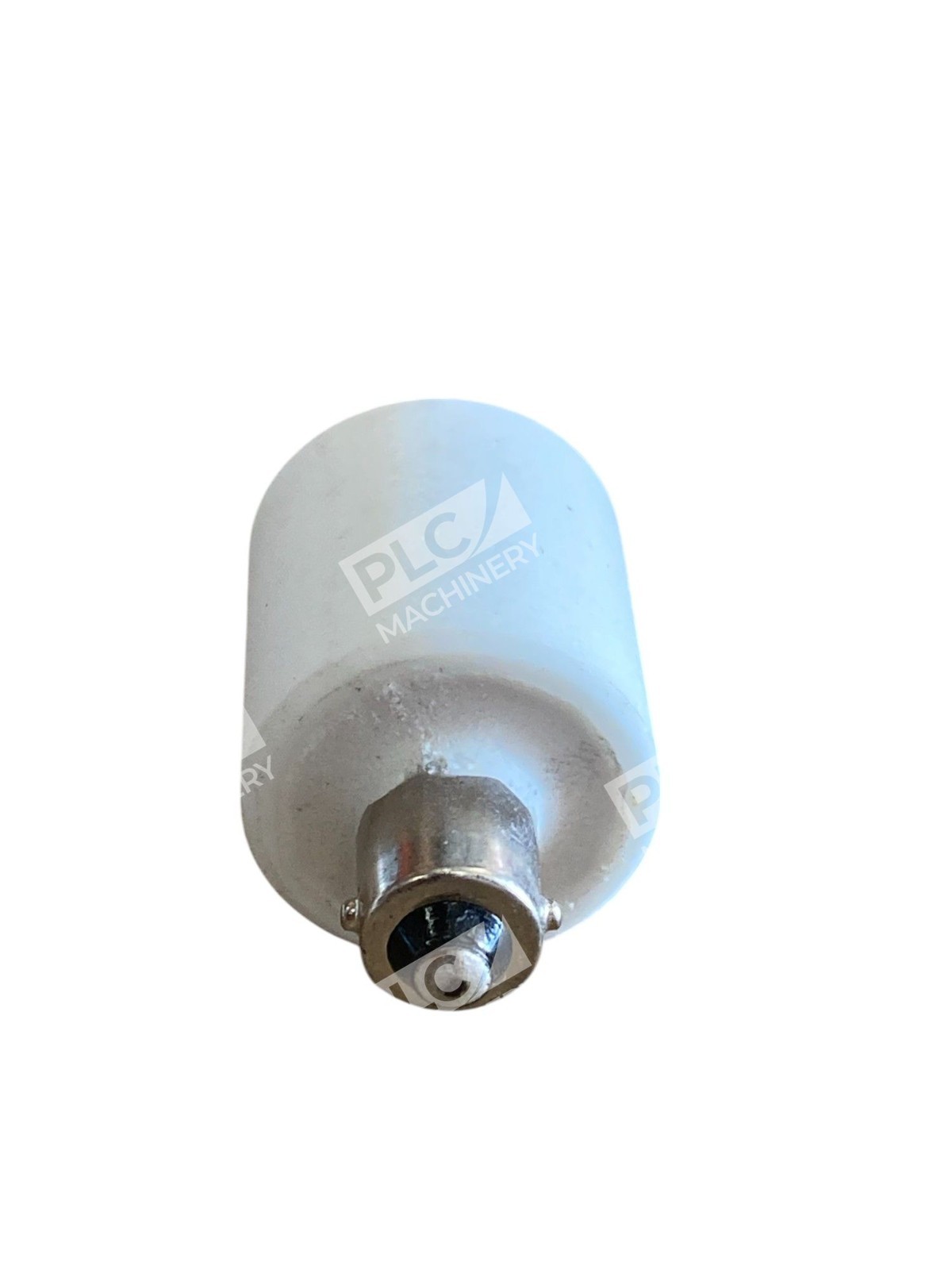

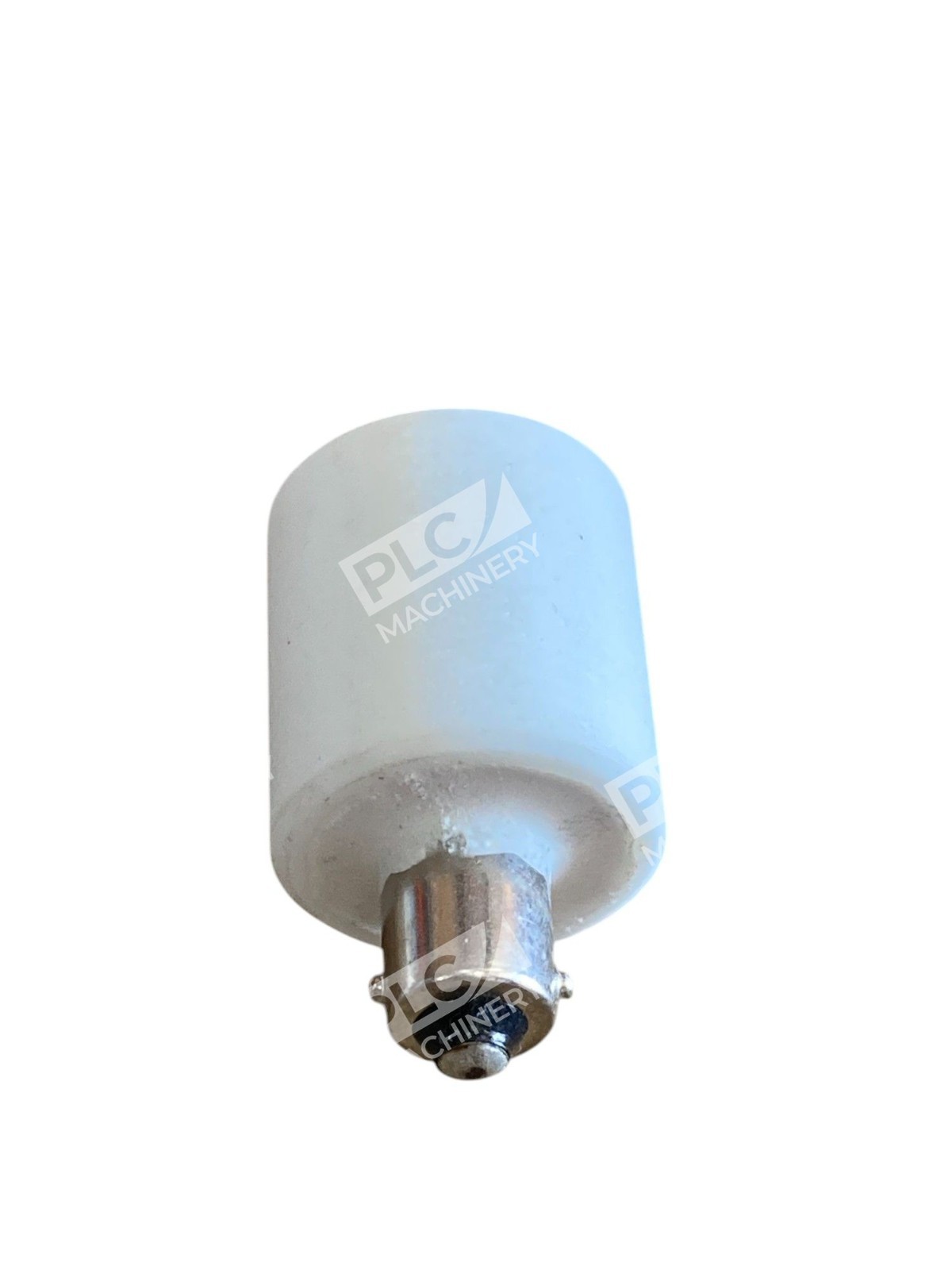

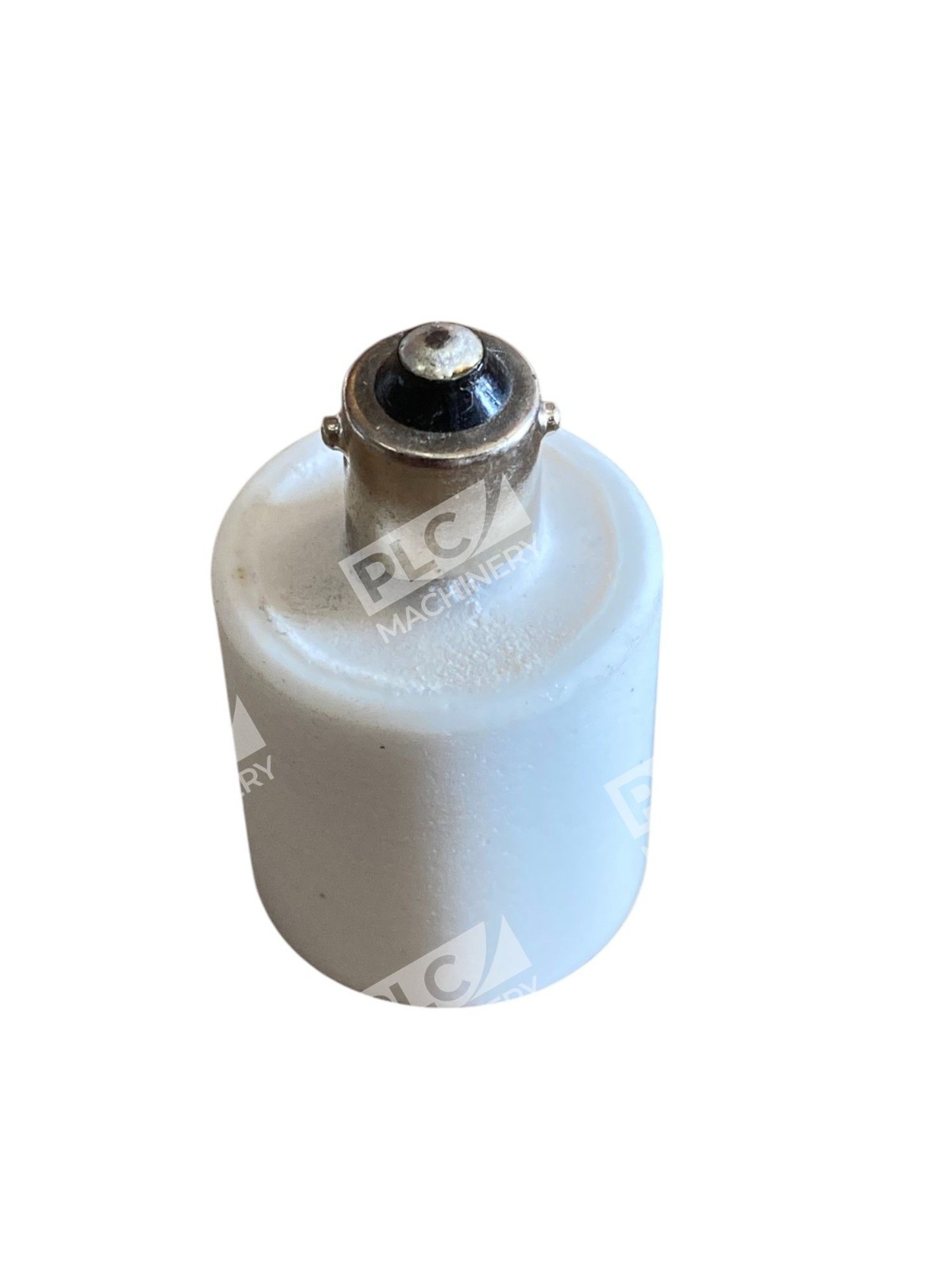

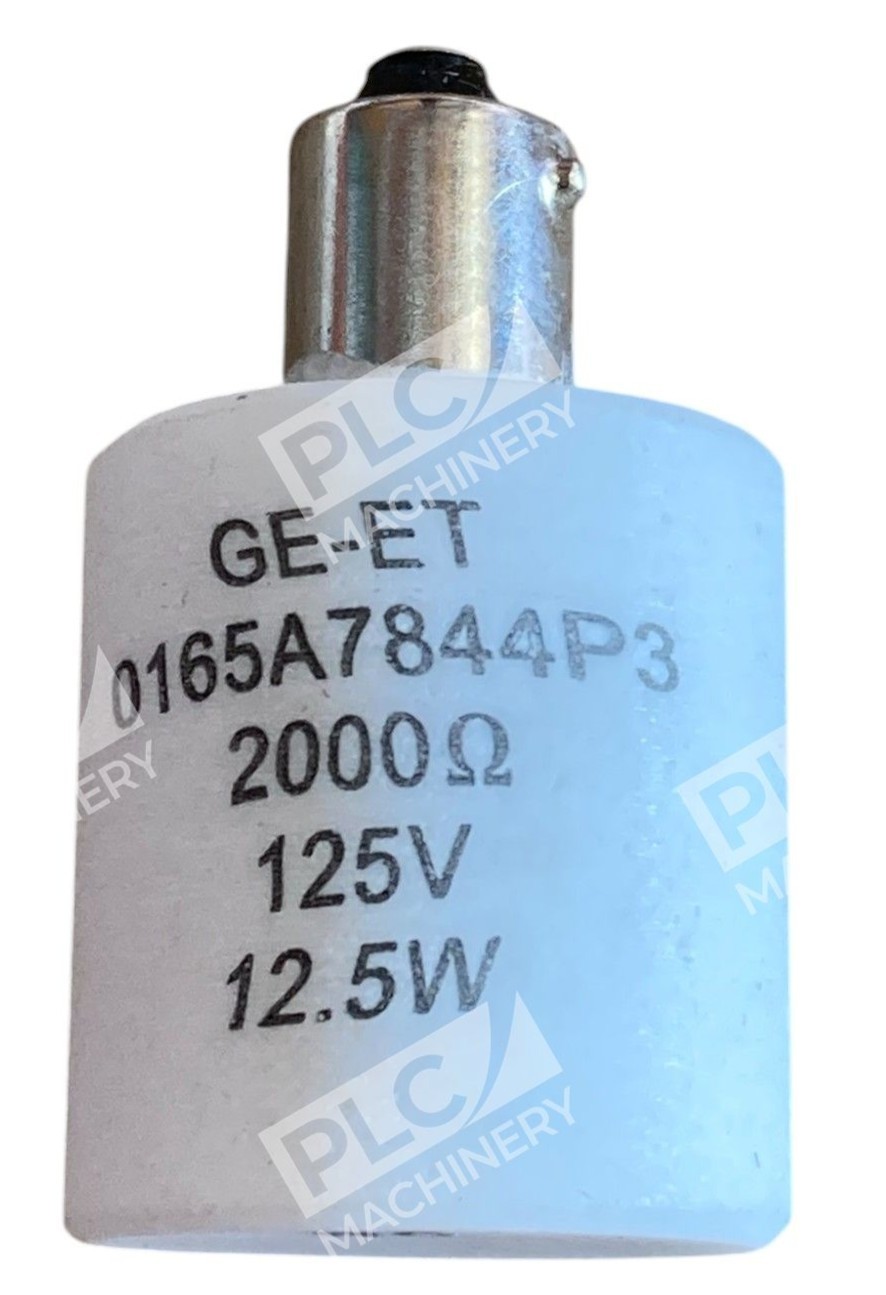

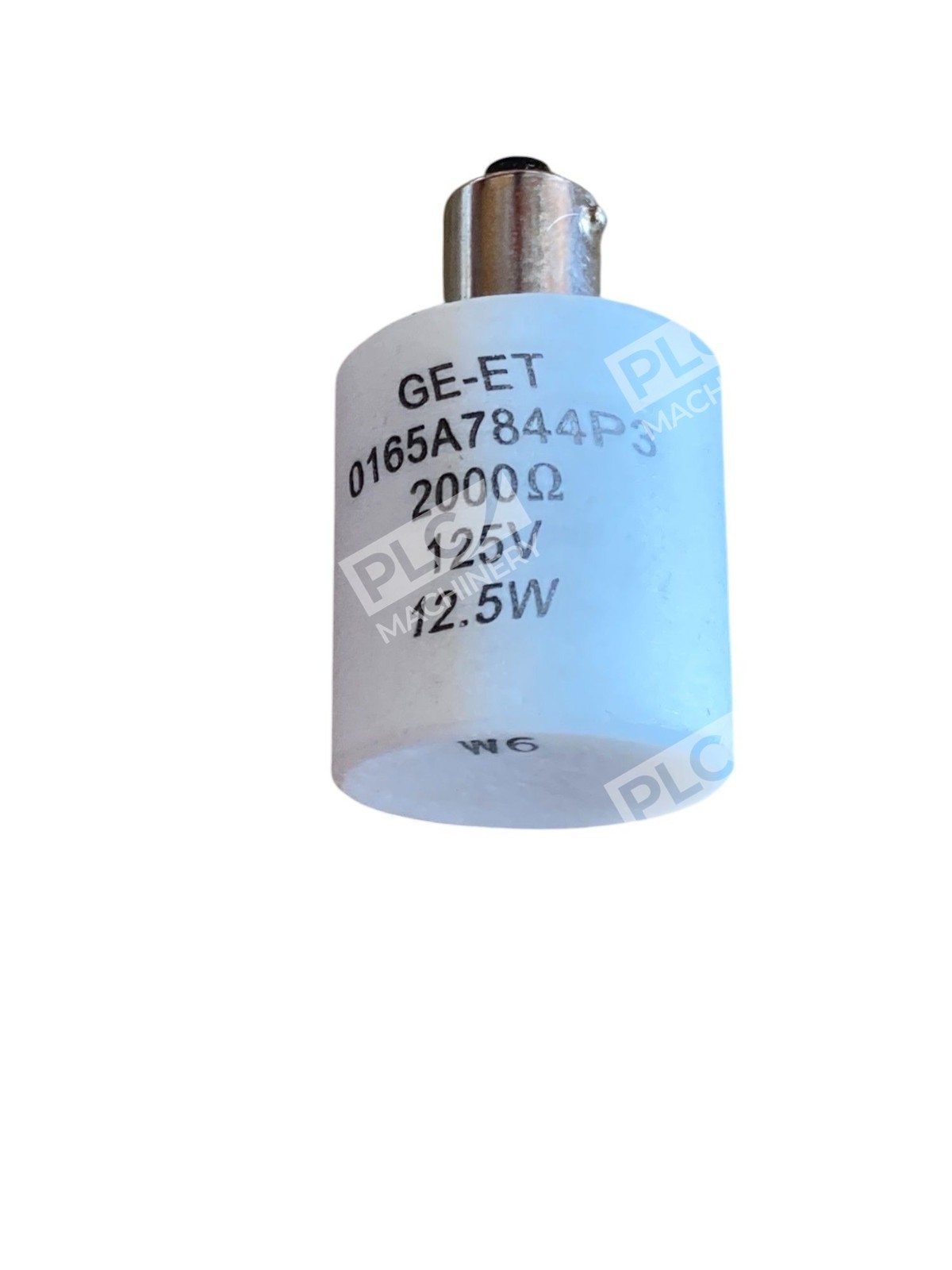

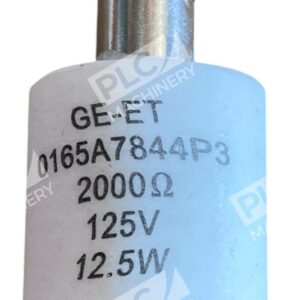

The General Electric 0165A7844P3 is a ceramic resistor engineered as a pilot device for ET-16 indicating light and switchgear applications. With a resistance value of 2000 Ohm and a working voltage of 125V DC, this component delivers reliable voltage dropping and circuit protection in industrial control panels and electrical distribution systems where status indication is critical.
Key Features
- Ceramic construction provides excellent heat dissipation and long-term reliability
- 1/4-inch Bayonet base for direct mounting in ET-16 lamp sockets
- Rated for 12.5 watts continuous operation at 125V DC
- Standard replacement for legacy GE circuit breaker and switchgear indicator light circuits
- Compact form factor with minimal footprint in control enclosures
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: 0165A7844P3
- Resistance Value: 2000 Ohm
- Voltage Rating: 125V DC
- Power Rating: 12.5W
- Mount Type: 1/4-inch Bayonet base
- Construction: Ceramic
- Weight: 0.05 lbs (22.7 grams)
- Compatible Lamp Type: ET-16
- UPC: 783164483307
Typical Applications
This resistor is commonly used in:
- Industrial circuit breaker and switchgear status indication circuits
- Motor control center pilot light voltage dropping resistors
- Panel-mounted indicator light assemblies in control stations
- Low-voltage alarm and status signaling systems
- Legacy electrical distribution system retrofits and maintenance
Compatibility & Replacements
Compatible With
- GE ET-16 indicator lamp assemblies
- General Electric switchgear and circuit breaker pilot light circuits
- 125V DC control circuit systems
- Industrial motor control centers and electrical distribution panels
Replaces / Drop-In Replacement For
- GE 165A7844P3 (same component, alternate part number)
- OEM replacement for original equipment GE pilot device applications
Works With
- ET-16 indicator lamp sockets (1/4-inch Bayonet base)
- 125V DC control and logic circuits
- Standard industrial electrical control systems
- GE industrial control products and legacy equipment
