Overview

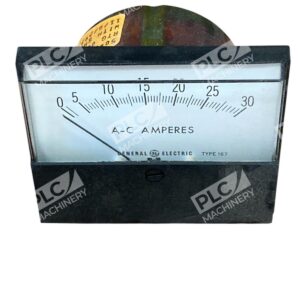

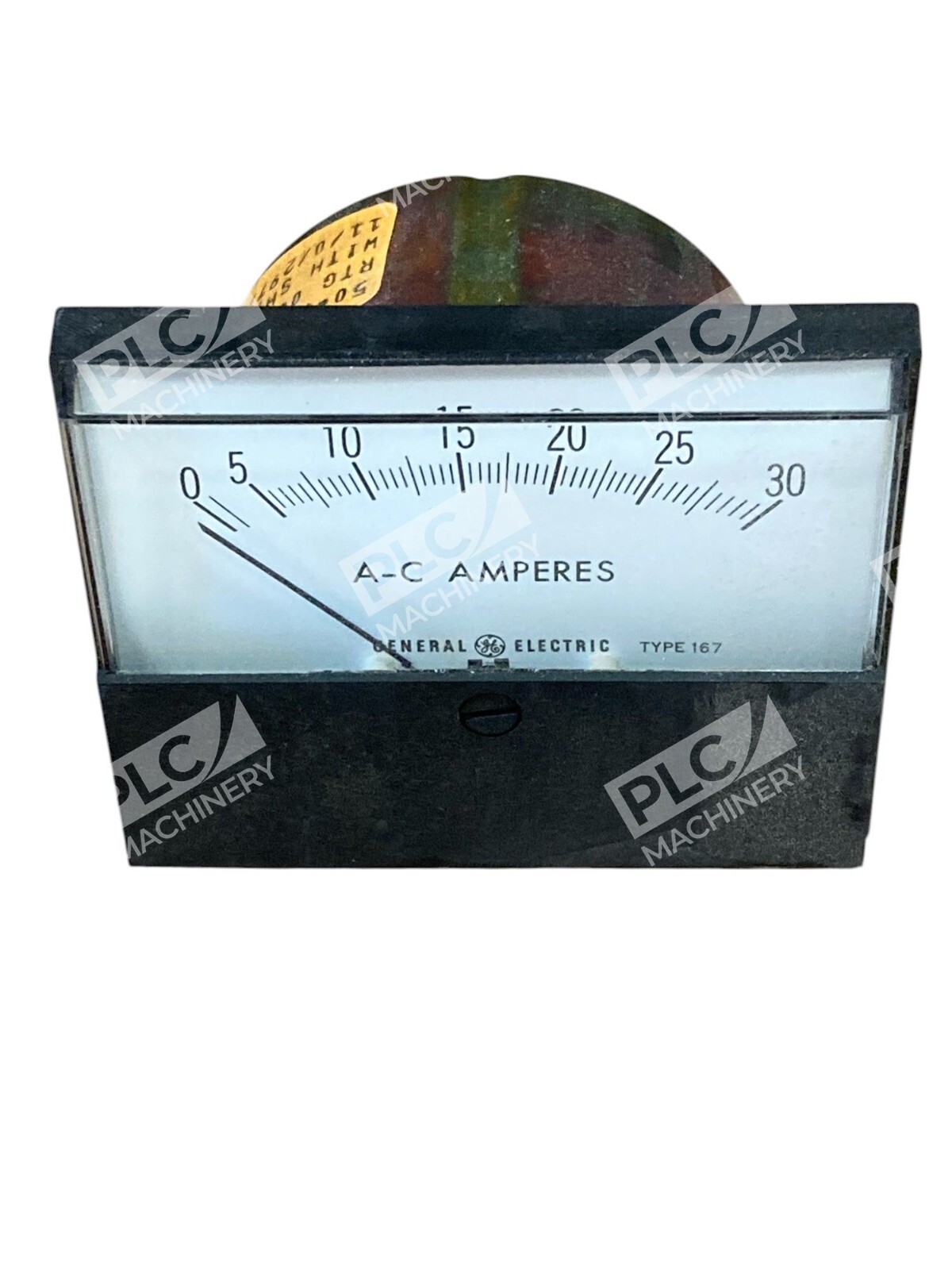

The GE BX-972 is a General Electric Type 167 analog panel meter engineered for AC ampere measurement and indication. With a 0-30 amperes A-C range, the BX-972 provides straightforward, real-time current monitoring in electrical distribution systems, motor control centers, and industrial panel applications. This meter is a proven, established design from GE’s legacy instrumentation line, widely deployed in manufacturing, utilities, and institutional facilities for decades.
Key Features
- AC ampere measurement: 0-30 A-C range for standard industrial loads
- Type 167 format: compact panel mount design for standard cutout installations
- Analog display: direct needle indication, no external power required for basic operation
- Robust construction: proven durability in industrial control and distribution environments
- New condition: factory sealed, ready for installation
Technical Specifications
- Measurement Type: AC Amperes
- Range: 0-30 A-C
- Model: Type 167
- Part Number: BX-972
- Manufacturer: General Electric (GE)
- Display: Analog needle meter
- Mounting: Panel mount with cutout frame

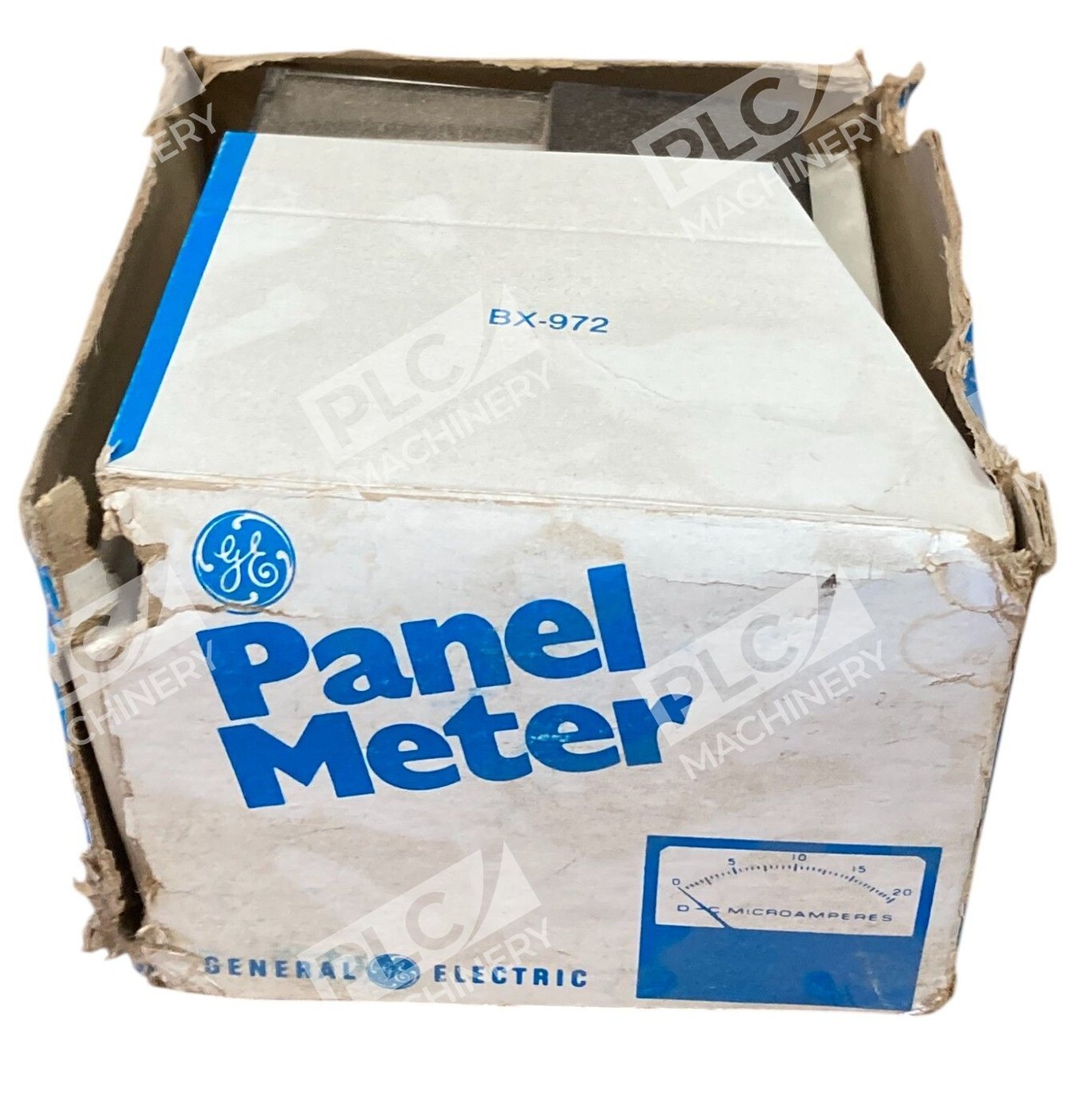

- Condition: New in Box
Typical Applications
- Motor control centers and drive panels
- Main distribution boards and switchgear
- Industrial electrical enclosures and cabinets
- Load monitoring in manufacturing and process plants
- Utility substation and feeder indication
- Maintenance and troubleshooting of AC circuits up to 30 amperes
Compatibility & Replacements
Compatible With
- GE Type 167 meter cutout openings and frames
- Standard industrial panel mount applications with 0-30 A-C current requirements
- AC circuits rated for direct connection (verify CT secondary or ammeter loop amperage before installation)
Replaces / Drop-In Replacement For
Verify with the original equipment manufacturer or system integrator for exact replacement compatibility. GE Type 167 meters follow standardized panel cutouts; confirm meter frame dimensions and electrical connections before ordering as a replacement.
Works With
- GE switchgear and load center installations
- Current transformer (CT) secondary circuits rated for 0-30 amperes input
- Direct line connection for ammeter loops in low-amperage circuits
- Industrial control system monitoring and indication
