Overview

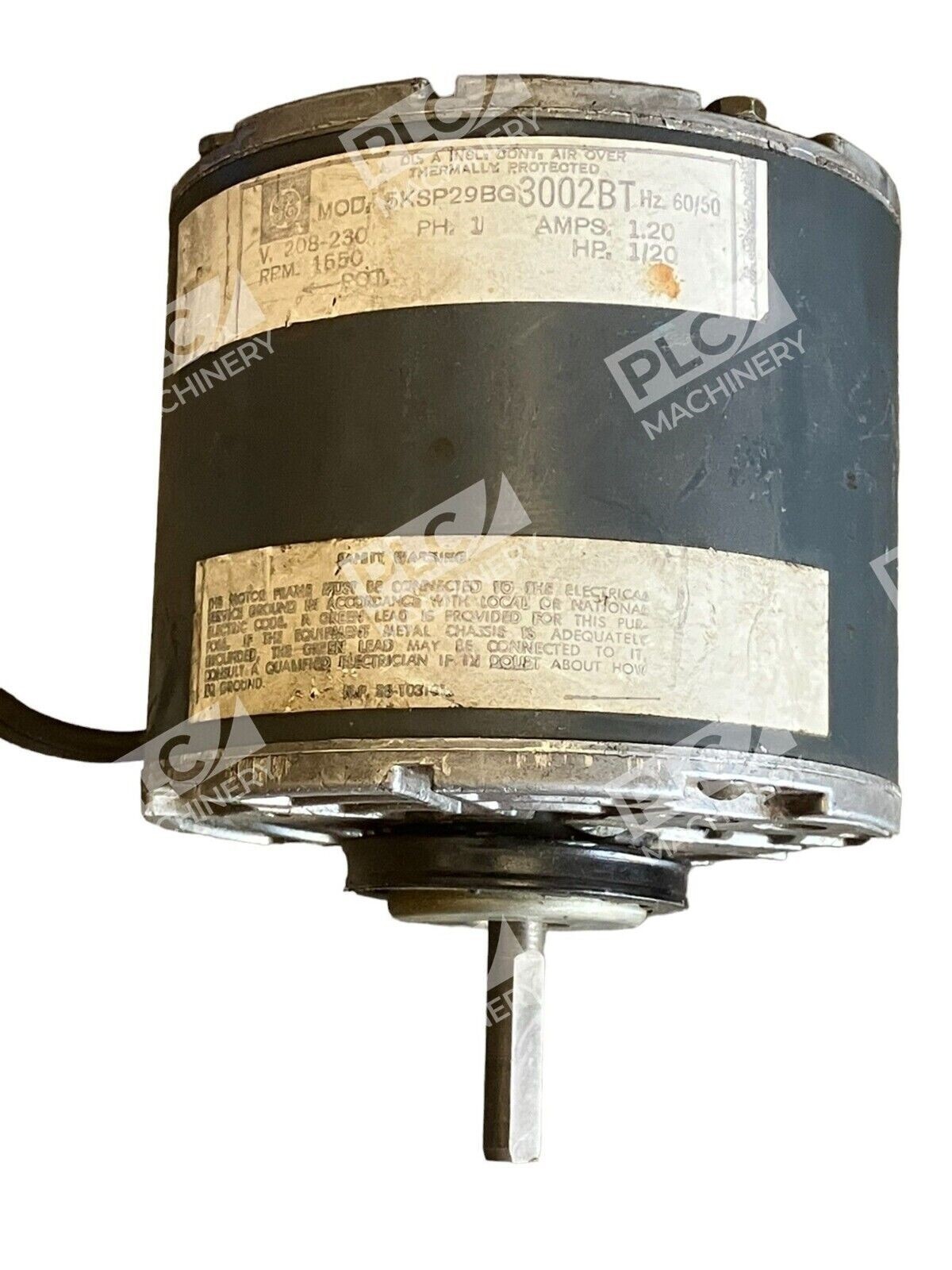

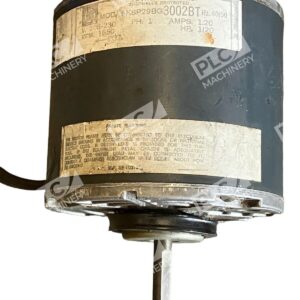

The General Electric 5KSP29BG3002BT is a single-phase AC motor designed for general-purpose industrial and light-duty automation applications. This compact, non-reversible unit delivers 1/20 HP at 1550 RPM and operates on 208–230V AC power, making it suitable for a range of conveyor drives, fan motors, pump applications, and process equipment where small fractional horsepower motors are required.
Key Features
- Single-Phase AC Operation: 208–230V rated, 50/60 Hz frequency compatibility for global industrial use

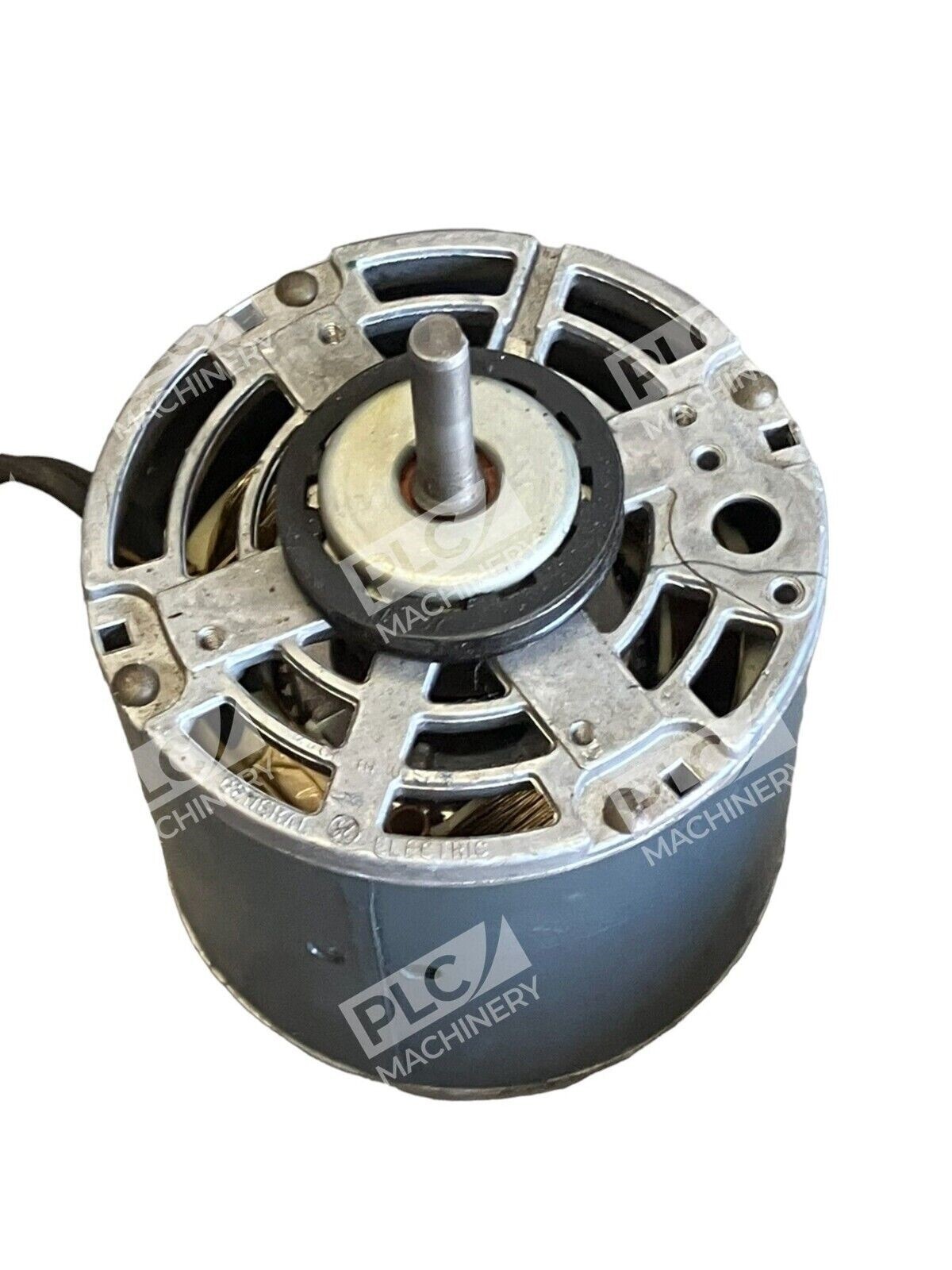

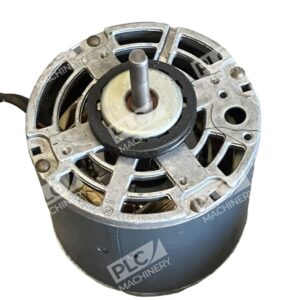

- Compact Design: 1/20 HP rated load with 3/8″ “D” profile shaft for easy integration into existing systems
- Class A Insulation: Rated to 221°F maximum, providing reliable thermal performance in standard industrial environments
- Open Enclosure: Allows for efficient cooling and straightforward maintenance access
- Face-Mount Capability: Standard mounting configuration for direct coupling and shaft-driven applications
- Non-Reversible Design: Fixed direction of rotation optimized for dedicated-duty applications
Technical Specifications
The motor features robust construction with the following characteristics: base speed 1550 RPM, continuous duty operation, and full-load amps of 1.2A. Operating temperature rises are designed within Class A limits. The unit is furnished with a standard “D” profile shaft, 3/8″ diameter, for reliable torque transmission. Dynamic balancing meets NEMA MG-1-12.08 standards to minimize vibration. Open mounting allows horizontal or vertical installation with proper bearing and lubrication provisions.
Typical Applications
- Conveyor belt drive systems and material-handling equipment
- Small pump and fan motor applications
- Process automation equipment and machinery
- General industrial equipment requiring fractional horsepower
- Equipment retrofit and replacement in legacy systems
Compatibility & Replacements
Compatible With
- 208–230V single-phase AC power supplies
- 50/60 Hz industrial power grids
- Standard NEMA shaft-coupling systems
- Open-enclosure motor installations
- Face-mounted motor mechanical configurations
Replaces / Drop-In Replacement For
The General Electric 5KSP29BG3002BT directly replaces other GE 5KSP series motors of identical specifications. Before ordering as a replacement unit, verify the original motor’s shaft diameter, rotation direction, and mounting configuration match this non-reversible design.
Works With
- AC motor starters and variable frequency drives (confirm VFD compatibility with drive manufacturer)
- Standard capacitor-start or capacitor-run control circuits for single-phase operation
- Thermal overload protection devices rated for 1.2 FLA
- NEMA-compatible mechanical couplings and pulleys
