Gates MSHA 2G-11C Hydraulic Hose 6G-6FJX

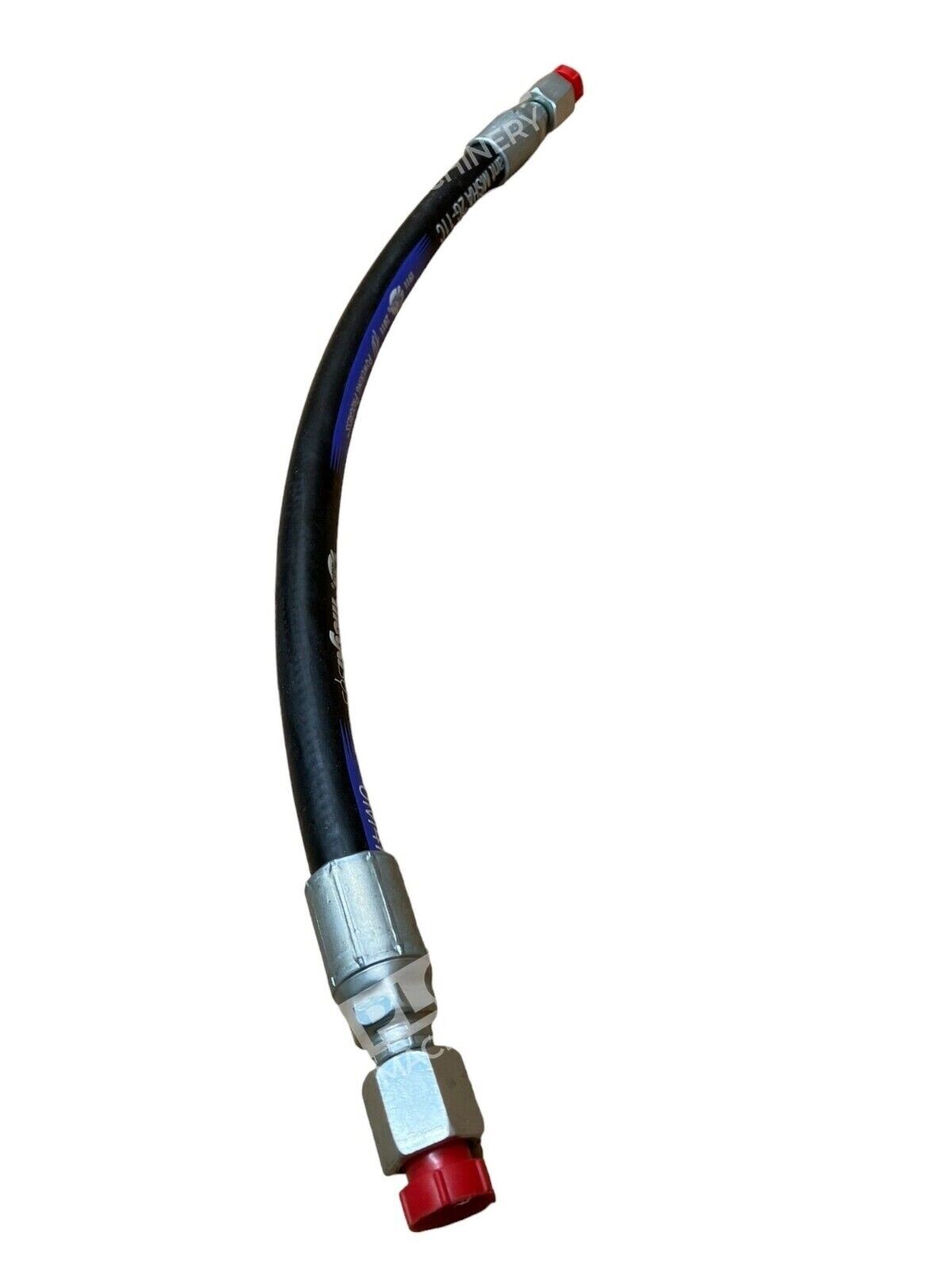

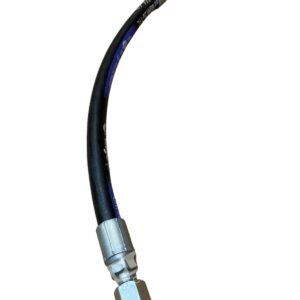

The Gates MSHA 2G-11C Hydraulic Hose, coupled with the 6G-6FJX MegaCrimp® Coupling, delivers a robust and reliable solution for demanding hydraulic applications. This assembly is engineered to provide superior performance, safety, and ease of installation across various industrial settings.

Key Features

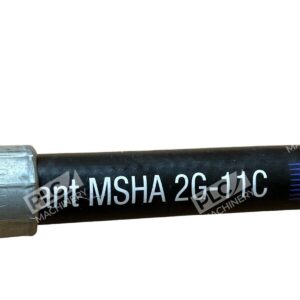

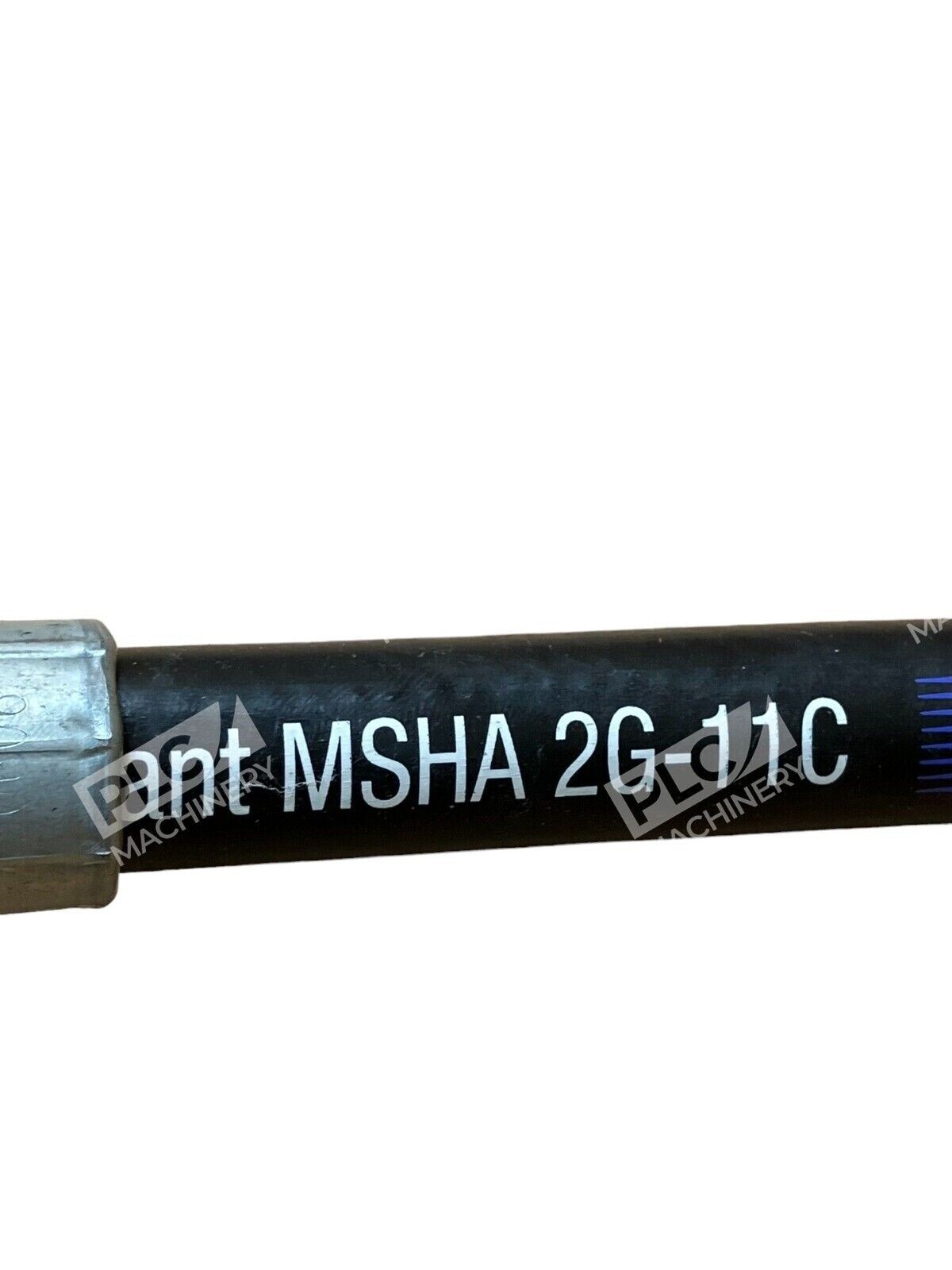

• Flame Resistance: The MSHA 2G-11C hose is designed to be flame-resistant, adhering to stringent safety standards, making it suitable for environments where fire hazards are a concern.
• High-Pressure Capability: Engineered to withstand pressures up to 22.5 MPa (3250 PSI), this hose is ideal for high-pressure hydraulic systems.
• Durable Construction: With a 12.5 mm (0.5 inch) inner diameter, the hose is built to handle rigorous industrial use, ensuring longevity and consistent performance.

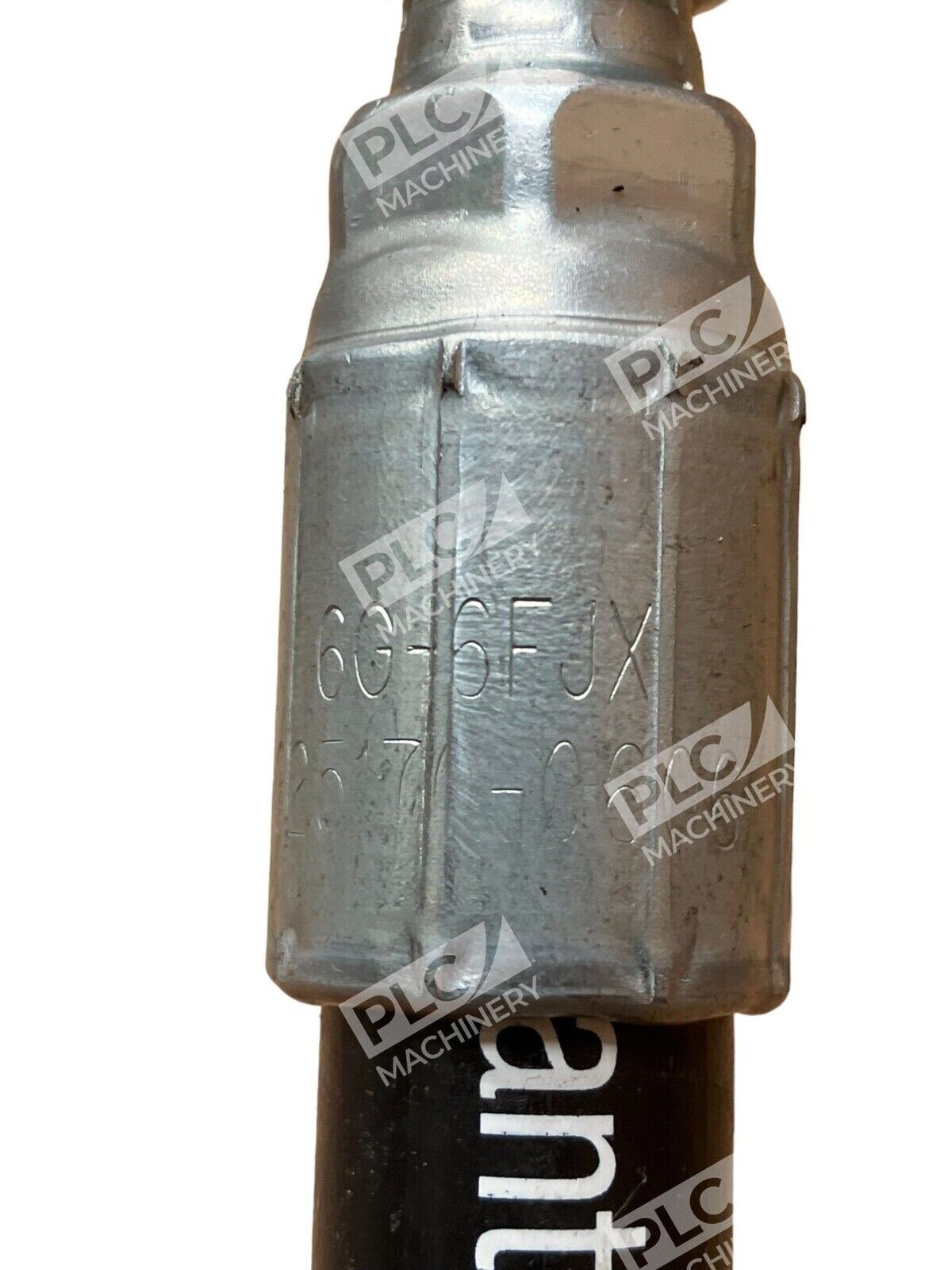

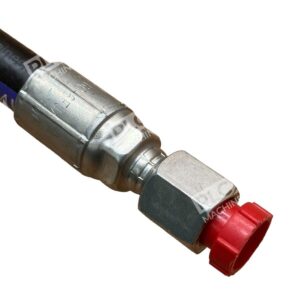

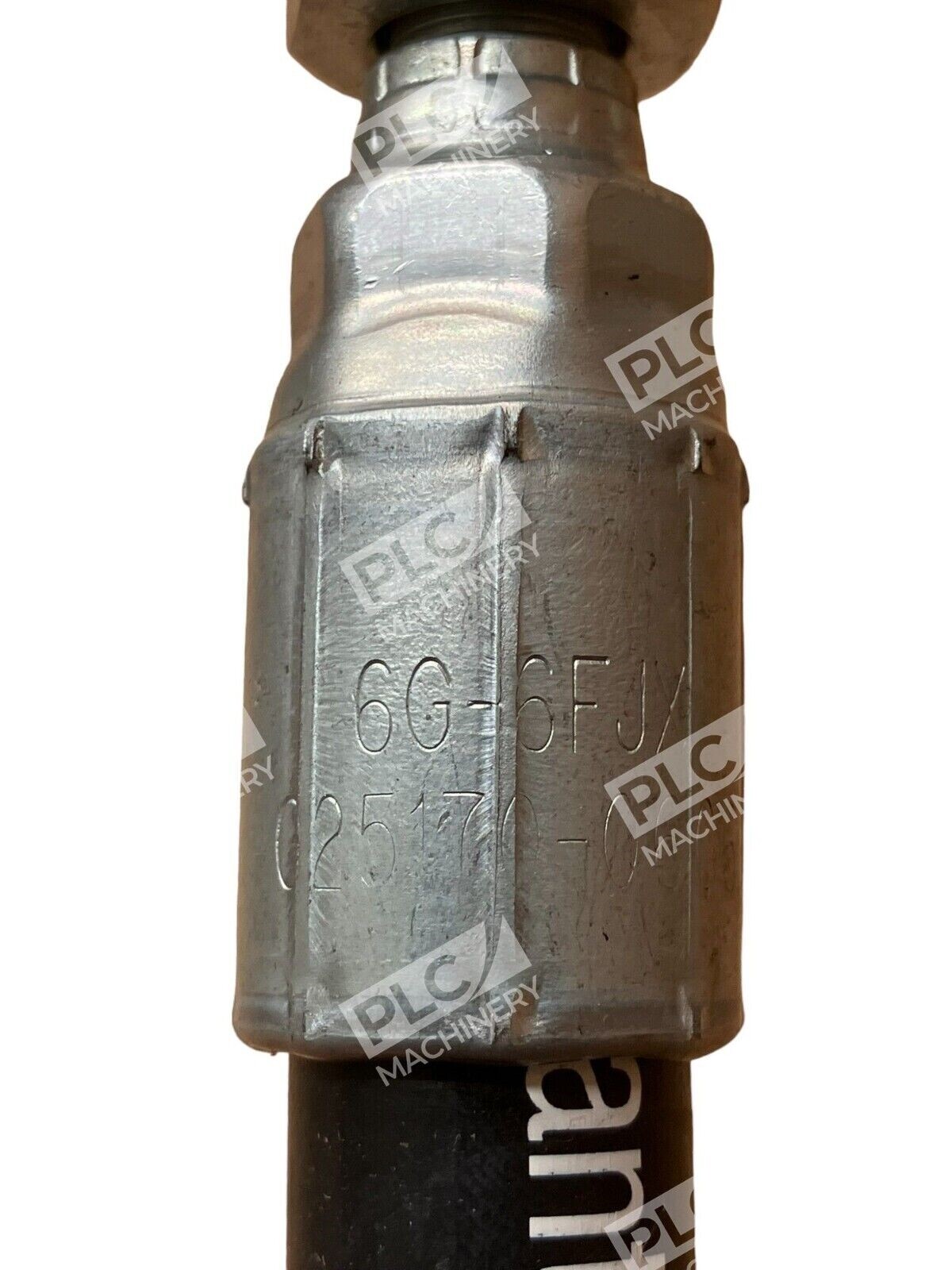

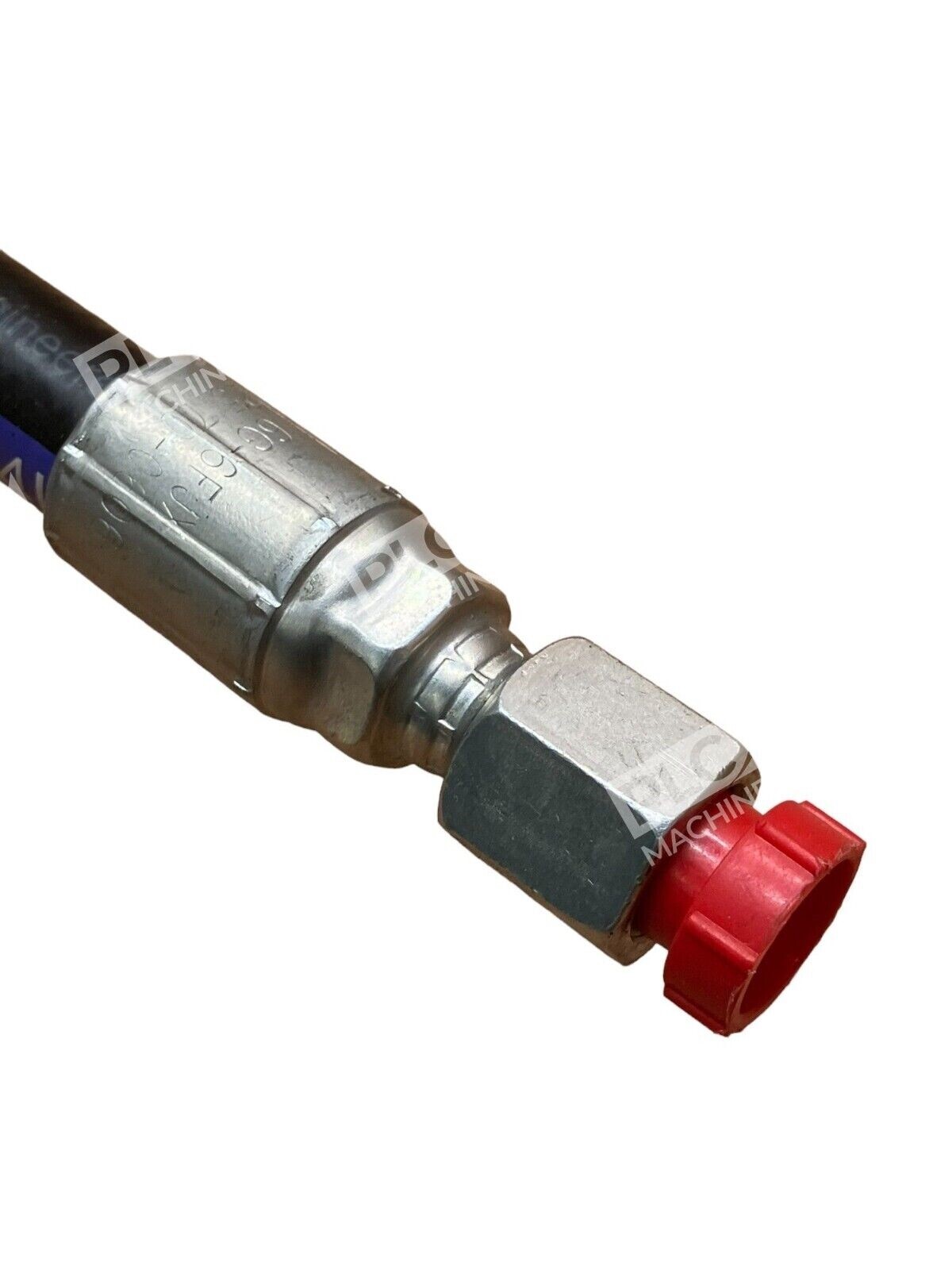

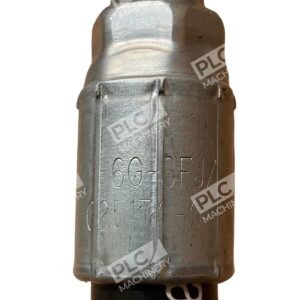

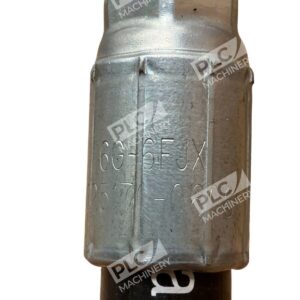

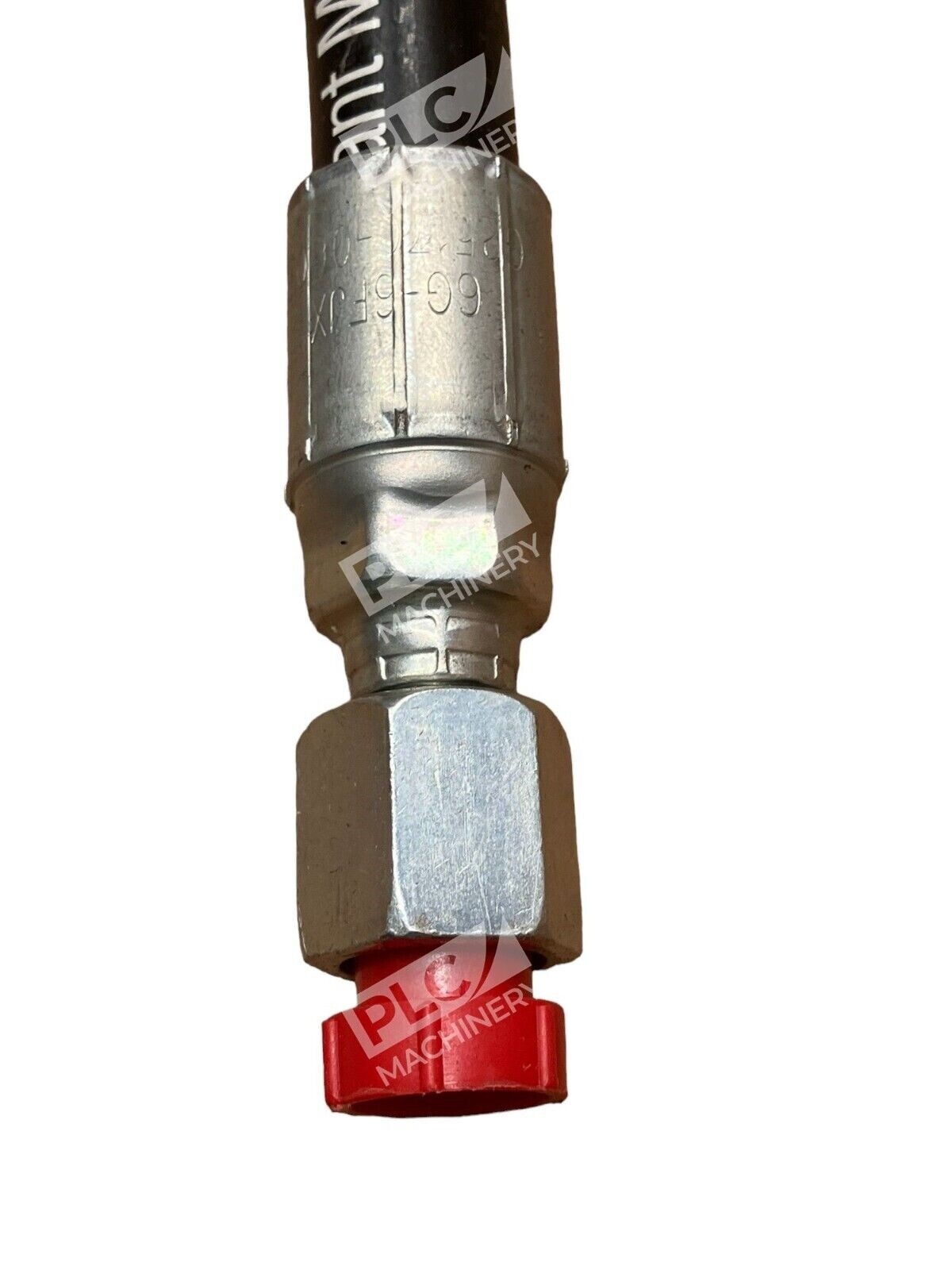

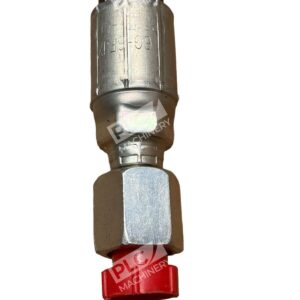

• Versatile Coupling: The 6G-6FJX MegaCrimp® Coupling features a patented “C” insert that accommodates various hose constructions and wall thicknesses. This design ensures even distribution of crimping forces, forming a concentric seal and simplifying inventory requirements.
• Enhanced Corrosion Resistance: The coupling’s TuffCoat™ plating offers superior corrosion resistance, providing 347% better protection than the SAE standard, thereby extending the lifespan of the assembly.
• Reliable Performance: Tested to withstand over one million impulse cycles, the MegaCrimp® Coupling ensures leak-free operation and durability in demanding applications.

Specifications

• Hose Inner Diameter: 12.5 mm (0.5 inch)
• Maximum Working Pressure: 22.5 MPa (3250 PSI)
• Coupling Type: MegaCrimp® 6G-6FJX
• Thread Size: 9/16-18
• Hex Sizes: Stem Hex: 18 mm; Nut Hex: 19 mm
• Overall Length: 61.5 mm (2.42 inches)
• Cut-Off Factor: 32.7 mm (1.29 inches)

This hydraulic hose and coupling assembly is designed to meet the rigorous demands of various industrial applications, providing a reliable and efficient solution for your hydraulic system needs.
