Overview

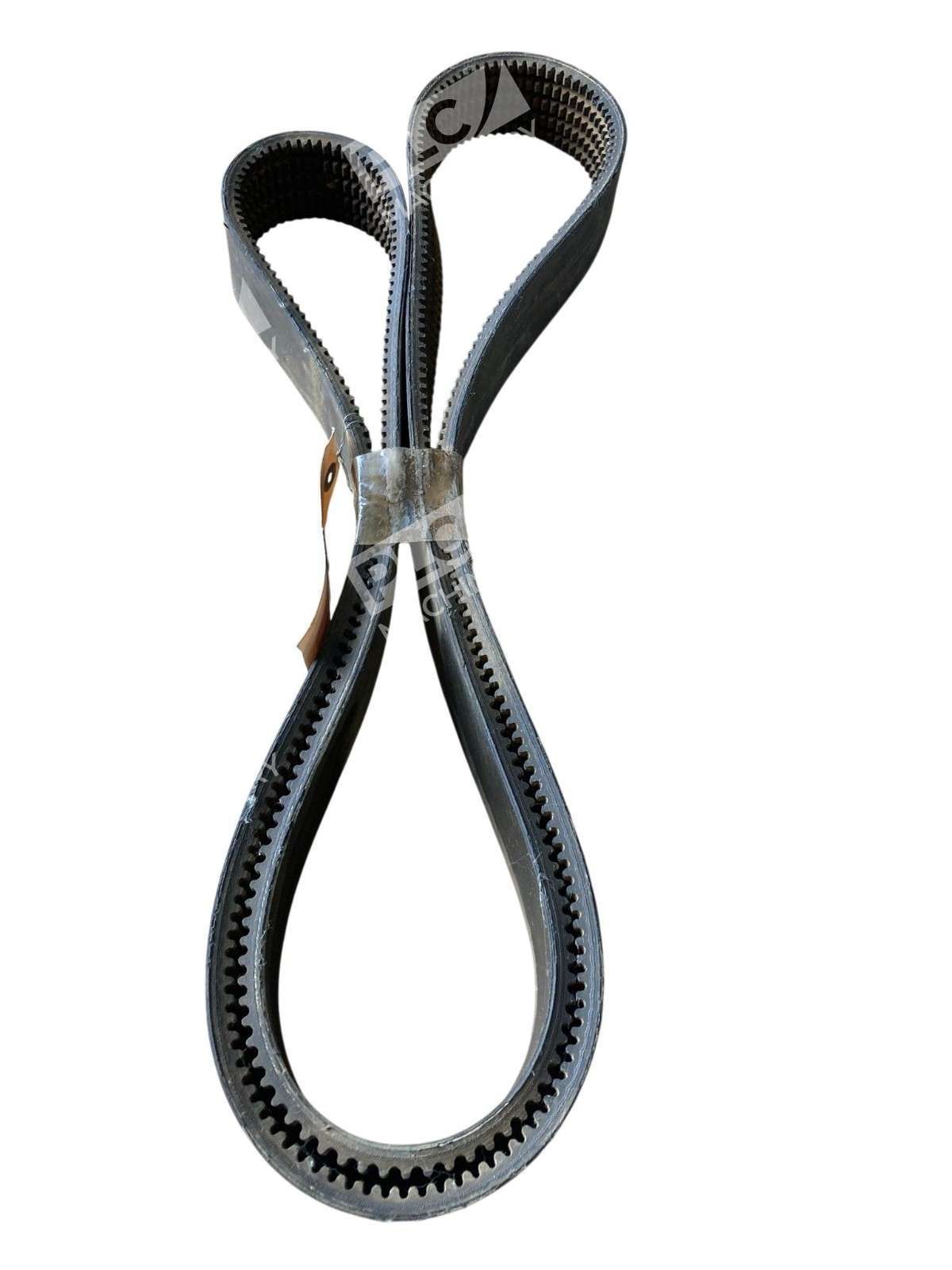

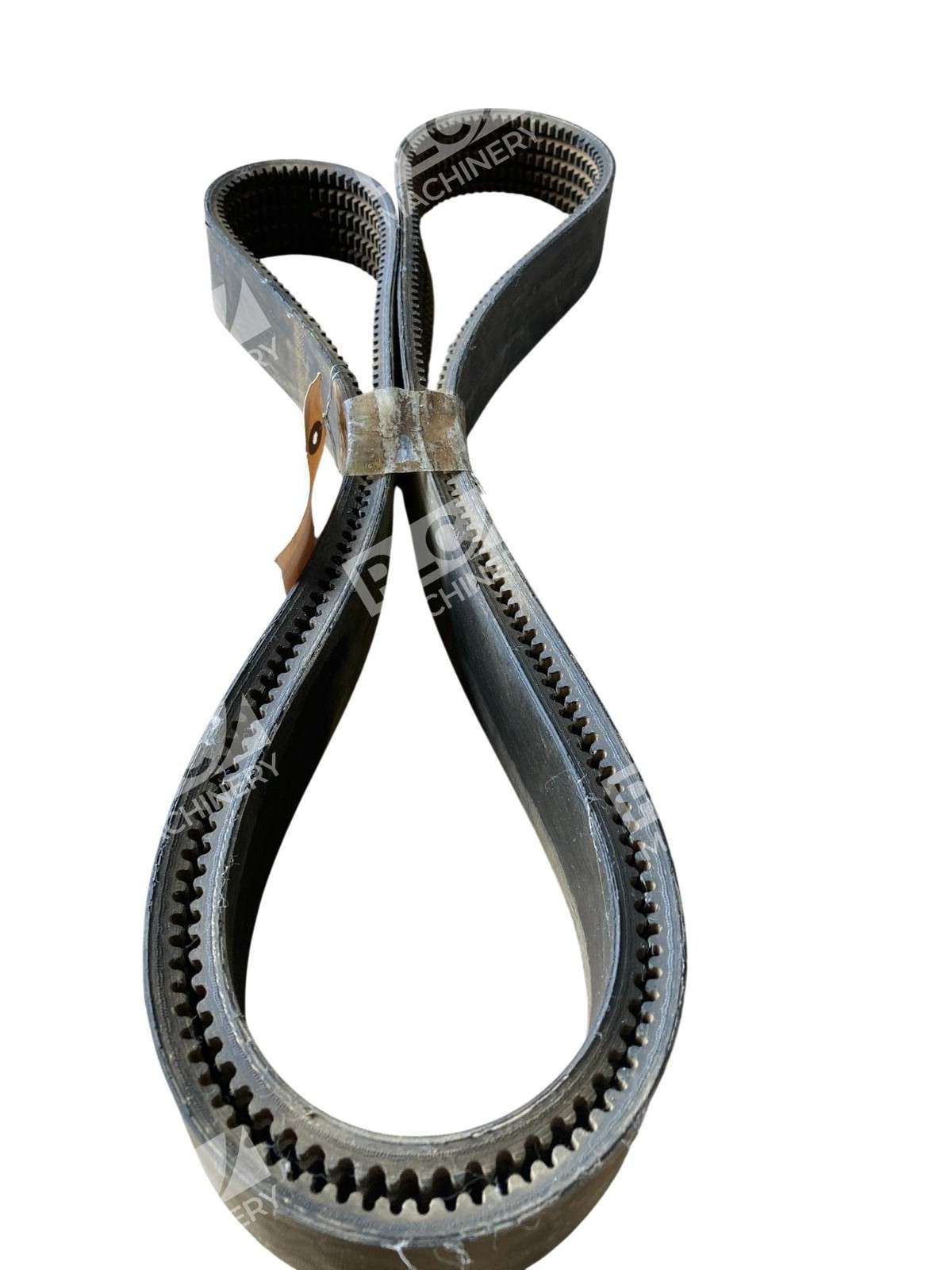

The Gates 3VX1000 Super HC molded notch V-belt is designed to deliver high-horsepower power transmission in compact drive systems. Built with proprietary ethylene construction, this belt transmits significantly more power than classical section V-belts while fitting smaller pulley diameters and space-restricted installations. The Gates 3VX1000 is part of the Series 9412 family and meets strict industrial standards for oil and heat resistance.
Key Features
- High-Horsepower Capacity: Transmits up to three times the horsepower versus comparably sized belts due to proprietary ethylene compound construction.
- Flex-Bonded Cords: Cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads.

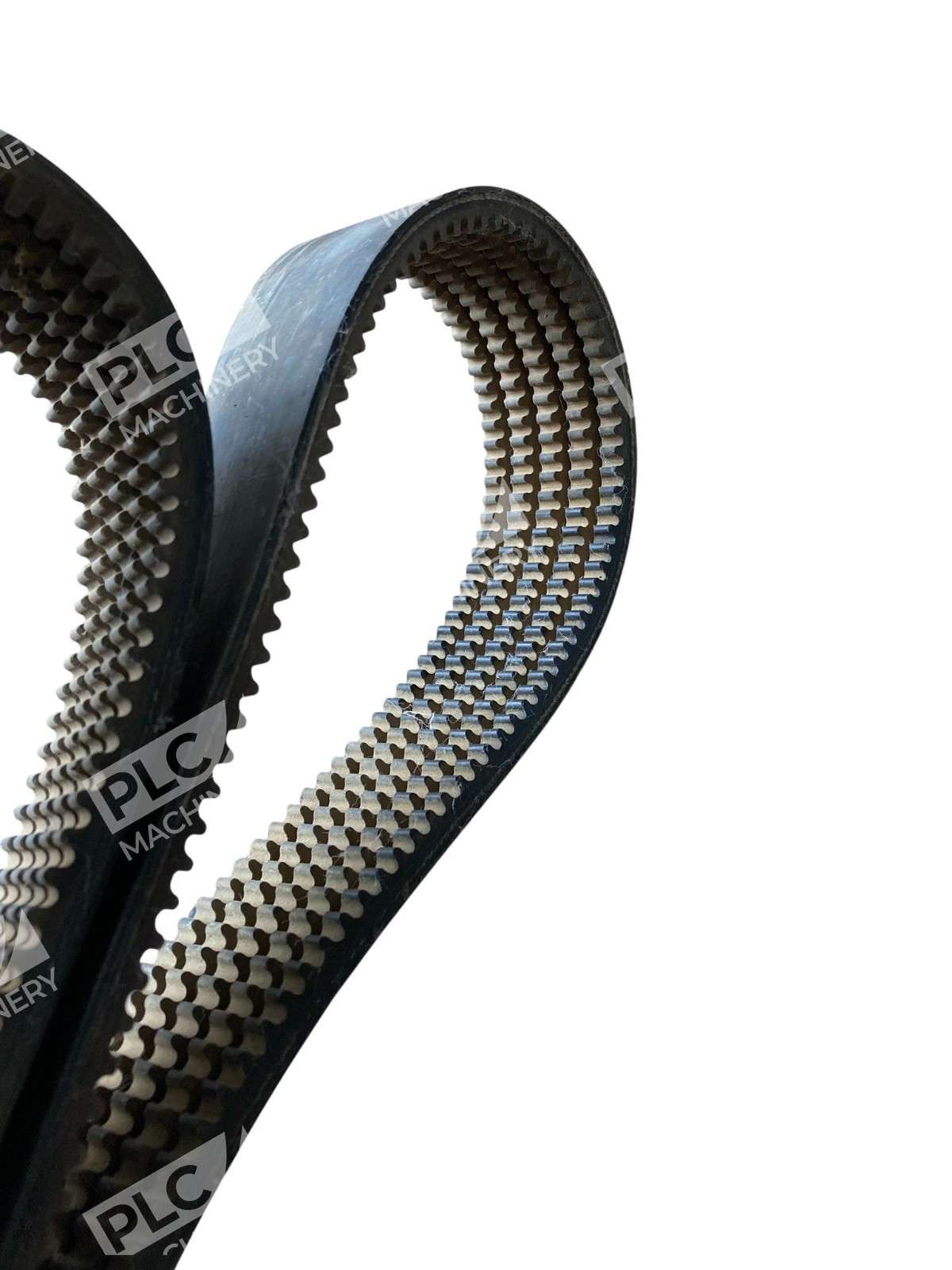

- Molded Notches: Notches molded into the underside create the flexibility needed to fit smaller diameter sheaves while maintaining strength and traction.
- Oil & Temperature Resistant: Made of EPDM (ethylene propylene diene monomer) rubber for resistance to weathering, oils, water, and some solvents.
- Precision Sidewalls: Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves.
- V80 Matching System: All sizes meet Gates V80® system matching tolerances for precise load distribution on multi-belt drives.
Technical Specifications
Gates Super HC V-Belt, Series: 9412, 3VX Section, 3/8 in Top Width, 100 in Outside Length, 21/64 in Thickness, 1 Rib, 3.82 in Diameter Minimum Pulley, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements.
Typical Applications
- Industrial heavy-duty, narrow-section V-belt drives with high-speed or high-speed-ratio requirements
- Compact drives with small pulley diameters where space is limited
- Applications requiring shock load resistance and durability in oil-bearing environments
- Multi-belt systems operating under pulsating or heavy shock loads
- Machinery requiring -70°F to 250°F temperature stability
Compatibility & Replacements
Compatible With
- Gates Super HC® Sheaves (3VX section pulleys)
- Heavy-duty industrial power transmission drives
- Multi-belt drive systems using V80 matching tolerances
- Standard industrial motor and pump driven machinery
Replaces / Drop-In Replacement For
- Gates 3VX1000 (all standard variants)
- Gates 9412-1000
- Equivalent 3VX1000 narrow-section V-belts from other manufacturers meeting RMA standards
Works With
- Gates Super HC pulley systems and sheaves
- Standard RMA (Rubber Manufacturers Association) V-belt drives
- Oil and heat-resistant industrial environments
- Static-conductive belt drive systems (IP-3-3 compliant)
