Overview

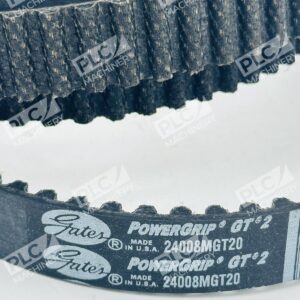

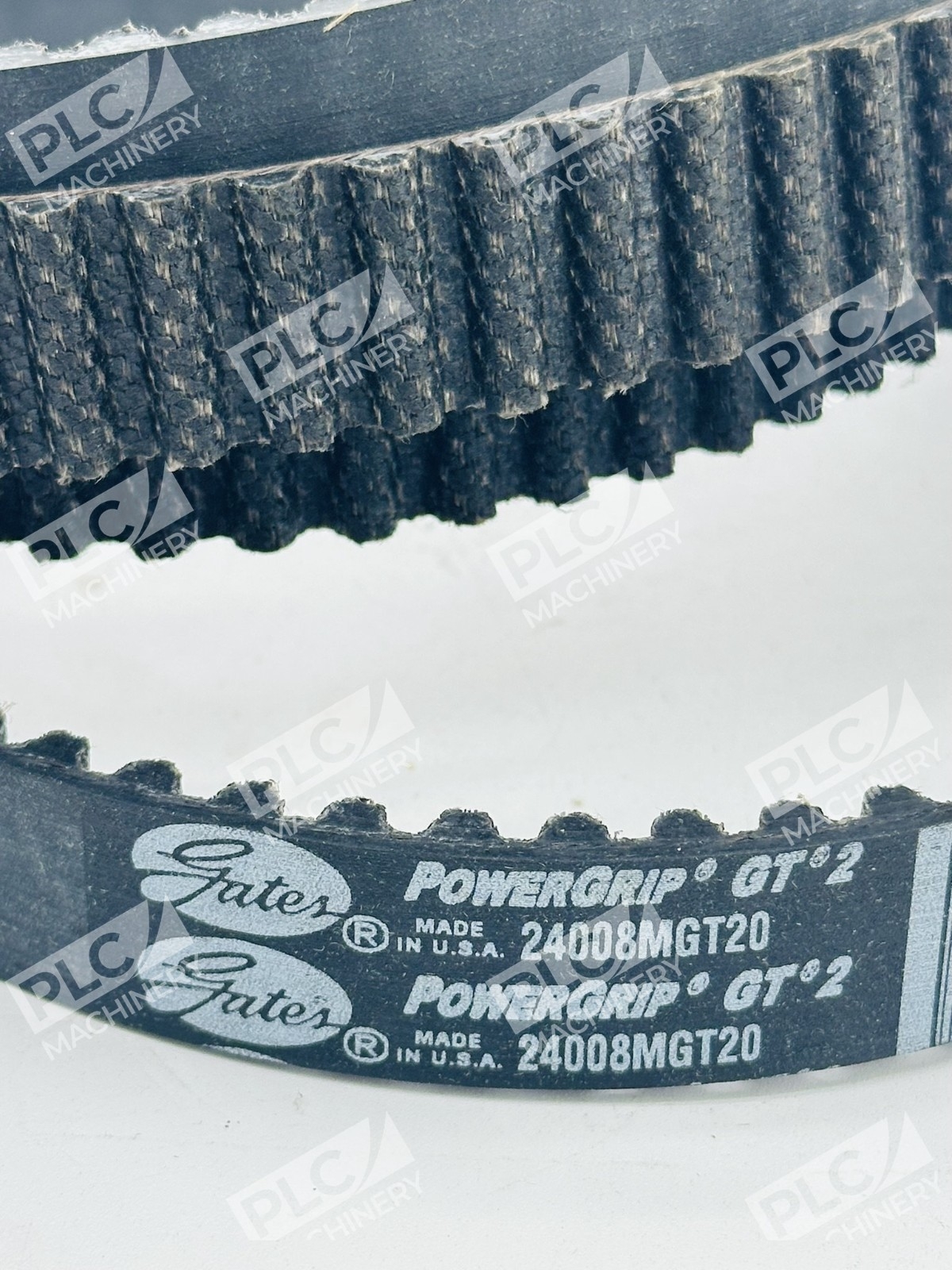

The Gates 24008MGT20 PowerGrip Timing Belt GT2 is a high-performance synchronous belt engineered for accurate, slip-free power transmission in industrial drives. This GT2 profile belt combines rugged construction with maintenance-free operation, making it ideal for applications requiring precise motion control and consistent speed without lubrication or re-tensioning.
Key Features
- GT2 Tooth Profile: Gates’ patented tooth profile is designed for use with a specific sprocket groove profile, and the sprocket groove–belt tooth combination increases load capacity while improving registration
- Neoprene Construction: Made of neoprene for resistance to dirt, grease, oil, and moisture, with fiberglass tensile cords for strength, durability, and resistance to elongation
- Low-Maintenance Design: Unlike roller chain drives, this belt eliminates the need for lubrication and re-tensioning, thereby reducing maintenance
- Nylon Tooth Facing: Nylon tooth facing for quieter operation and resistance to wear
- Wide Temperature Range: Temperature Range: -30°C to +100°C (-22°F to +212°F)
- High-Speed Capable: Power transmission of up to 150 kW and speeds of up to 10,000 rpm
Technical Specifications
- Pitch (mm): 8
- Width (mm): 20
- Belt Length: 2400 mm (approx. 94.5 inches pitch length)
- Profile Type: GT2 (Gates synchronous)
- Material: Neoprene with fiberglass reinforcement
- Tooth Facing: Nylon
- Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Maximum Power Transmission: Up to 150 kW
- Maximum Speed: Up to 10,000 rpm
- Standard Compliance: ISO 13050:2014
- Manufacturer: Gates Corporation
Typical Applications
This PowerGrip timing belt is suitable for many applications such as HVAC, pumps, compressors, centrifuges, machine tools, food processors, conveyors, packaging systems, laundry equipment, pulp and paper processors, and agricultural equipment. The 24008MGT20 is particularly well-suited for:
- Industrial automation and motion control systems
- Machine tool drives requiring precision and low maintenance
- Conveyor systems and material handling equipment
- Centrifuges and rotating machinery
- Packaging and processing equipment
Compatibility & Replacements
Compatible With
- PowerGrip GT2 sprocket (groove profile must match Gates’ patented tooth design)
- GT2 profile pulleys and sprockets (8mm pitch, 20mm width)
- Industrial drive systems requiring synchronous belt transmission
- Machine tool and automation controllers compatible with belt-driven applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This belt is part of Gates’ standard 2400-8MGT-20 designation and may interchange with other manufacturers’ GT2 profile belts of identical pitch and width, subject to sprocket compatibility verification.
Works With
- GT2 sprocket systems (Gates and third-party compatible designs)
- Open belt drive systems (no guards required)
- Tensioning systems rated for 8mm pitch, 20mm width belts
- Industrial automation frameworks using synchronous belt drives
