Overview

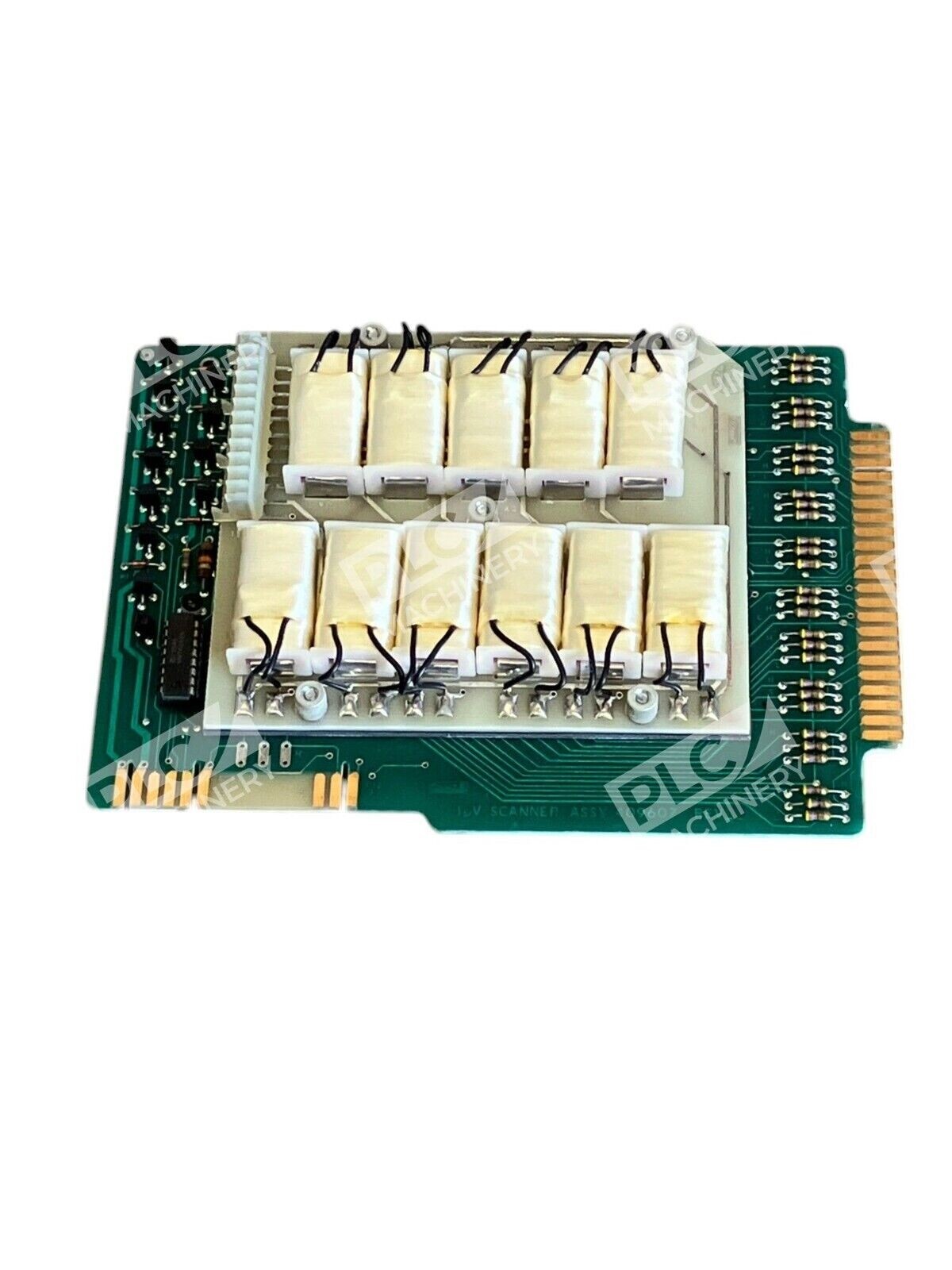

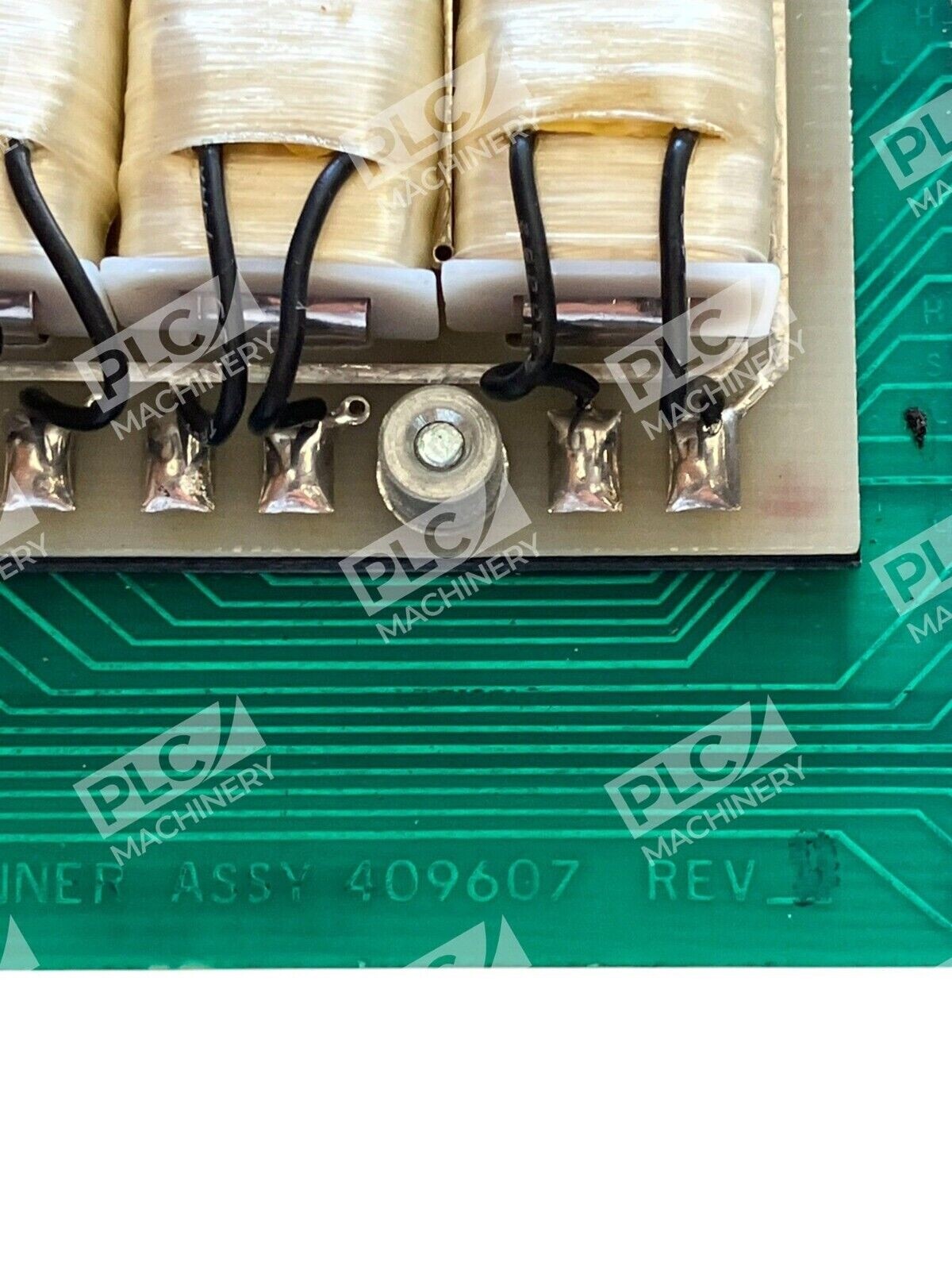

The Fluke 409607 Rev D Luv Scanner Assembly is a specialized circuit board module designed for industrial automation and motion control applications. This unit, designated as the 2200A-3020 CKT1 Rev H, was part of Fluke’s legacy product line for precision measurement and control systems. The Fluke 409607 is a component-level solution for equipment integrators and maintenance technicians seeking replacement or repair parts for existing Fluke-based automation infrastructure.
Key Features
- Fluke manufacturing pedigree — built to industrial-grade standards for reliability in demanding environments
- Specialized scanner module — designed for data acquisition and control signal processing
- Legacy component availability — sourced and tested for immediate deployment in existing systems
- Used condition, fully functional — verified operation before shipment
- Drop-in replacement option — where applicable to compatible Fluke equipment
Technical Specifications
- Part Number: Fluke 409607
- Revision Level: Rev D (assembly); CKT1 Rev H (circuit board variant)
- Component Type: Scanner Assembly / Control Module

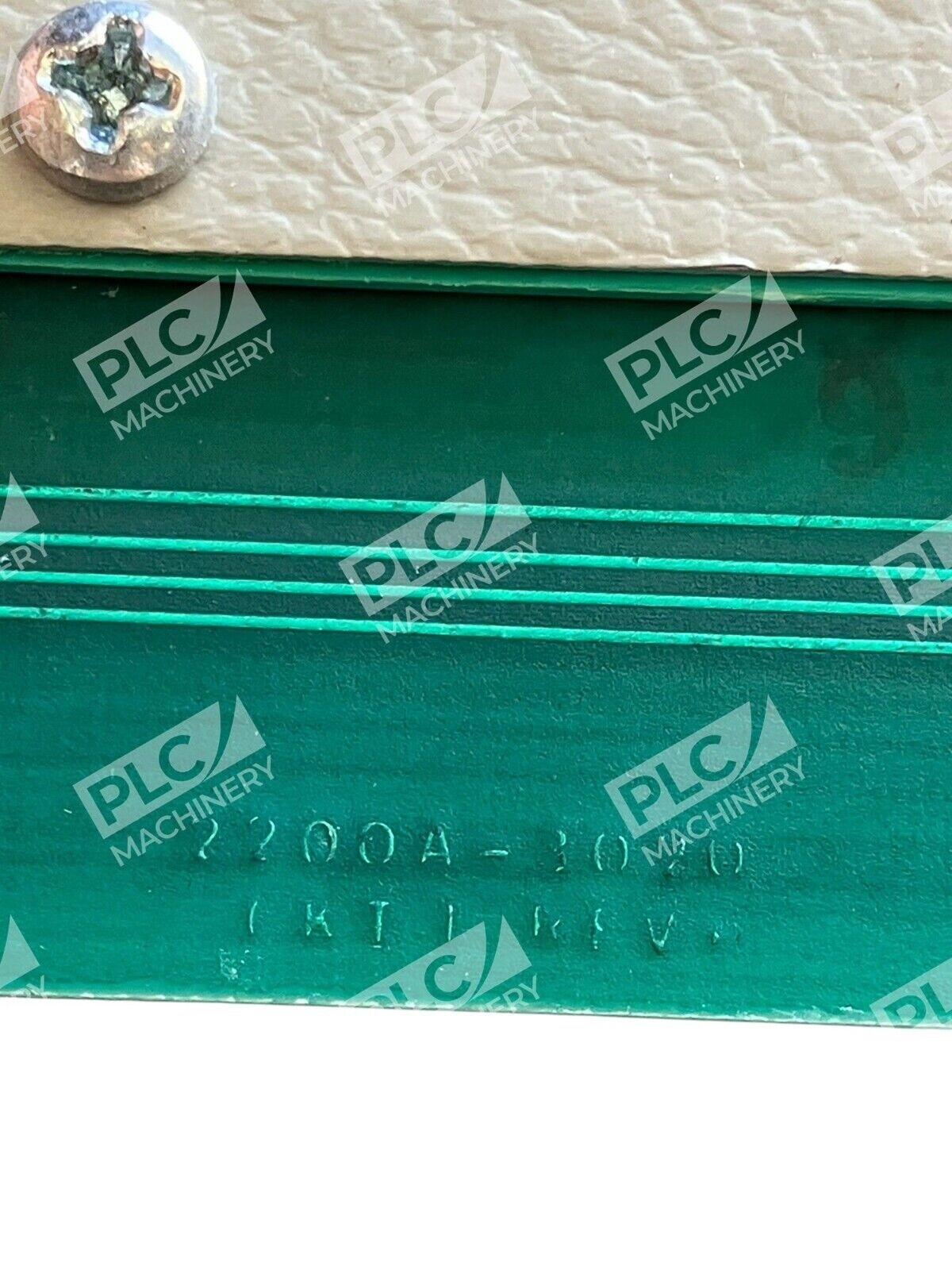

- Related Designation: 2200A-3020
- Condition: Used, fully functional and tested
- Application Class: Industrial automation, motion control, measurement systems
- Manufacturer: Fluke Electronics
Typical Applications
The Fluke 409607 circuit board is commonly used in:
- Industrial test and measurement equipment requiring signal processing and data capture
- Legacy automation control systems and retrofit projects
- Motion control subsystems where Fluke modules are integrated
- Equipment repair and board-level replacement in installed systems
- Spare parts inventory for long-running manufacturing and process automation
Compatibility & Replacements
Compatible With
- Fluke legacy test and automation equipment (confirm specific model with system documentation)
- Industrial automation racks and enclosures with standard mounting provisions
- Fluke proprietary control and measurement systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment OEM before ordering. The 409607 Rev D is a replacement-level assembly for corresponding Fluke scanner and control module applications. Cross-reference your equipment serial number and revision level with Fluke technical documentation to confirm direct compatibility.
Works With
- Fluke equipment supporting CKT1 scanner modules
- Industrial equipment fitted with 2200A-series control cards
- Legacy Fluke automation and measurement frameworks
