Overview

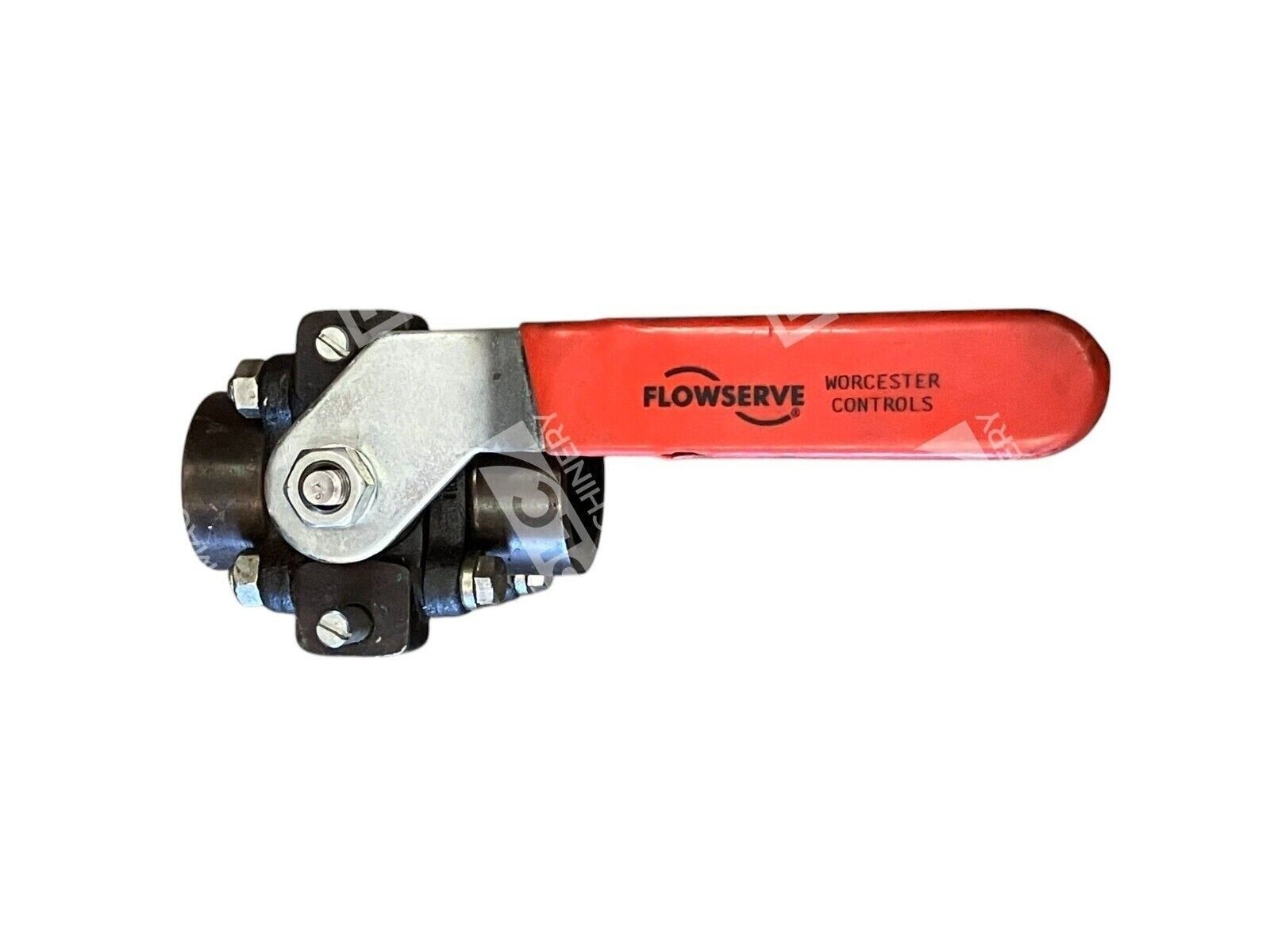

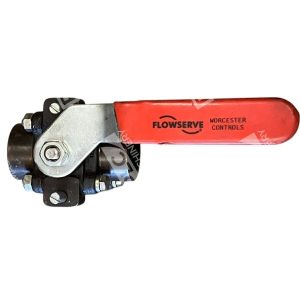

The Flowserve 1 4446RTSE R2 ball valve is part of the Worcester Controls Series 44 standard ball valve line, manufactured by Flowserve Corporation. This 1-inch threaded valve combines an A105 carbon steel body with 316 stainless steel ball and stem, delivering robust performance in industrial piping and fluid power systems. The RTFE (TFE) seat and seal material provide chemical resistance and reliable shutoff across a wide range of industrial media.
Key Features
- 1-inch NPT threaded connection — Direct screw-in installation with standard pipe threads
- A105 carbon steel body — Durable, economical casting for general-purpose applications
- 316 stainless steel ball and stem — Superior corrosion resistance and smooth operation
- TFE (RTFE) seats and seals — Chemical-resistant, reliable shutoff with minimal maintenance
- 1440 PSI CWP rating — Safe working pressure suitable for mid-range industrial systems
- 500°F maximum temperature — Handles elevated-temperature fluids without seal degradation

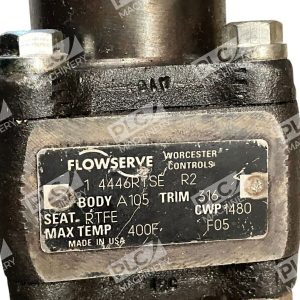

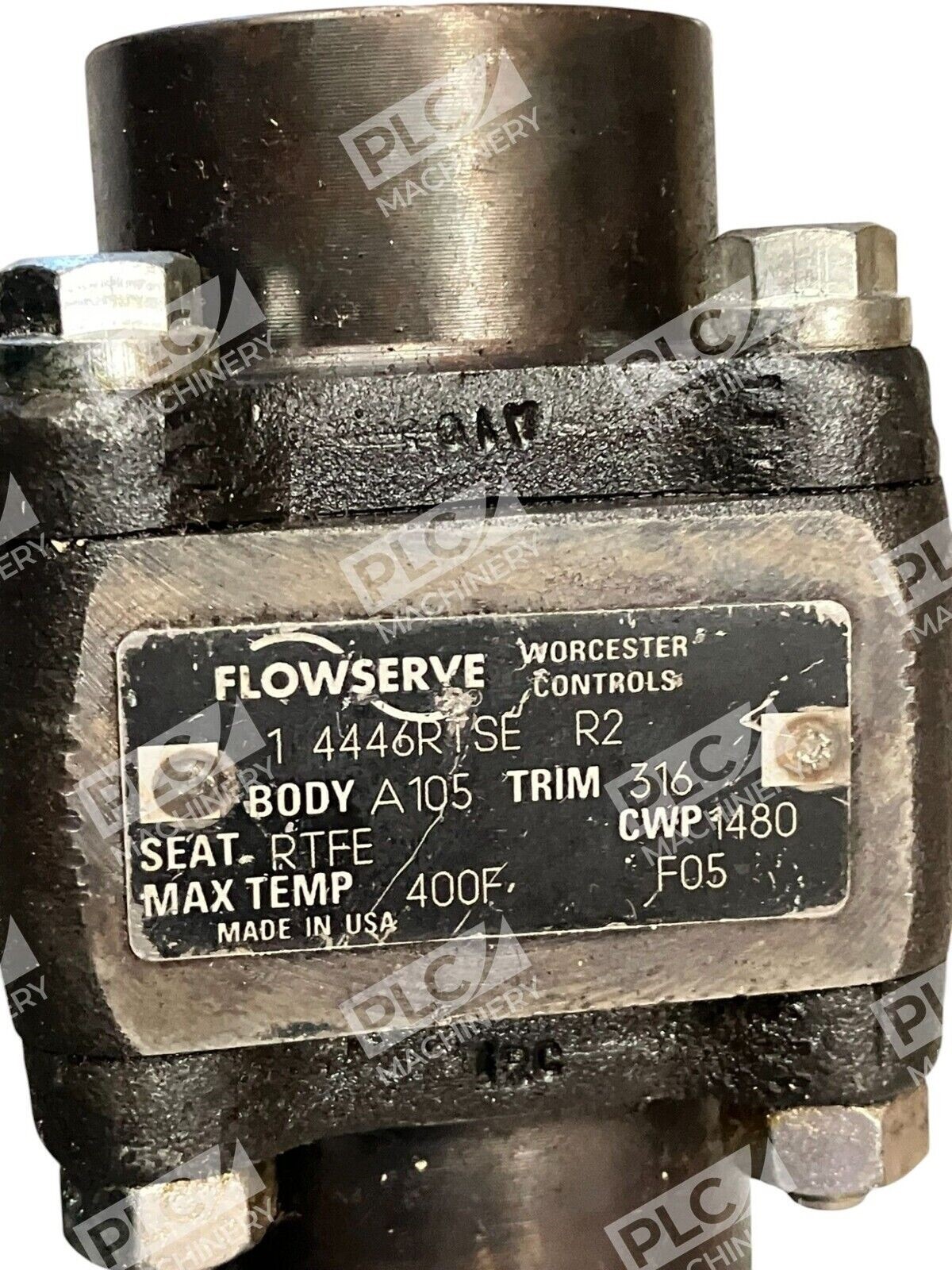

Technical Specifications
- Body Material: A105 Carbon Steel (ASTM A216 WCB)
- Ball & Stem: 316 Stainless Steel (ASTM A479)
- Seats & Seals: TFE (RTFE)
- Size: 1 inch NPT Threaded
- CWP (Cold Working Pressure): 1440 PSI
- Maximum Temperature: 500°F
- Design Standard: ANSI B16.34
- Model: 1 4446RTSE R2
- Handle Type: Zinc-plated carbon steel lever (vinyl-coated)
Typical Applications
- Industrial fluid power and hydraulic systems
- Process piping and manual shutoff applications
- Compressed air and pneumatic circuits
- Steam condensate drainage systems
- General-purpose isolation and regulation
- OEM equipment assembly and manifold integration
Compatibility & Replacements
Compatible With
- Standard ANSI B16.1 and B16.5 flange assemblies (when fitted with flange kits)
- NPT-threaded piping systems up to 1 inch
- Pressure gauges and instrumentation on wetted sides
- Flowserve Worcester Controls valve manifold blocks
- Industrial hydraulic and pneumatic circuits rated up to 1440 PSI
Replaces / Drop-In Replacement For
- Earlier version A105 316 ball valves in the Worcester Controls 44 Series
- Verify exact compatibility with your equipment documentation before ordering
Works With
- Standard NPT pipe thread sealants and PTFE tape
- Compressed air, water, oil, and inert gas media
- Industrial control systems and manifold assemblies
- Manual or actuator-driven isolation circuits
