Overview

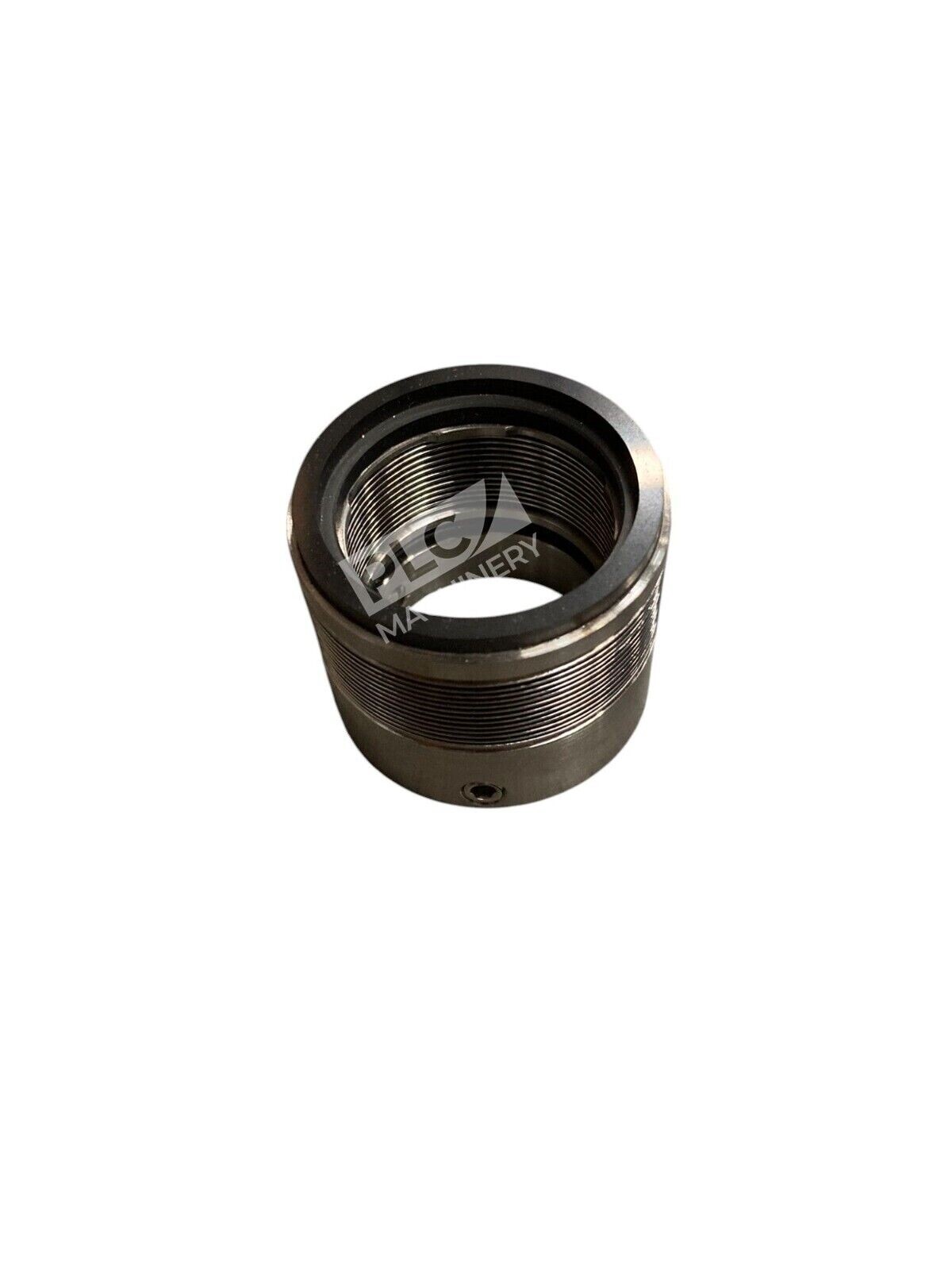

The Flex-A-Seal S16315 42ABC.F.22 25250 is a precision-engineered 1-3/4″ bellows assembly constructed with Silicon Viton elastomer materials. This cartridge-style seal assembly is designed for rotating and stationary pump applications requiring dynamic sealing under moderate pressure and temperature conditions. The elastomer bellows design provides flexibility, spring characteristics, and reliable containment of process fluids across a wide range of industrial operating environments.
Key Features
- 1-3/4″ bellows diameter for standard industrial pump cavity sizes
- Silicon Viton elastomer construction for broad chemical compatibility
- Elastomer bellows provides integral spring force without additional springs
- Cartridge-style design enables straightforward installation and replacement
- Operating pressure range suitable for centrifugal and gear pump applications
- New condition, fully inspected and ready for deployment
Technical Specifications

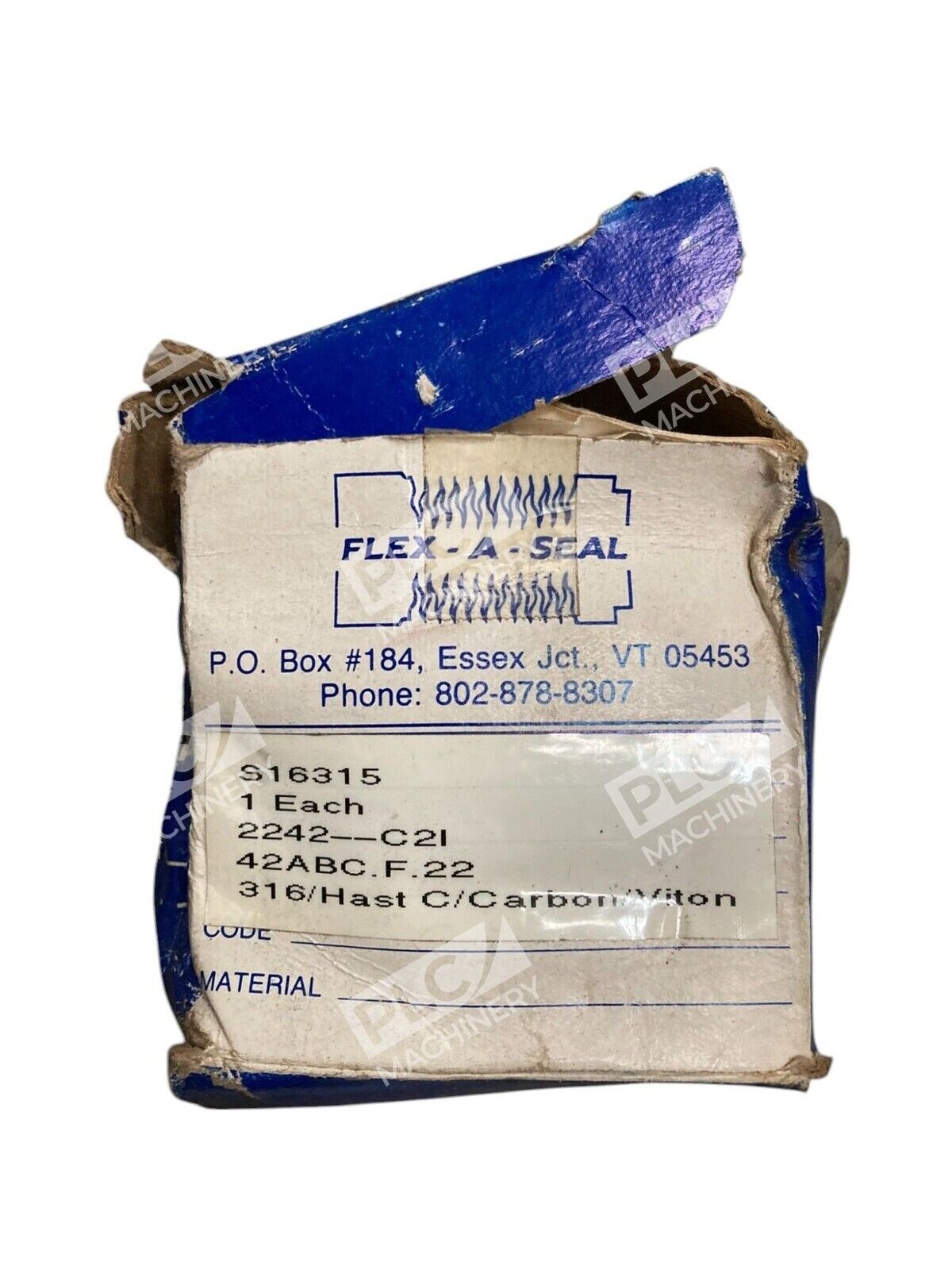

| Part Number | S16315 42ABC.F.22 25250 |
| Manufacturer | Flex-A-Seal (Flexaseal Engineered Seals and Systems) |
| Bellows Size | 1-3/4″ |
| Primary Material | Silicon Viton Elastomer |
| Seal Type | Elastomer Bellows Cartridge Seal |
| Design Style | Single-Spring Elastomer Bellows |
| Application Type | Rotating and Stationary Mechanical Seal |
| Condition | New in Box |
Typical Applications
- Centrifugal Pumps: Process water, cooling water, and general industrial pump applications
- Gear Pumps: Light hydraulic and moderate-viscosity fluid transfer
- Compressor Seals: Gas and vapor containment in rotating equipment
- Mixer & Agitator Seals: Low to moderate pressure mixing vessels
- Chemical Processing: Applications requiring broad elastomer chemical resistance
Compatibility & Replacements
Compatible With
- Flex-A-Seal cartridge pump glands and seal chambers
- Standard 1-3/4″ bellows cavity industrial pump designs
- ANSI pump seal cavity standards (verify cavity dimensions with OEM)
- Centrifugal and reciprocating pump configurations
Replaces / Drop-In Replacement For
- Flex-A-Seal model 2242-C2I
- OEM-equivalent 1-3/4″ elastomer bellows assemblies with Silicon Viton construction
- Note: Always verify cavity dimensions and material compatibility with your equipment manufacturer before installation
Works With
- Flex-A-Seal support systems and seal support packages
- Standard cartridge seal installation tooling and procedures
- Industry-standard pump seal cavity configurations
- Compatible with barrier fluid systems where required by application
