Overview

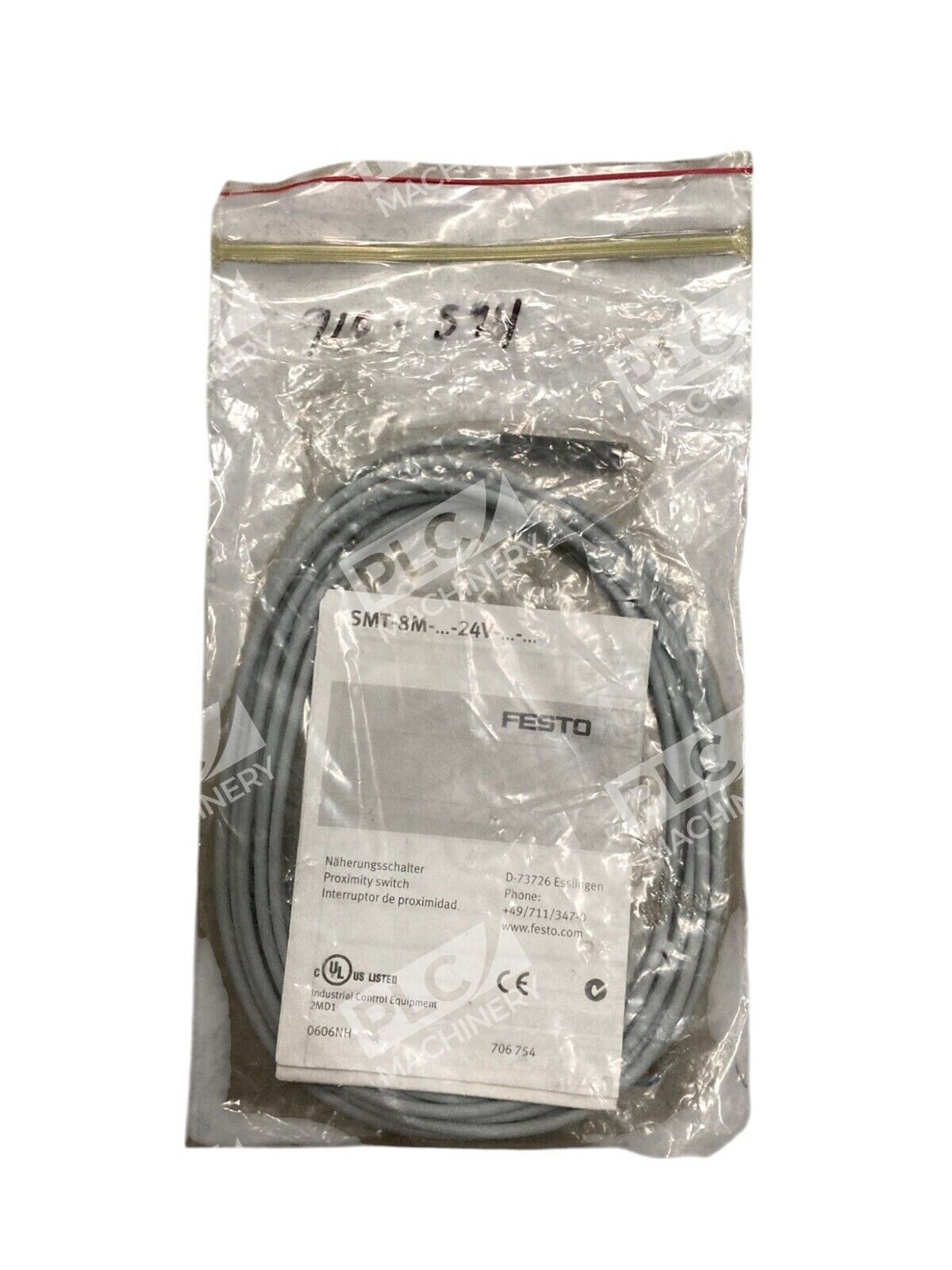

The Festo SMT-8M-24V proximity switch is a compact, magneto-resistive sensor designed for T-slot installations in pneumatic cylinders and automation equipment. This proximity switch is designed for T-slot installation and offers a 3-wire PNP normally open output with 24 V DC operation. It features a 0.3 m cable with rotatable M8 plug, magneto-resistive sensing, and IP69K protection. The sensor provides consistent, non-contact position detection with minimal maintenance requirements.
Key Features
- Magneto-Resistive Technology: Measuring principle: magneto-resistive for reliable, wear-free operation
- PNP 3-Wire Output: Normally open contact for direct integration into industrial controls
- IP69K Protection Rating: IP69K protection ensures operation in high-pressure washdown and harsh environments
- LED Status Indicators: LED switching status indication, LED operating reserve indication
- M8 Rotatable Connector: Rotatable M8 plug for flexible mounting and cable routing
- Wide Cable Length Options: Cable length 0.1 … 30 m available for system integration
Technical Specifications
The SMT-8M-24V delivers industrial-grade performance across critical automation parameters:
- Operating Voltage: 24 VDC
- Output Current: 100 MA
- Switching Frequency: 130 HZ
- Switching Capacity: 2.8 W
- Output Type: PNP, normally open (N/O)
- Connector: M8 rotatable plug
- Protection Rating: IP65/IP68/IP69K
- Operating Temperature: -20 TO +70 DEGREE C
- Sensing Range: 8 mm (typical for SMT-8M series)
- Design: Can be inserted into the slot from above, flush with the cylinder profile
Typical Applications
- Pneumatic cylinder end-of-stroke detection
- Linear actuator position sensing in Festo DGCI, DSNU, and other T-slot systems
- Machine tool fixture and tooling position confirmation
- Production line automation and material handling systems
- Washdown and wet-environment industrial settings (IP69K rated)
- Process control and limit switch integration
Compatibility & Replacements
Compatible With
- Festo DGCI, DSNU, DSNUP, and DNUP pneumatic cylinders with T-slot design
- Standard industrial 24 VDC PLC and controller systems
- EtherCAT, PROFINET, and EtherNet/IP automation networks
- Festo plug-and-play pneumatic systems
- Allen-Bradley, Siemens, Rockwell, and third-party PAC platforms
Replaces / Drop-In Replacement For
- Festo SMT-8M-PS-24V-K series (earlier generation)
- REPLACEMENT FOR SMT-8M-PS-24V-K-2.5-OE
- Similar magneto-resistive sensors in the SMT-8M product line
Works With
- Festo STEP7, TIA Portal, and Studio 5000 libraries
- Open-ended cable configurations for custom harness integration
- M8 connector-based pneumatic and sensor networks
- Standard 24 VDC industrial control platforms
