Overview

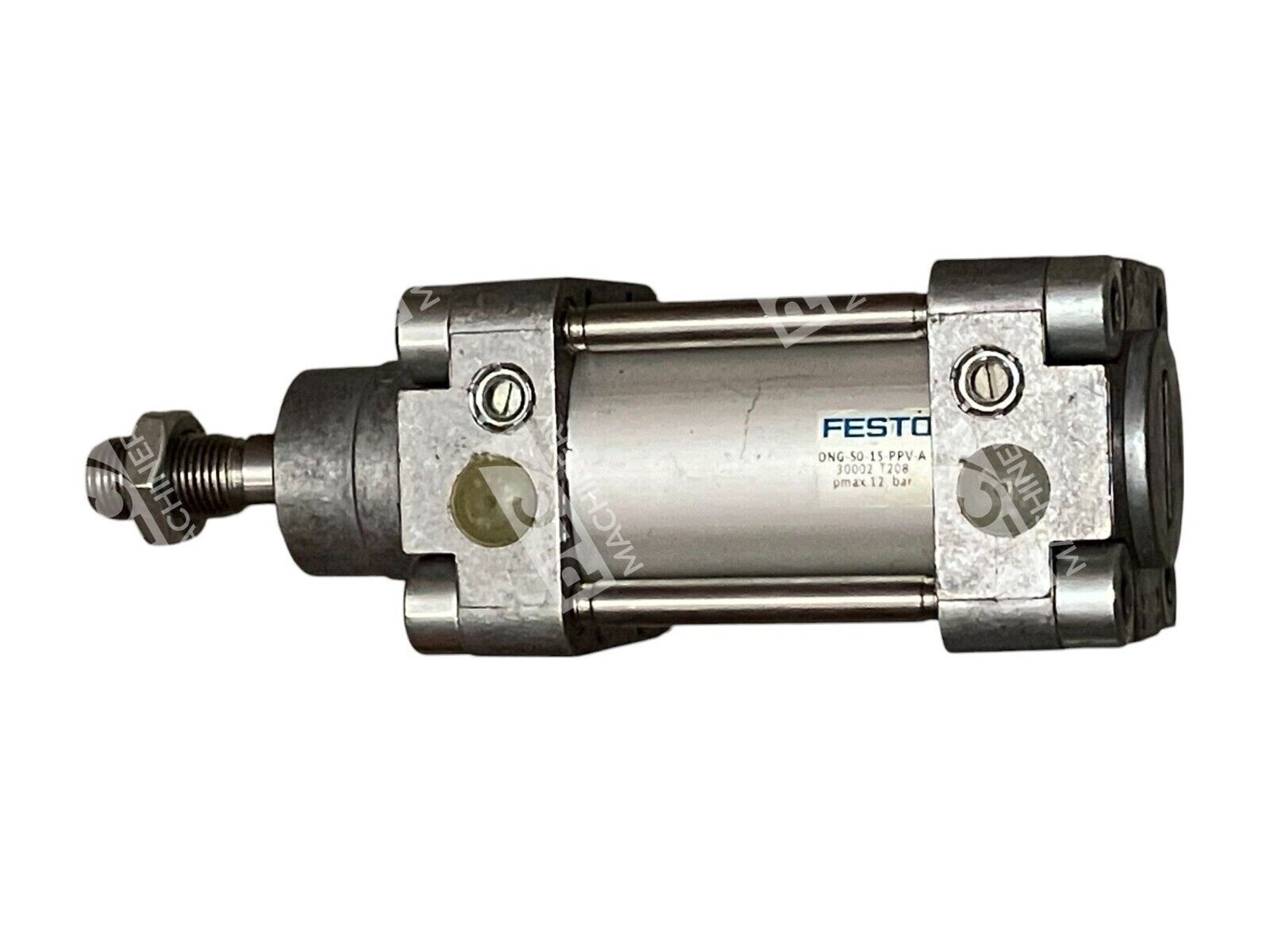

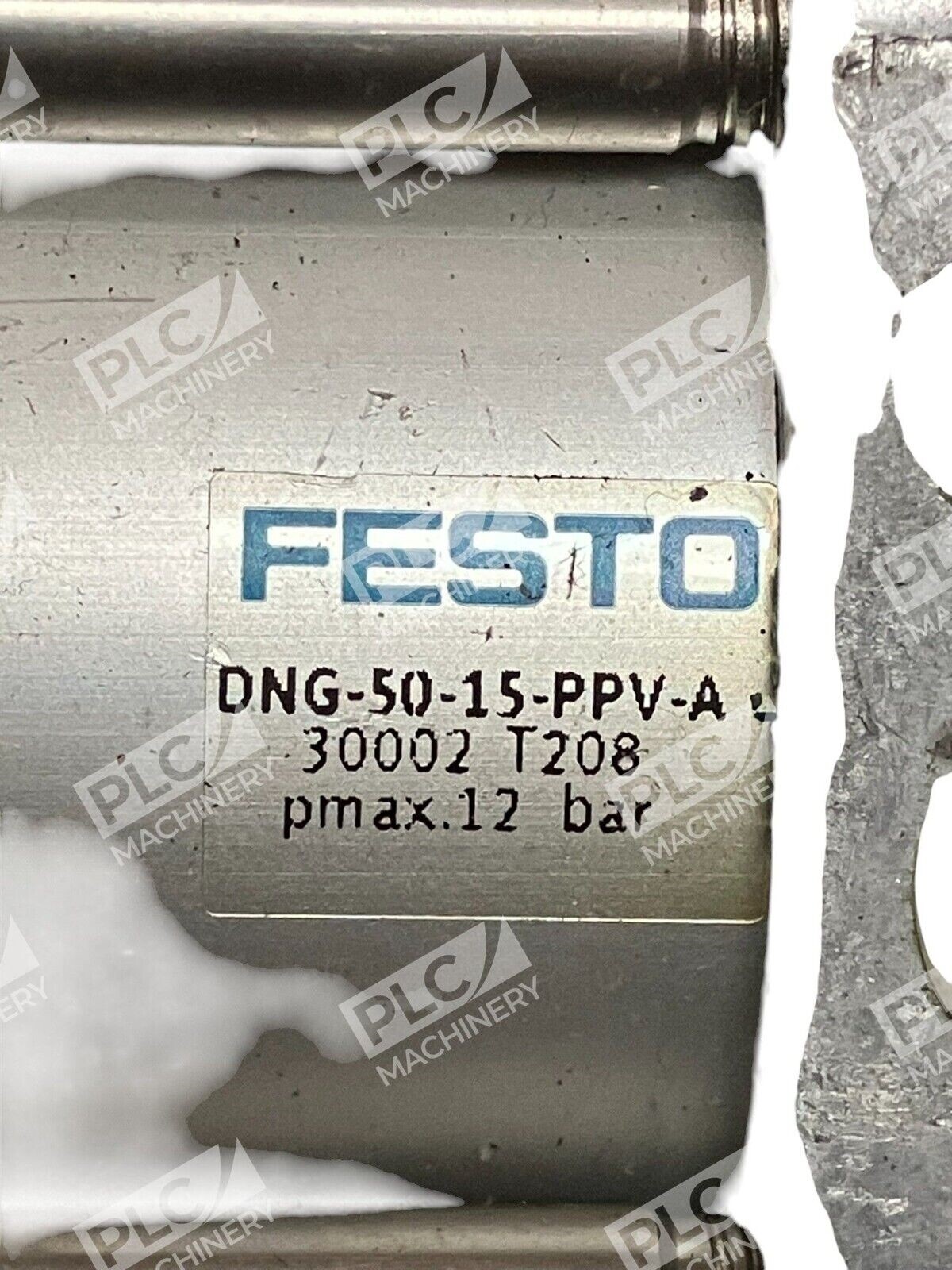

The Festo DNC-50-15-PPV-A pneumatic cylinder is a standards-based, double-acting square profile cylinder engineered for reliable performance in industrial automation. Conforming to ISO 15552, this compact unit delivers precision motion control with adjustable pneumatic cushioning and built-in position sensing capability—making it suitable for applications ranging from assembly equipment to material handling systems.
Key Features
- Double-acting square profile design with ISO 15552 compliance
- Adjustable pneumatic cushioning (PPV) at both ends for smooth deceleration
- Built-in magnet for proximity sensor position detection
- Ductile iron tie-rod construction for durability and compact mounting
- Oil-lubricated or dry-air operation—flexible for various environments
- High-alloy steel piston rod with anodized aluminum cylinder barrel
Technical Specifications
- Bore Diameter: 50 mm
- Stroke Length: 15 mm
- Operating Pressure: 0.6–12 bar (0.06–1.2 MPa)
- Mode of Operation: Double-acting
- Piston Rod Thread: M16x1.5 male
- Pneumatic Connection: 1/4″ BSPP (G1/4″)
- Cushioning Type: PPV (adjustable air cushioning at both ends)
- Cushioning Length: 20 mm
- Mounting Type: Female thread / mounting kit
- Position Sensing: Via proximity switch (magnet-equipped)
- Ambient Temperature Range: –20 °C to +80 °C
- Operating Medium: Filtered compressed air to ISO 8573-1:2010 [7:4:4]
- Piston Rod Material: High-alloy steel
- Cylinder Barrel Material: Wrought aluminum alloy, anodized
- Seals Material: TPE-U(PU) thermoplastic polyurethane
- Standard Compliance: ISO 15552, ISO 6431, VDMA 24562
Typical Applications
The Festo DNC-50-15-PPV-A is widely used in:
- Automated assembly and pick-and-place machinery
- Industrial packaging and labeling systems
- Material handling and conveyor control
- Machine tool clamping and positioning
- Test and measurement equipment
- Food and beverage processing automation
Compatibility & Replacements
Compatible With
- Standard Festo 12 bar pneumatic systems
- ISO 8573-1:2010 compressed air supplies (7/4/4 classification)
- Proximity sensors and magnetic position feedback systems
- Festo DGCI, DHPS, and standard pneumatic control valve assemblies
- 1/4″ BSPP/G1/4″ pneumatic port equipment and manifolds
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to ensure exact functional and dimensional match.
Works With
- Standard ISO 15552 tie-rod and compact cylinder families
- Festo solenoid valve packages (24 VDC rated)
- Proportional and directional control valves rated 0.6–12 bar
- Proximity switch assemblies (5mm and 8mm inductive sensors)
- Pneumatic and electro-pneumatic control systems
