Overview

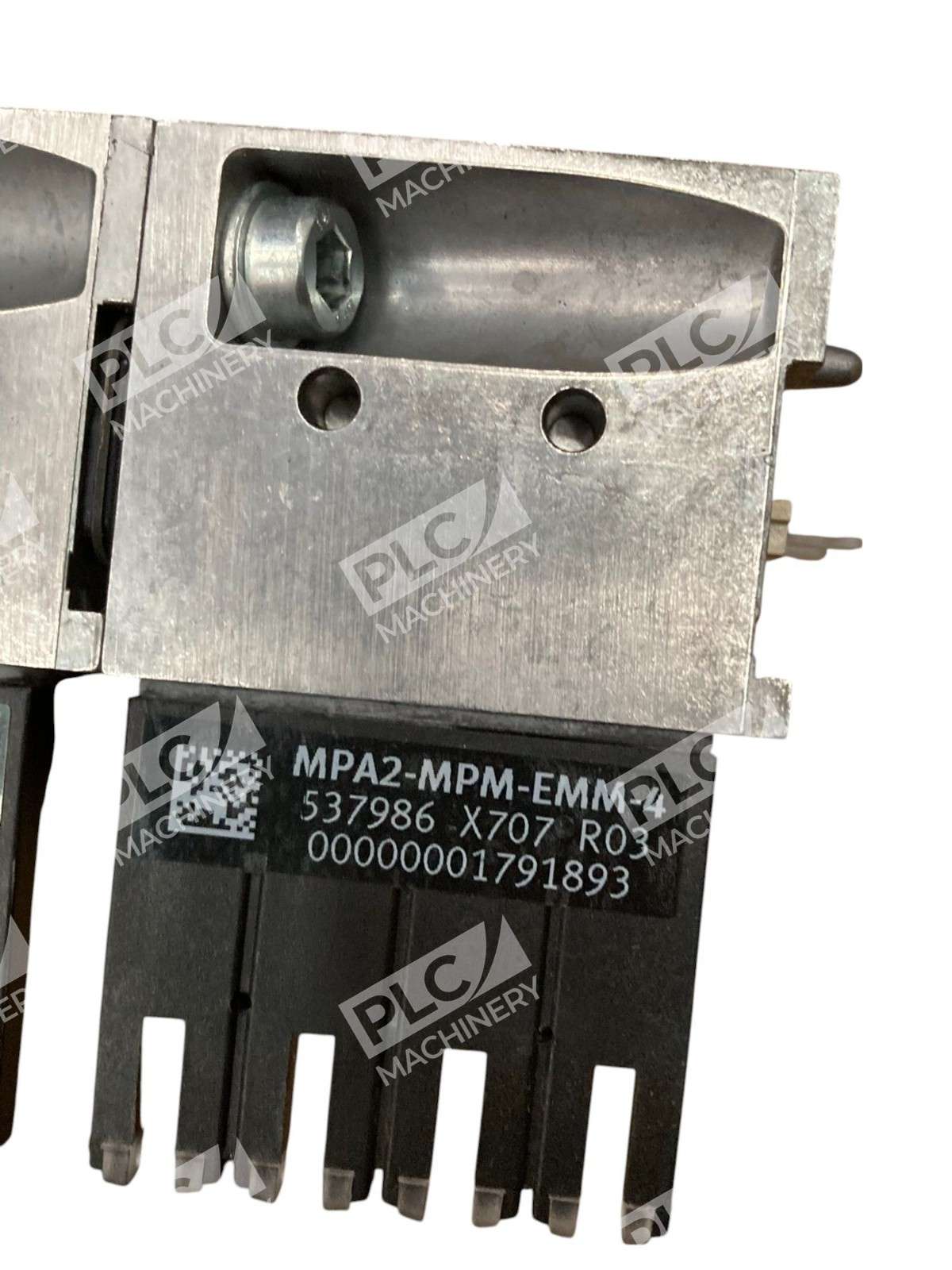

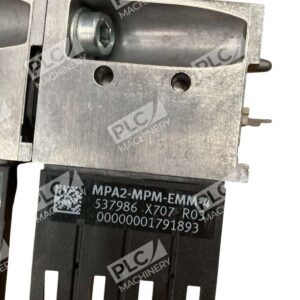

The Festo VMPA2-MPM-EMM-4 electrical module is a precision electronics controller designed for multi-coil solenoid valve manifolds in the Festo MPA-S series. This module interfaces between your automation controller and up to 4 solenoid coils across 2 valve positions, using a robust multipin connector for reliable signal transmission. It is a drop-in component for existing MPA-S valve manifold installations.
Key Features
- Supports 2 valve positions with up to 4 solenoid coils per sub-base
- Multipin connector for secure, field-proven connections
- Configurable for positive or negative switching control signals (24 V logic)
- Compact form factor integrates seamlessly into manifold blocks
- Part number 537986 cross-reference for spare parts lookup
Technical Specifications
- Valve Positions: 2
- Solenoid Coils: 4 per sub-base
- Nominal Tightening Current: 100 mA (for 30 ms)
- Nominal Current (After Reduction): 20 mA
- Control Logic: 24 V positive or negative switching (not mixed)
- Connection Type: Multipin connector
- Corrosion Resistance: KBK class
- Festo Part Number: 537986
- Mounting: Direct integration into MPA-S manifold blocks
Typical Applications
- Pneumatic valve control in automated manufacturing systems
- Multi-station assembly and material handling lines
- Packaging machinery with solenoid valve actuation
- Industrial automation requiring distributed valve control
- Equipment retrofit and legacy system upgrades
Compatibility & Replacements
Compatible With
- Festo MPA-S valve manifold series (MPA2 base units)
- MPA-S multipin plug connection systems
- 24 V DC control logic systems
- Pneumatic automation controllers with discrete solenoid outputs
- PLC and motion control systems with relay or transistor outputs
Replaces / Drop-In Replacement For
- Festo part number 537986 (same module, alternate reference)
- OEM equivalent VMPA2-MPM-EMM-4 modules in MPA-S assemblies
Works With
- Discrete 24 V DC output modules from PLC processors
- Solenoid valve coils rated for 24 V DC operation
- Pneumatic pressure manifold networks using MPA-S sub-bases
- Industrial automation software platforms with discrete I/O control
