Overview

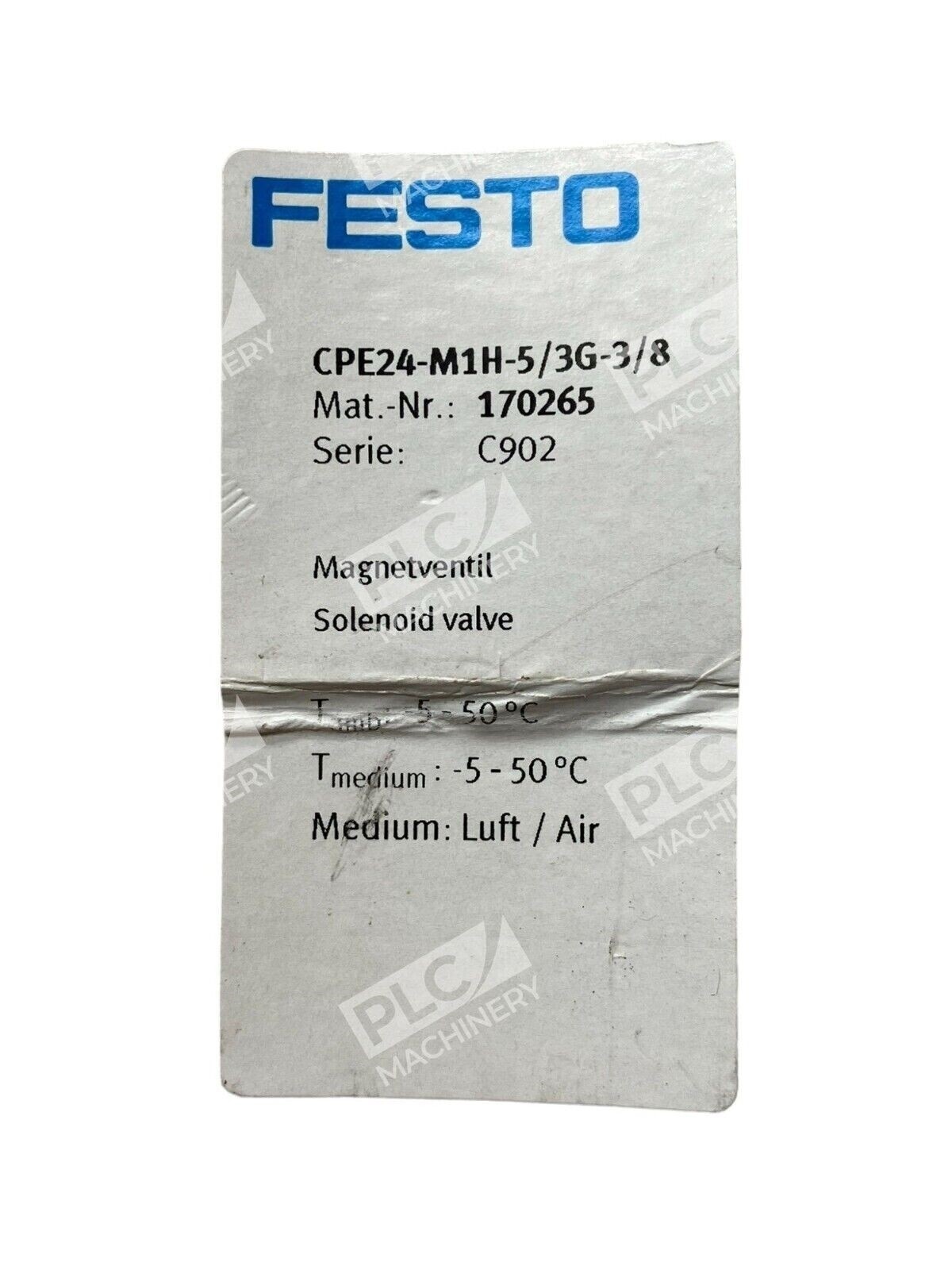

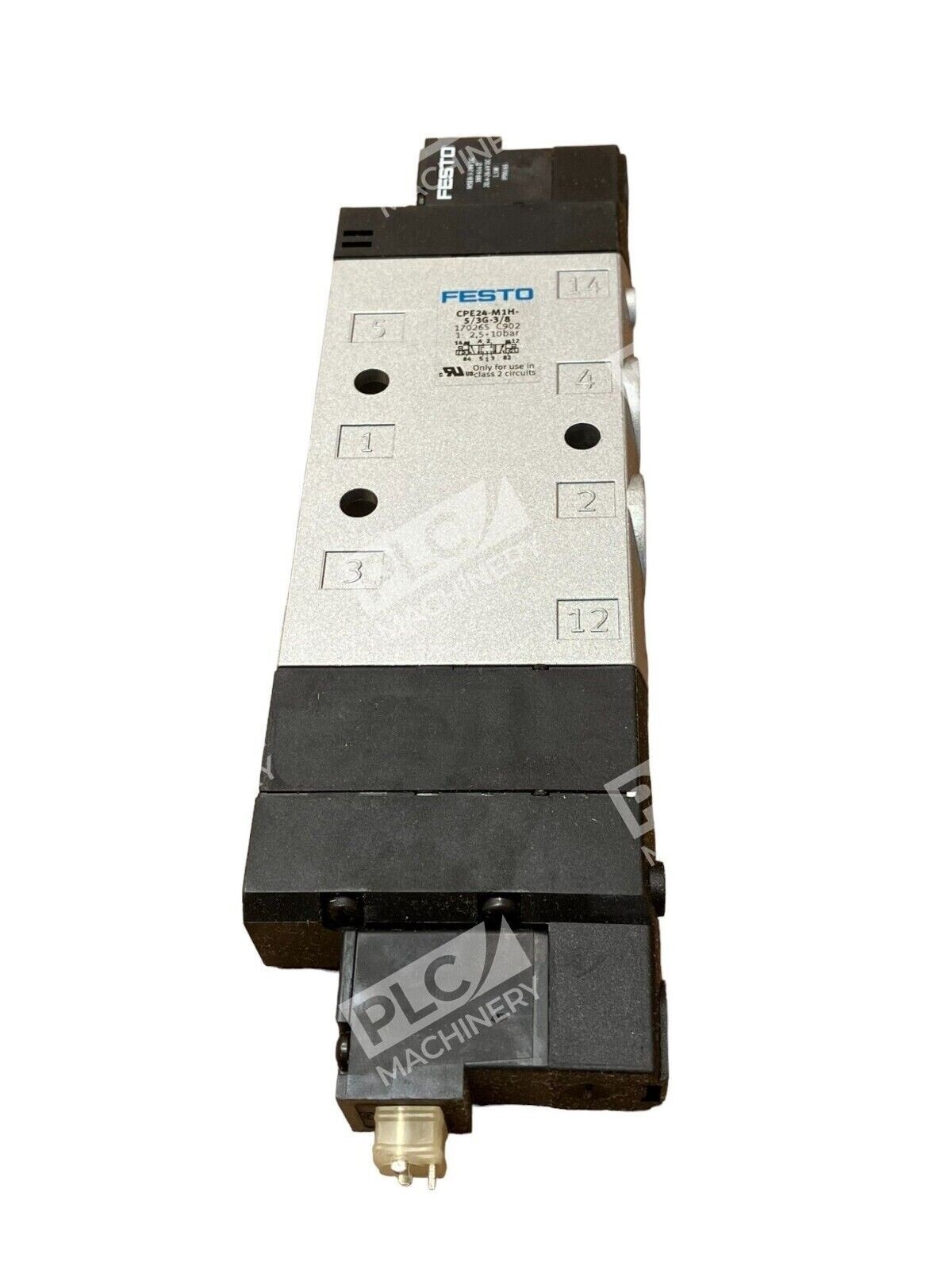

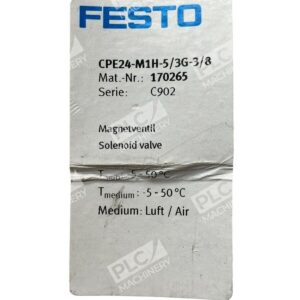

The Festo CPE24-M1H-5/3G-3/8 (part number 170265) is an industrial-grade solenoid directional control valve engineered for pneumatic automation systems. This 24 mm wide, 5/3-way valve with mid-position closed function provides responsive electrical actuation and is manufactured to ISO/IEC standards with C UL US recognition. The valve’s compact form factor and high flow rating make it ideal for OEM equipment builders, system integrators, and maintenance operations requiring reliable directional control.
Key Features
- 5/3-way, mid-position closed function — ensures safe, controlled air routing with spring-centered neutral position
- 24 mm modular width — compatible with Festo CPE manifold systems for high-density valve stacking
- G3/8 pneumatic ports — standard metric porting for industrial pneumatic applications

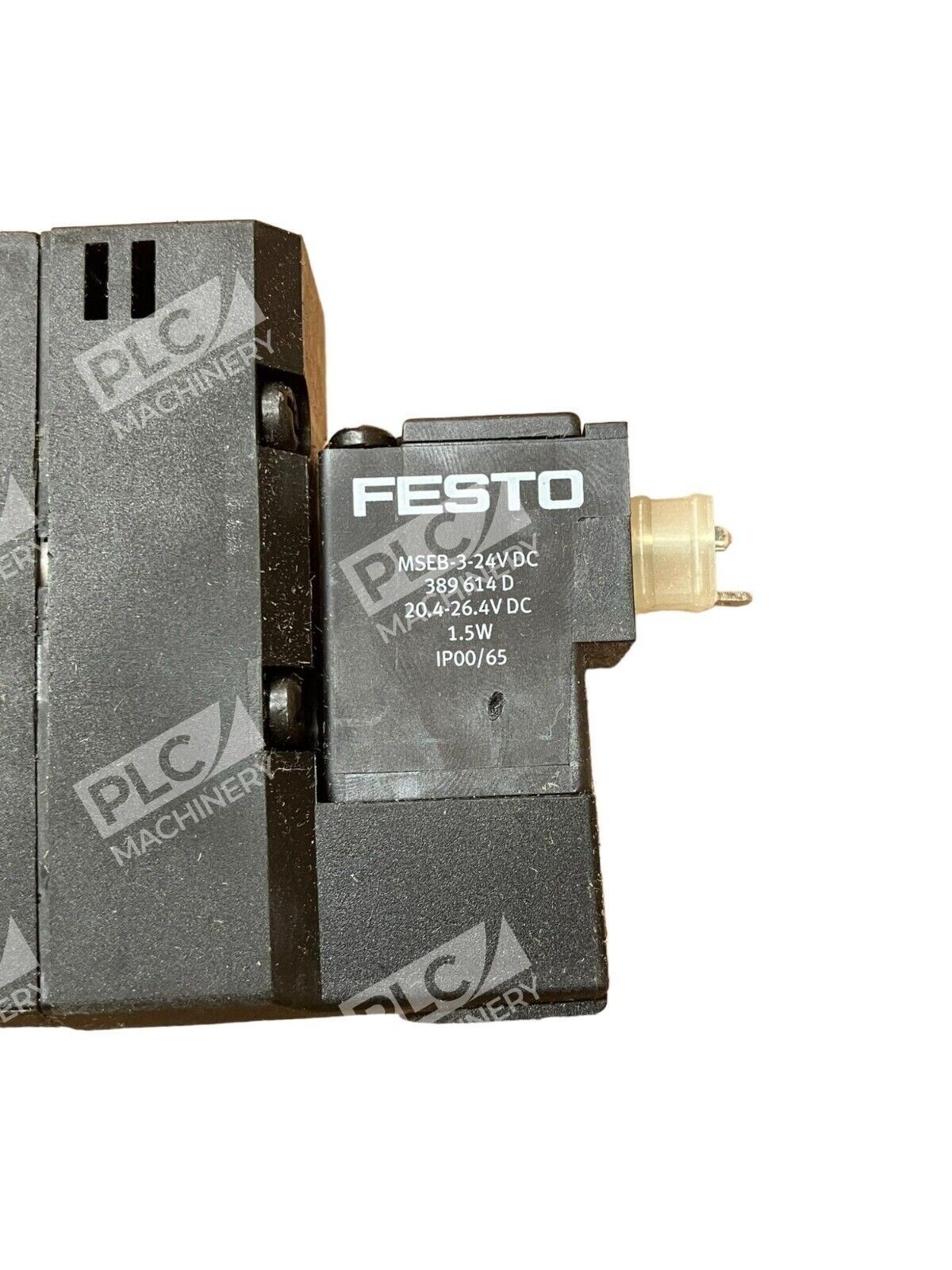

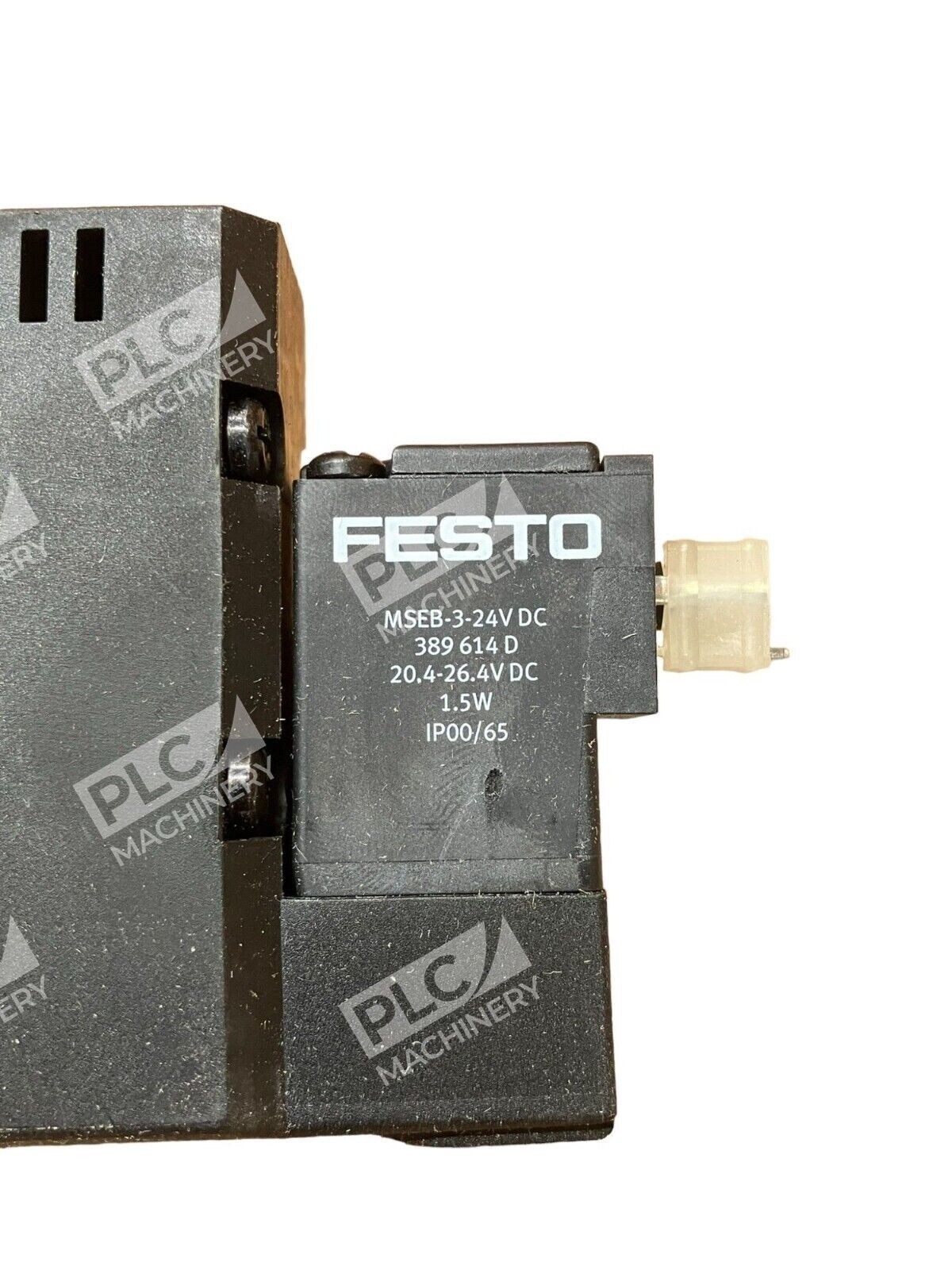

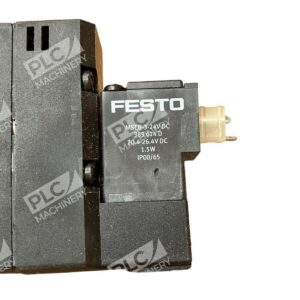

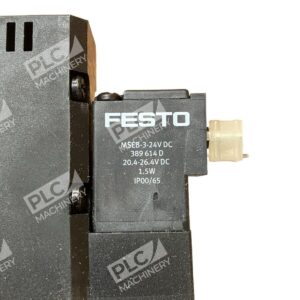

- Electrical actuation (ZC plug pattern) — 24 VDC solenoid coil with integrated coil socket for quick field replacement
- 3000 l/min nominal flow rate — operates reliably across 2.5–10 bar pressure range
- IP65 protection rating — sealed connector and pilot air design for shop-floor durability
Technical Specifications
The following specifications are sourced from Festo’s official datasheet (part 170265):

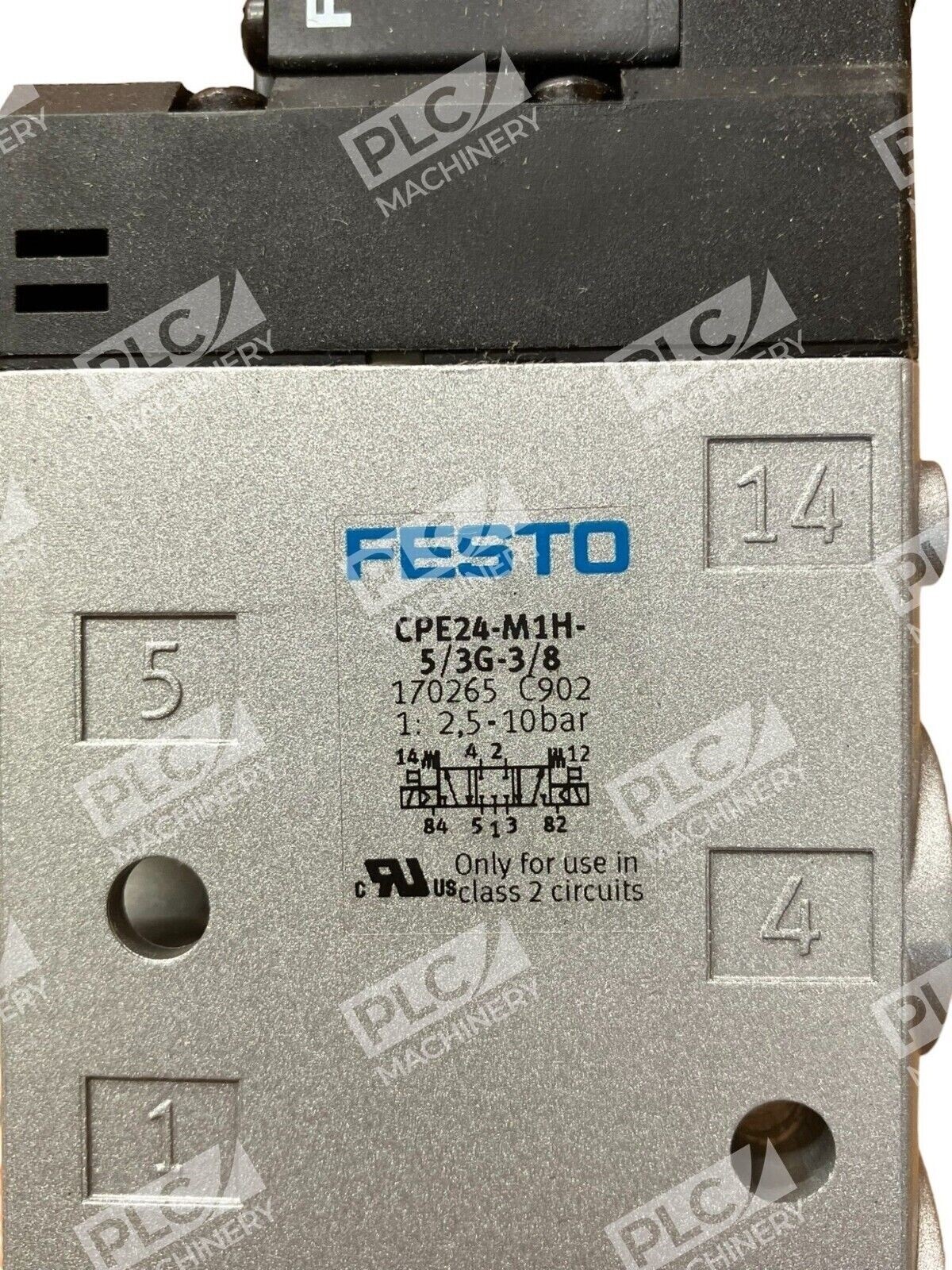

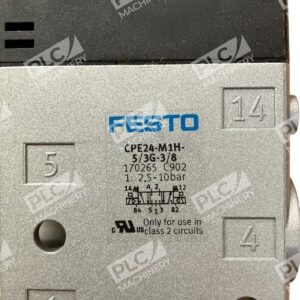

- Valve Function: 5/3-way, mid-position closed
- Actuation Type: Electrical solenoid
- Width: 24 mm

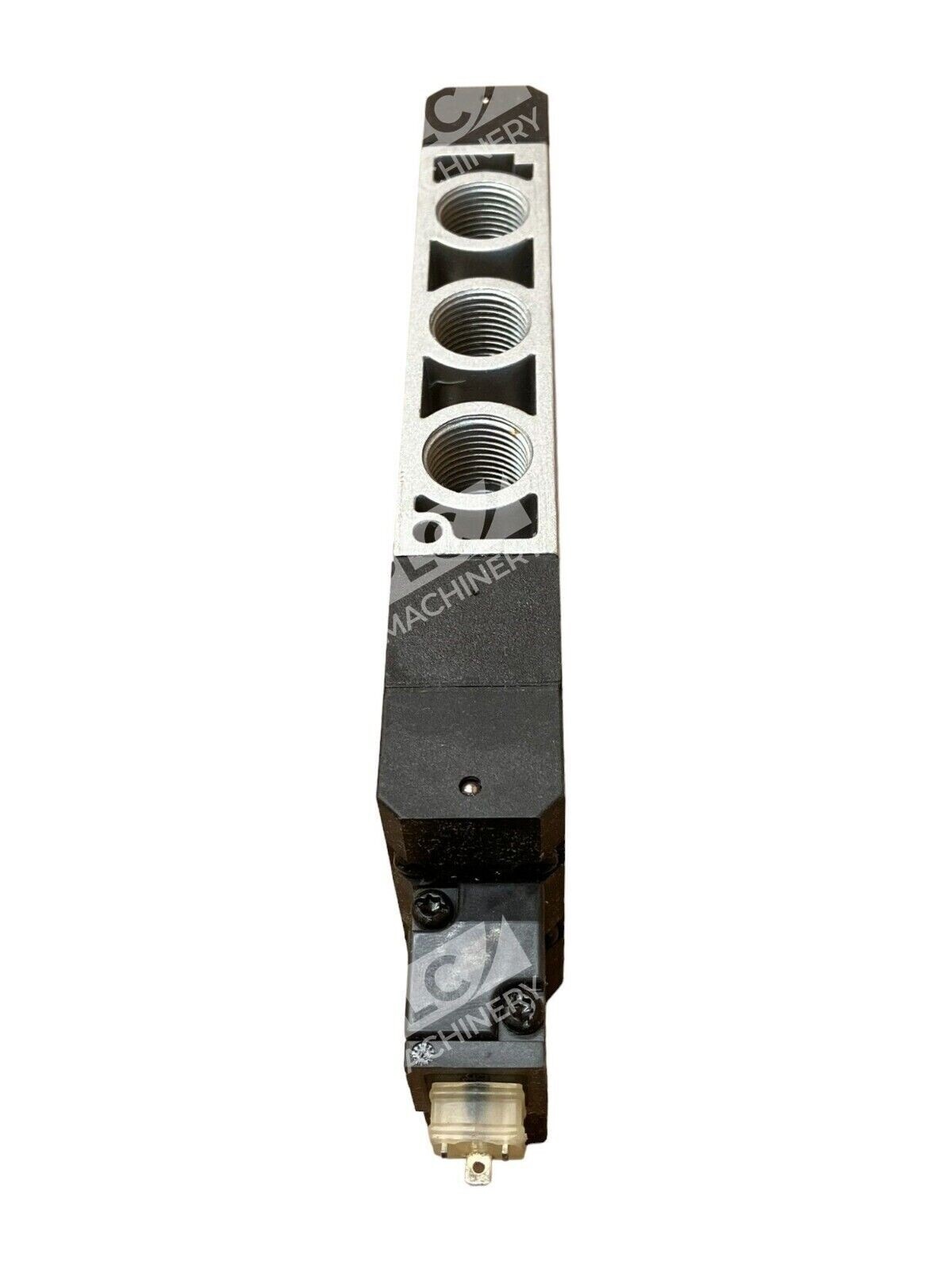

- Pneumatic Port: G3/8 (ISO 1219 threaded)
- Normal Nominal Flow Rate: 3000 l/min (normalized to DIN 1343)
- Operating Pressure Range: 2.5–10 bar
- Pilot Air: Internal, derived from system pressure
- Reset Type: Mechanical spring (mid-position)
- Solenoid Connection: Plug socket ZC (IEC 60083)
- Protection Rating: IP65 (IEC 60529) with plug connector
- Certification: C UL US Recognized, DNV maritime classification
- Standard Tubing: 12×2 mm O.D. × wall thickness (translucent blue)
Typical Applications
The CPE24-M1H is widely deployed in:
- Material handling equipment — conveyor drives, pick-and-place actuators, lifting cylinders
- Industrial automation machinery — press controls, assembly line automation, packaging systems
- Robotics and end-of-arm tooling — gripper actuation, axis control, workholding
- Mobile and off-highway equipment — boom control, bucket actuation (24 VDC supply available)
- Test stands and diagnostic systems — responsive closed-loop pneumatic control
Compatibility & Replacements
Compatible With
- Festo CPE series manifold blocks (24 mm width modular mounting)
- ISO 1219 G3/8 metric threaded pneumatic networks
- 24 VDC industrial control circuits and PLC outputs
- IEC 60083 plug socket electrical connections (ZC pattern)
- Pneumatic systems operating 2.5–10 bar working pressure
Replaces / Drop-In Replacement For
The CPE24-M1H-5/3G-3/8 is a direct equivalent replacement for Festo part number 170265 and systems originally designed around this valve model. It shares the same electrical connector (ZC), port configuration (G3/8), and pneumatic performance characteristics. For equivalent models from other manufacturers (e.g., Bosch Rexroth 4WRPEH, Eaton VBSO, Parker D1FP), verify connector voltage, solenoid coil power rating, and port thread size with your system integrator before substitution.
Works With
- Festo pneumatic components: DHPS cylinders, ADVUL rod seal kits, MSV silencers, tubing & fittings
- Manifold integration: Festo CPE cavity plates, cavity subplates, sandwich modules (24 mm width)
- Electrical control: 24 VDC solenoid coils, relay modules, PROFIBUS/PROFINET networked valve terminals
- Flow control: Festo SRP proportional pressure regulators, flow control valves for meter-in/meter-out
