Overview

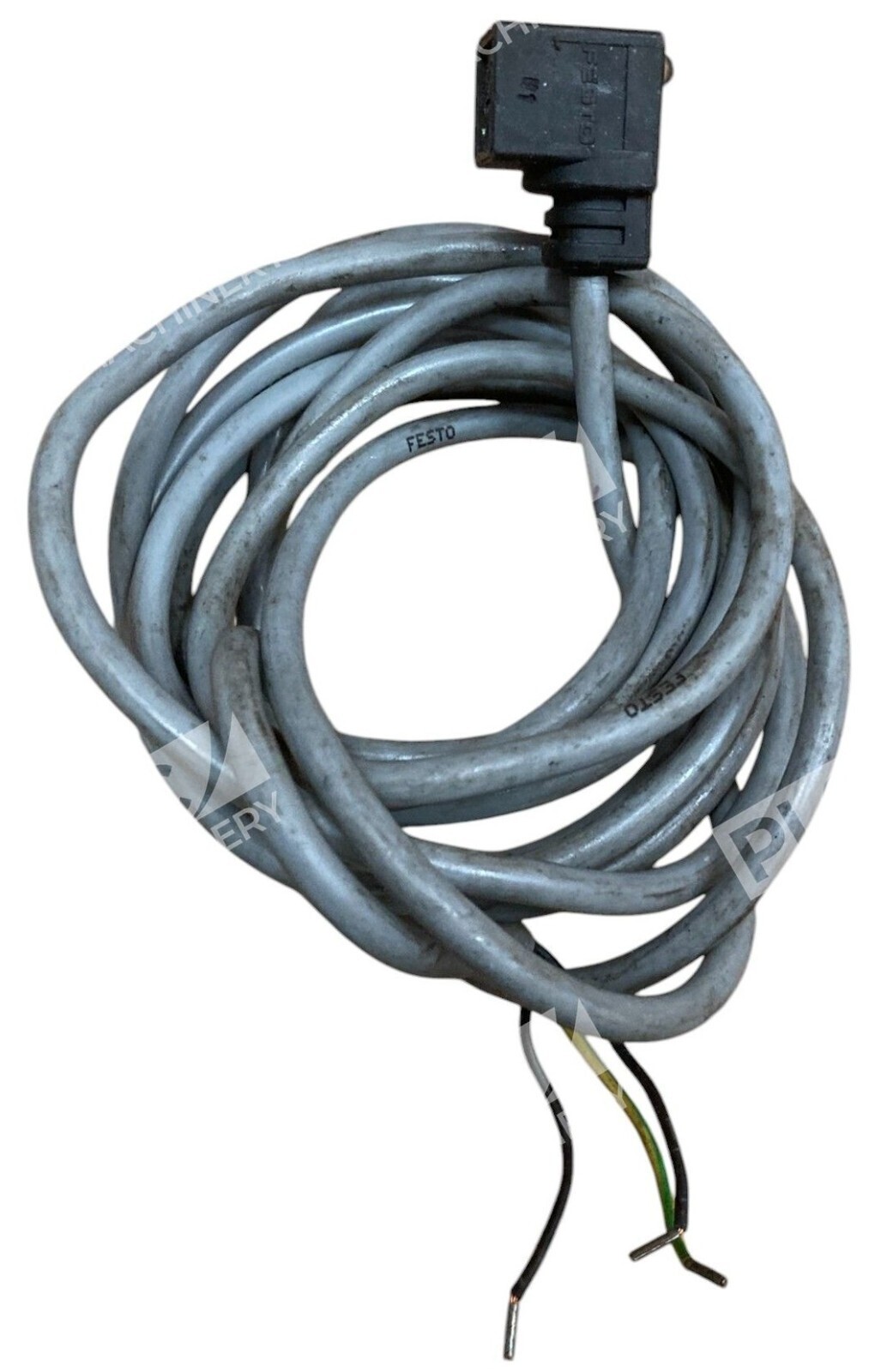

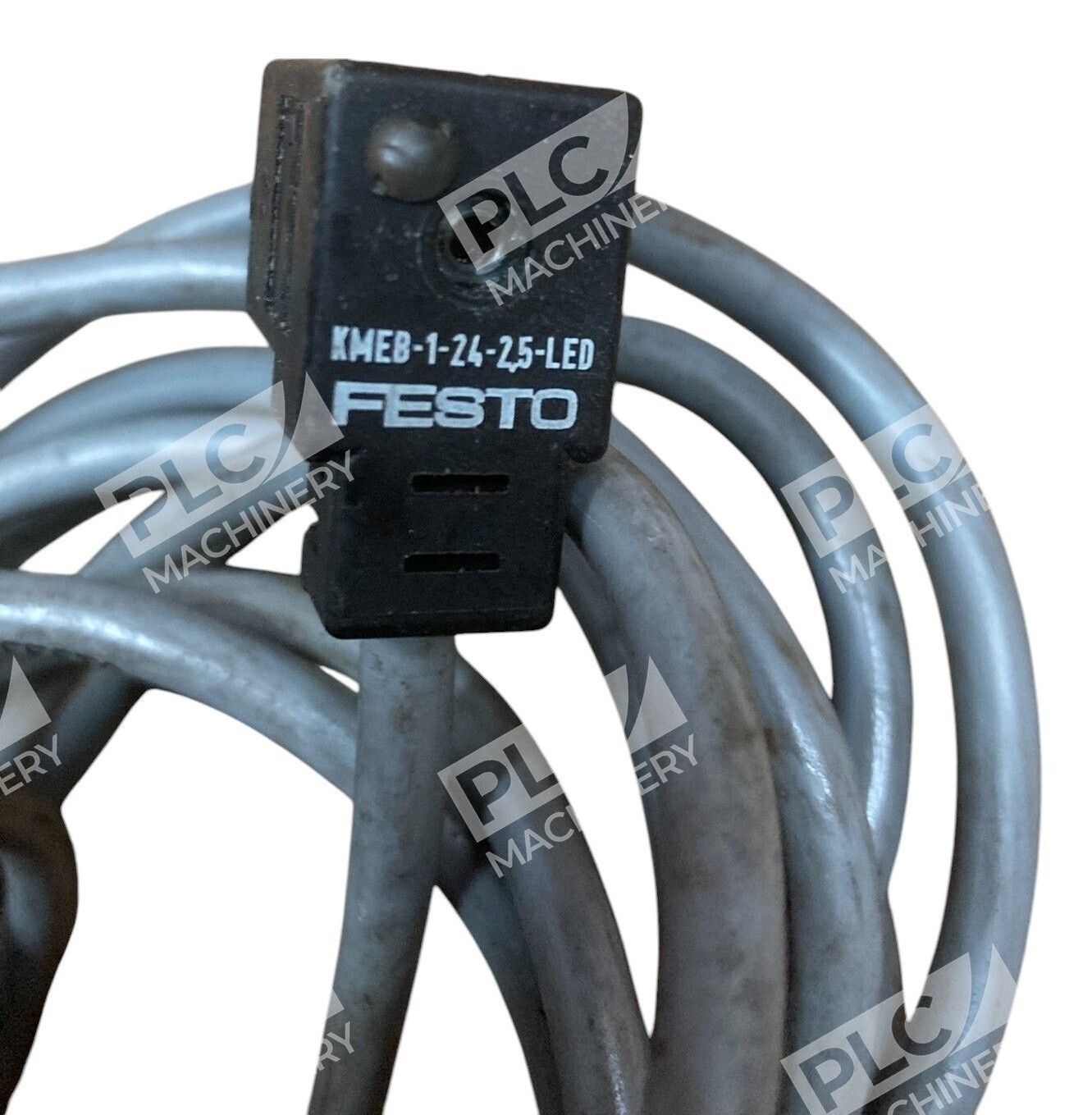

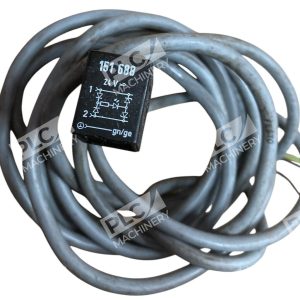

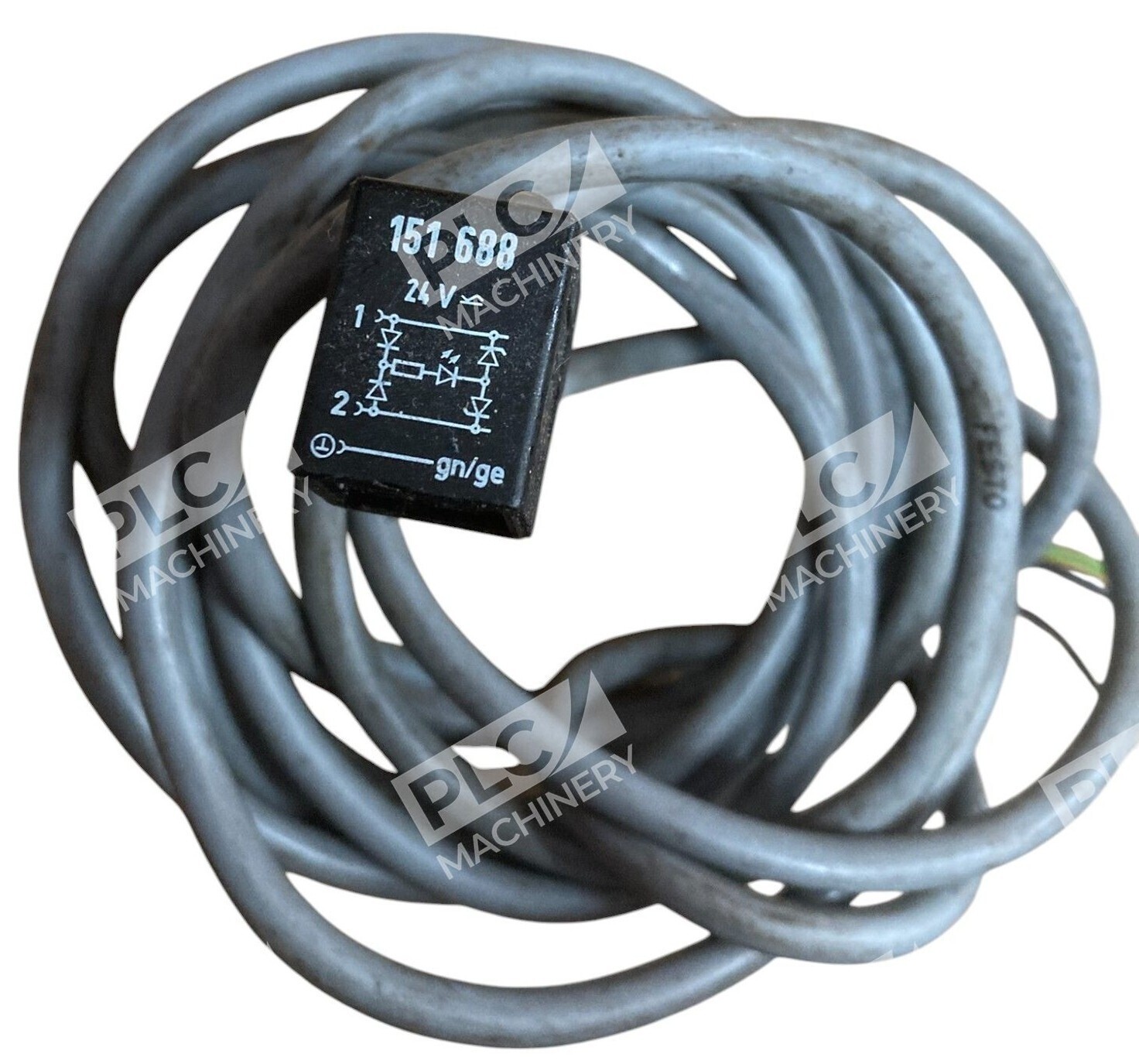

The Festo KMEB-1-24-2.5-LED plug socket is a precision connector assembly designed for EB-series pneumatic solenoid valves in industrial automation environments. This angled 3-pin Type C socket (DIN EN 175301-803) delivers 24VDC control signals with integrated LED status indication, eliminating guesswork during installation and troubleshooting. The 2.5-meter PVC cable provides sufficient reach for valve manifold mounting while maintaining signal integrity.
Key Features
- Angled 3-pin Type C connector (DIN EN 175301-803 compliant)
- 24VDC rated with integrated LED signal status indicator

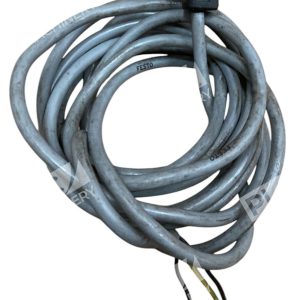

- 2.5-meter PVC insulated cable with open ends
- Central screw mounting for secure mechanical retention
- Operating temperature range -20°C to +80°C
- Lightweight design (0.28 lbs) ideal for valve manifold integration
Technical Specifications
Input voltage: 24VDC | Connector Type: DIN EN 175301-803 Type C, 3-pin, angled | Cable Length: 2.5m | Cable Material: PVC | Operating Temperature: -20°C to +80°C | Weight: 0.28 lbs | Mounting: Central screw clamp | Standards: DIN 41652 | Application: Pneumatic solenoid valves (EB coil configuration)
Typical Applications
- Pneumatic valve solenoid control circuits
- Industrial process automation manifolds
- Factory automation control panels with remote valve mounting
- HVAC and fluid power system valve actuation
- Test equipment and mobile automation platforms requiring flexible cable routing
Compatibility & Replacements
Compatible With
- Festo EB-series pneumatic solenoid valves
- 24VDC industrial control systems
- PLC and logic controller outputs rated for solenoid valve control
- DIN EN 175301-803 Type C socket standards
Replaces / Drop-In Replacement For
- Festo KMEB-1-24-2.5-LED (original equipment spec)
- Verify compatibility with your system integrator or Festo technical support before ordering alternative models.
Works With
- 24VDC pneumatic control circuits
- Solenoid valve manifold assemblies
- Rockwell Automation, Siemens, and other PLC controller outputs supporting 24VDC loads
- LED status indication for field diagnostic verification
