Overview

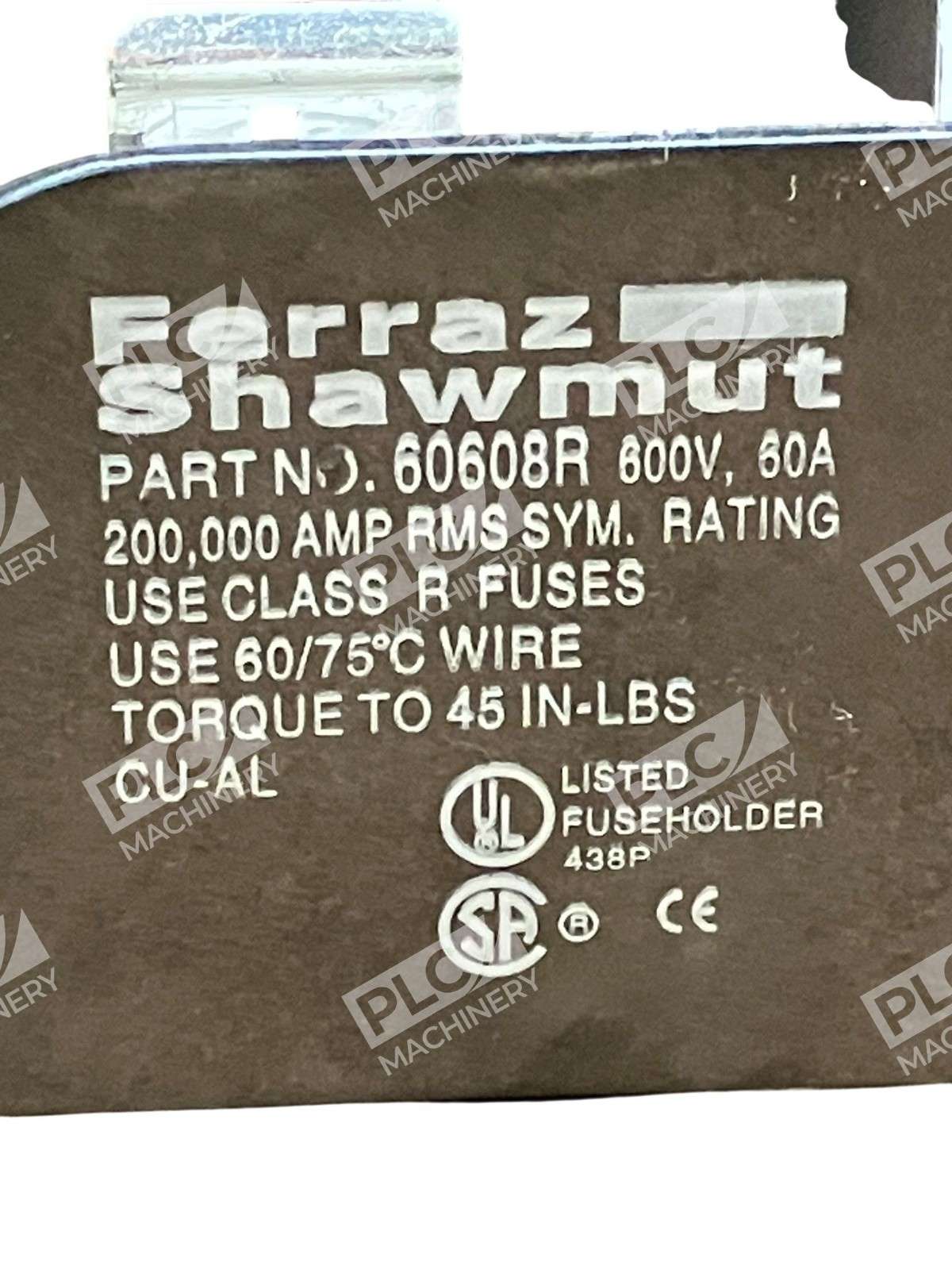

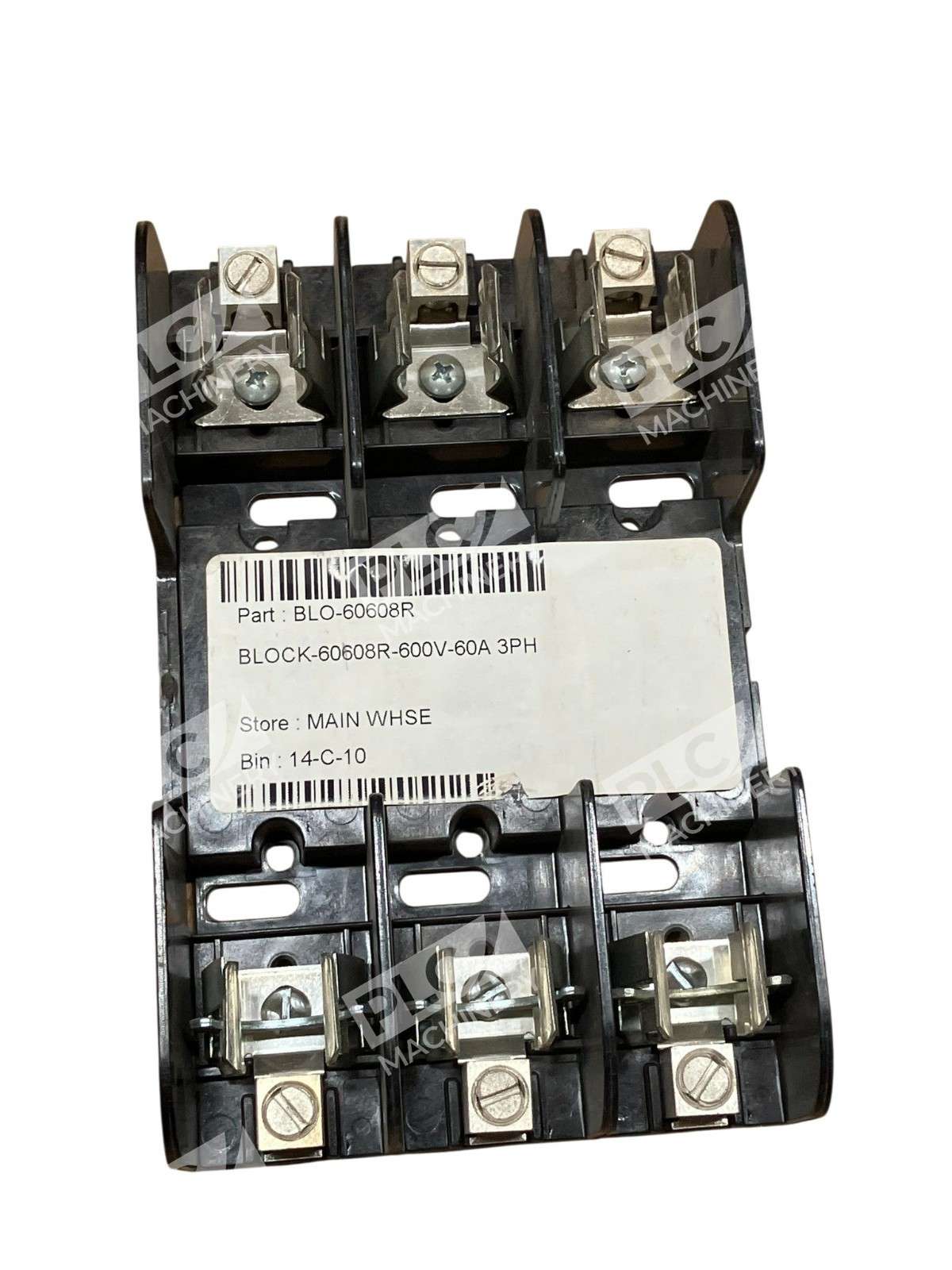

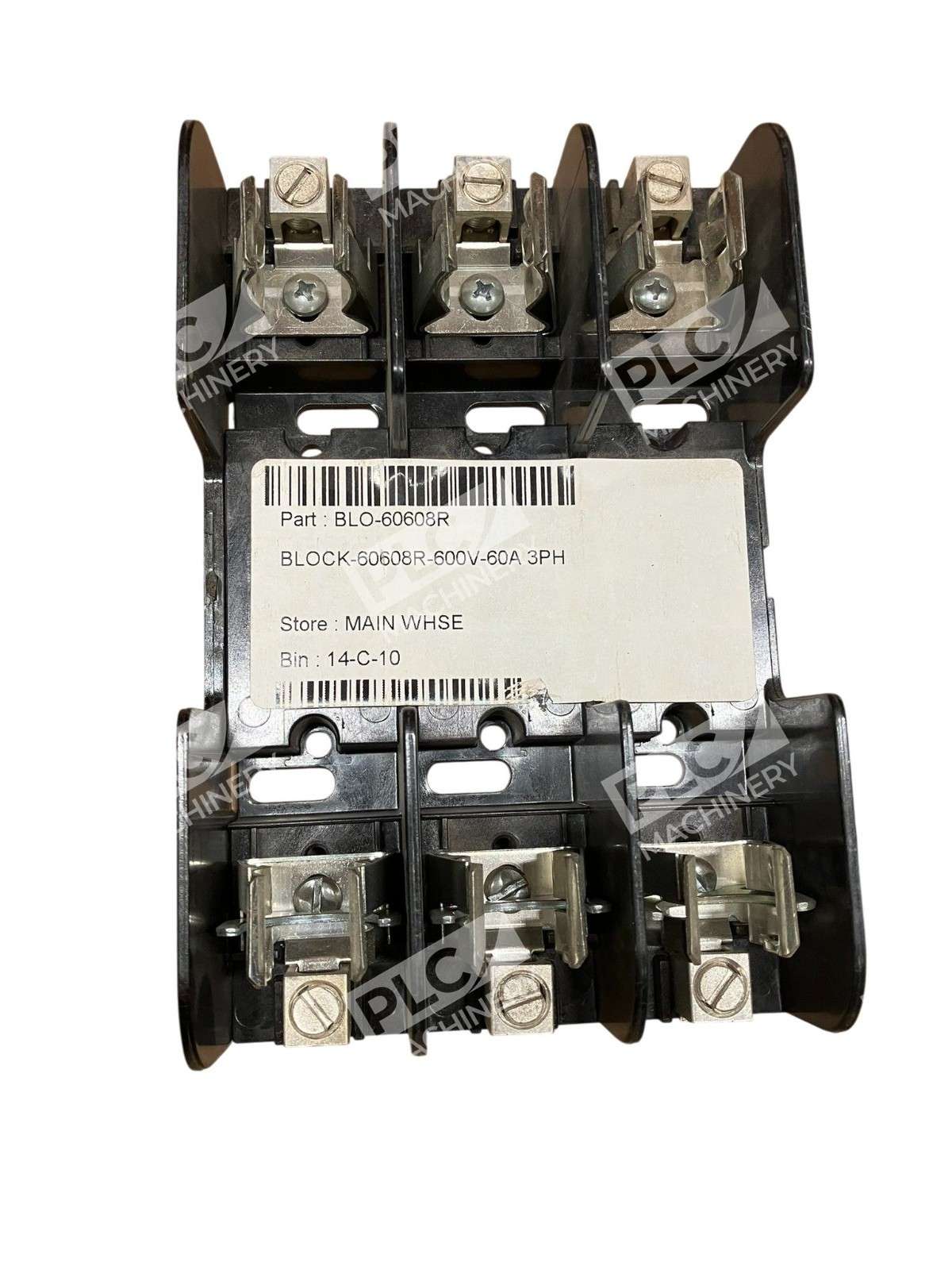

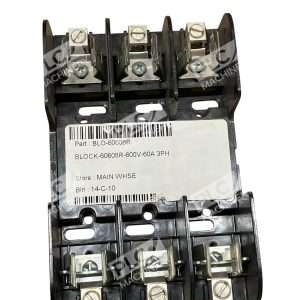

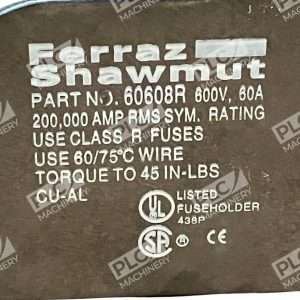

The Ferraz Shawmut 60608R is an industrial-grade Class R fuse block engineered for reliable power distribution protection. This 3-pole, open-style fuse block is rated 600 VAC/VDC, 60 A, with box lug terminals and accepts 14 to 2 AWG wire. The insulator is molded glass-filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V, meeting industrial safety standards for panel-mount applications.
Key Features
- 3-pole configuration rated 60 amps at 600 volts with box lug connection type and panel mount design
- Designed for use with A6D-R, A6K-R and TRS-R Series fuses
- All fuse clips are made of high conductivity tin-plated copper
- Screw, pressure plate, and box connectors fit a wide range of stranded or solid copper or aluminum wire
- 30, 60, and 100A fuse blocks feature a unique adder block that can be snapped onto 1-, 2-, or 3-pole blocks to form multipole segmented blocks
Technical Specifications
The Ferraz Shawmut 60608R delivers consistent performance in demanding industrial electrical systems, with specifications engineered for reliability and safety compliance.
Typical Applications
The 60608R is commonly deployed in industrial power distribution cabinets, motor control centers, and electrical panels where Class R fuse protection is required. It serves manufacturing facilities, commercial HVAC systems, and process control environments that demand reliable circuit protection with fast-acting fuse coordination.
Compatibility & Replacements
Compatible With
- Class R power fuses (all standard Class R cartridge fuses)
- A6D-R series fuses
- A6K-R series fuses
- TRS-R series fuses
- Industrial power distribution and control systems rated 600V
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering alternative part numbers or upgrades.
Works With
- 600V AC/DC power systems
- Class R fuse protection coordination
- Panel-mount electrical enclosures
- Box lug terminal connections
