Overview

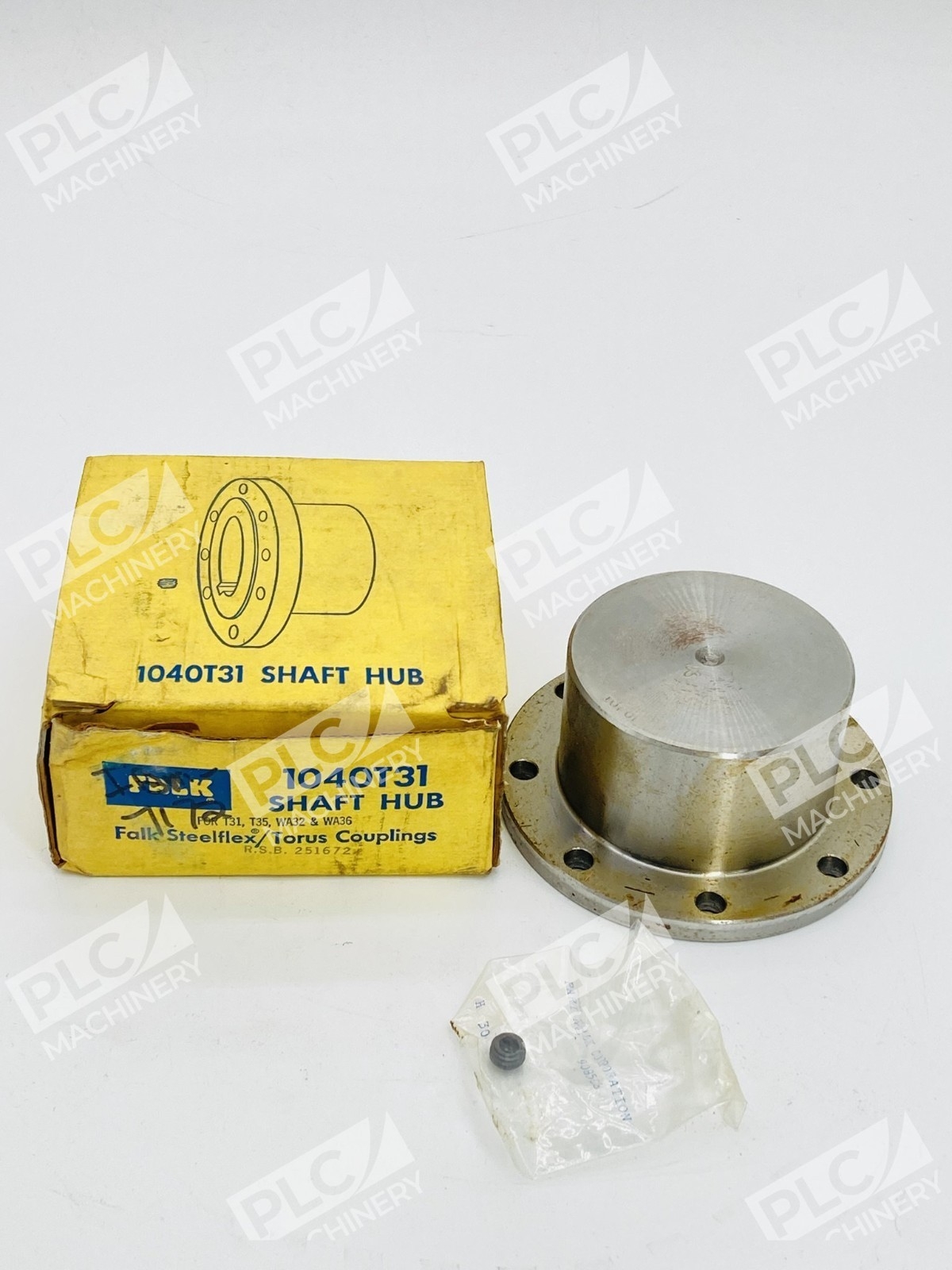

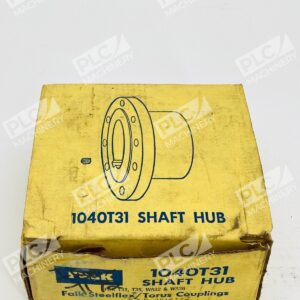

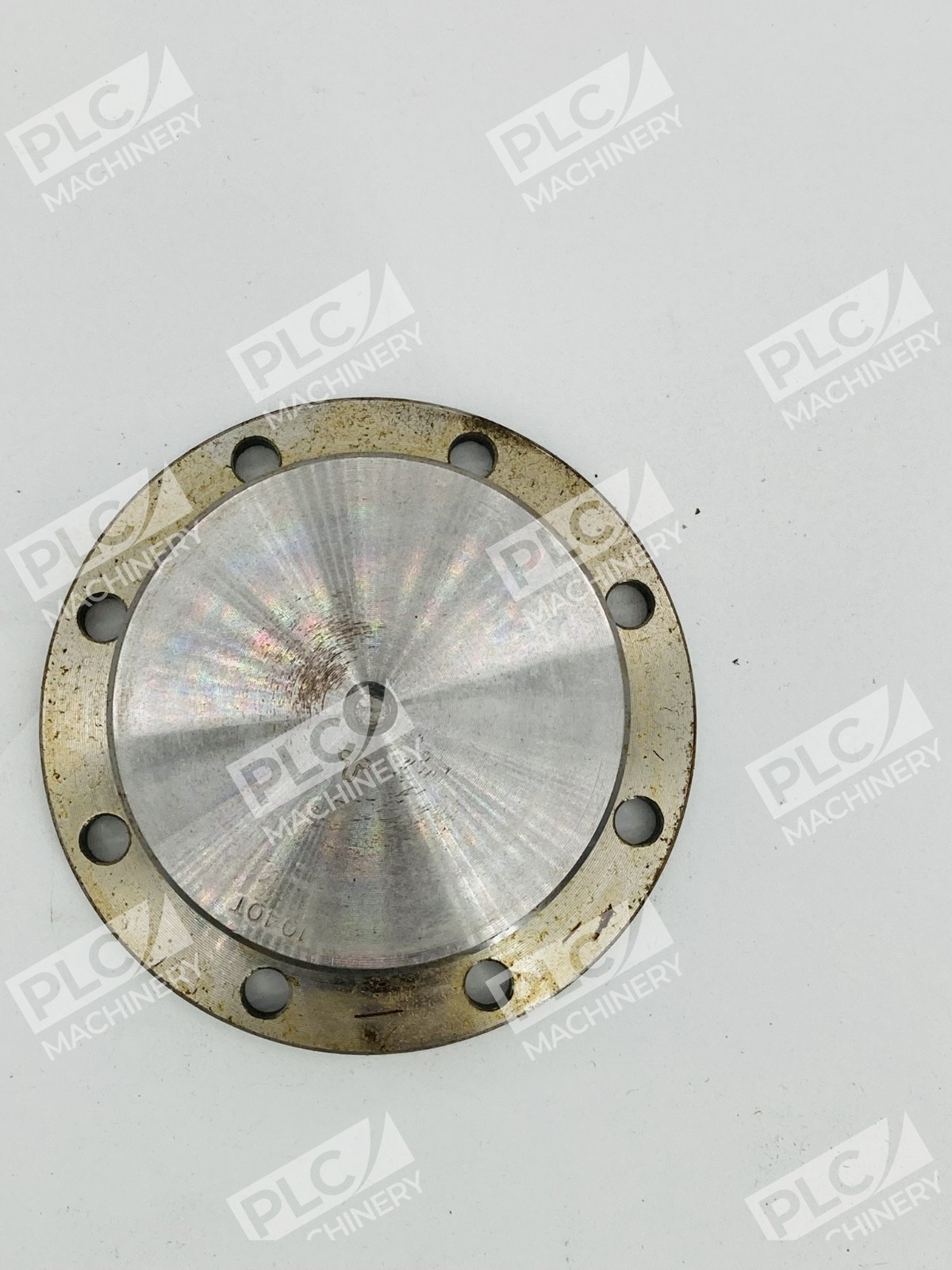

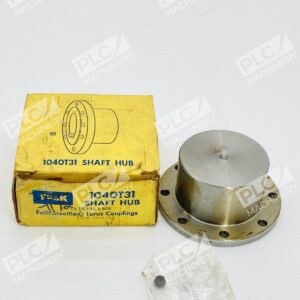

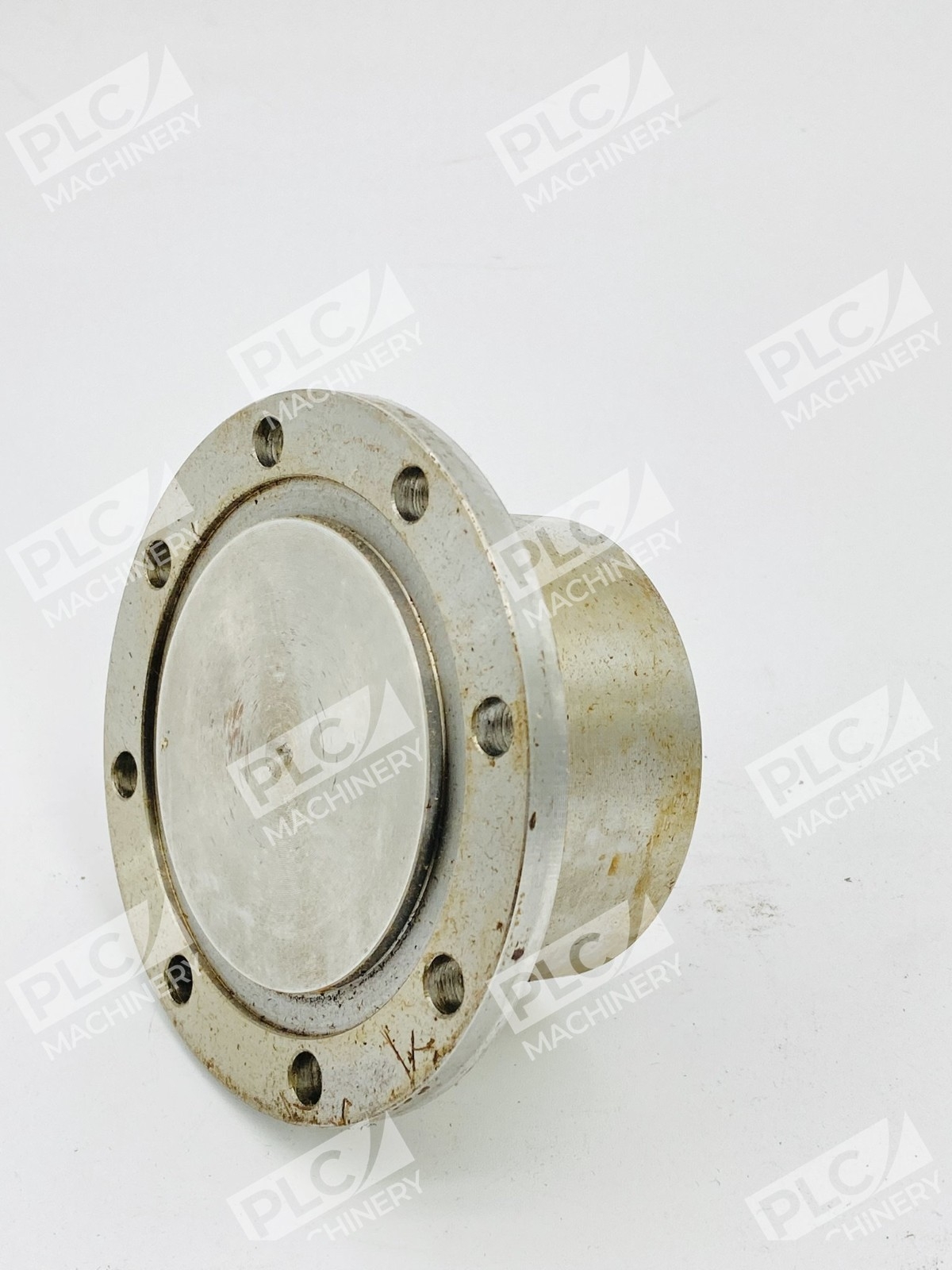

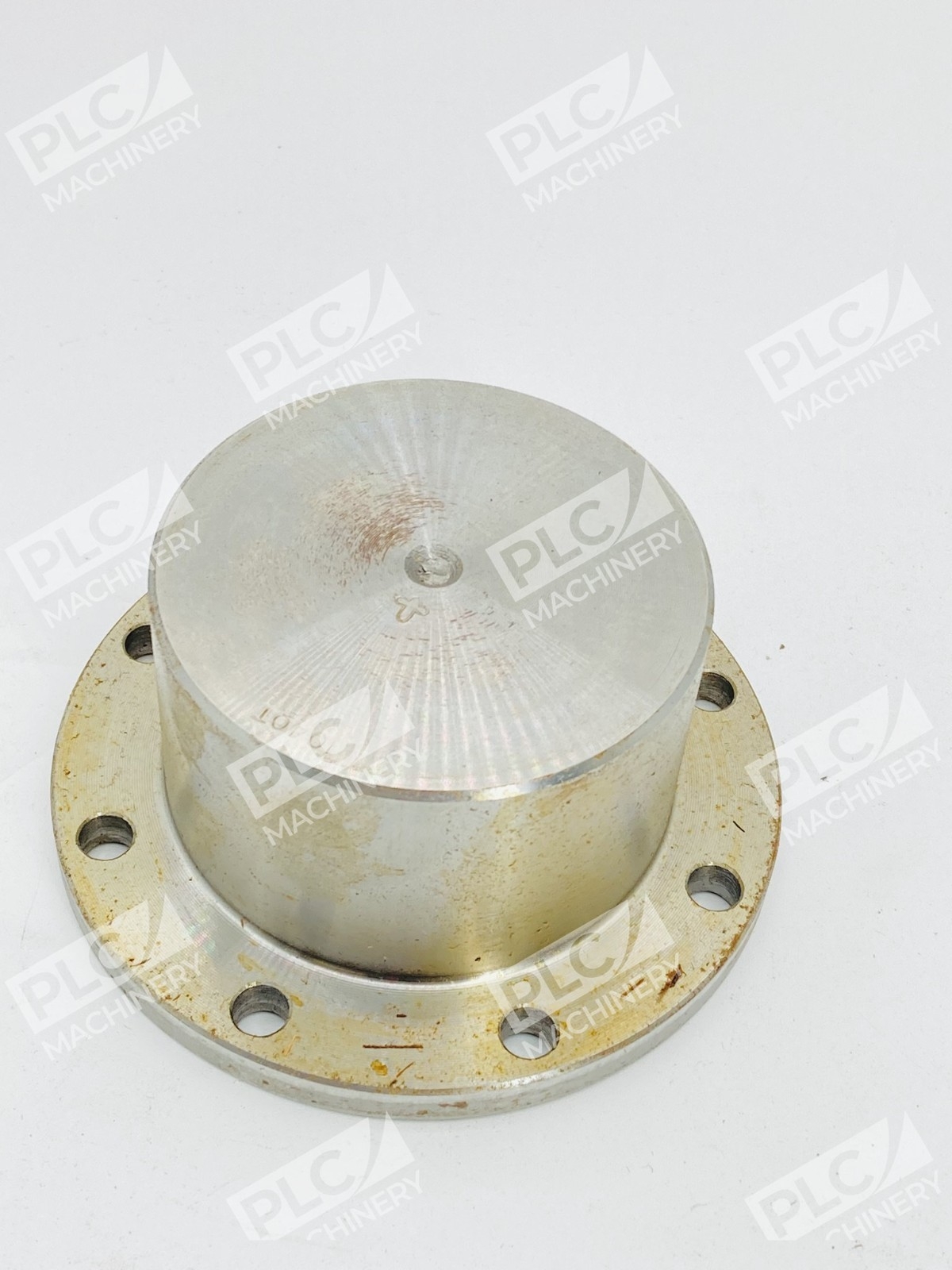

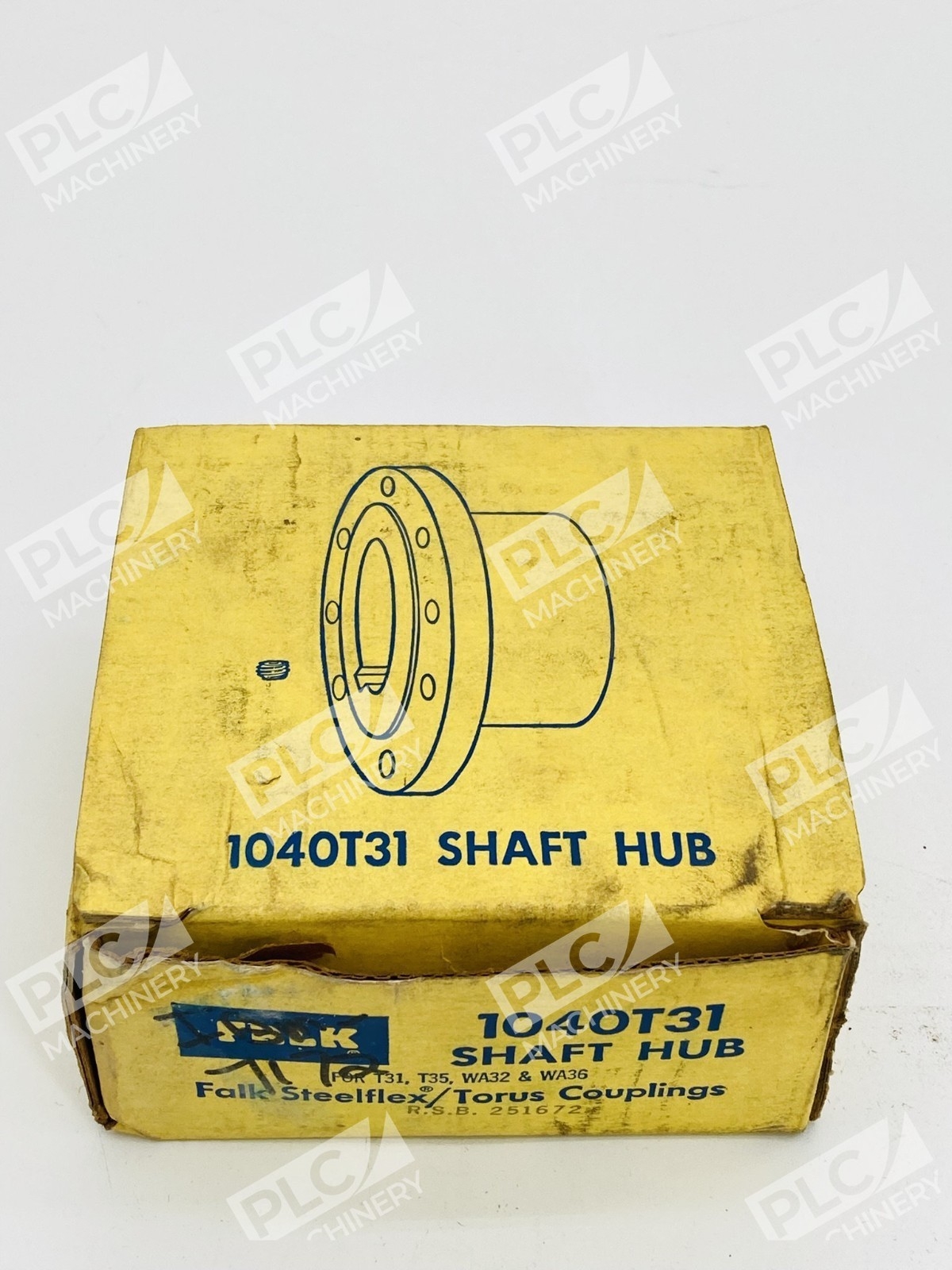

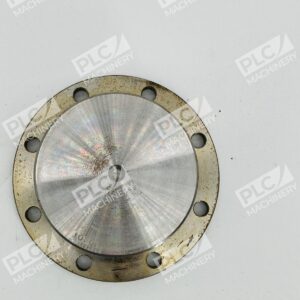

The Falk 251672 Steelflex Grid Coupling Hub is a precision-engineered shaft hub for the 1040T31 size Steelflex grid coupling. Manufactured by Regal Rexnord, this hub features a straight rough stock bore (RSB) design with a small through hole, allowing it to be custom-bored to match your equipment’s shaft diameter. Falk 251672 units are widely used in motor-pump applications and other industrial power transmission systems requiring torsional flexibility and shock absorption.
Key Features
- Straight Rough Stock Bore (RSB): Allows field-machining for precise shaft diameter compatibility
- High Torque Capacity: Steelflex couplings accommodate up to 8,250,000 lb-in of torque across all sizes
- Torsional Flexibility: Grid construction provides shock absorption and vibration damping, reducing peak loads by up to 30%
- Low Maintenance: Five-year lubrication warranty when installed with Falk LTG (Long Term Grease); no periodic maintenance required
- Replace-in-Place Design: Grid elements can be changed without moving hubs or realigning connected equipment
- Compact Construction: 3.09-inch hub diameter fits tight coupling spaces
Technical Specifications
- Coupling Size: 1040T31
- Bore Range: 1/2 to 2-1/8 inches
- Hub Outside Diameter: 3.09 inches (shaft hub) / 2-1/4 inches (T-hub)
- Hub Length: 2.12 inches (shaft hub) / 2 inches (T-hub)
- Through Hole Size: Small
- Material: Steel
- Style: Straight bore, spacer coupling configuration
- Manufacturer: Regal Rexnord (Falk brand)
- Part Number: 251672 / 0251672
