Overview

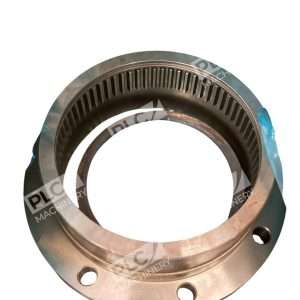

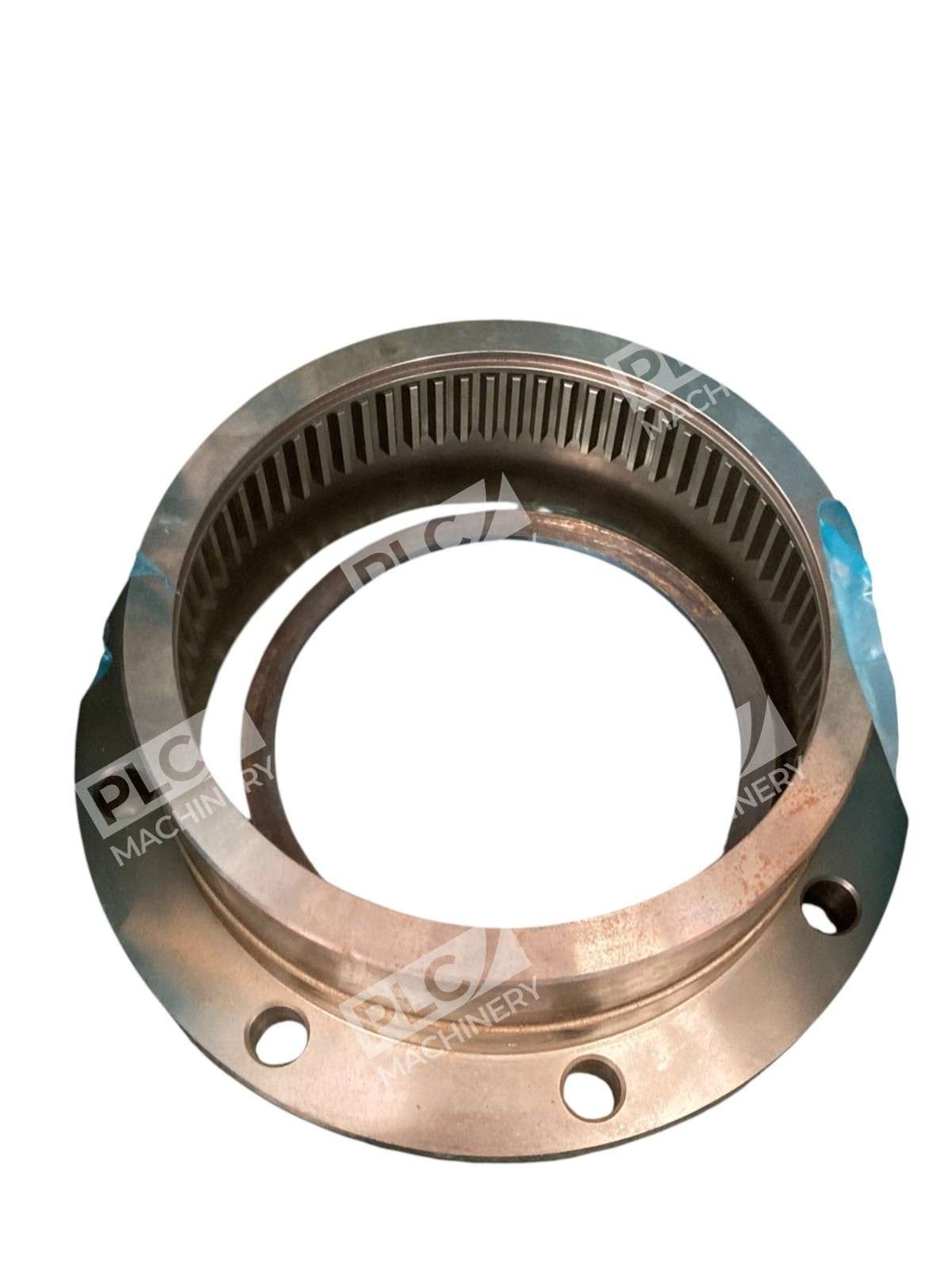

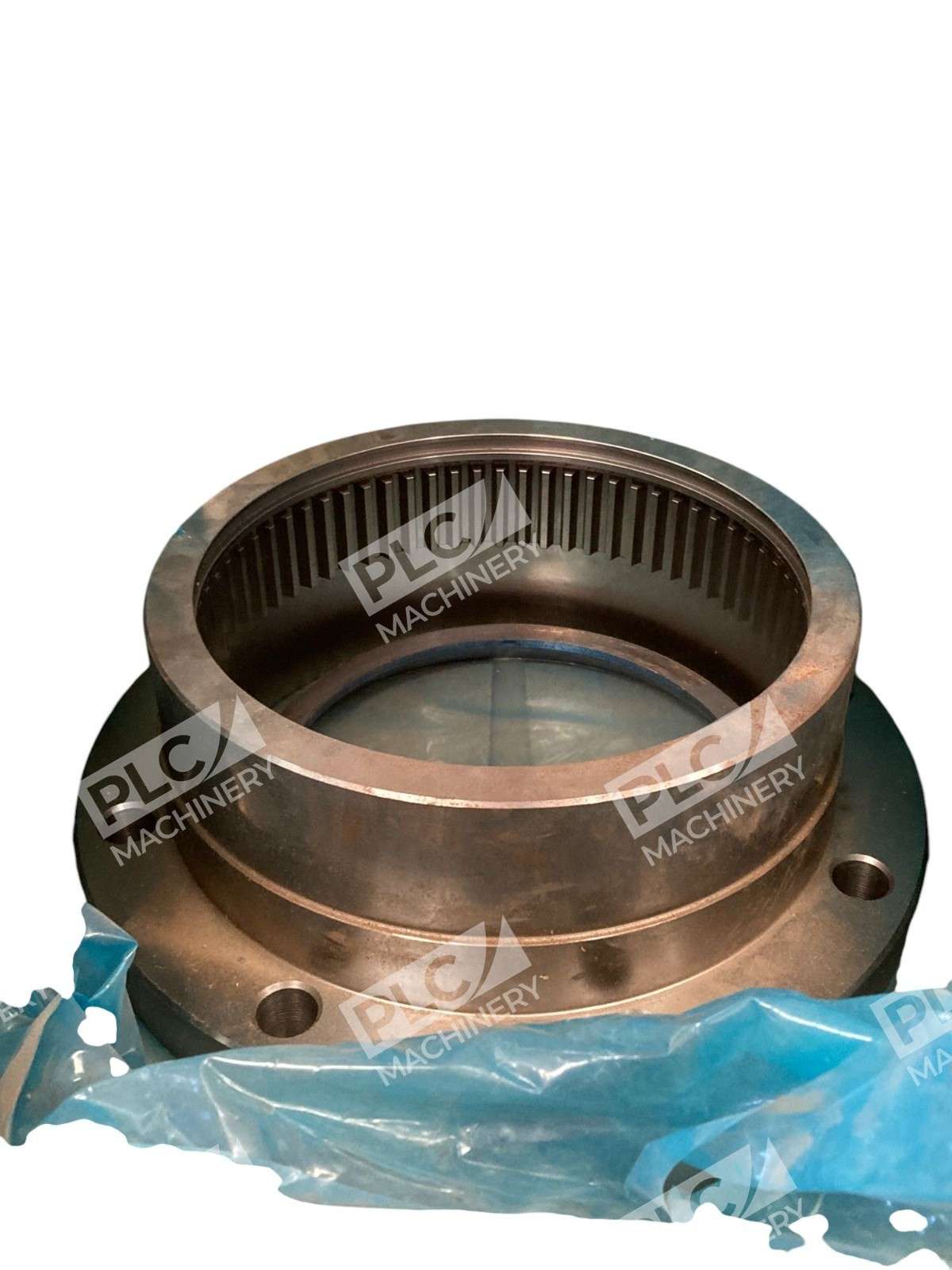

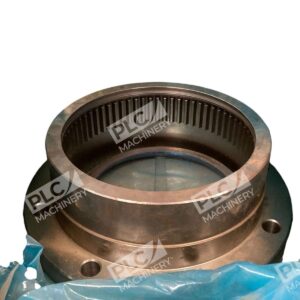

The Falk 0744996 is an exposed bolt coupling sleeve engineered by Rexnord for use with Falk Lifelign 1040G gear couplings. This component provides a full-flex connection suitable for demanding industrial applications requiring precision alignment and reliable torque transmission. The sleeve features a flanged design with AGMA-standard bolt holes, making it compatible with any standard gear coupling on existing installations.
Key Features
- Reduced head cap screws with non-turning locknut for one-wrench tightening
- Full-flex design accommodates angular and parallel shaft misalignment
- Steel construction ensures durability in harsh operating environments
- Gasket included for proper assembly and leak prevention
- AGMA bolt pattern ensures interchangeability with standard gear couplings
- Lubrication plug locations designed for effective grease application
Technical Specifications
Detailed performance parameters for integration planning and system design:
- Coupling Size Code: 1040G
- Sleeve Type: Flanged
- Bolt Type: Exposed
- Outside Diameter: 12.5 inches
- Overall Length: 18.0 inches (full assembly)
- Half Sleeve Length: 4.38 inches
- Material: Steel
- Torque Capacity: 270,900 in-lbs
- Maximum Speed: 3600 rpm
- Operating Temperature Range: -30 to +200 °F
- Flex Type: Full Flex
- Series: G Series (Lifelign G20)
- Includes: Gasket
- UPC: 782934005619
Typical Applications
This sleeve is widely used in industrial power transmission systems including:
- Pump and motor coupling assemblies
- Compressor drive systems
- Fan and blower installations
- Generator and turbine applications
- Process equipment and machinery requiring full-flex couplings
- OEM replacements and aftermarket retrofit kits
Compatibility & Replacements
Compatible With
- Falk Lifelign 1040G20 gear coupling assemblies
- Standard AGMA-pattern gear coupling hubs and flanges
- Falk Lifelign G Series coupling systems
- Rexnord industrial power transmission equipment
Replaces / Drop-In Replacement For
The Falk 0744996 directly replaces OEM part number 0744996 and is applicable to Falk Lifelign G20 series 1040G couplings. Verify compatibility with your specific coupling assembly before installation, as this sleeve is sized exclusively for 1040G couplings.
Works With
- Falk Lifelign hub and bore combinations
- Reduced head cap screw fasteners (included pattern)
- Falk LTG Grease lubricant for optimal performance
- Standard shaft couplings with AGMA bolt spacing
- Rexnord coupling seal kits and maintenance components
