Overview

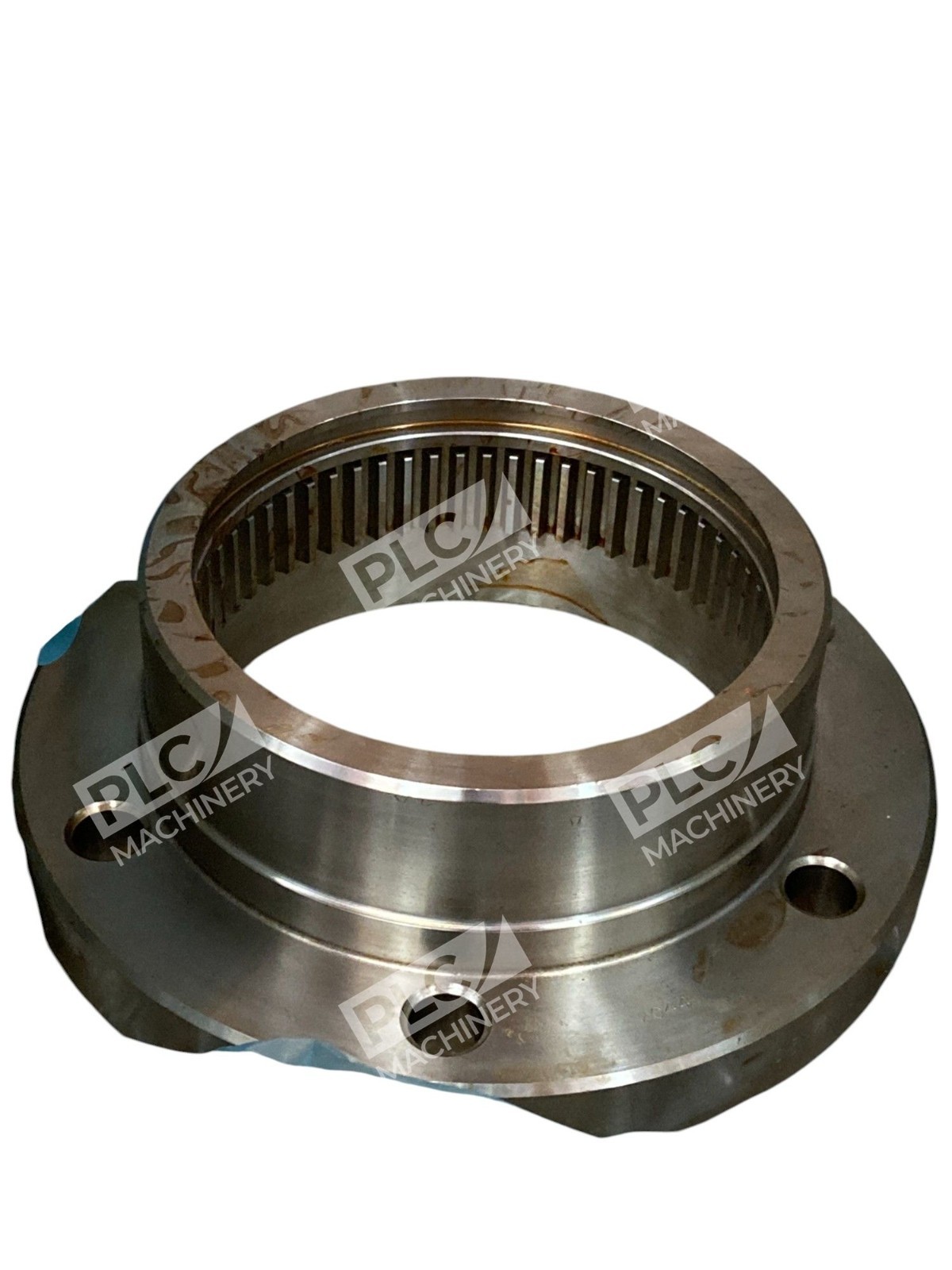

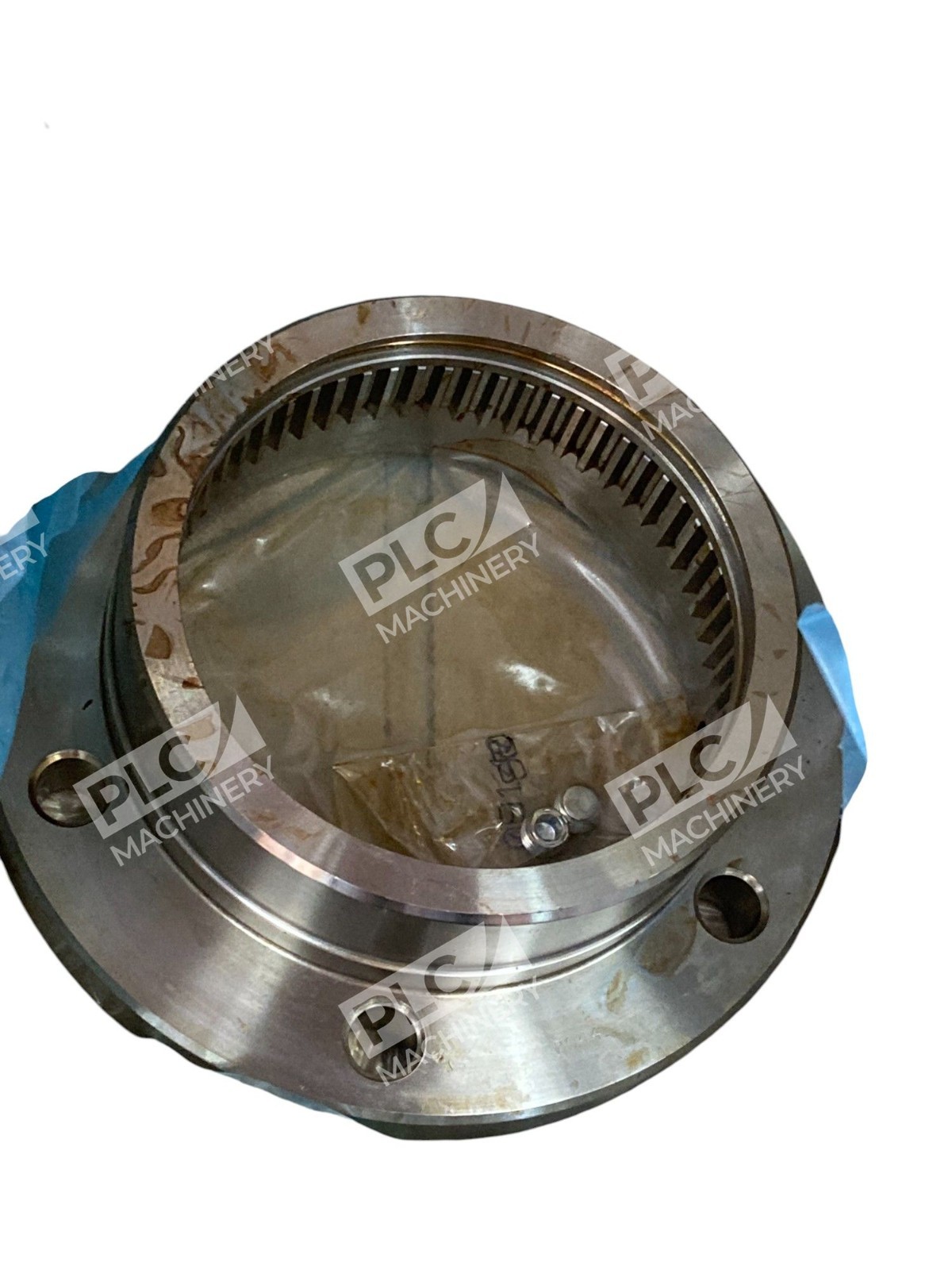

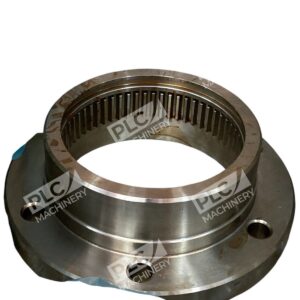

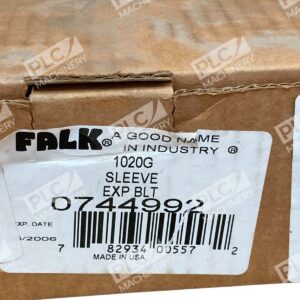

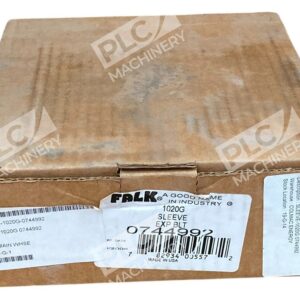

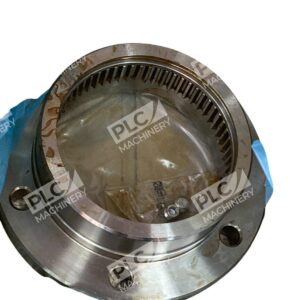

The Falk 1020G exposed bolt sleeve (0744992) is a LifelignĀ® flanged coupling component designed by Rexnord for reliable gear coupling assemblies in industrial power transmission applications. This sleeve accommodates the 1020G coupling size and features exposed bolt construction for straightforward installation and maintenance in production environments requiring high torque delivery and rotational precision.
Key Features
- Exposed bolt design enables one-wrench tightening with reduced head cap screws and non-turning locknut
- Triple-crowned tooth geometry minimizes tip-loading, backlash, and wear caused by shaft misalignment
- Steel construction with gasket included for sealed operation
- AGMA bolt pattern ensures interchangeability with standard gear couplings on retrofit applications
- Lubrication plug locations positioned for effective grease application and maintenance
- Three-year warranty when lubricated with Falk LTG Grease and used with genuine Falk Lifelign components
Technical Specifications
| Coupling Size | 1020G |
| Part Number | 0744992 |
| Sleeve Type | Flanged, Exposed Bolt |
| Outside Diameter | 7.0 inches |
| Overall Length | 12.0 inches |
| Half Sleeve Length | 2.34 inches |
| Material | Steel |
| Torque Capacity | 37,800 in-lbs |
| Maximum RPM | 5,600 rpm |
| Operating Temperature Range | ā30 Ā°F to +200 Ā°F |
| Flex Type | Full Flex |
| Weight | 12.6 lbs |
| Includes | Gasket |
| Series | G Series Exposed Bolts Sleeves |
| Country of Origin | China |
| UPC | 782934005572 |
Typical Applications
The Falk 1020G sleeve is suited for industrial machinery requiring reliable torque transmission with shaft misalignment compensation:
- Machine tool spindle drives and motor coupling assemblies
- Gearbox-to-motor connections in production equipment
- Paper mill, textile, and fan drive systems
- Pump and compressor drive retrofit installations
- Industrial conveyors and material handling systems
Compatibility & Replacements
Compatible With
- Falk Lifelign Type G20 Gear Couplings (1020G size)
- Falk 1203217 and 1203218 hub assemblies (for 1020G coupling)
- Falk LTG Grease lubrication systems
- Standard AGMA bolt pattern shaft couplings
- Industrial motor and gearbox mounting interfaces
Replaces / Drop-In Replacement For
- Falk 1020G20/52 Sleeve (primary designation)
- Older or worn 1020G exposed bolt sleeves in existing Lifelign assemblies
Works With
- Falk screw stops (part 0914053)

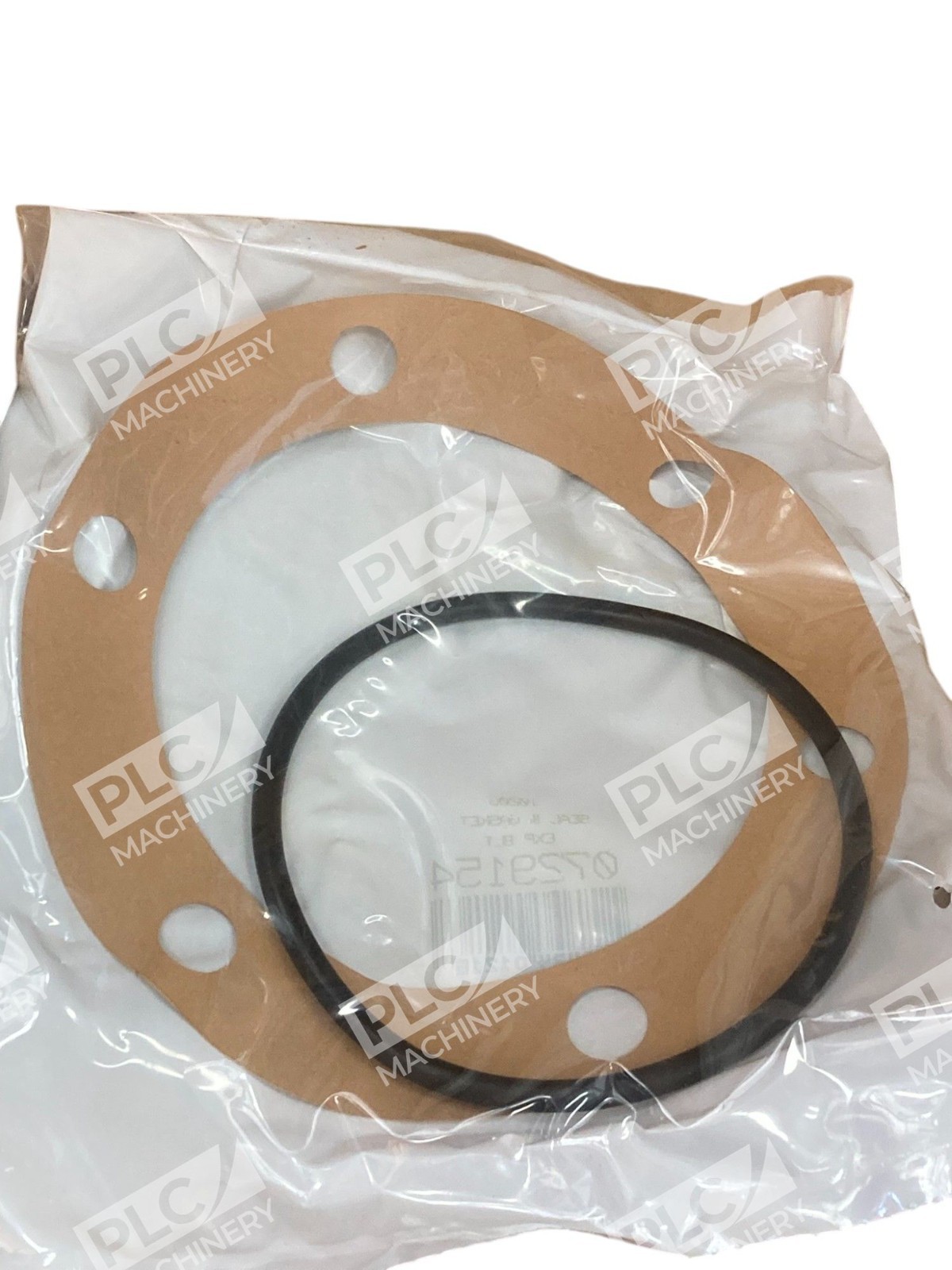

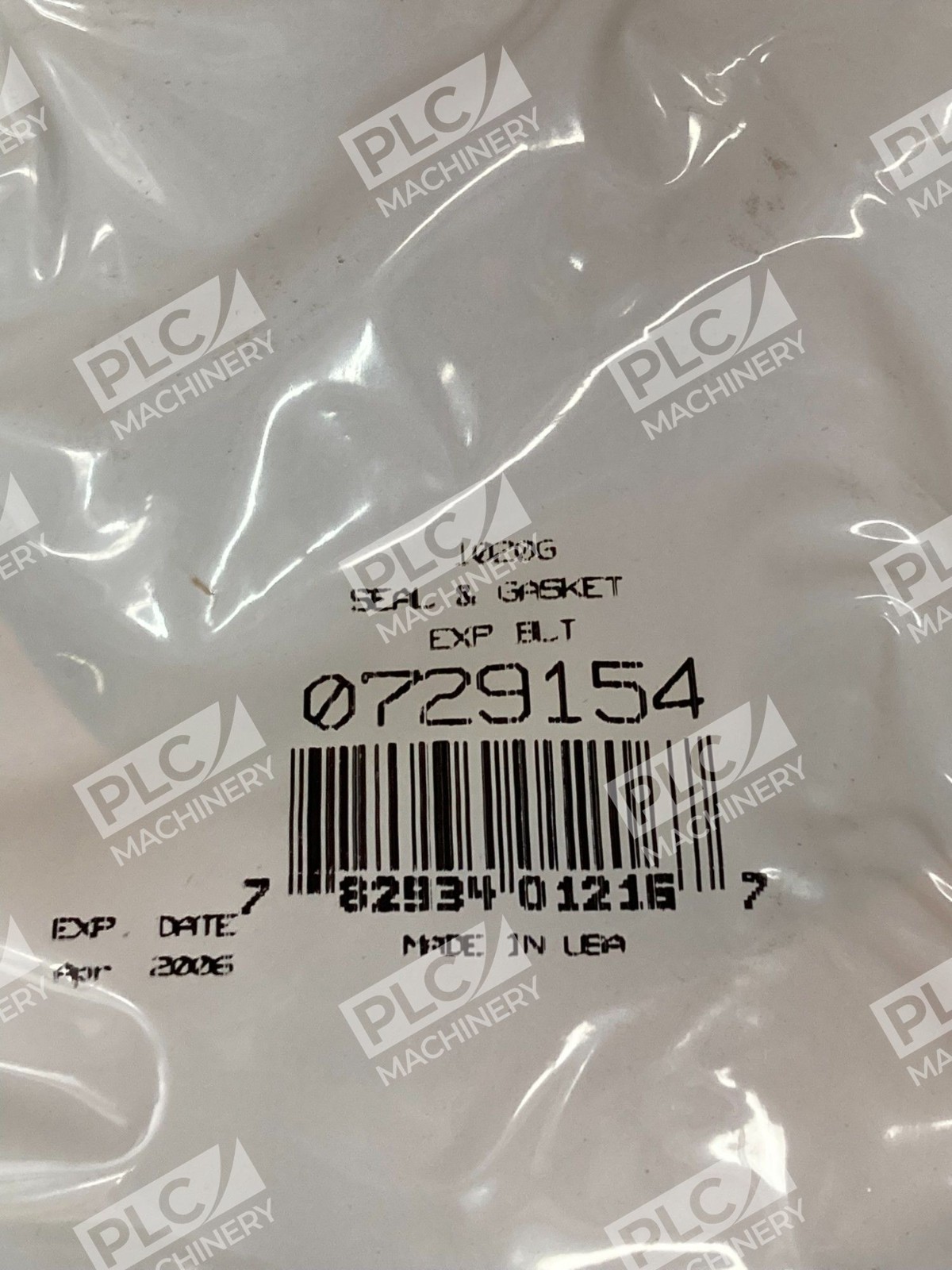

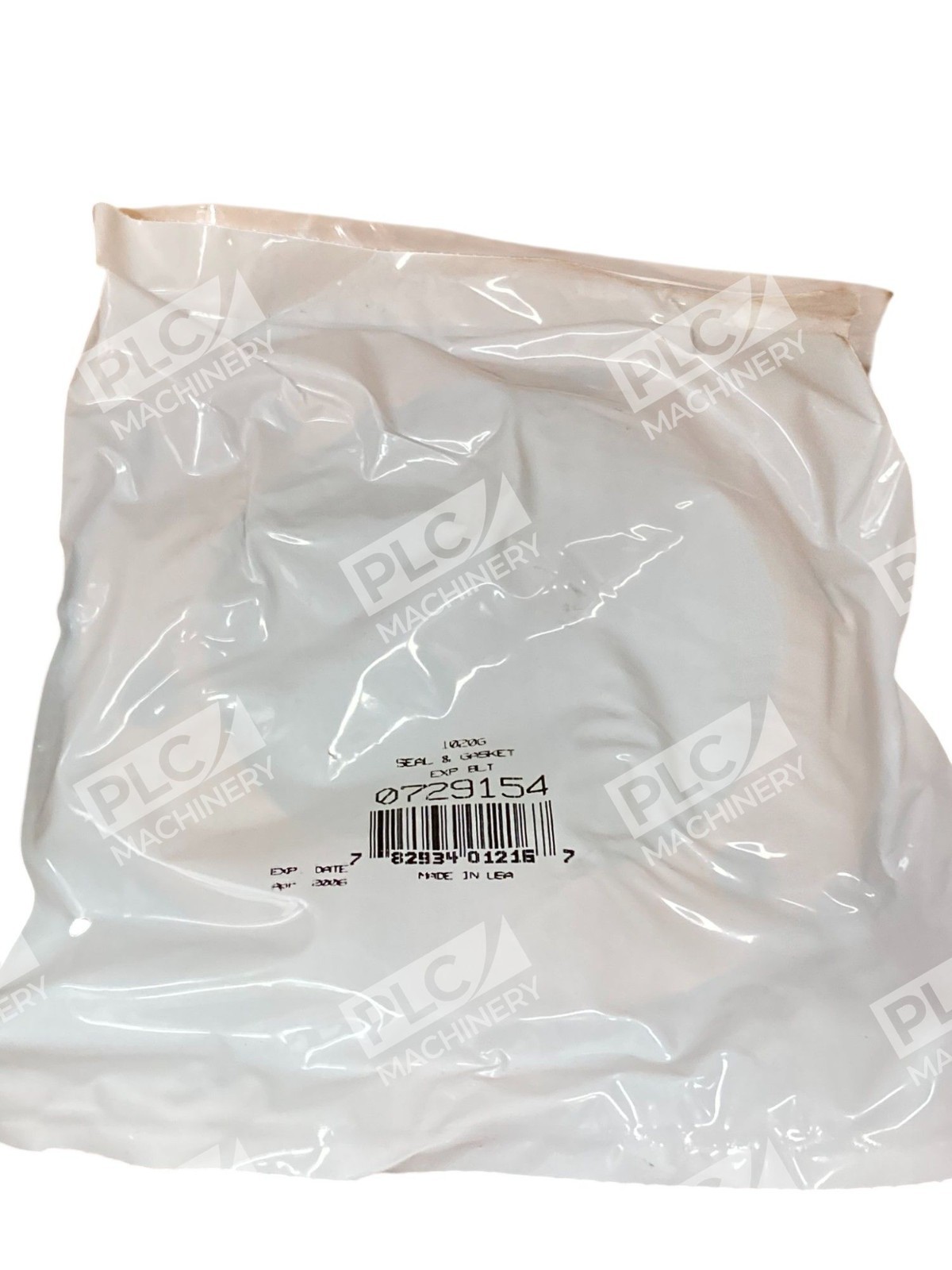

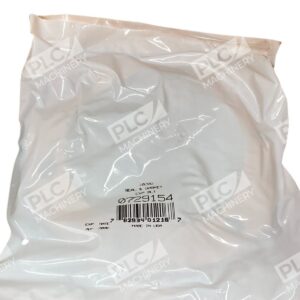

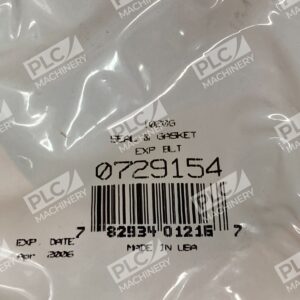

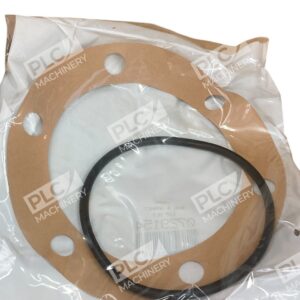

- Falk seal and gasket kits (part 0729154)
- Falk installation and maintenance documentation
- Industrial coupling lubrication and alignment procedures
