Overview

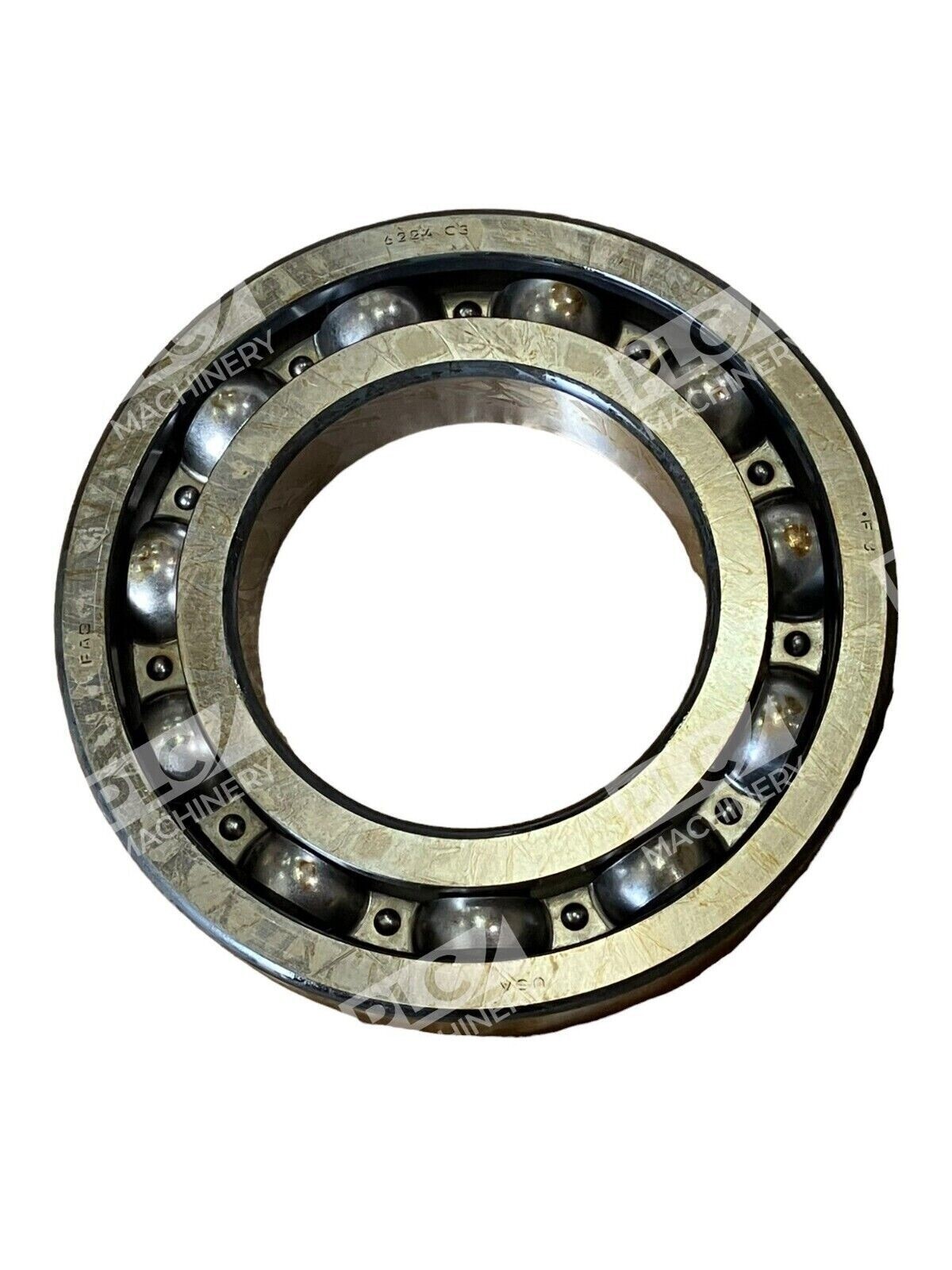

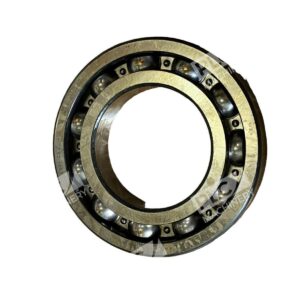

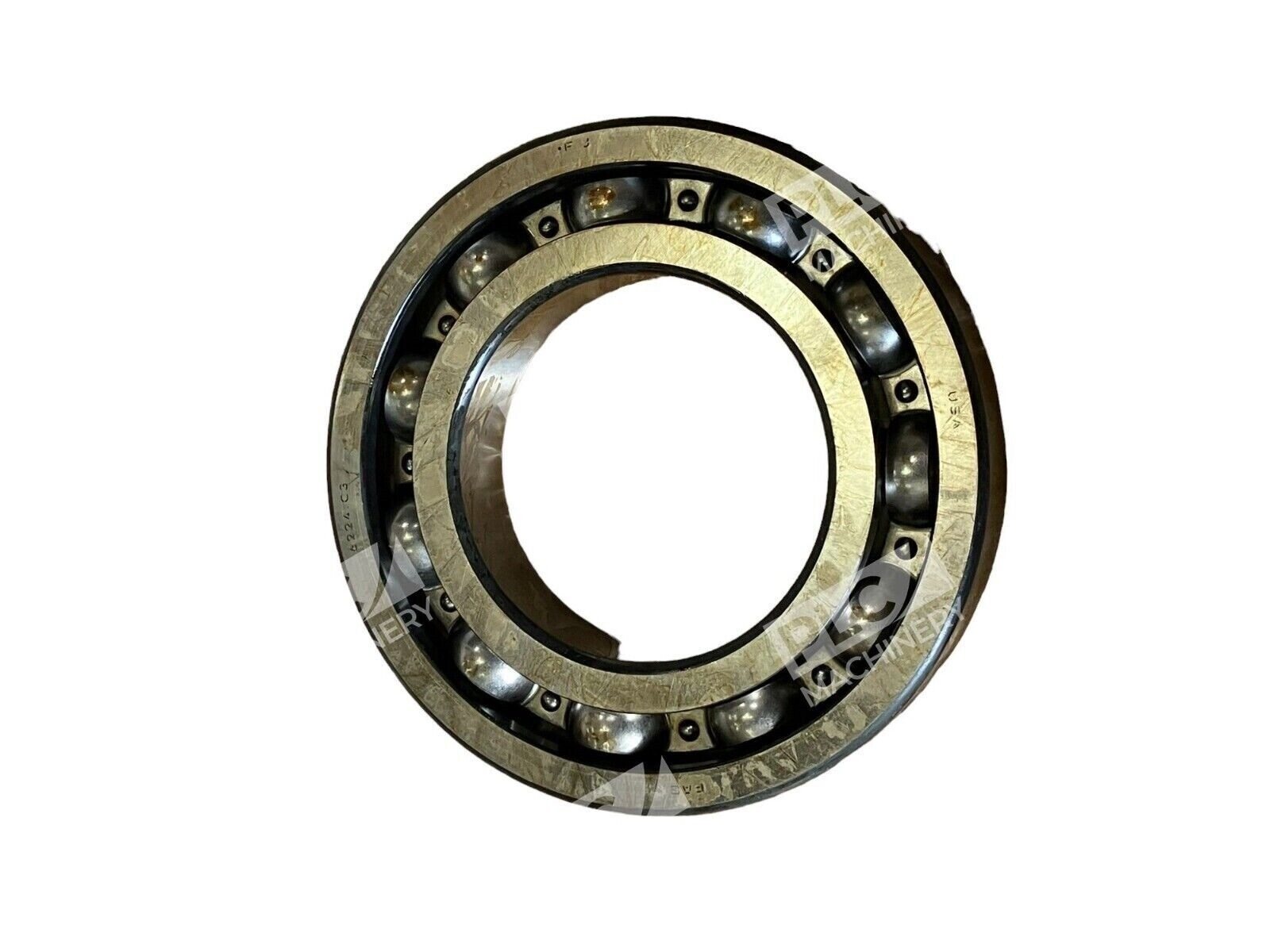

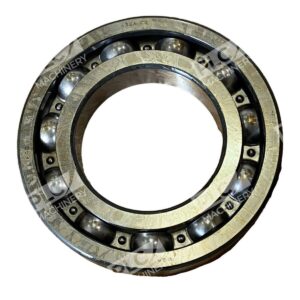

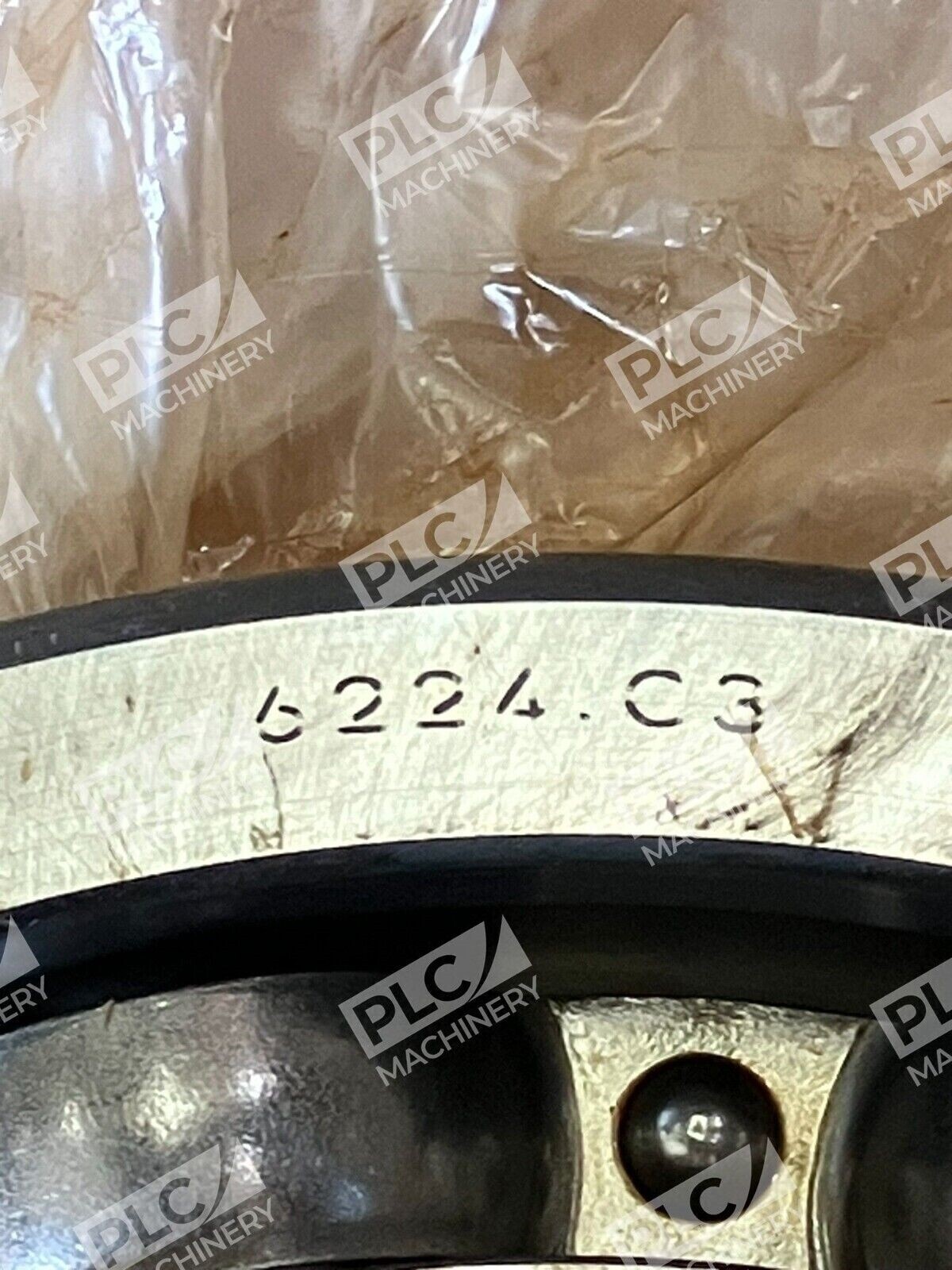

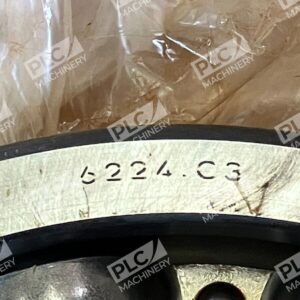

The FAG 6224-C3 is a single-row, open deep groove ball bearing manufactured by FAG (Schaeffler Group). Built to DIN 625-1 and ISO standards, this bearing delivers reliable radial load support and handles axial loads in both directions. The C3 clearance designation provides increased internal radial clearance, making it ideal for high-speed operation and thermal expansion compensation.
Key Features
- Single-row deep groove design supports radial and bi-directional axial loads
- C3 internal clearance allows thermal expansion and high-speed performance up to 3400 RPM
- Sheet steel cage construction for durability and reliability
- Open design requires manual lubrication and periodic reapplication
- Manufactured to DIN 625-1, ISO 281, and Deutsches Institut für Normung standards
Technical Specifications
- Bore Diameter (d): 120 mm
- Outer Diameter (D): 215 mm
- Width (B): 40 mm
- Weight: 5.6 kg
- Dynamic Load Rating: 154,000 N (154 kN)
- Static Load Rating: 123,000 N (123 kN)
- Fatigue Load Limit: 6,200 N
- Maximum Speed: 3400 RPM
- Operating Temperature Range: −30 °C to +150 °C
- Cage Type: Sheet Steel (Standard)
- Bore Type: Cylindrical
- Clearance Class: C3 (Increased Radial)
- Seal Type: Open (Unsealed)
- EAN Code: 4012801278560
Typical Applications
The FAG 6224-C3 is widely used in industrial machinery, electric motors, pumps, conveyor systems, and rotating equipment requiring high-speed, radial load support. The C3 clearance makes it particularly suitable for applications where thermal fluctuations occur, such as high-power rotating machinery, turbines, and heavy-duty industrial compressors. Open-design bearings require properly maintained lubrication systems for optimal performance.
Compatibility & Replacements
Compatible With
- Standard industrial equipment with 120 mm shaft diameter
- Electric motors and generators requiring precision deep groove bearings
- Conveyor drive systems and power transmission equipment
- Pumps and compressors operating at variable temperatures
- Rolling mills and aggregate processing machinery
Replaces / Drop-In Replacement For
- FAG 6224 (standard clearance variant)
- SKF equivalent 6224-C3 series
- Other 120x215x40 mm deep groove bearings with C3 clearance
Works With
- ISO 281 load-life calculation standards
- DIN 625-1 deep groove ball bearing specifications
- Standard industrial bearing mounting and alignment tools
- Grease and oil lubrication systems compliant with bearing manufacturer guidelines
