Overview

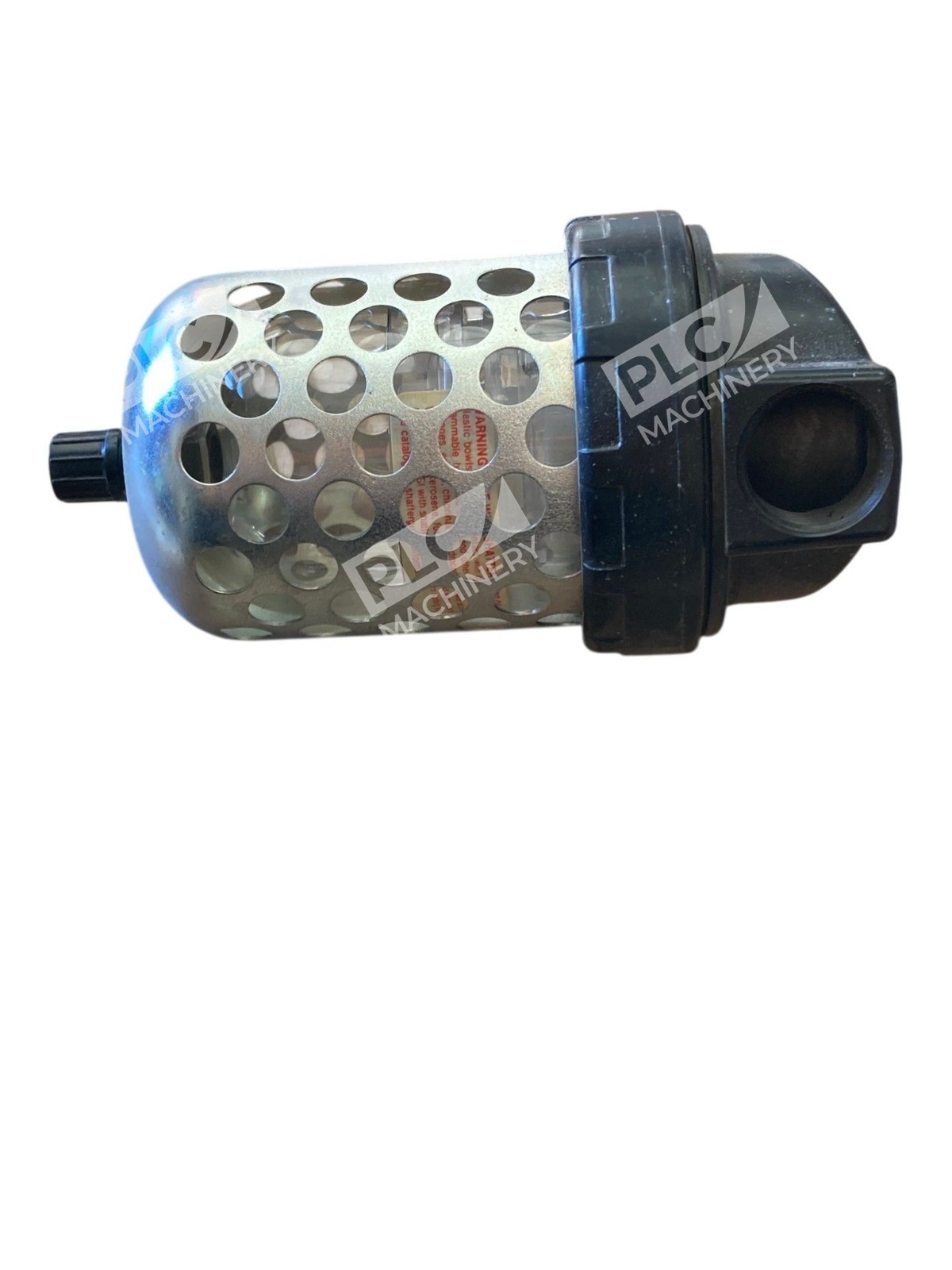

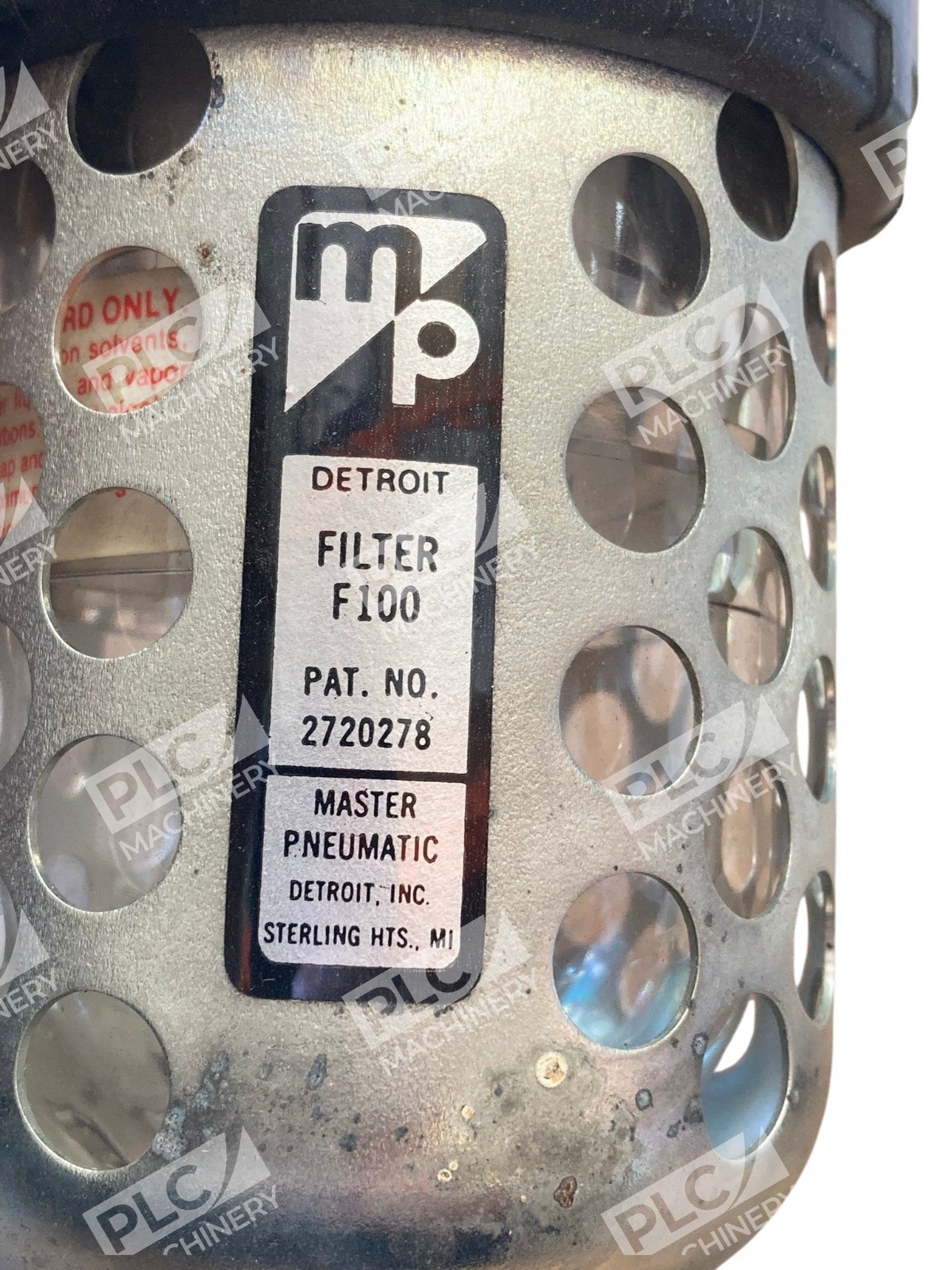

The Master Pneumatic F100 is an industrial-grade compressed air filter designed to remove particulate contamination from pneumatic lines. This unit delivers reliable filtration for manufacturing, automation, and control applications where clean, dry air is critical. Available as new, no box condition.
Key Features
- 5 micron filter element—removes particulate to protect downstream pneumatic equipment
- Aluminum body and polycarbonate bowl with nylon shatter-guard for durability
- Automatic drain option on select variants—reduces maintenance downtime
- Rated for 150 PSI (10 bar) inlet pressure
- Operating temperature range 40° to 125° F (4° to 52° C)
- Made in the USA—proven reliability in industrial environments
Technical Specifications
The F100 incorporates the following specifications:
- Filter Element: 5 micron polyethylene
- Body Material: Aluminum
- Bowl Capacity: 16 ounce (480 mL)
- Bowl Material: Polycarbonate with nylon shatter-guard
- Seals: Nitrile
- Fluid Media: Compressed air
- Maximum Inlet Pressure: 150 PSI (10 bar)
- Operating Pressure Range: 15 to 150 PSI (0 to 10 bar)
- Temperature Range: 40° to 125° F (4° to 52° C)
- Port Configuration: Available in multiple thread types (3/8″ BSP, 1″ NPTF, 3/4″ BSPP)
- Weight: 1.0 to 2.1 lbs depending on variant
- Fluid: Air
Typical Applications
The Master Pneumatic F100 filter excels in:
- Compressed air systems for industrial automation and control
- Pneumatic tool supply lines in manufacturing facilities
- Precision equipment protection requiring dry, clean air
- Air-operated machinery and mechanical systems
- OEM equipment requiring pre-filtration
Compatibility & Replacements
Compatible With
- Standard compressed air line systems using BSP, BSPP, or NPT thread fittings
- Pneumatic tools and equipment requiring 150 PSI or less inlet pressure
- Industrial automation control systems with compressed air actuation
- Manifold and valve assemblies rated for up to 150 PSI
- OEM compressor systems requiring particulate pre-filtration
Replaces / Drop-In Replacement For
- F100-3 (3/8″ BSP manual drain variant)
- F100-8 (1″ NPTF port variant with automatic drain options)
- F100-6W (3/4″ BSPP variant)
- F100-8LDC (1″ NPTF with 16-ounce bowl and aluminum ring)
- Other Master Pneumatic F100 series configurations
Works With
- Compressed air piping systems with compatible thread types
- Pneumatic regulators and valves downstream of the filter
- Air dryer systems for complete air treatment
- Filter element replacement kits for routine maintenance
- Pneumatic accumulator and storage tank installations
