Overview

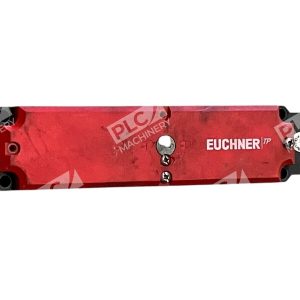

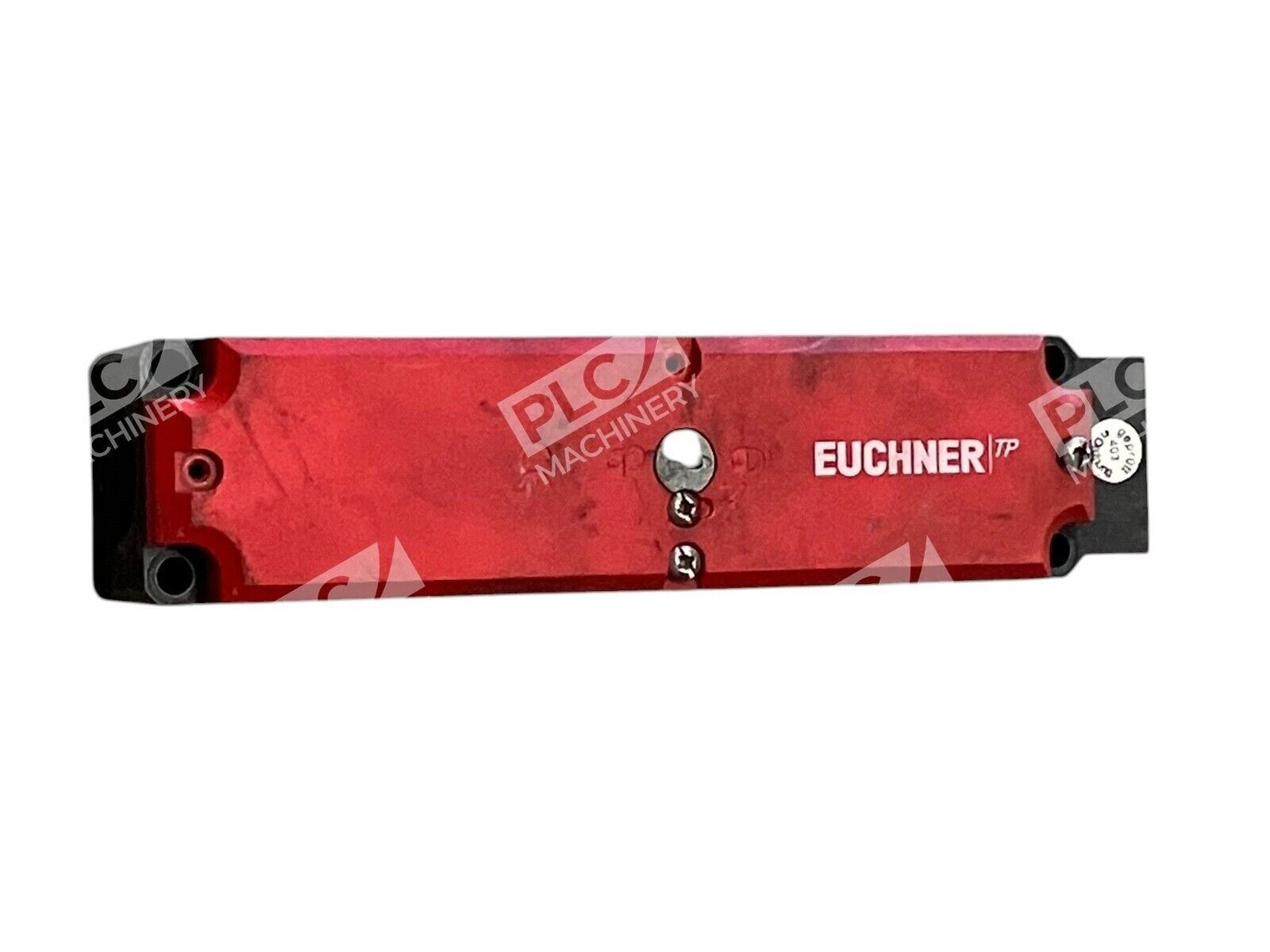

The Euchner TP3-2131A024MC1743 (order number 084285) is an electromechanical safety switch with guard locking and integrated door position monitoring. This proven plastic-housing TP-series switch provides spring-force guard locking controlled by a 24V solenoid, making it ideal for protecting access to hazardous machinery in CNC machine centers and industrial automation equipment. The switch features manual escape release from the rear and auxiliary release on the front for emergency situations.
Key Features
- Guard locking with spring force engagement; solenoid-controlled release via 24V AC/DC
- Door position monitoring contact for feedback confirmation
- Escape release on rear (short shaft, C1743) for tool-free emergency manual unlock from the danger zone
- Auxiliary release on front for additional access control
- Cable entry via M20 × 1.5 connector; horizontally and vertically adjustable in 90° steps
- Increased horizontal overtravel for door clearance and reduced mechanical stress
- Compact plastic enclosure suitable for temperature-resistant and corrosion-resistant applications
Technical Specifications
- Solenoid Operating Voltage: AC/DC 24 V (+10%, −15%)
- Guard Locking Type: TP3 closed-circuit current principle (spring force locking)

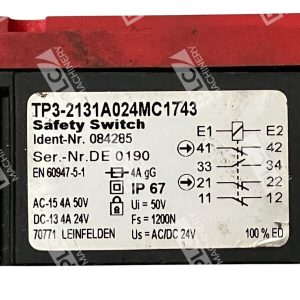

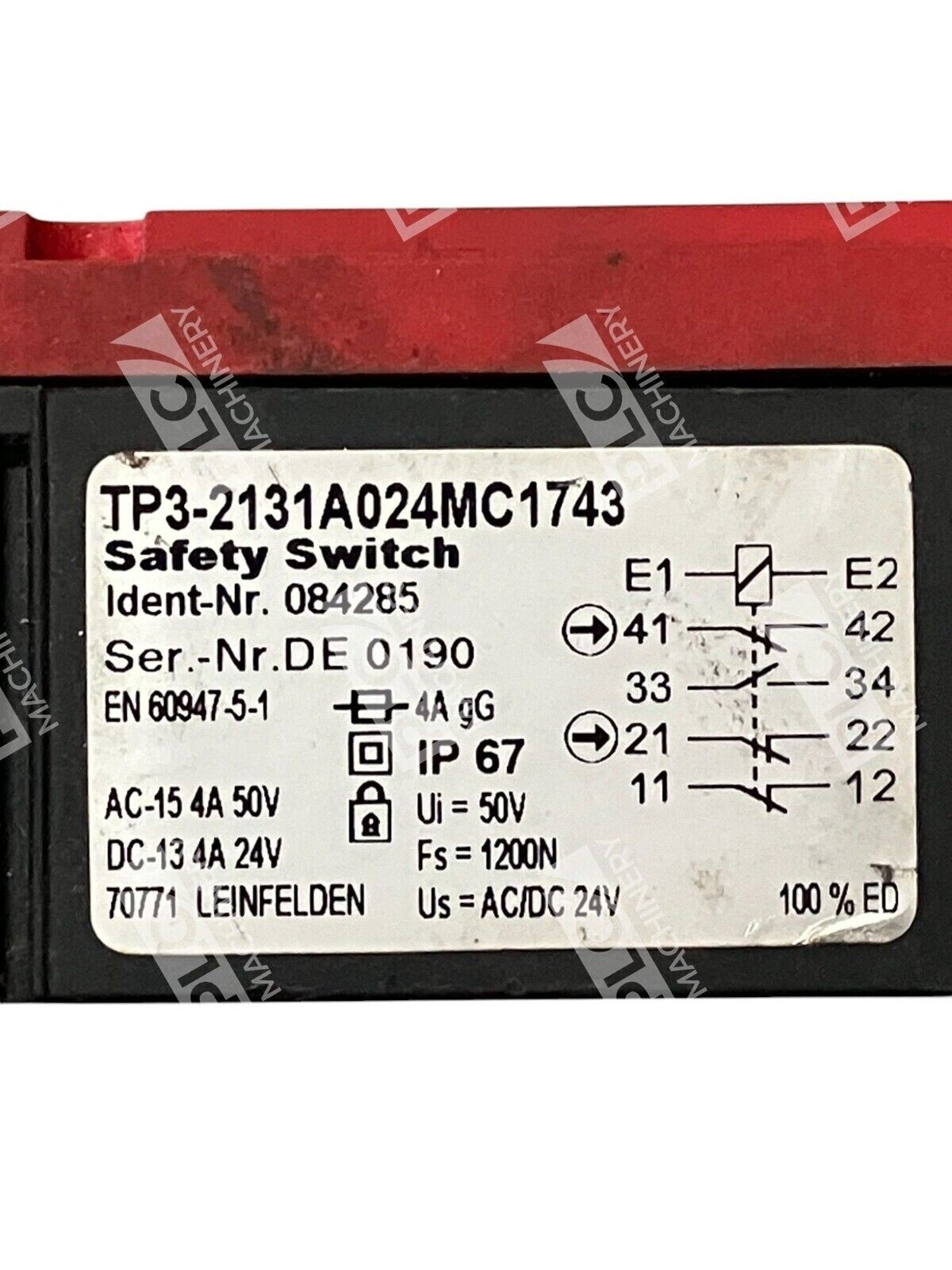

- Contact Configuration: 2 NC (normally closed) + 1 NO + 1 NC (door monitoring)
- Cable Entry: M20 × 1.5
- Actuator Shaft: Short (C1743, escape release)
- Approach Direction: Horizontal and vertical, adjustable in 90° increments
- Overtravel: Increased horizontal overtravel
- Mounting: Rail or bracket mount (consult documentation for specifics)
- Housing Material: Plastic enclosure
- Standards Compliance: EU declarations of conformity available
Typical Applications
- CNC machine tool enclosure guarding and access control
- Industrial press and punch machine safety interlocks
- Automated assembly line safety gates and doors
- Hazardous area access protection in manufacturing
- Equipment requiring manual escape release for emergency stop scenarios
Compatibility & Replacements
Compatible With
- 24V AC/DC control systems with solenoid logic
- PLC-based safety systems supporting normally-closed contact logic
- Guard locking controllers and monitoring relays
- Industrial machinery with M20 × 1.5 cable entry standards
Replaces / Drop-In Replacement For
- TP3-2131A024MC1993 (longer actuator shaft variant)
- TP3-2131K024M (increased vertical overtravel variant)
- TP3-4121A024MC1743 and TP3-4131A024MC1743 (alternative contact configurations in same series)
Works With
- Standard PLC safety modules and guard lock monitoring relays
- 24V DC/AC solenoid control circuits
- Normally-closed contact feedback for door position confirmation
- Manual release mechanisms for emergency access protocols
