Overview

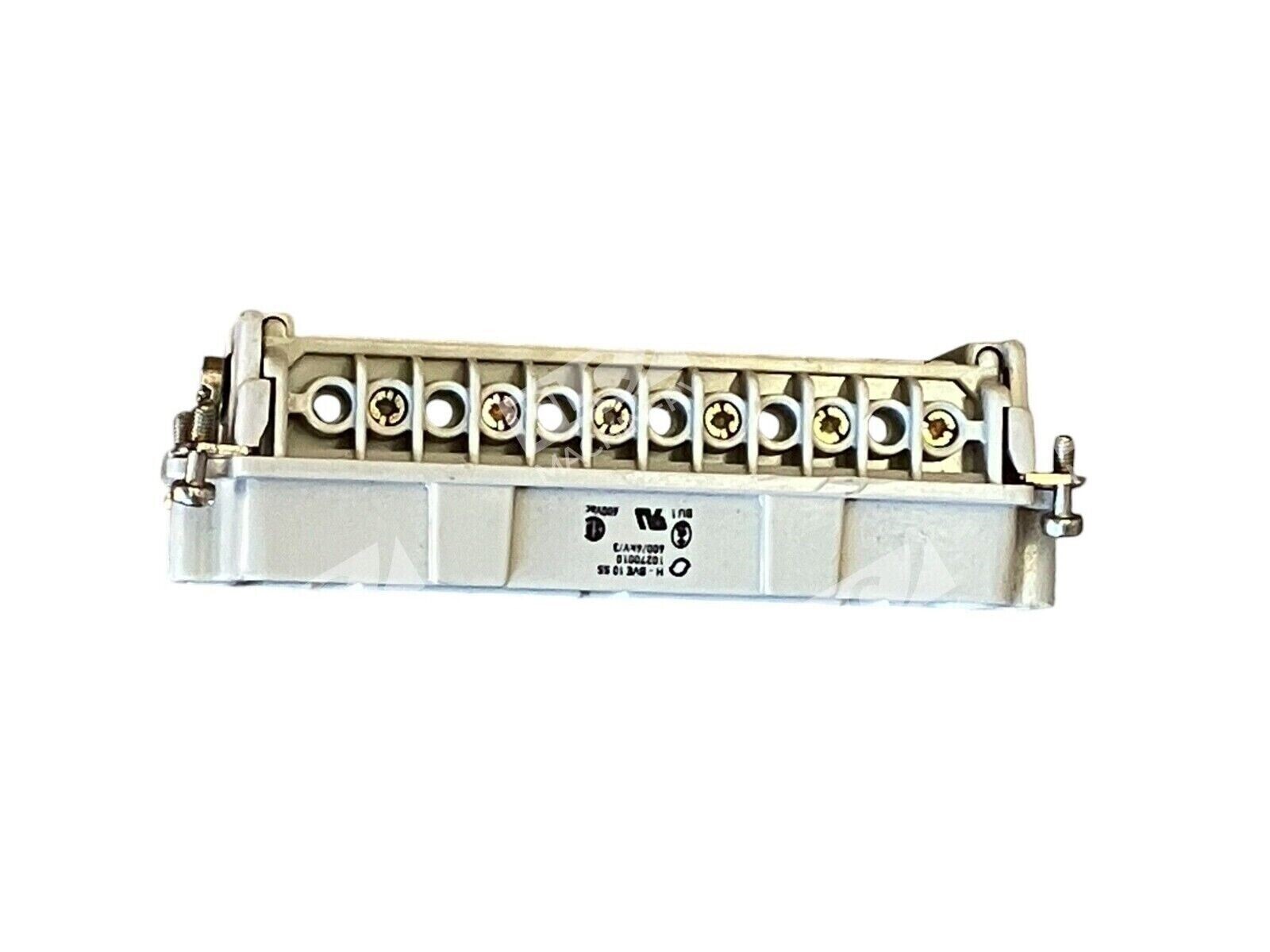

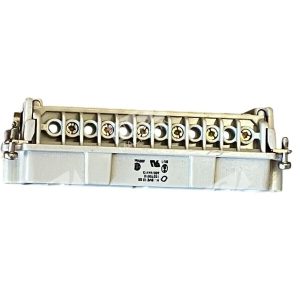

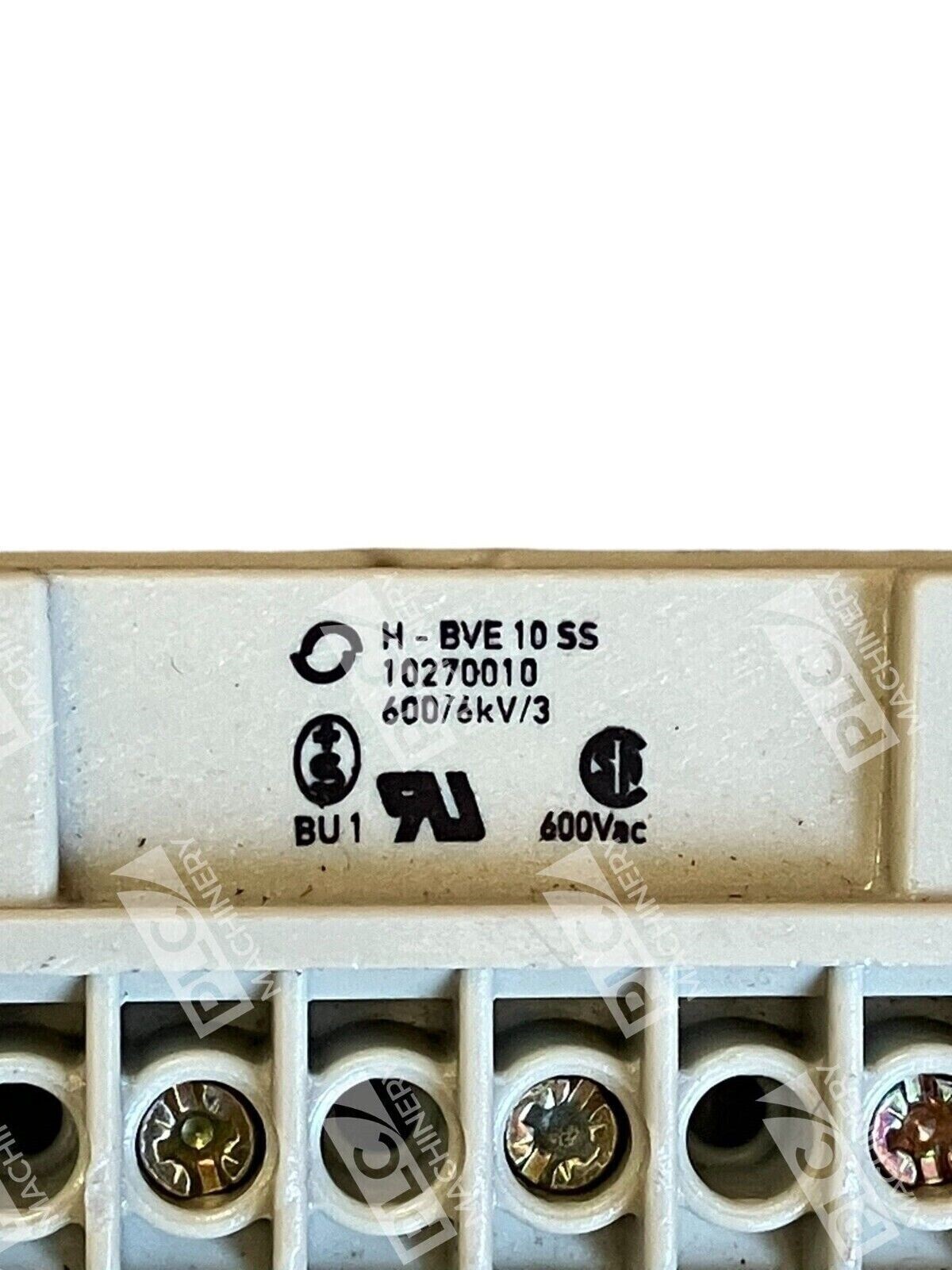

The Epic H-BVE-10-SS connector insert is a high-voltage rectangular connector designed for demanding industrial applications. This 10-position multipole insert combines lagging switch contacts with working contacts to safely interrupt power supply before load disconnection. Stainless steel (SS) contacts provide superior corrosion resistance in harsh environments.
Key Features
- Lagging Switch Contacts: Switching operations possible for disconnecting under load, ensuring safe power interruption before working contacts separate.
- Stainless Steel Contacts: SS contact material delivers enhanced durability and resistance to corrosion.
- Screw-Terminal Connection: Easy to service screw connection enables assembly without special tools.
- Robust Housing: Made of robust polycarbonate (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- Industry-Standard Design: Inserts from the EPIC® H-BE series are regarded as classics in industry and are ideal for use at higher voltages and currents.
- Multiple Certifications: UL certification according to technical data enables the product to be used on the North American market. Also certified according to UL 508 A/UL 2237 for applications in control cabinets.
Technical Specifications
- Position Count: 10 positions
- Contact Material: Stainless steel
- Connection Type: Screw terminals
- Connector Series: EPIC® rectangular connectors
- Insert Variant: H-BVE (high-voltage with switching contacts)
- Contact Configuration: Multipole with lagging switch contacts + working contacts
- Housing Material: Polycarbonate, UL94 V-0 flammability class
- Certification: VDE-tested, UL 508 A/UL 2237, North American UL approval
- Operating Temperature Range: Contact manufacturer datasheet for exact range
- Applications: Control cabinets, industrial power distribution, platform and lifting systems
Typical Applications
For connecting devices and machines to a power supply in various applications. For transmission of control signals to actuators. Typical applications include platform, lighting and lifting technology. The H-BVE-10-SS is particularly suited for:
- Industrial control cabinet wiring
- Power distribution to motor drives and actuators
- Load-switching applications requiring safe disconnection
- Railway and transportation equipment (where fire-rated protection is required)
- Machinery with high-voltage signal transmission
Compatibility & Replacements
Compatible With
- EPIC® rectangular connector housings (H-B 24 series and similar)
- EPIC® QUICK & EASY mounting systems
- Industrial terminal blocks and screw-terminal assemblies
- Standard industrial electrical control equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The H-BVE-10-SS is a specific high-voltage variant; ensure you have the correct insert series for your application.
Works With
- EPIC® rectangular connector housings and backshells
- Standard industrial screw-terminal wiring practices
- IEC 60695 and UL 508 control cabinet standards
- AWG 18–12 and metric (0.5–2.5 mm²) conductor sizes (consult datasheet for exact range)
