Overview

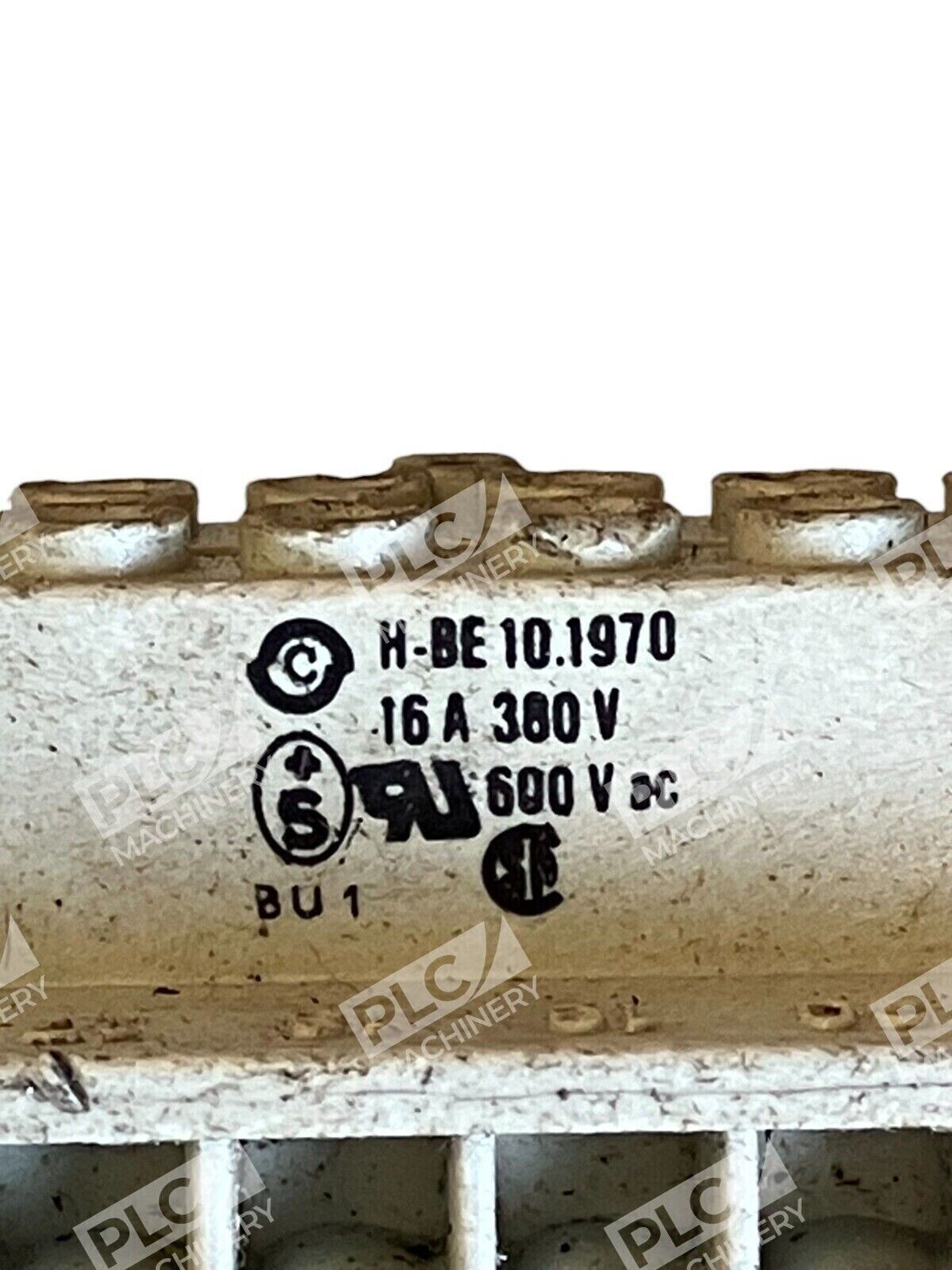

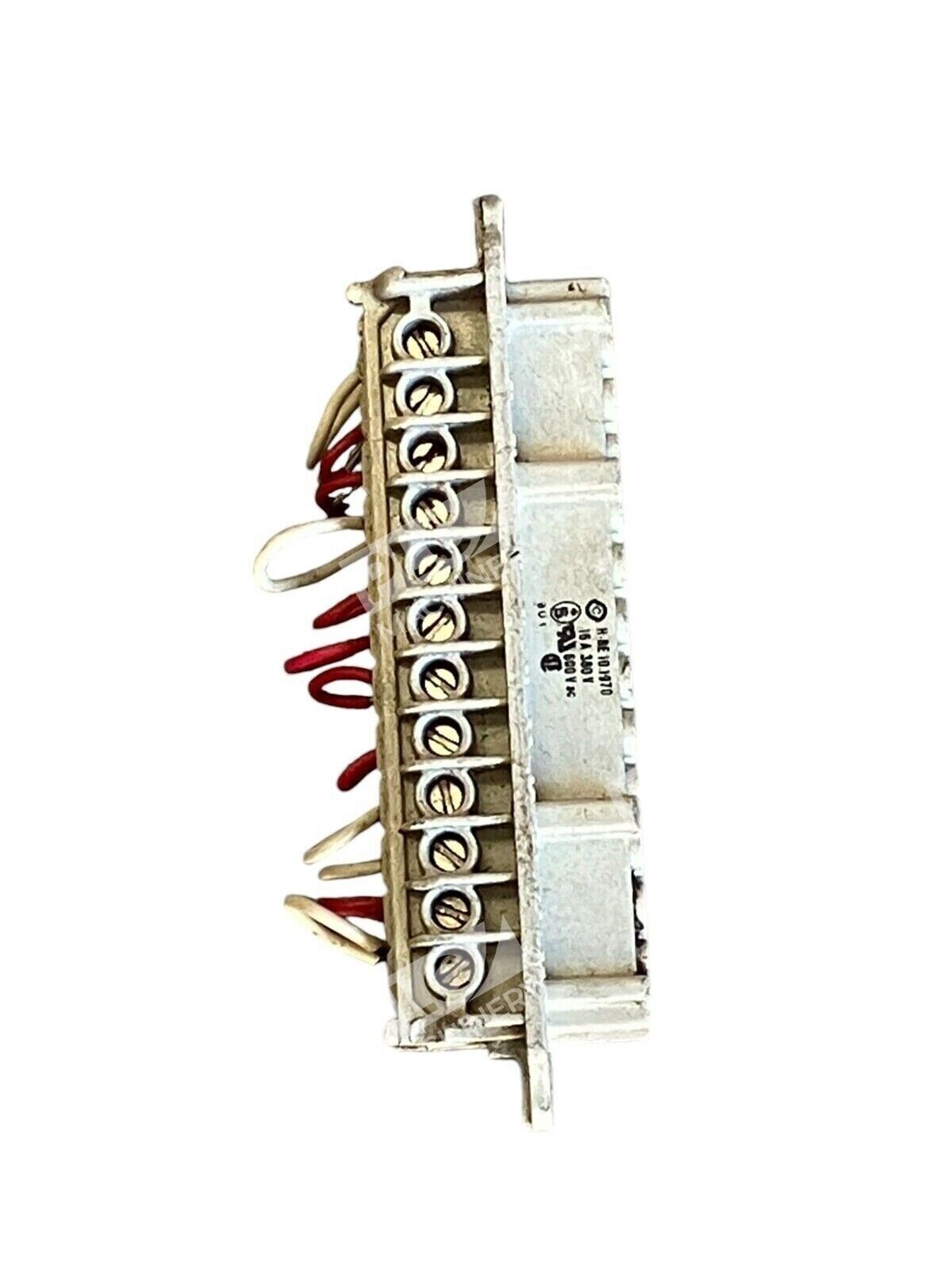

The Epic H-BE10.1970 is a 24-pin rectangular heavy duty connector insert designed for industrial control and power distribution applications. Rated at 16A and 600Vac, this connector block is part of the Epic H-BE series—a proven choice for high-voltage, high-current environments. The modular H-BE architecture allows flexible mating configurations and multiple termination options, making it ideal for cabinet integration, industrial machinery, and power panel applications.
Key Features
- 24 contact positions with PE (protective earth) grounding capability
- Copper-alloy housing with silver/gold-plated screw and crimp termination contacts
- Silver-plated cage clamp termination for flexible wire connection
- Rated 16A at 600Vac—suitable for high-voltage industrial circuits
- DIN rail mounting compatibility with modular EPIC rectangular insert range
- UL tested for control cabinet applications (UL 508 / UL 2237)
Technical Specifications
- Contact Count: 24 + PE (protective earth)
- Current Rating: 16A (nominal)
- Voltage Rating: 600Vac
- Material: Copper alloy housing
- Contact Finish: Silver/gold-plated (screw/crimp), silver-plated (cage clamp)
- Termination Types: Screw, crimp, and cage clamp
- Wire Range: 0.5–2.5 mm² (screw); 0.5–4 mm² (crimp); 0.5–2.5 mm² (cage clamp)
- Series: EPIC H-BE (rectangular heavy duty)
- Certifications: UL 508, UL 2237, VDE-REG
- Mounting: DIN rail compatible modular base
Typical Applications
- Industrial control cabinets and switchgear panels
- Machine tool electrical interconnections
- Power distribution and automation systems
- Railway and vehicle-mounted control systems (EN 45545-2 compliant)
- High-voltage/high-current industrial machinery
- Modular panel-mount connector installations
Compatibility & Replacements
Compatible With
- EPIC rectangular connector housing assemblies (panel-mount bases)
- H-BE 10 connector kits and modular systems
- DIN rail mounted control enclosures
- Industrial equipment requiring 24-pin, 600Vac-rated connections
Replaces / Drop-In Replacement For
This insert (H-BE10.1970) is the receptacle/female component. Verify compatibility with your existing housings and mating connectors (H-BE 10.1960 is the complementary male insert). Confirm connector family and base housing part number before ordering to ensure correct assembly.
Works With
- EPIC H-BE rectangular connector system (modular inserts)
- Screw, crimp, and cage clamp termination blocks
- Push-in and spring-loaded contact variants within H-BE 10 series
- Industrial control and automation panel integration
