Overview

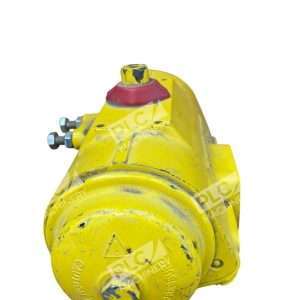

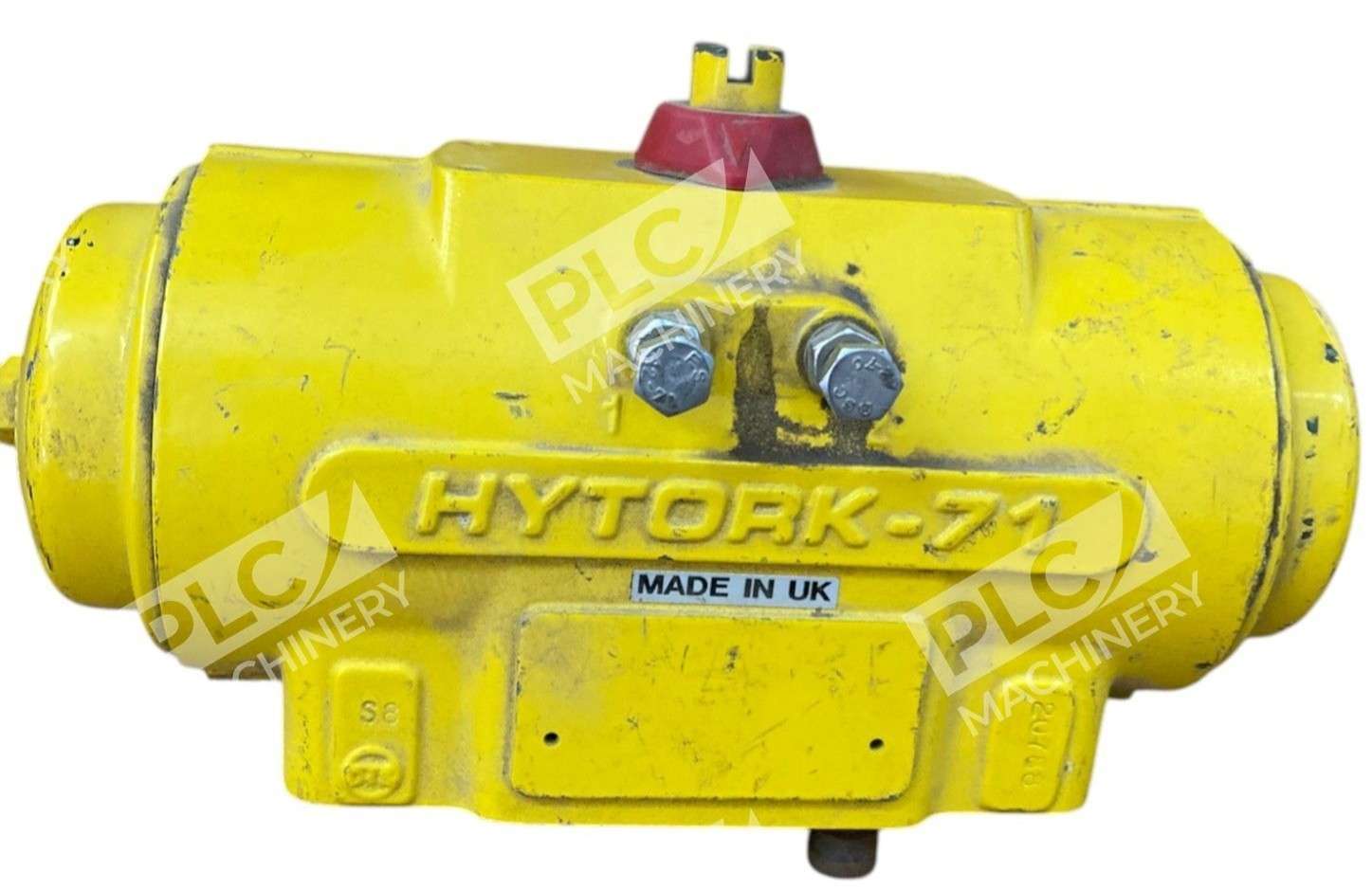

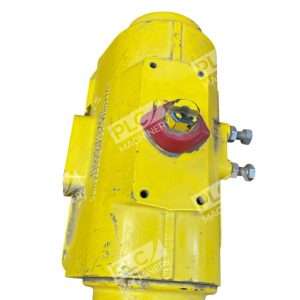

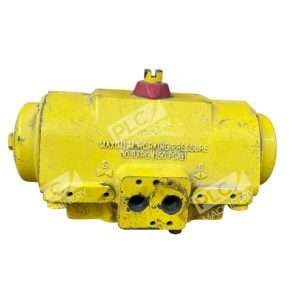

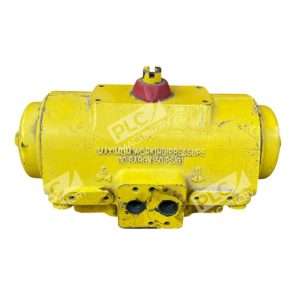

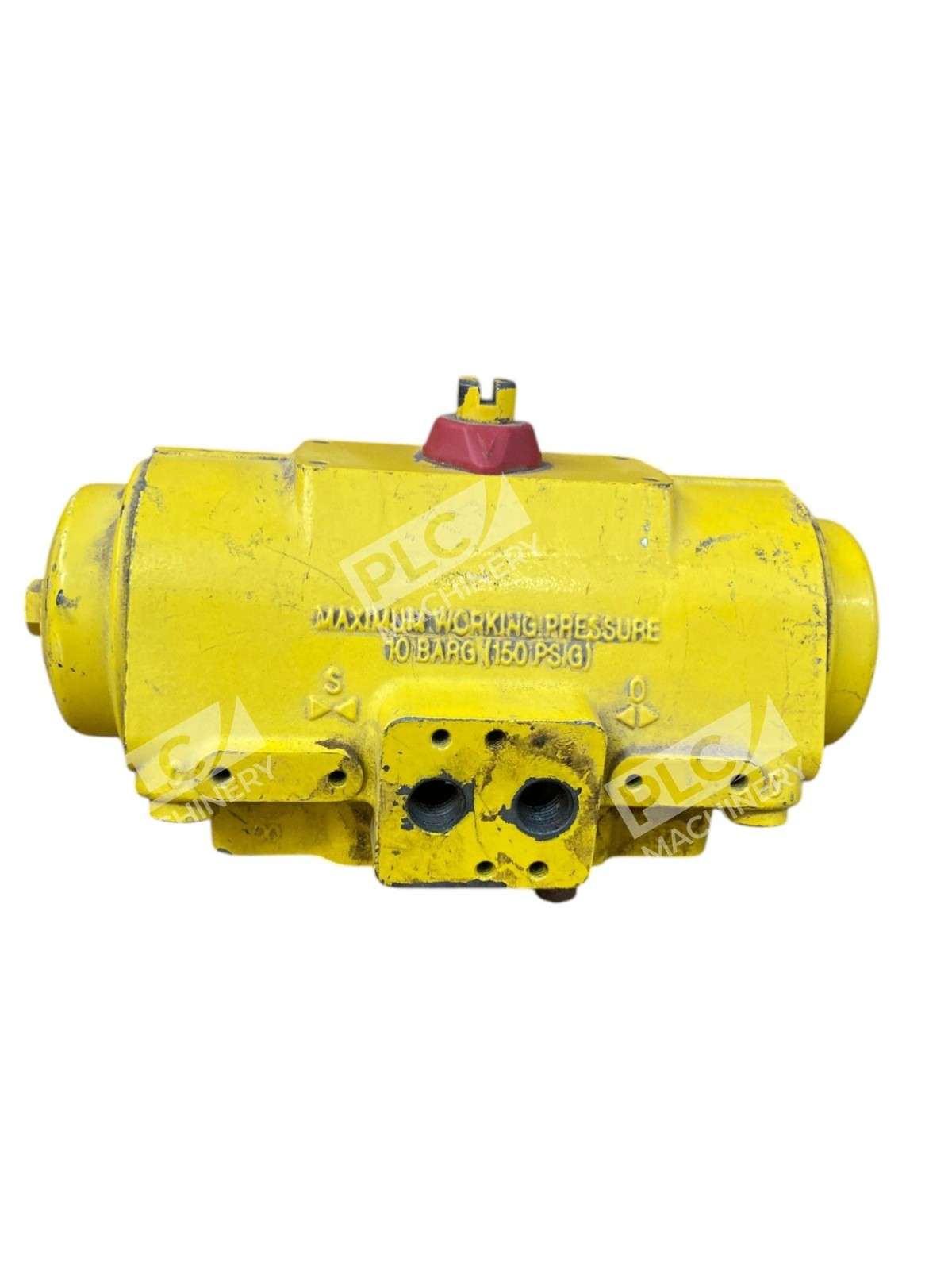

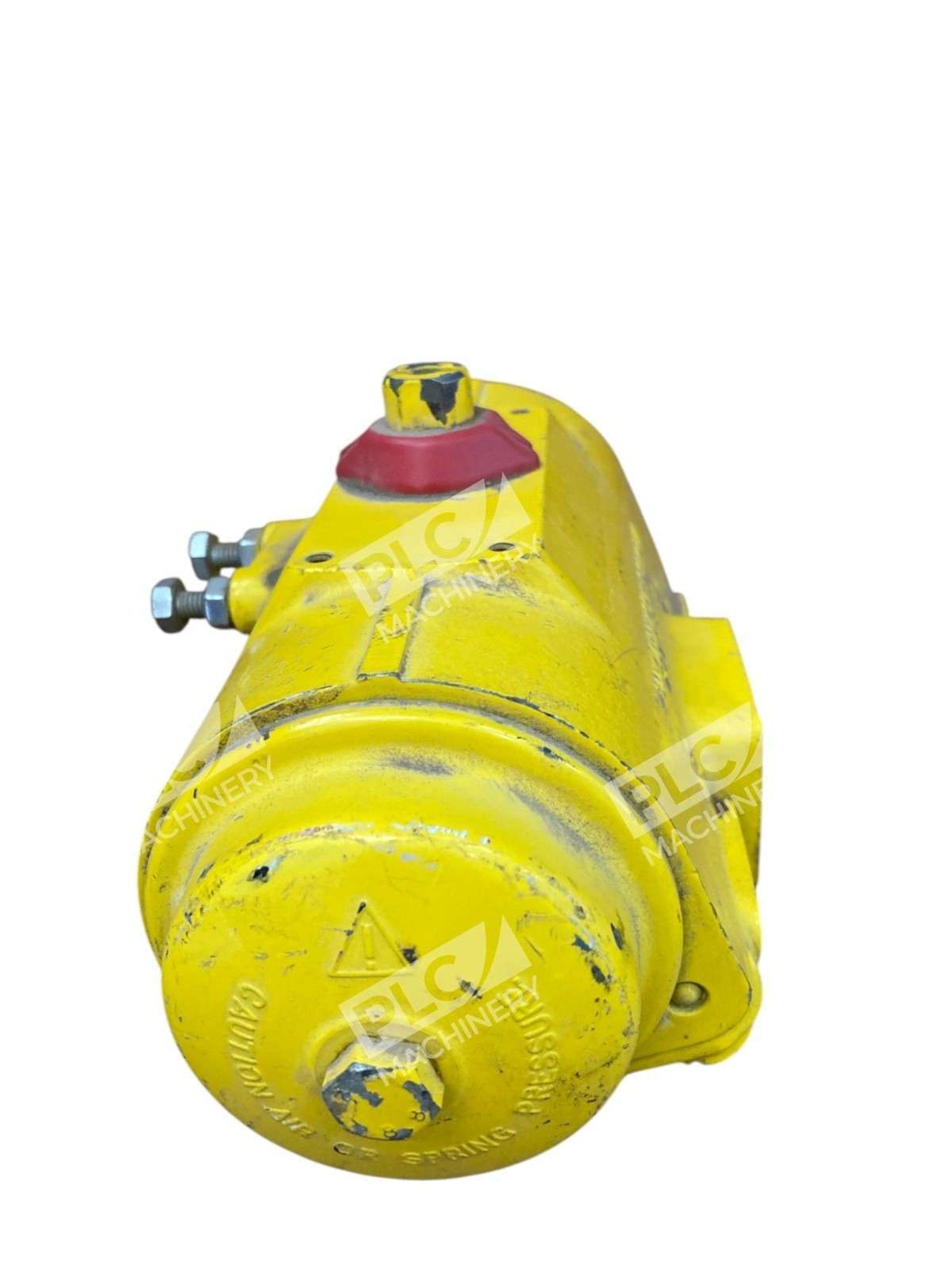

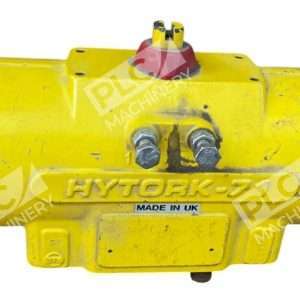

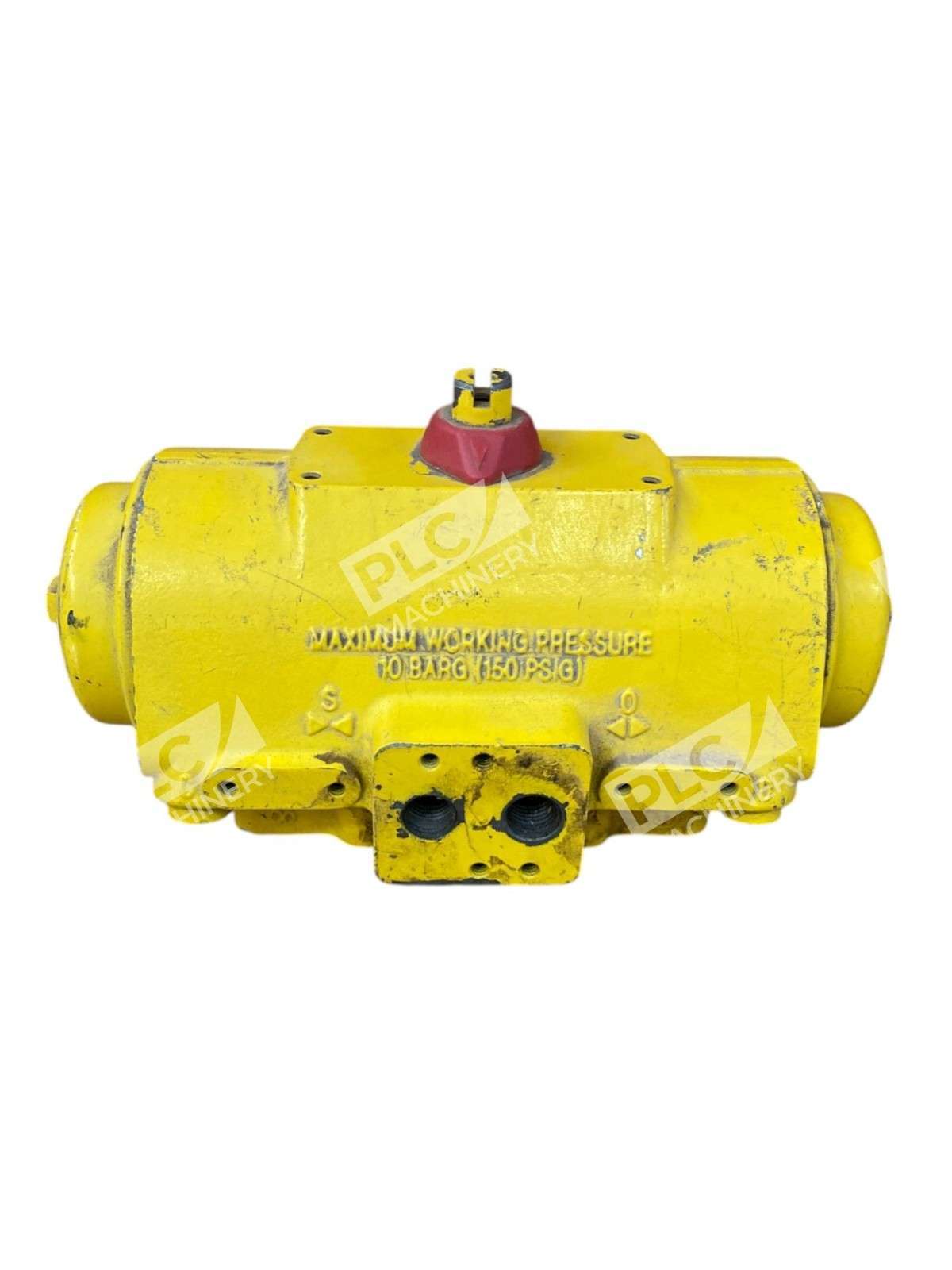

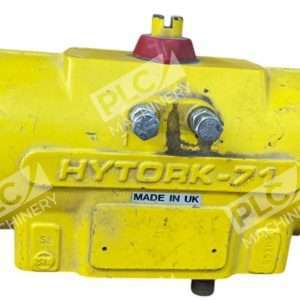

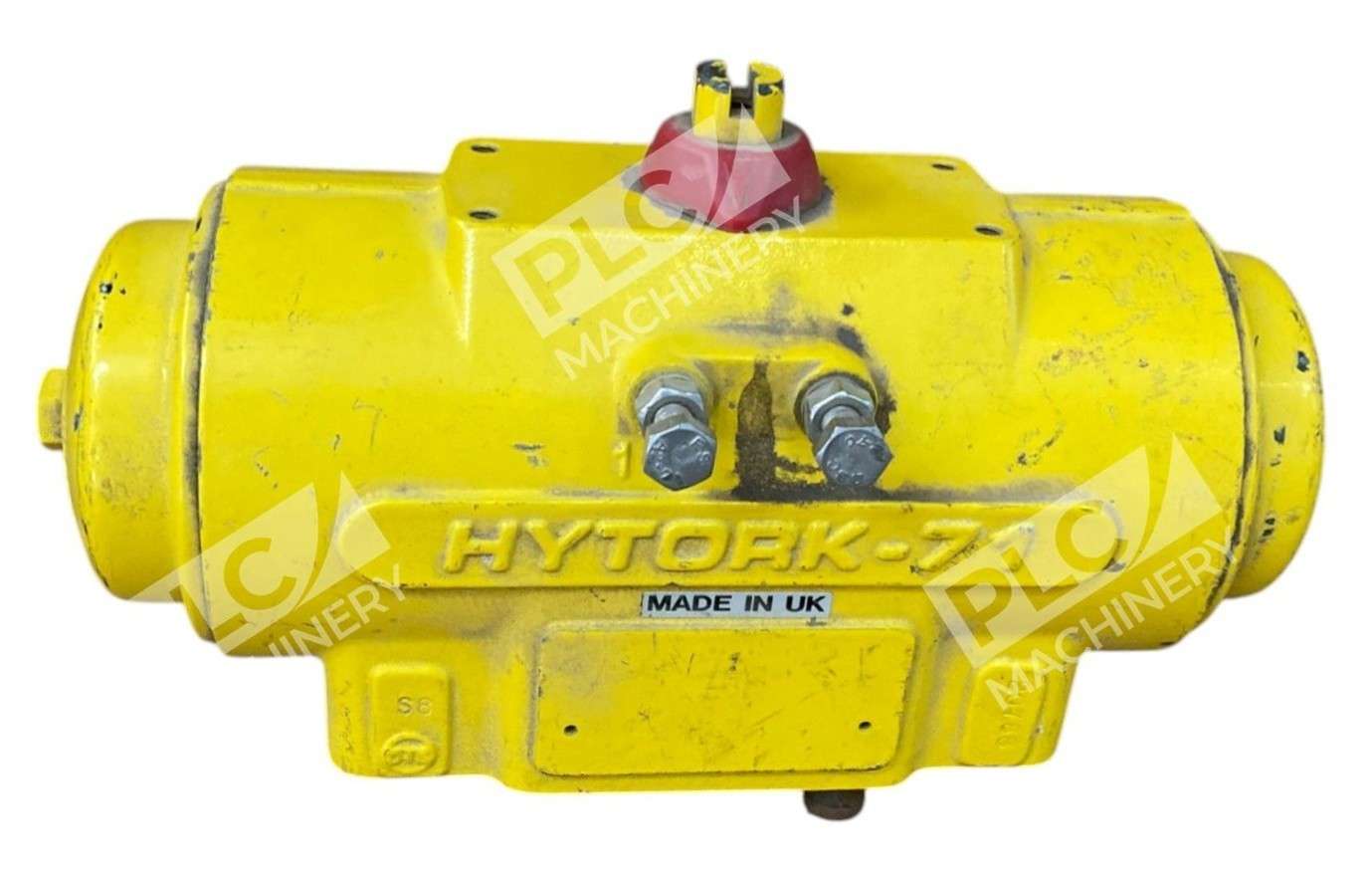

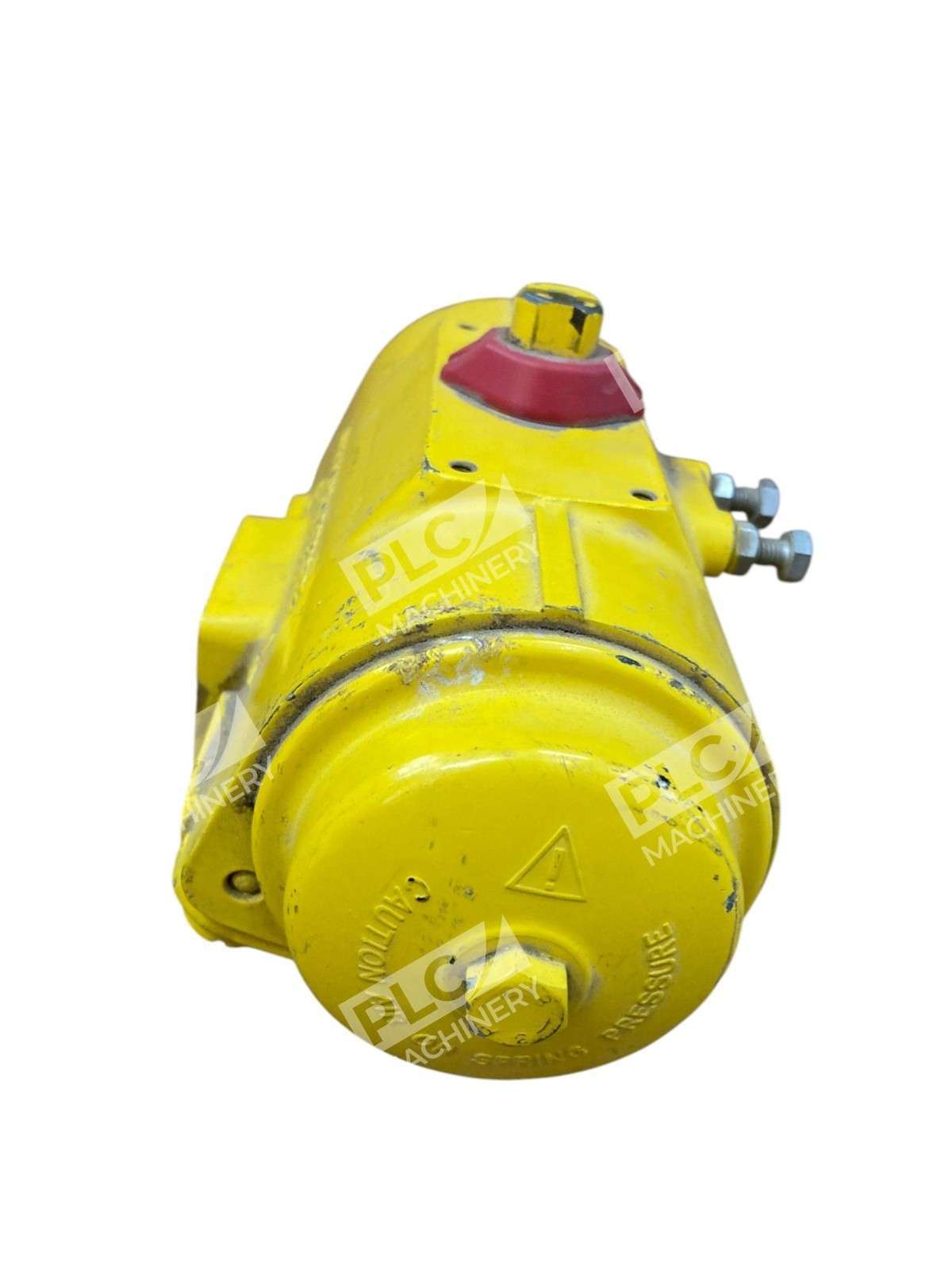

The Emerson XL71SR-U Hytork is a spring return pneumatic actuator engineered for automated control of quarter-turn ball, butterfly, and plug valves. The Hytork XL-series rack & pinion actuator is modular in design and is field convertible from double-acting to spring-return and vice versa. This spring return configuration provides inherent fail-safe operation—the actuator automatically returns the valve to a safe position upon loss of air pressure, making it ideal for critical isolation and safety applications.
Key Features
- Modular Spring Return Design: All XL actuators are field convertible from double acting to spring return (or vice versa). XL spring return actuators are easily field modified to suit changing plant air and/or valve fail mode requirements.
- Durable Housing: Its rugged heavy duty, all coated body is made from a high strength LM25 aluminium casting designed to prevent damage from dents, shock or fatigue.
- Patented SAFEKEY System: Hytork XL comes with a unique SAFEKEY system (patented) and uses a flexible stainless steel key in an internal machined keyway. SAFEKEY prevents external contamination and eliminates stress concentrations caused by point loading.
- Corrosion Protection: Actuator internals are protected for corrosion with CEREMIGARD a ceramic-like finish of Di-Aluminium Tri-oxide (Al2O3). A powder-coated surface treatment as standard on end caps and housing provides extra protection against aggressive environments.

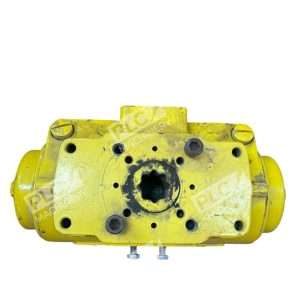

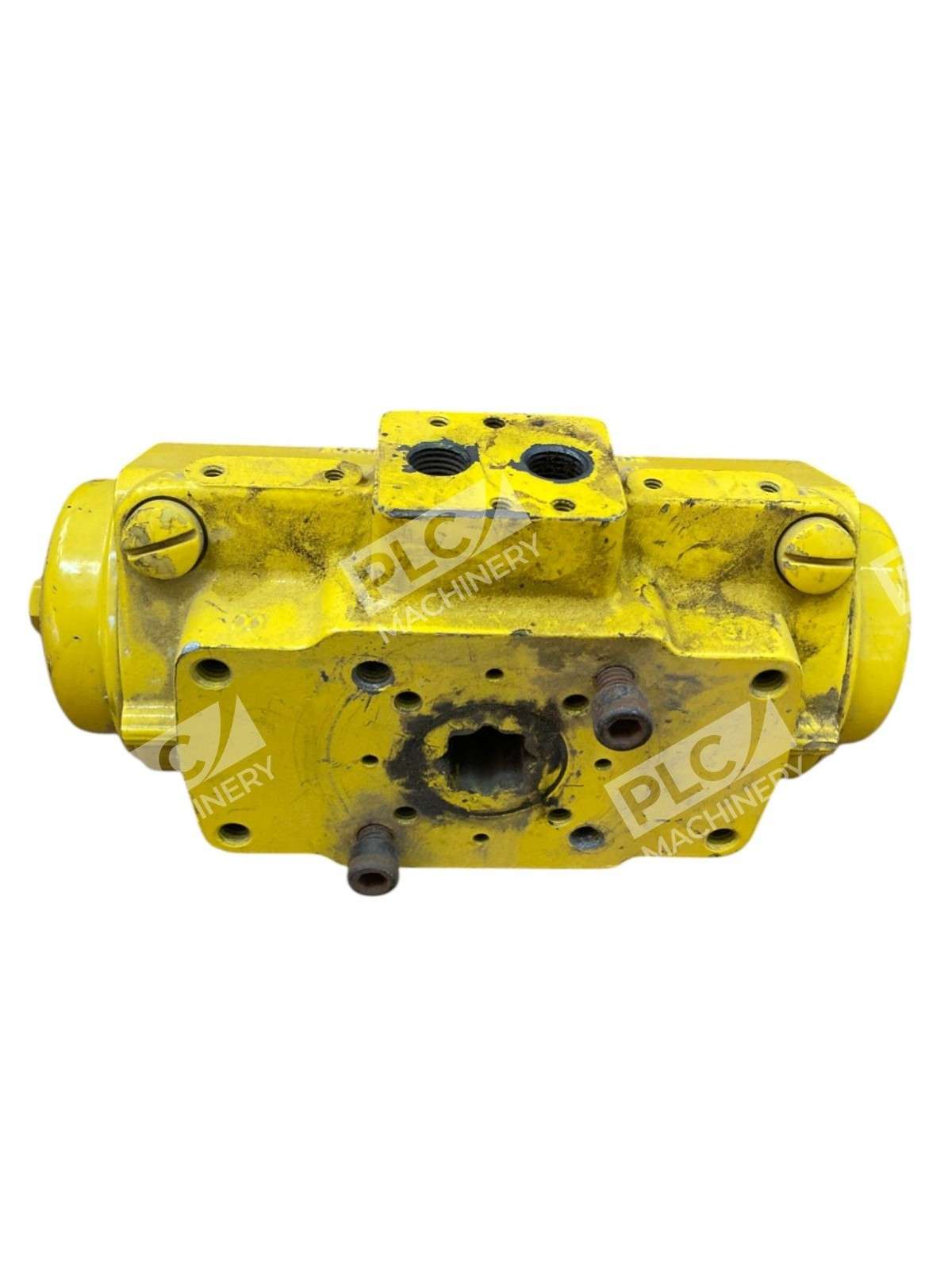

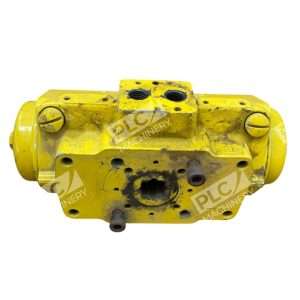

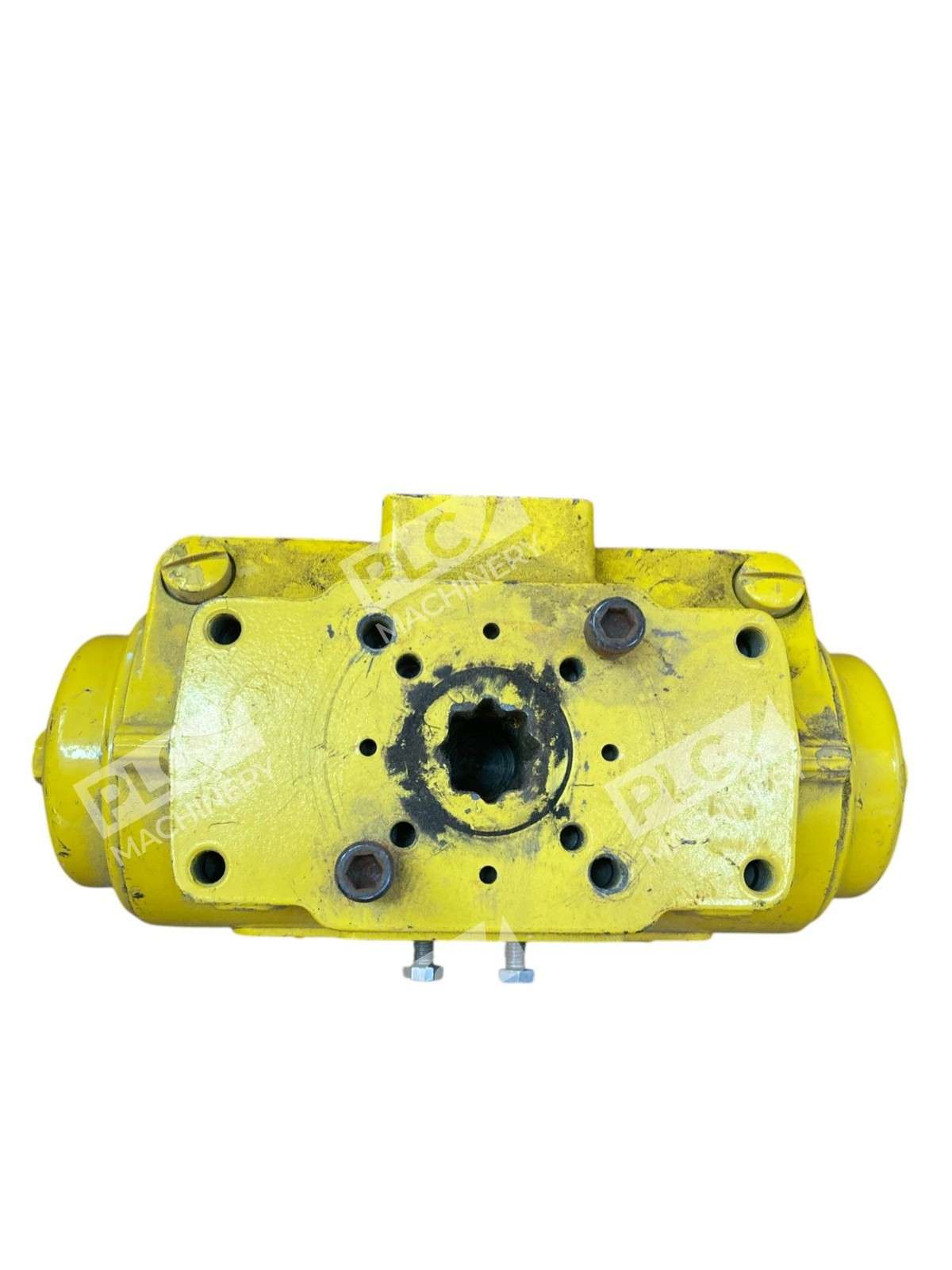

- ISO 5211 Compliance: Hytork XL actuator pinion drives are manufactured to ISO 5211 with a star drive to provide extra flexibility and simplicity for direct mounting to a valve.

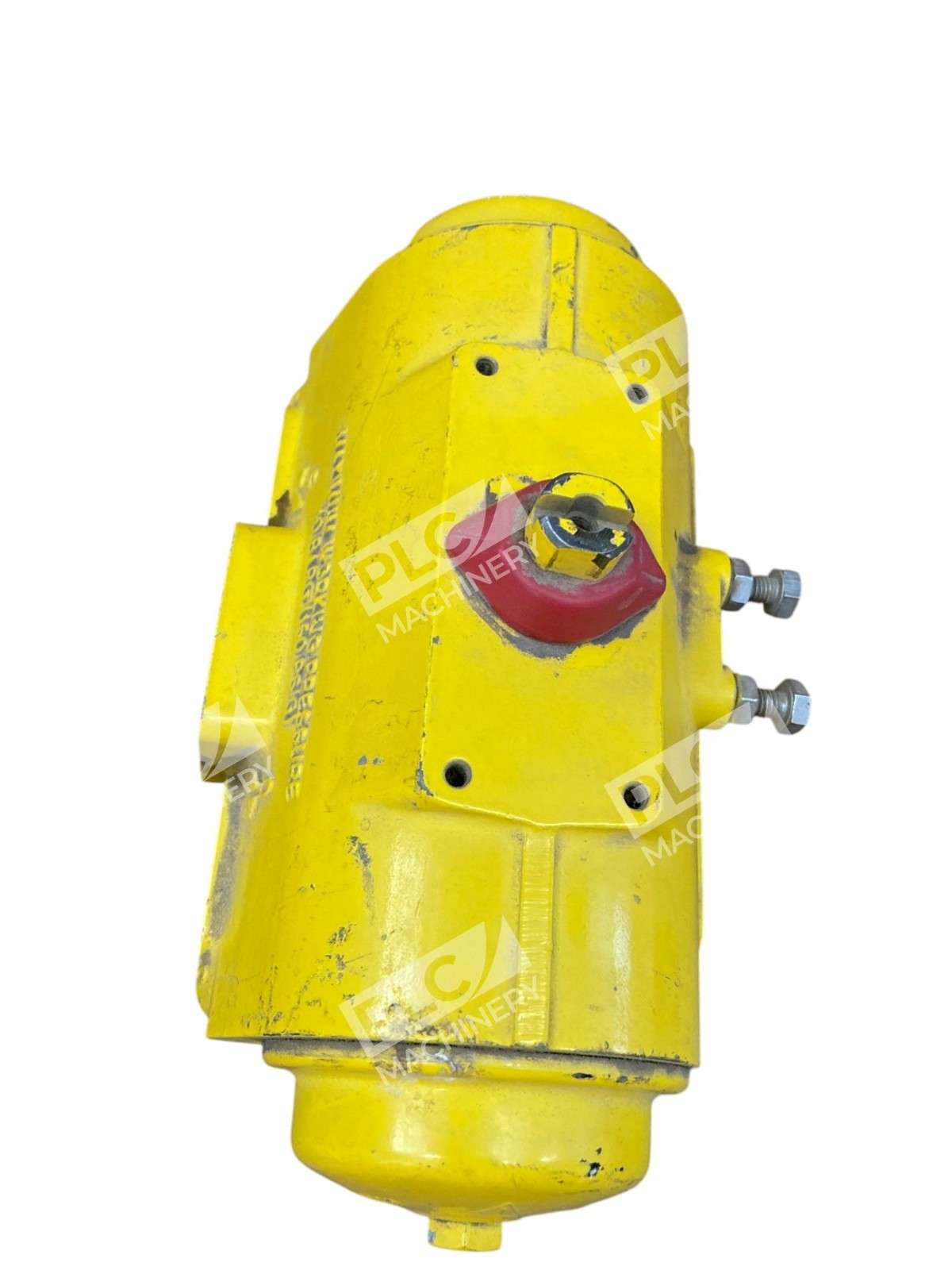

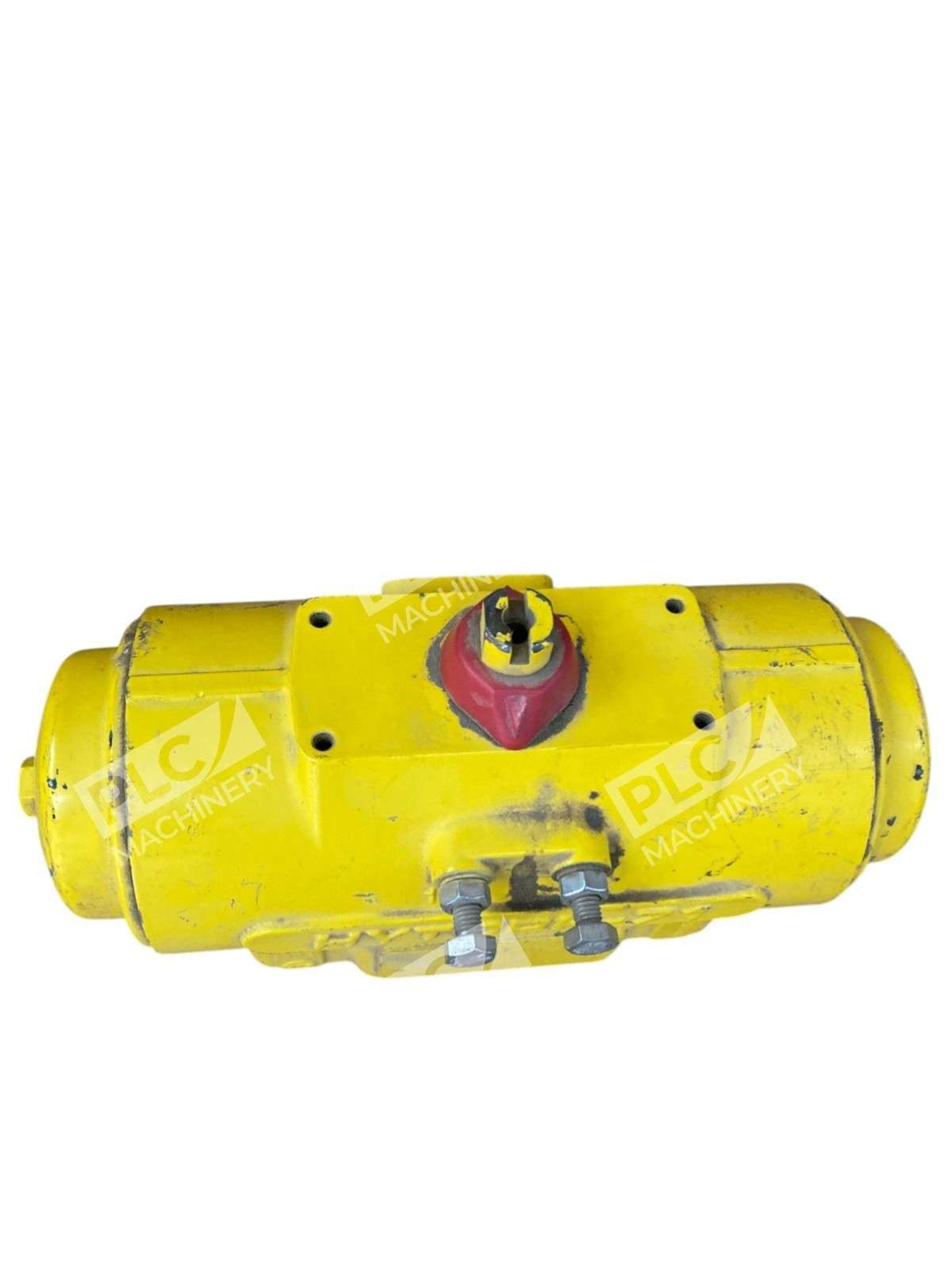

- Precision Control Features: The visual position indicator is designed for indication at a glance and can easily be converted from across-line to in-line indication. The bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures.
Technical Specifications
- Actuator Type: Rack and pinion pneumatic
- Configuration: Spring return (fail-safe)
- Mounting Standard: ISO 5211
- Body Material: LM25 aluminium casting
- Valve Types: Ball, butterfly, plug valves (quarter-turn)
- Operating Temperature Range: Standard -20°C to +100°C (-4°F to +212°F)
- Position Indicator: Visual, convertible across-line/in-line
- Safety Features: Patented SAFEKEY system, bi-directional travel stops
- Corrosion Coating: CEREMIGARD ceramic-like finish on internals; powder coat on housing
- Spring Design: XL Springs are designed and manufactured never to break. The nested design provides a balanced concentric force on the pistons.
Typical Applications
These heavy duty actuators have a proven track record of reliable operation in both industrial and commercial applications. The XL71 spring return configuration is suited for:
- Emergency shutdown and isolation service
- Fail-safe valve control where return-to-safe-position is required
- HVAC and process control automation
- Water treatment and utility operations
- On/off ball valve automation with spring return to neutral
Compatibility & Replacements
Compatible With
- Quarter-turn ball, butterfly, and plug valves with ISO 5211 mounting
- Standard pneumatic air supplies (adjustable pressure regulation recommended)
- Common ancillary components: solenoid valves, position switches, pressure gauges, air regulators
- Manual override capability for field operation without air
Replaces / Drop-In Replacement For
- Earlier Hytork XL spring return models (field upgradeable modules available)
- Direct replacement for installed XL71 configurations requiring spring return retrofit
- Verify model suffix and valve interface before ordering to confirm compatibility
Works With
- Emerson Hytork control packages and valve automation systems
- Third-party pneumatic control systems using ISO 5211 mounting interface
- 2/3-way and 4/2-way solenoid air control valves
- Pressure switches and position feedback sensors (mechanical or electronic)
- Standard compressed air infrastructure (6–10 bar nominal operation)
