Overview

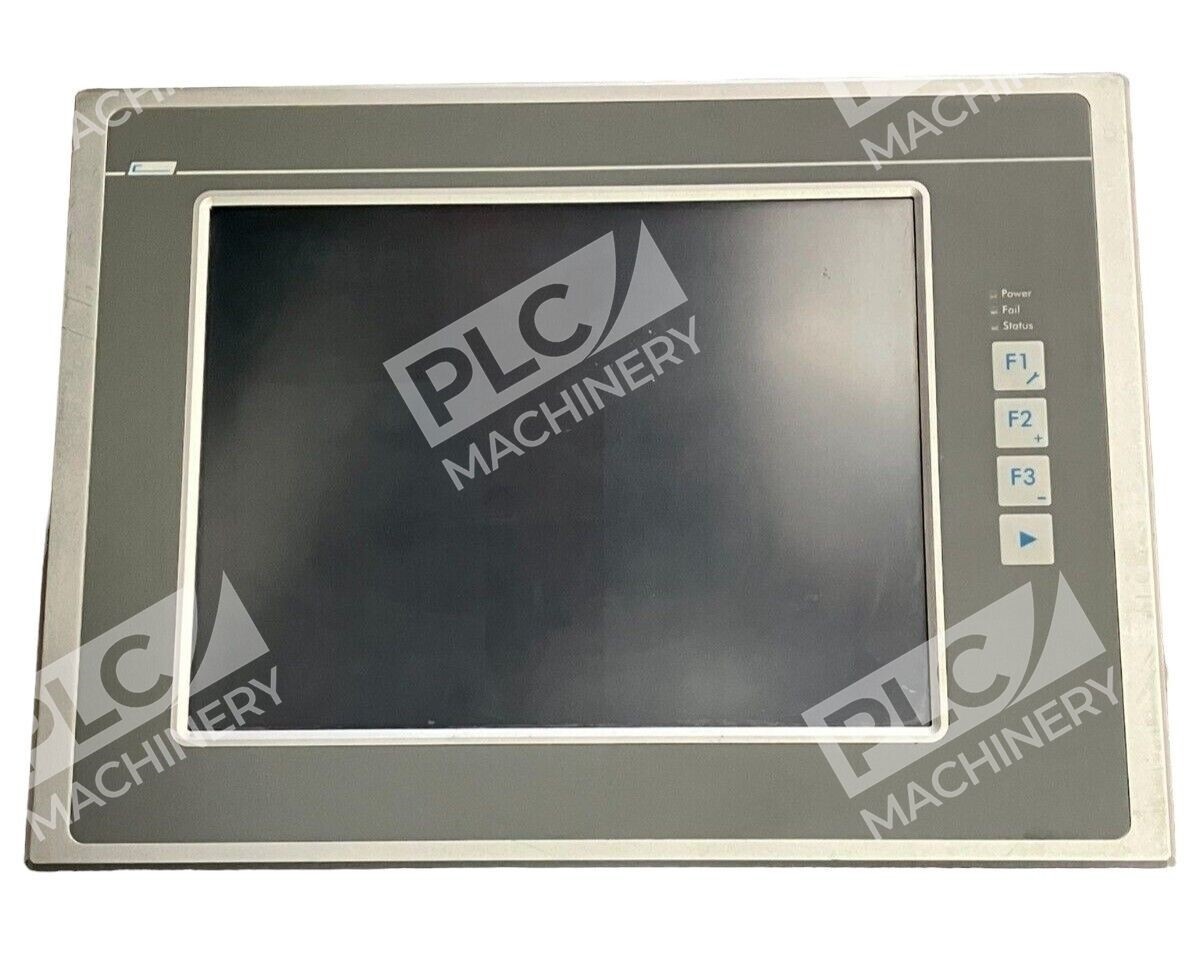

The Lenze EL 1700 3401-0004 is a dedicated HMI (Human-Machine Interface) operator touch panel engineered for integration with Lenze motion control and automation systems. This Windows-based touchscreen panel provides intuitive operator command and system monitoring capabilities in industrial manufacturing, packaging, and process control applications. The unit is offered in new no-box surplus condition with immediate availability for same-day shipment.
Key Features
- Windows-based operating system for familiar, open-architecture HMI development
- Touch-sensitive display for direct operator input and navigation
- Compact form factor suitable for panel mount or desktop deployment
- Made in Germany engineering and manufacturing quality
- Direct compatibility with Lenze variable frequency drives and servo systems
- Supports both serial and Ethernet-based communication protocols
Technical Specifications
- Supply Voltage: 24 VDC nominal
- Power Consumption: Typical 15W (under load conditions)
- Interface Type: Windows-based touch-sensitive display

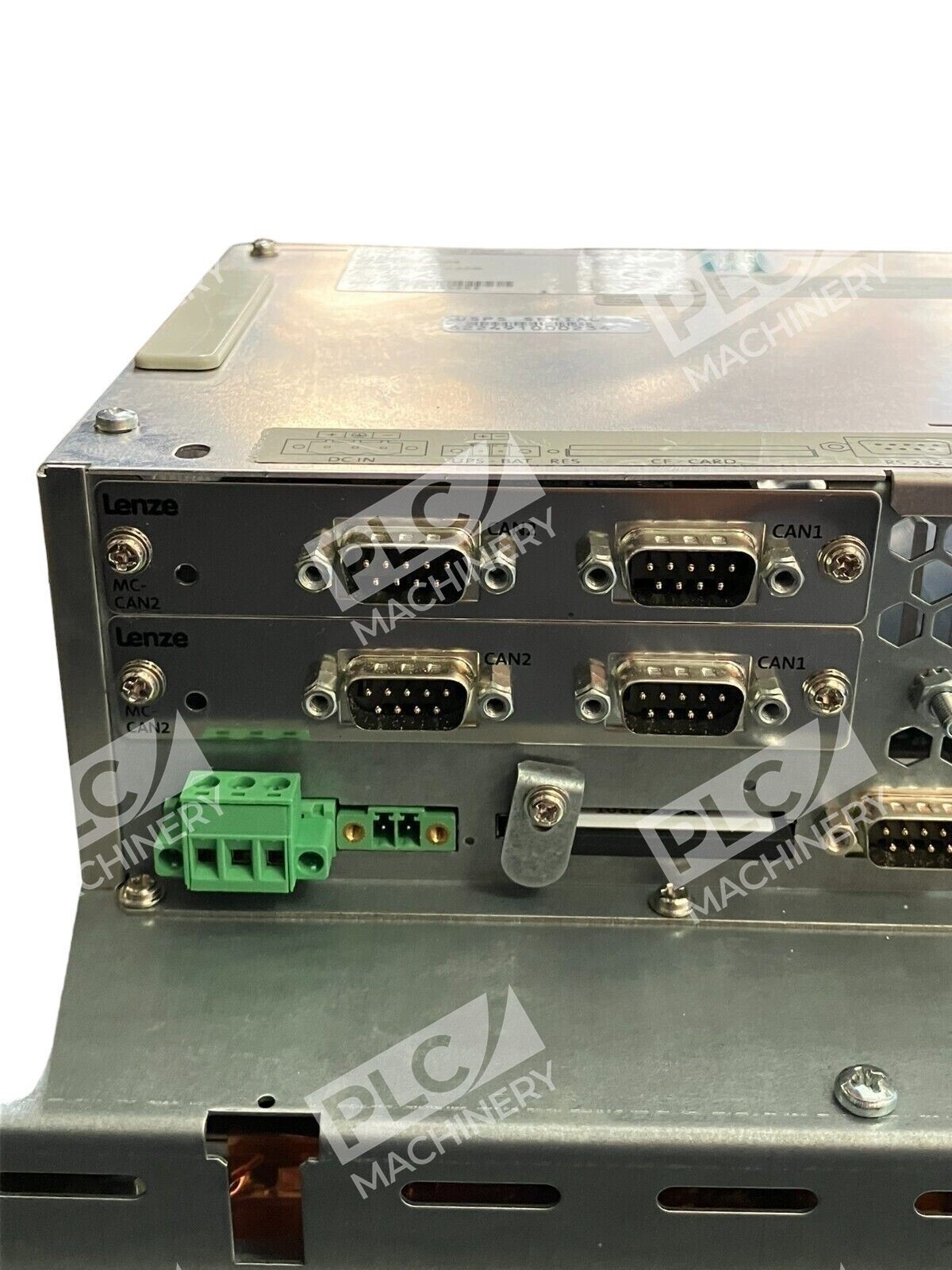

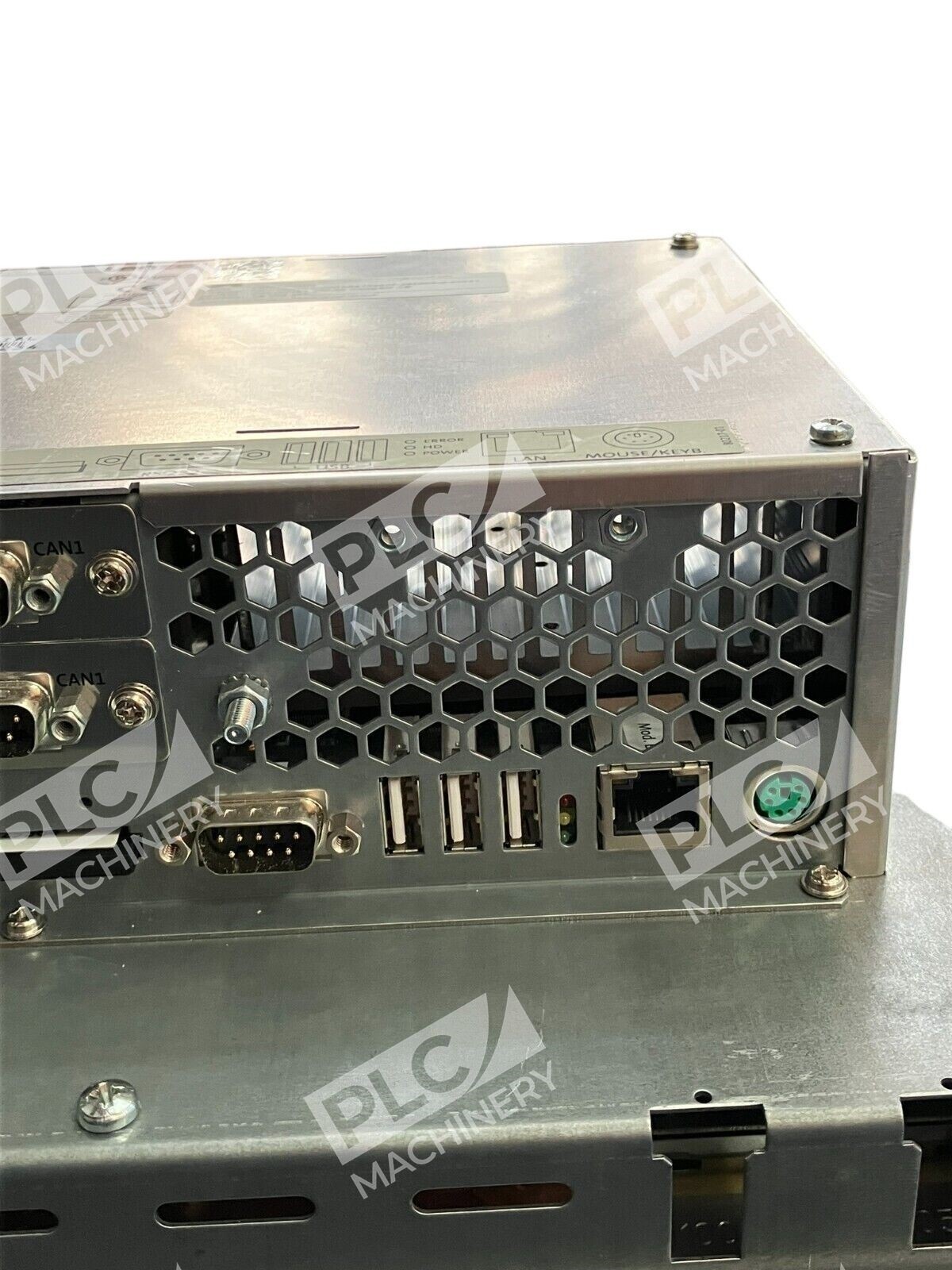

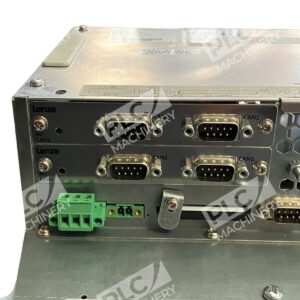

- Communication Protocol: Serial (RS-232/RS-485) and Ethernet
- Display Type: Color touchscreen (7-inch typical)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 70°C
- Mounting: Rackmount or panel-mount bracket compatible
- Weight: Approximately 25 lbs

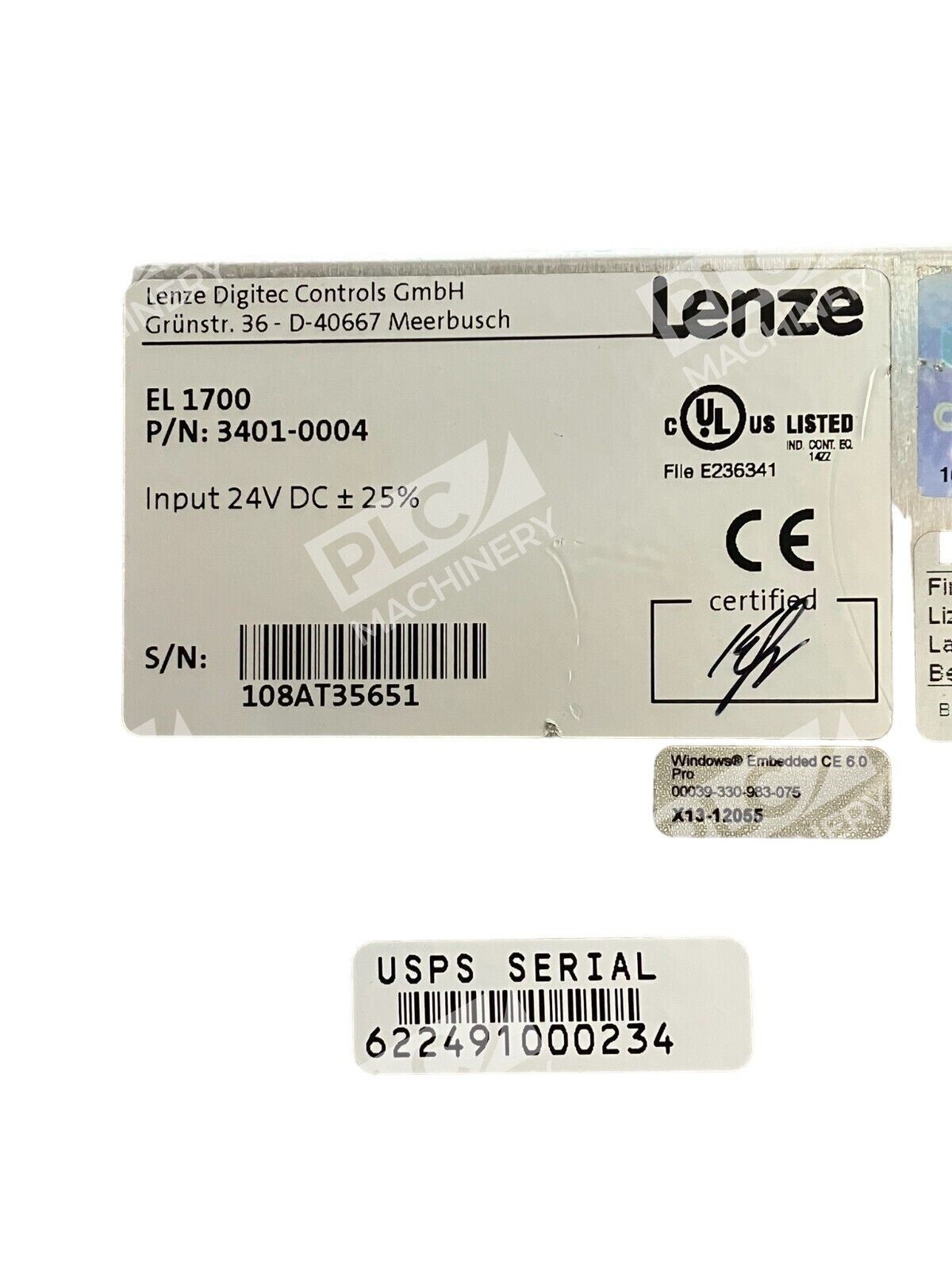

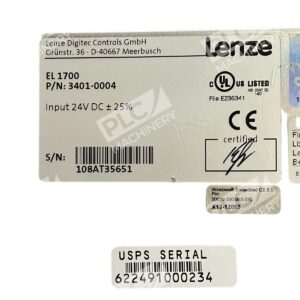

- Manufacturer: Lenze Americas (Germany)

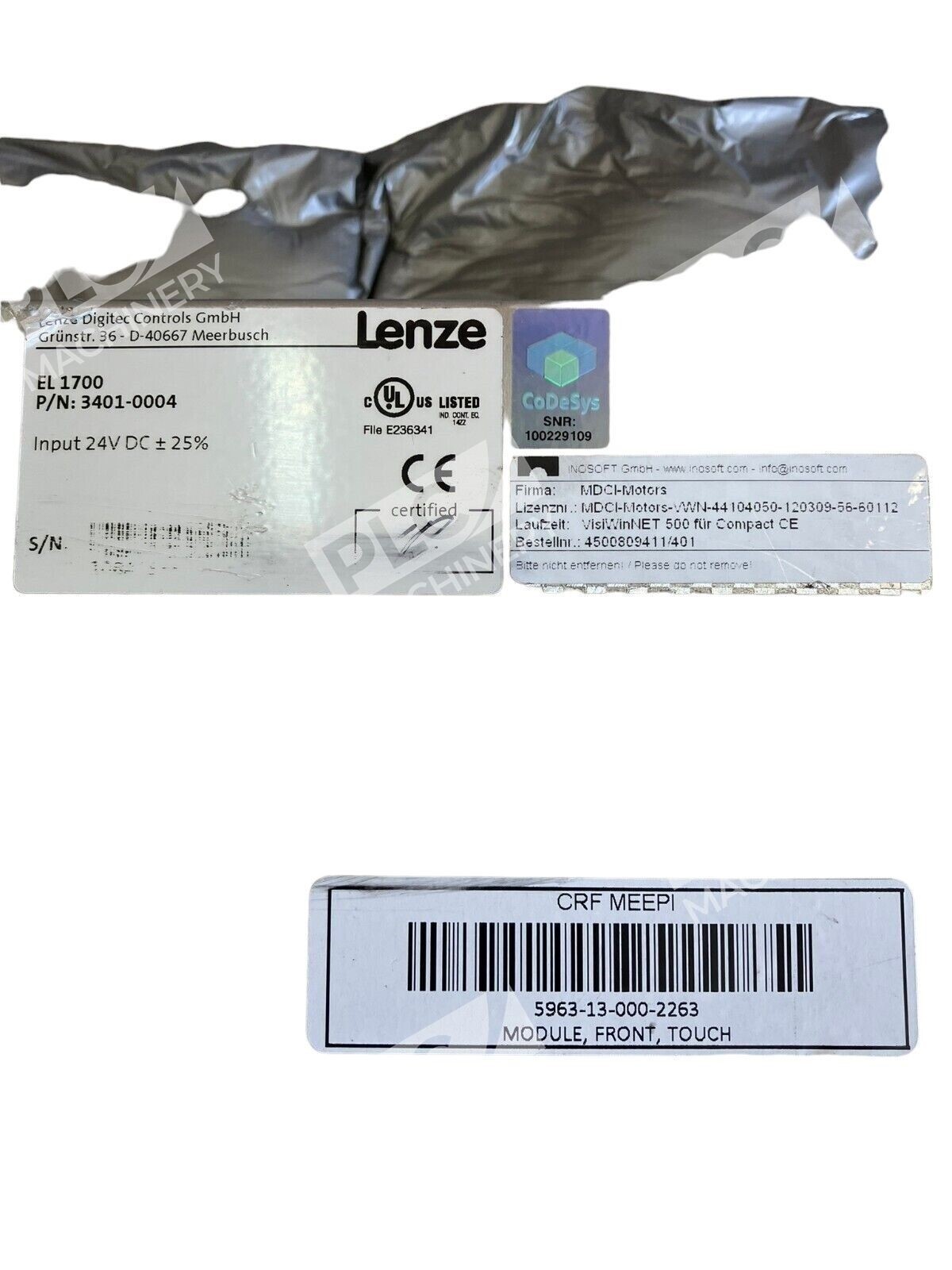

- Model Number: EL 1700
- Part Number: 3401-0004
Typical Applications
- Packaging machinery operator interfaces and control stations
- Motion control system diagnostics and parameter adjustment
- Industrial process monitoring and alarm display
- Drive status indication and real-time fault diagnostics
- Servo system configuration and tuning interface
- Manufacturing floor automation visualization
Compatibility & Replacements
Compatible With
- Lenze AC Tech variable frequency drives
- Lenze servo motor control systems
- Industrial automation systems using Ethernet/IP or PROFIBUS protocols
- Windows-based software development environments for HMI creation
- Standard 24 VDC industrial control power supplies
Replaces / Drop-In Replacement For
- Lenze EL 1700 3401-0005 (alternative model variant)
- Other Lenze operator interface touchscreen panels in the EL series
Works With
- Lenze automation software suites and engineering tools
- Ethernet/IP communication networks
- PROFIBUS fieldbus protocol
- RS-232 and RS-485 serial communications
- Windows-compatible VNC and remote access protocols
