Overview

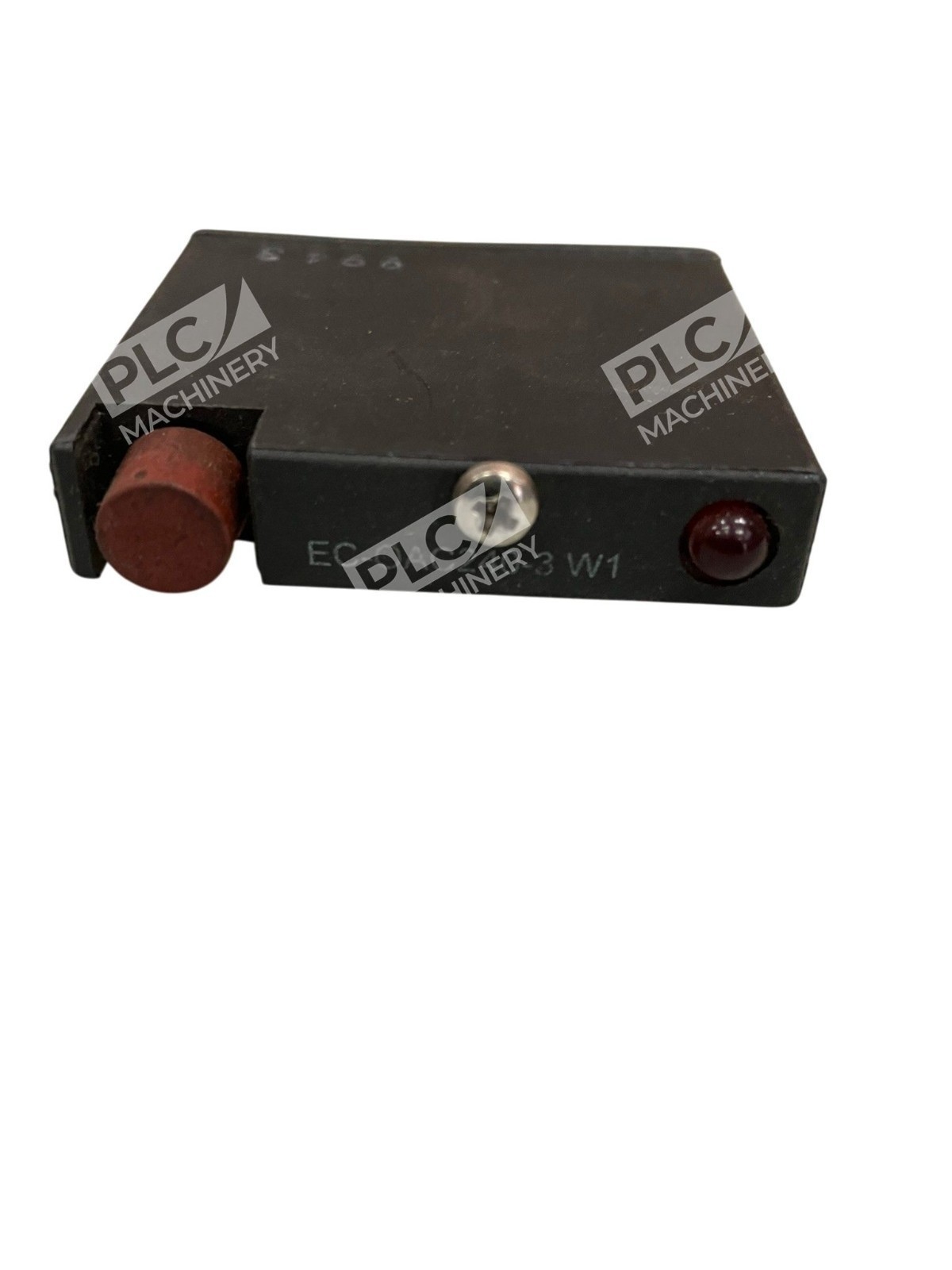

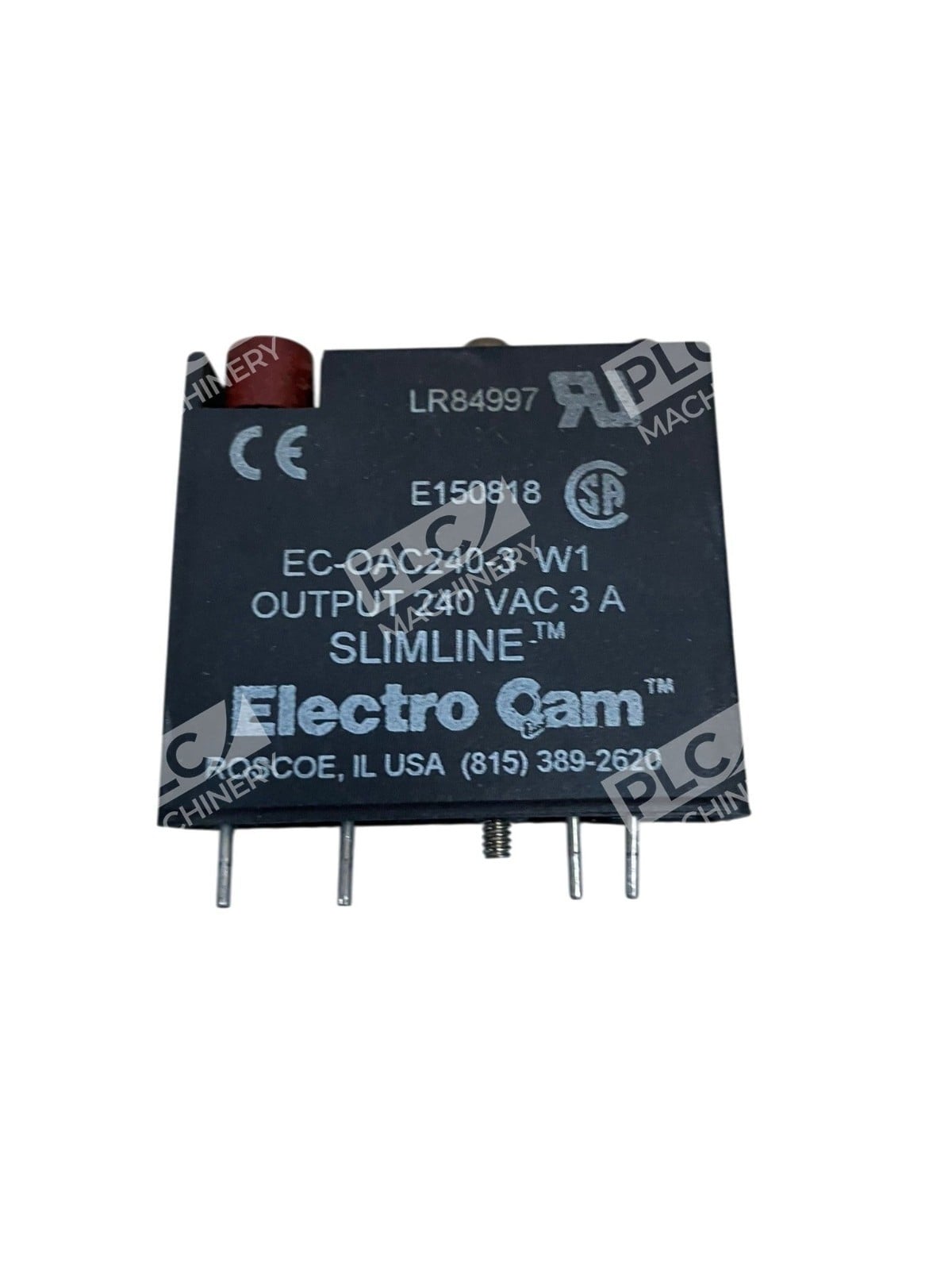

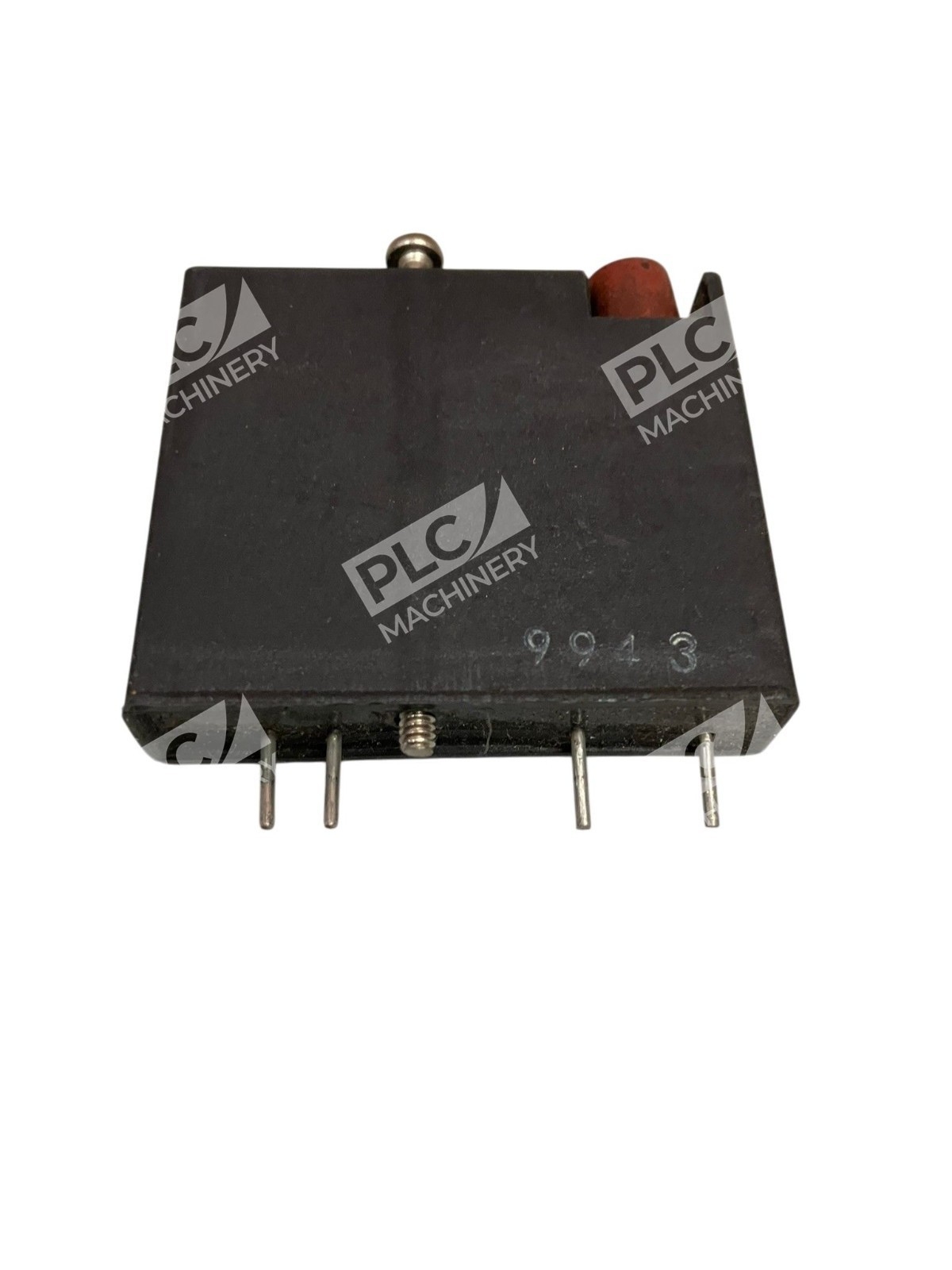

The EC-OAC240-3W1 AC output module from Electro Cam Corp is a precision relay solution for industrial automation and control applications. Designed and manufactured in Roscoe, Illinois, this module combines over 45 years of experience in electronic motion control with reliable, precise, and innovative solutions. The EC-OAC240-3W1 provides dependable AC switching for diverse automation environments requiring accurate load control and compact form factor integration.
Key Features
- Voltage range of 24-280VAC and current range of 0.02-3A
- Designed for resistive loads with stable switching characteristics
- Slimline form factor ideal for space-constrained control cabinets
- Precise output control for synchronous motor speed regulation and heating applications
- Compatible with Electro Cam motion control systems and stand-alone automation platforms
Technical Specifications
The EC-OAC240-3W1 delivers robust performance across standard industrial voltage and current operating ranges, making it suitable for both general-purpose and application-specific relay switching.
Typical Applications
- AC motor speed control and soft-start applications
- Industrial heating and thermal management systems
- Lighting and load switching in factory automation
- Synchronized motion control in packaging and conveyor systems
- General-purpose relay replacement in retrofit and upgrade projects
Compatibility & Replacements
Compatible With
- Electro Cam EC-3000 series motion controllers
- Electro Cam EC-3400 series control systems
- Stand-alone industrial relay and timing circuits
- Standard industrial control enclosures and panels
- AC voltage switching applications up to 280VAC
Replaces / Drop-In Replacement For
- Electro Cam EC-OAC240-3 (base model designation)
- Original OEM output modules in Electro Cam legacy systems
Works With
- AC supply voltages 24-280VAC, 50/60 Hz
- Resistive load switching (resistors, heating elements, incandescent lighting)
- Industrial control relays and timing devices
- Stand-alone motion control circuits and synchronous motor regulation
