Overview

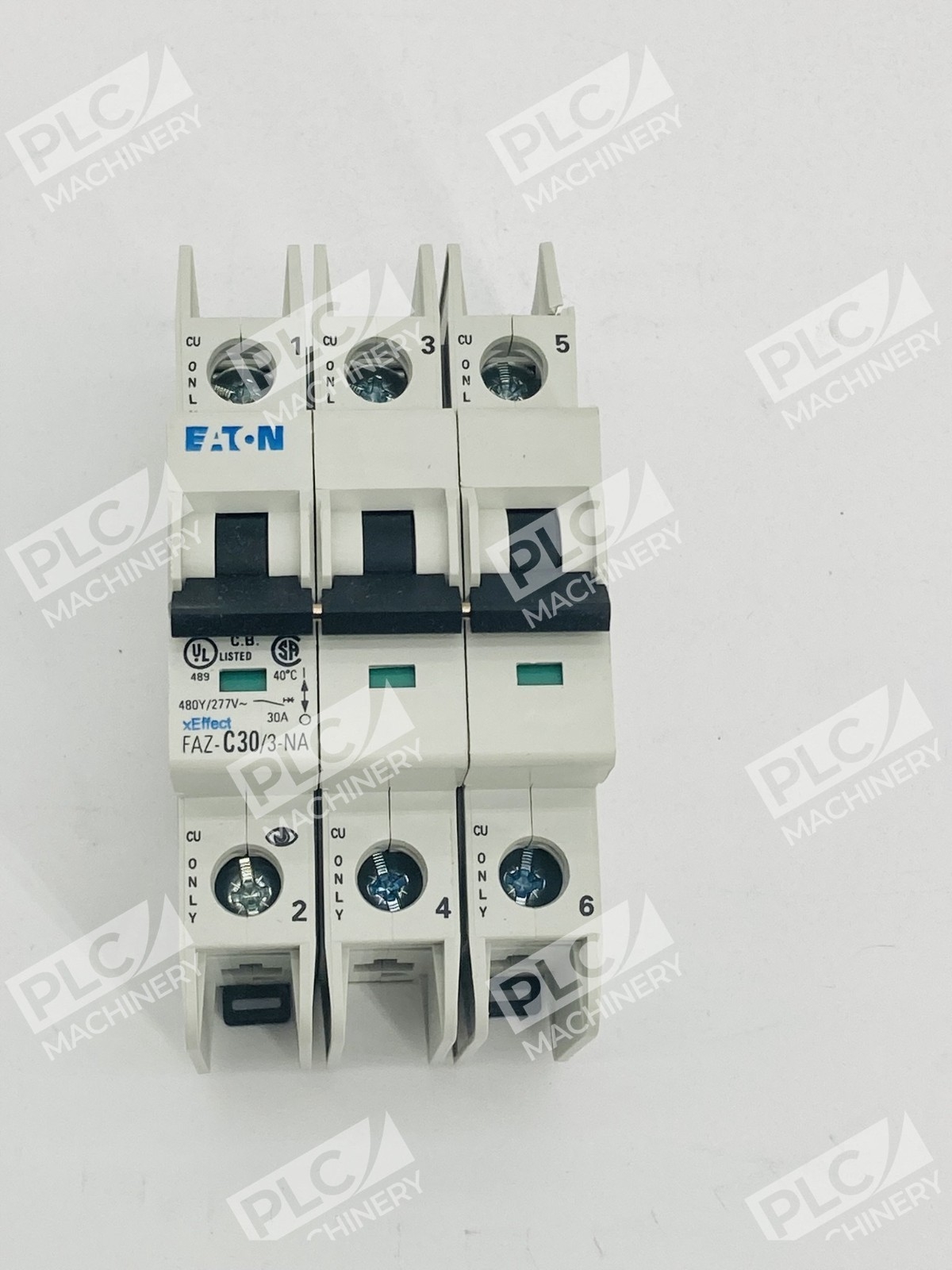

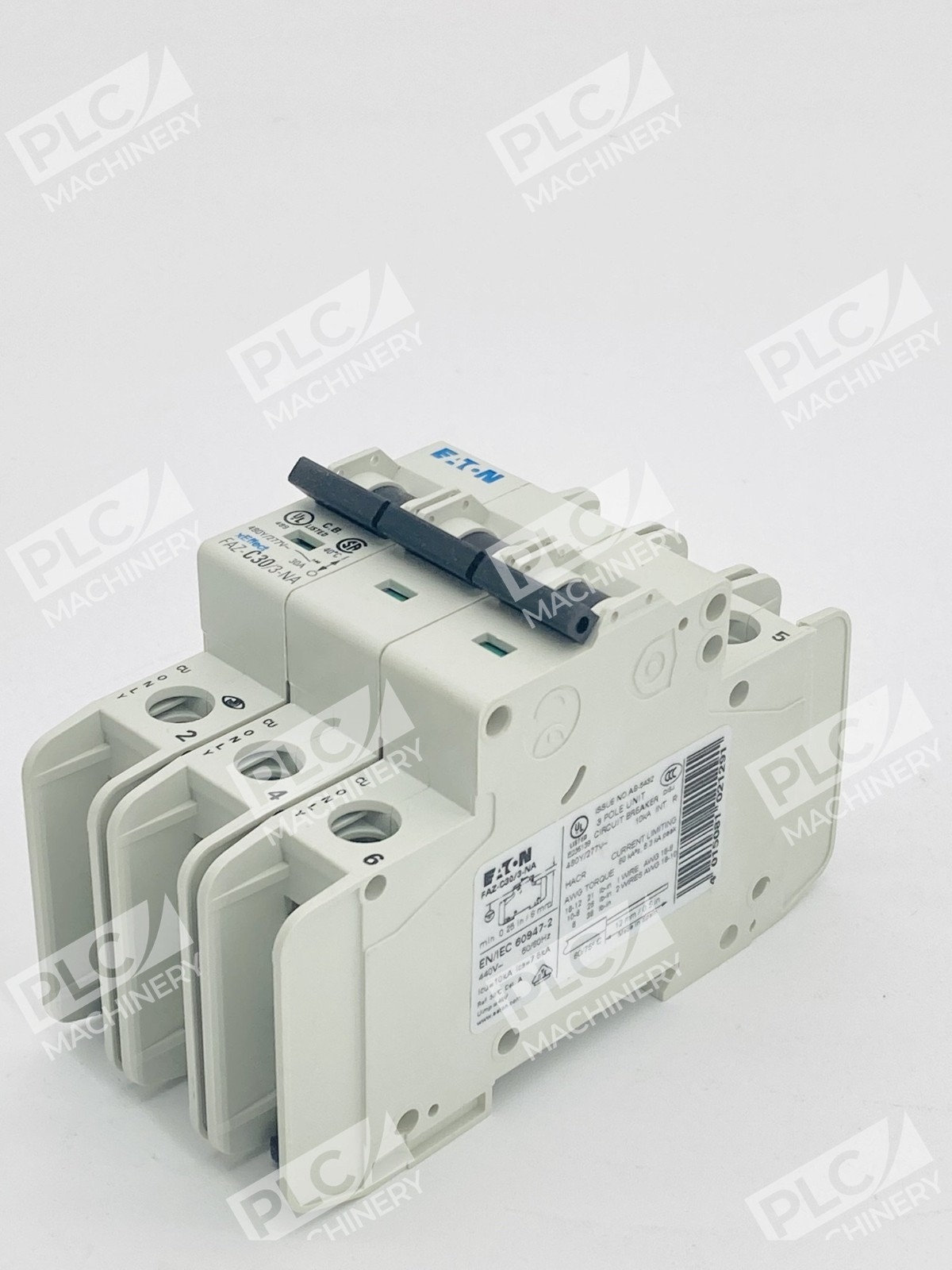

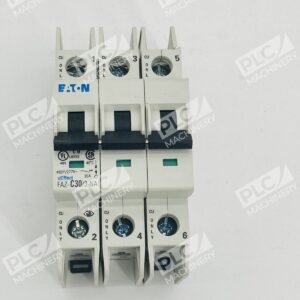

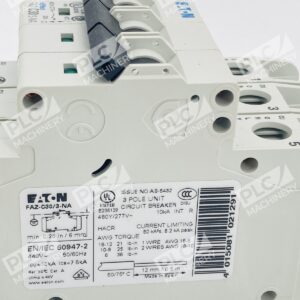

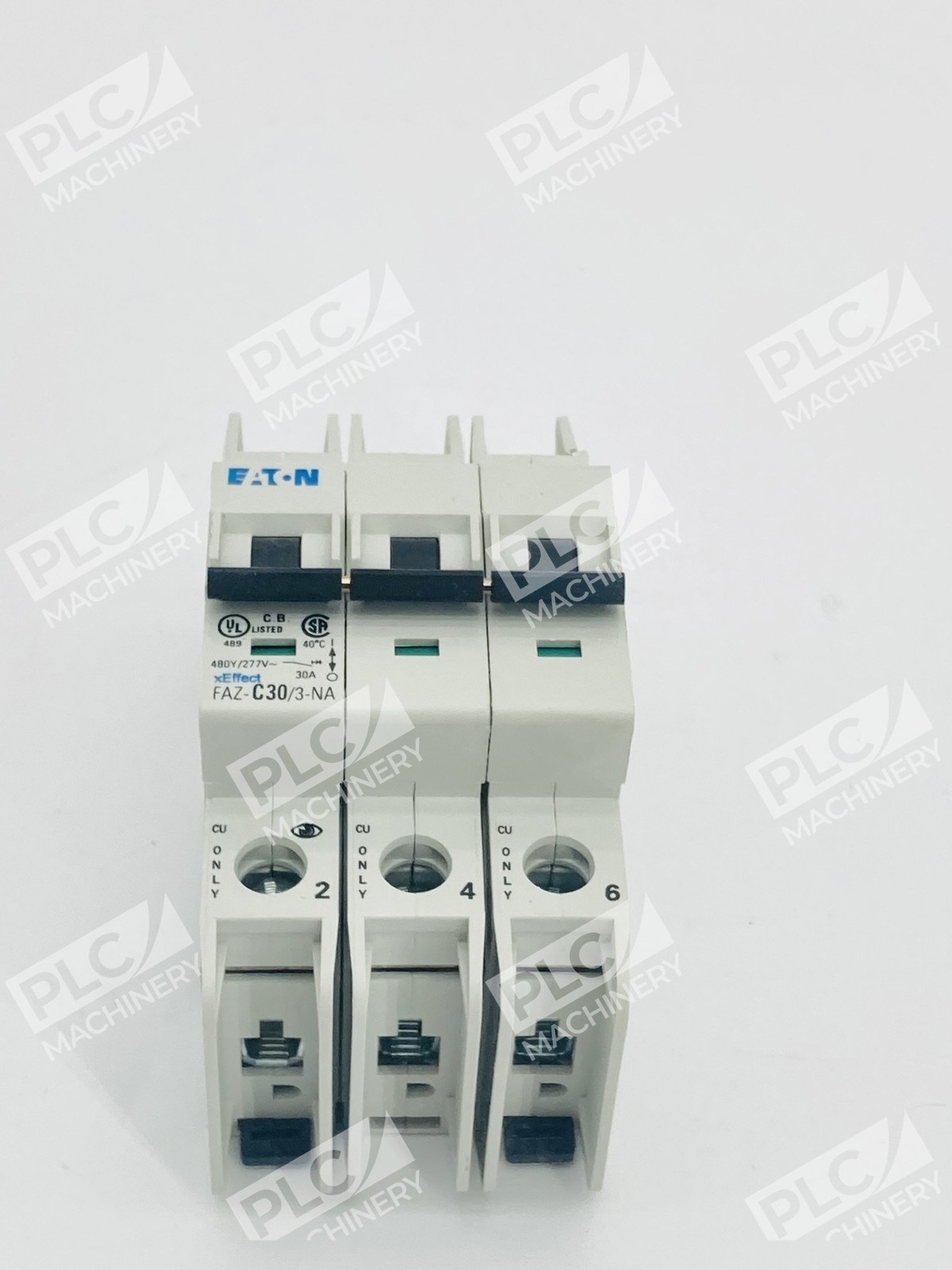

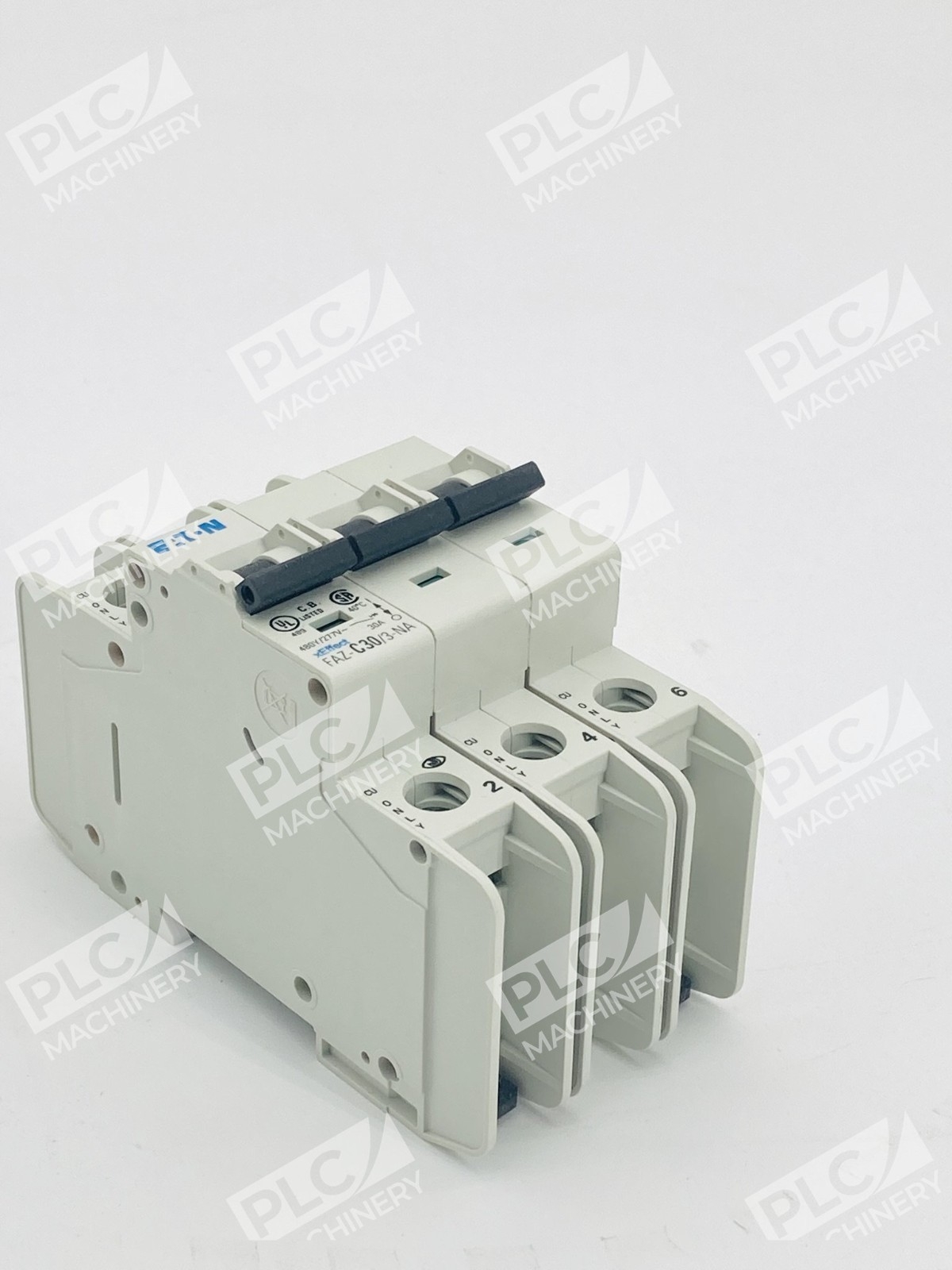

The Eaton FAZ-C30/3-NA is a three-phase, 30-ampere miniature circuit breaker (MCB) designed for branch circuit protection in industrial control cabinets and automation systems. This UL489-listed device features a C-curve trip characteristic optimized for medium inrush currents typical of pilot devices, control solenoids, and small motors. With screw terminals and DIN rail mounting, it integrates seamlessly into modern industrial panels.
Key Features
- C-curve trip profile accommodates inrush currents typical of pilot devices and small motors
- Visual trip indicators and trip-free mechanism for enhanced operational safety
- Screw terminal connections for reliable, tool-free installation in control panels
- 35mm DIN rail mounting compatible with standard industrial enclosures
- 10kAIC short-circuit current rating at 480Y/277VAC (UL489 / CSA C22.2 No. 5-02)

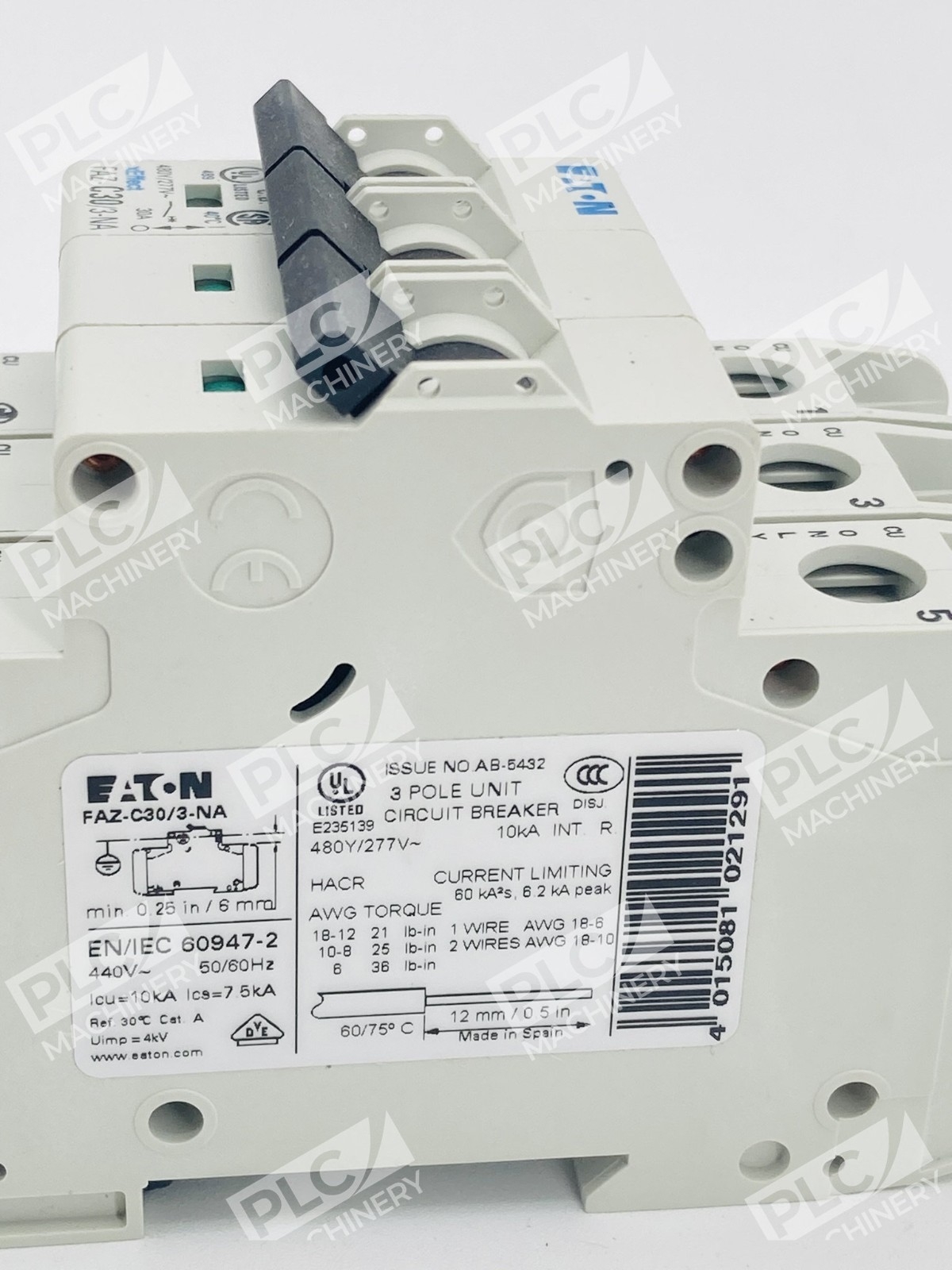

Technical Specifications
Electrical:
Rated Current: 30A
Poles: 3 (three-phase)
Voltage (AC): 480Y/277VAC (UL/CSA), 440VAC (IEC 60947-2)
Short-Circuit Rating: 10kAIC (UL489 / CSA), 14kAIC
Trip Curve: C-Curve (5–10× nominal current)
Frequency: 50/60 Hz
Rated Impulse Voltage (Uimp): 4 kV
Physical & Installation:
Terminal Type: Screw terminals
Mounting: 35mm DIN rail
Standards: UL 489, IEC 60947-2, CSA C22.2 No. 5-02, CE marked
Typical Applications
- Three-phase industrial control cabinets and panel boards
- Branch circuit protection for automation equipment and servo drives
- Pilot device and solenoid circuit protection
- Motor control centers and power distribution systems
- Facilities requiring UL/CSA-compliant electrical protection
Compatibility & Replacements
Compatible With
- Standard 35mm DIN rail enclosures and industrial control panels
- Eaton / Moeller xEffect FAZ-NA series control systems
- Three-phase AC power distribution systems rated 277/480VAC, 50/60 Hz
- Industrial automation controllers requiring UL489 supplementary protection
Replaces / Drop-In Replacement For
- FAZ-C30/3 (UL 1077 variant; verify voltage and termination compatibility)
- FAZ-C30/3-RT (ring-tongue terminal version; requires terminal adapter)
Works With
- Eaton / Cutler-Hammer automation product ecosystem
- Any three-phase 480Y/277VAC or 440VAC control system
- Industrial motor controls, variable frequency drives, and soft starters
- PLC and industrial automation networks requiring branch-level short-circuit protection
