Overview

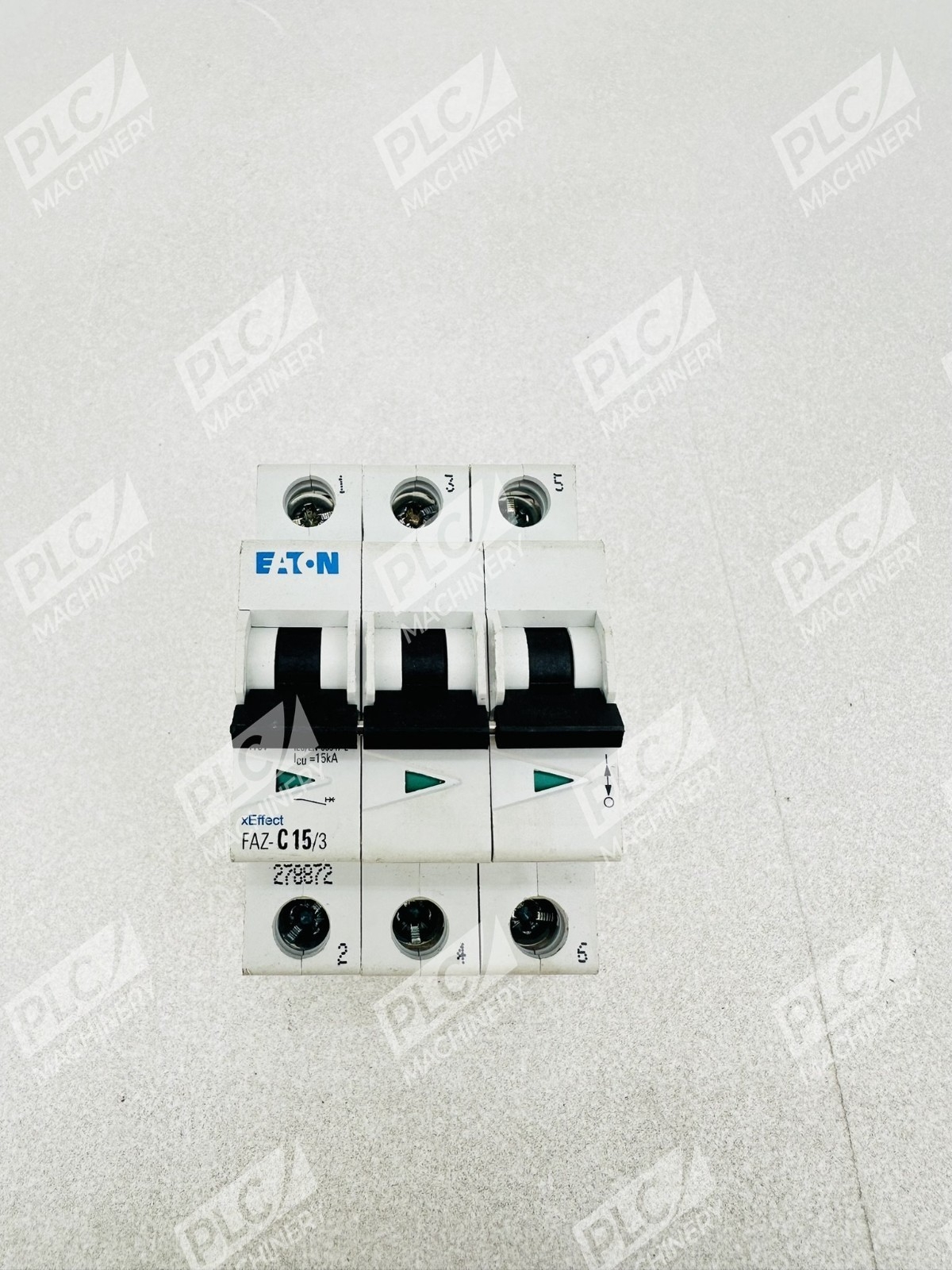

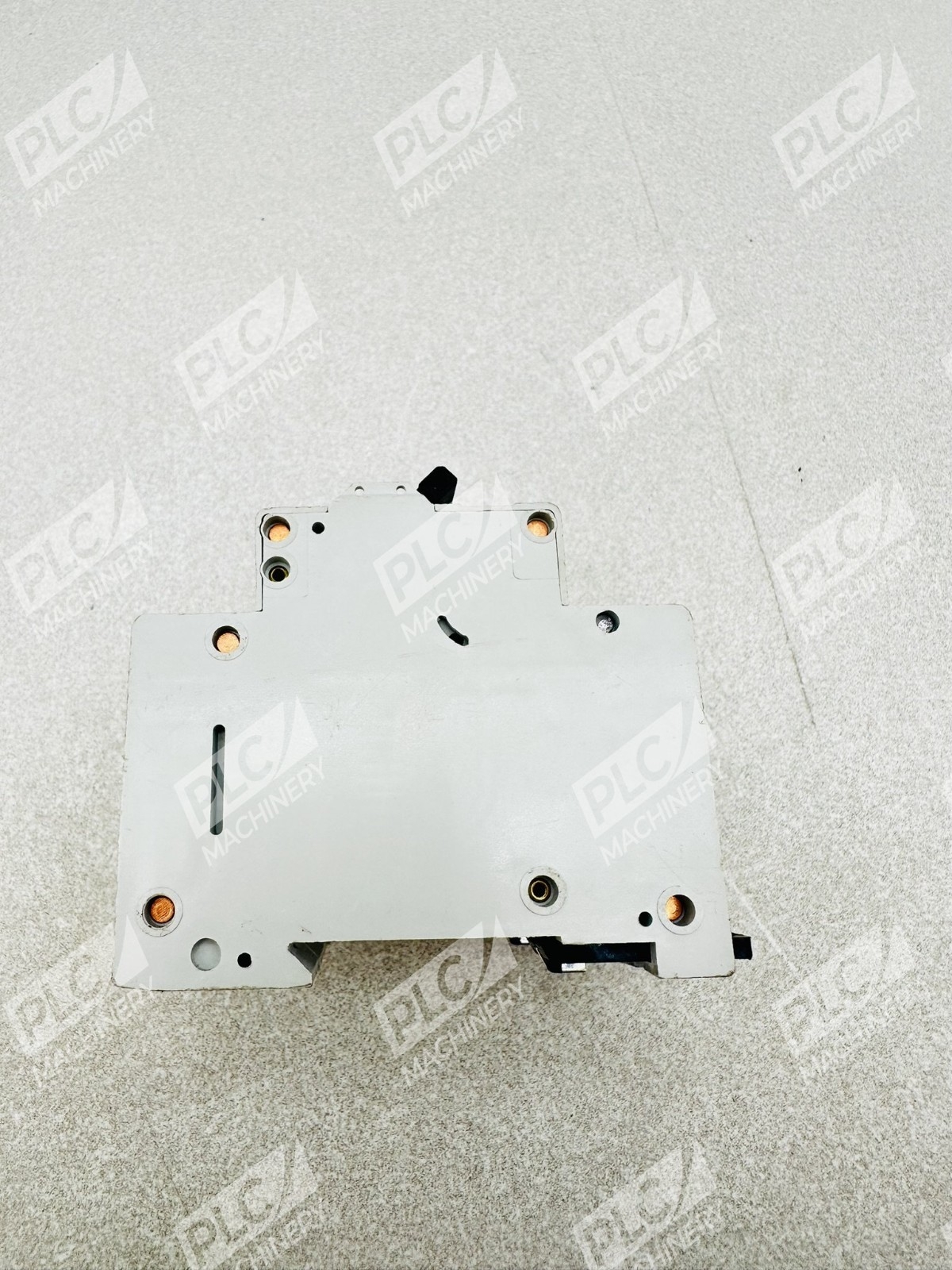

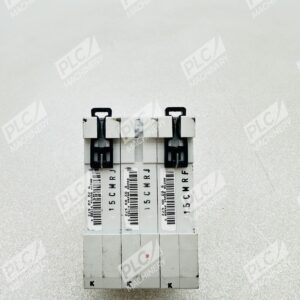

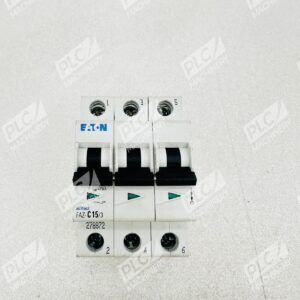

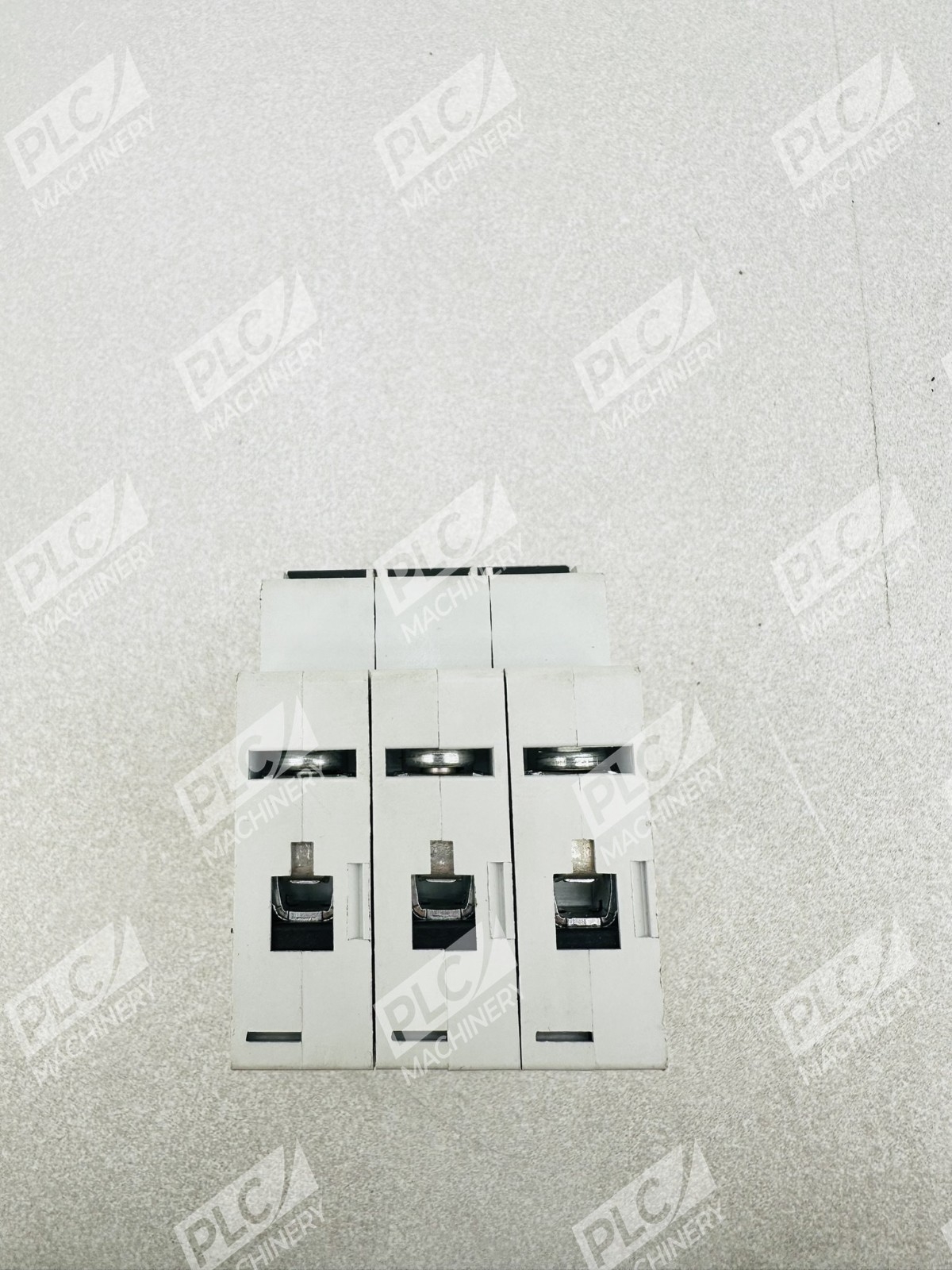

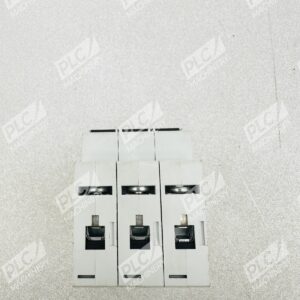

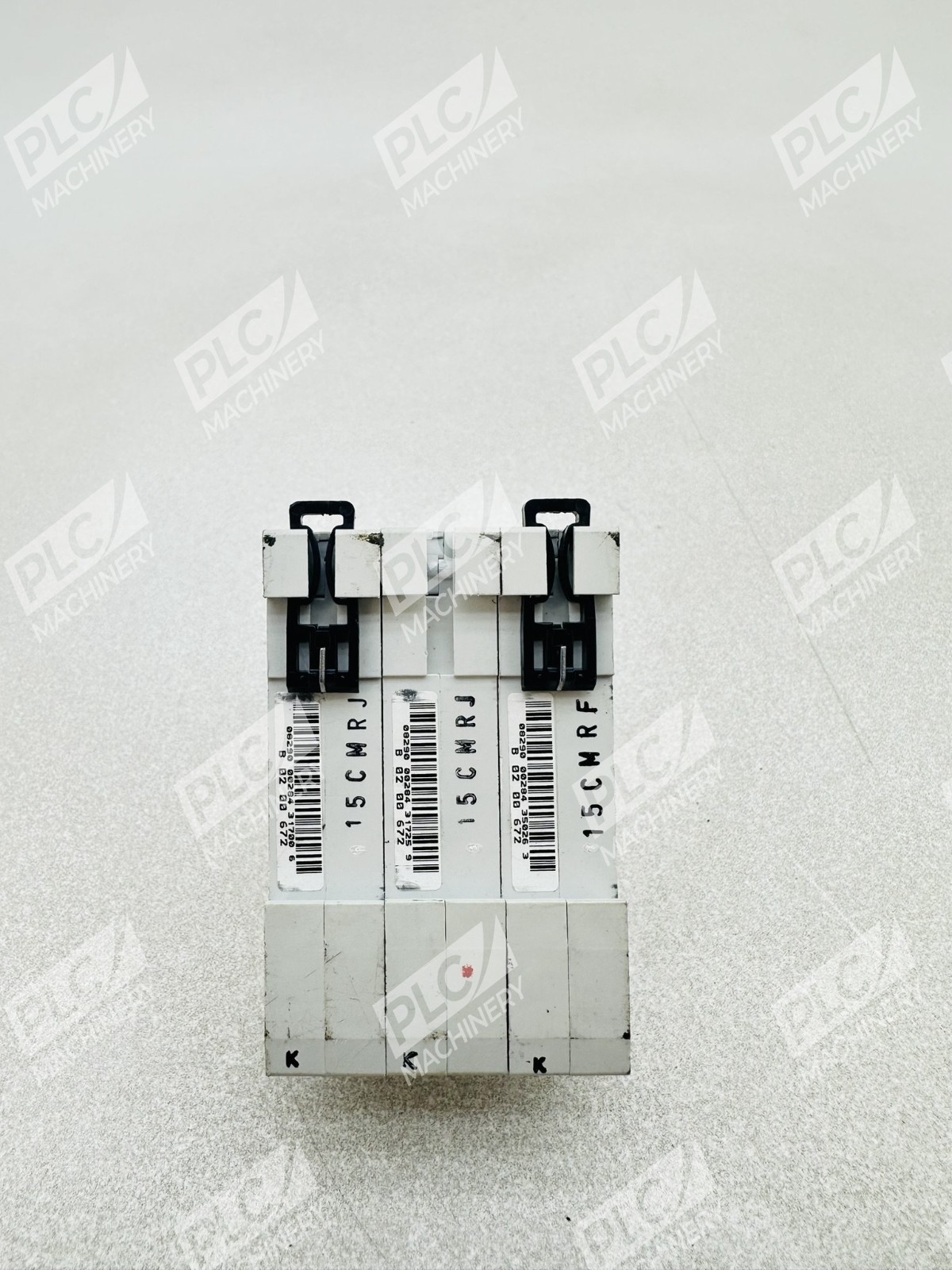

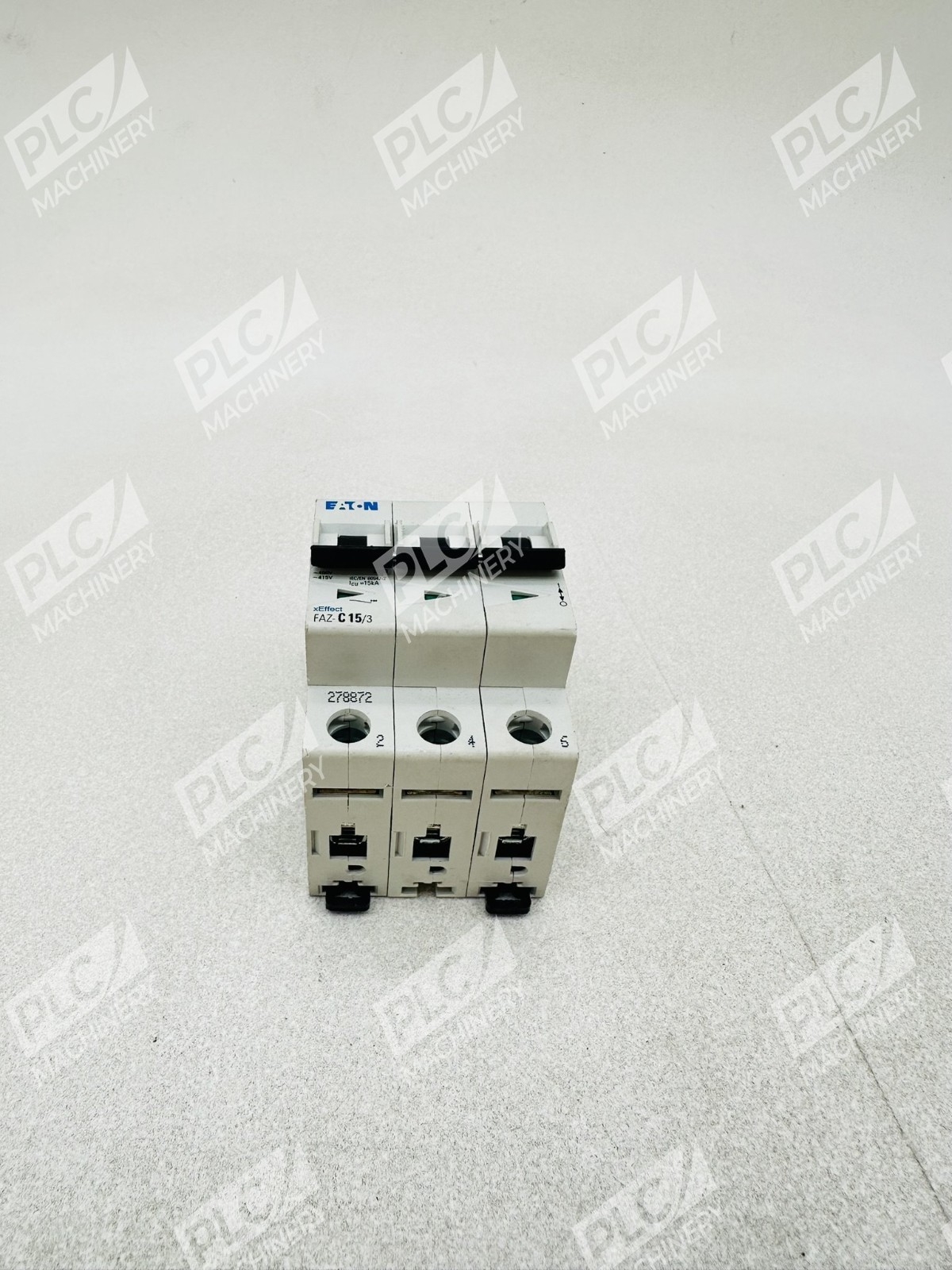

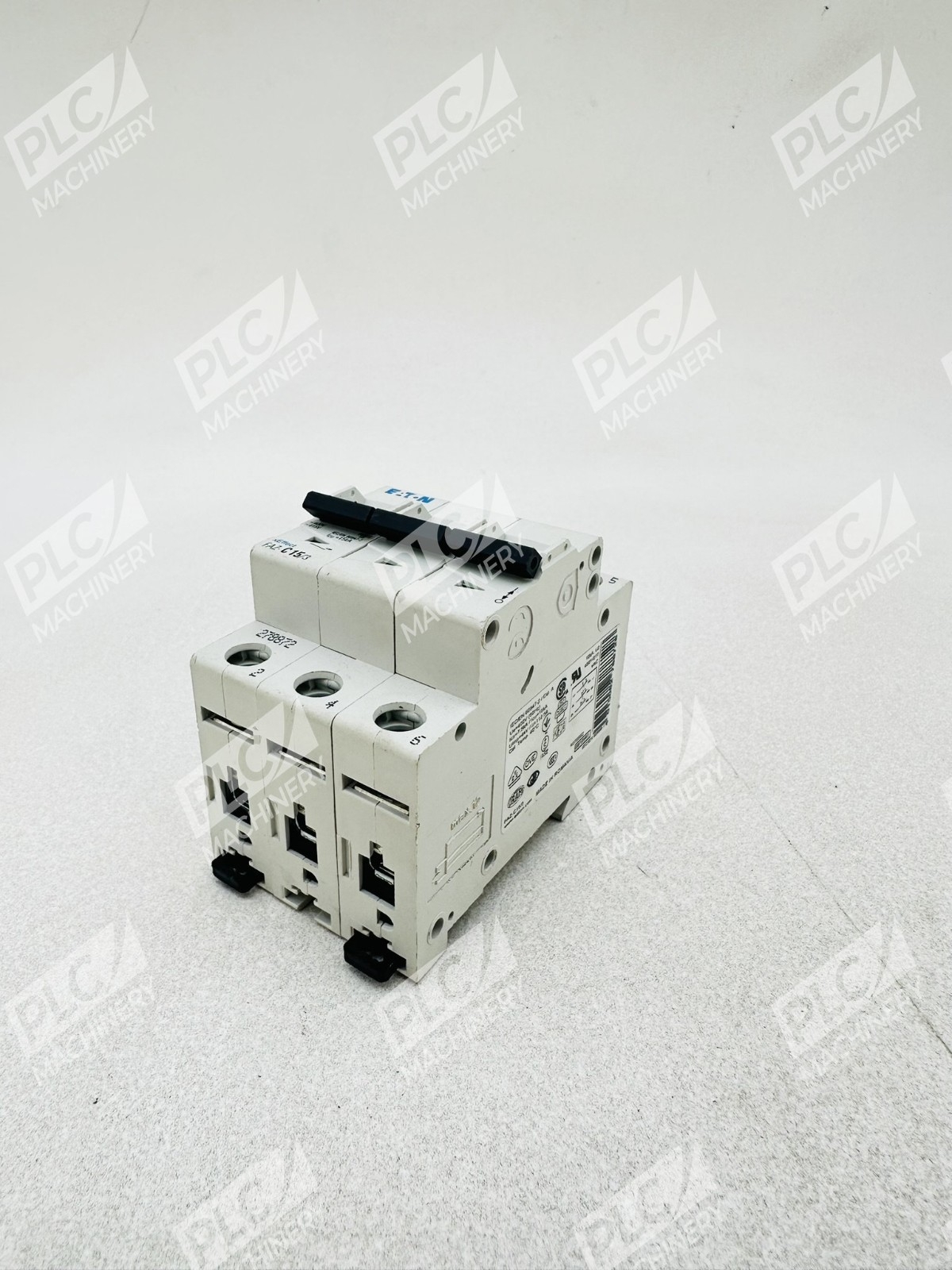

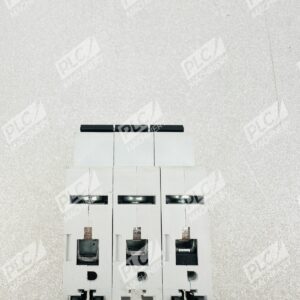

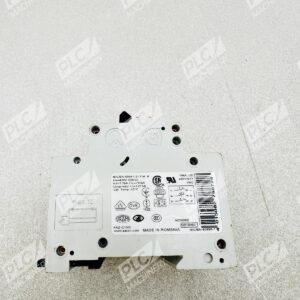

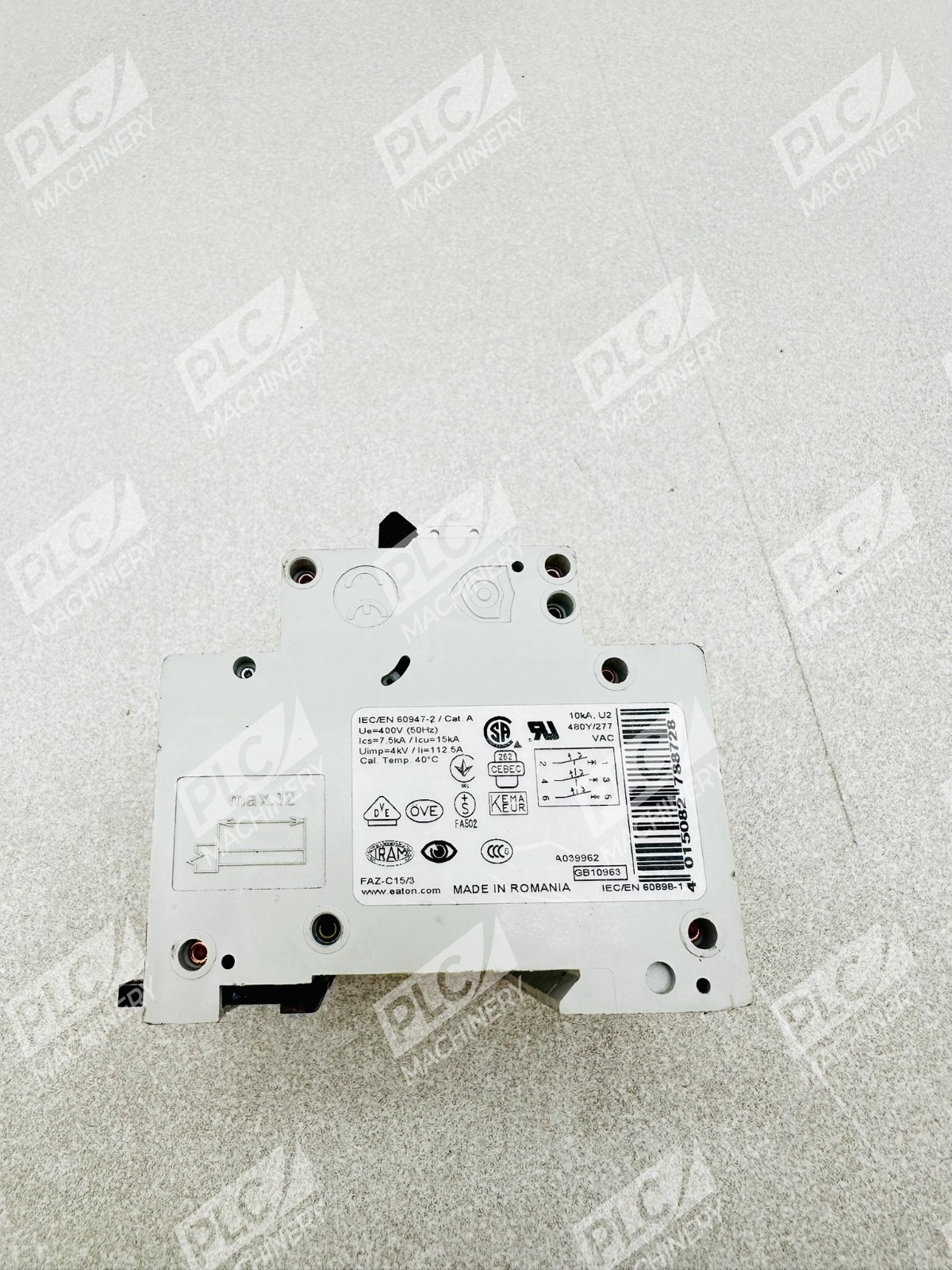

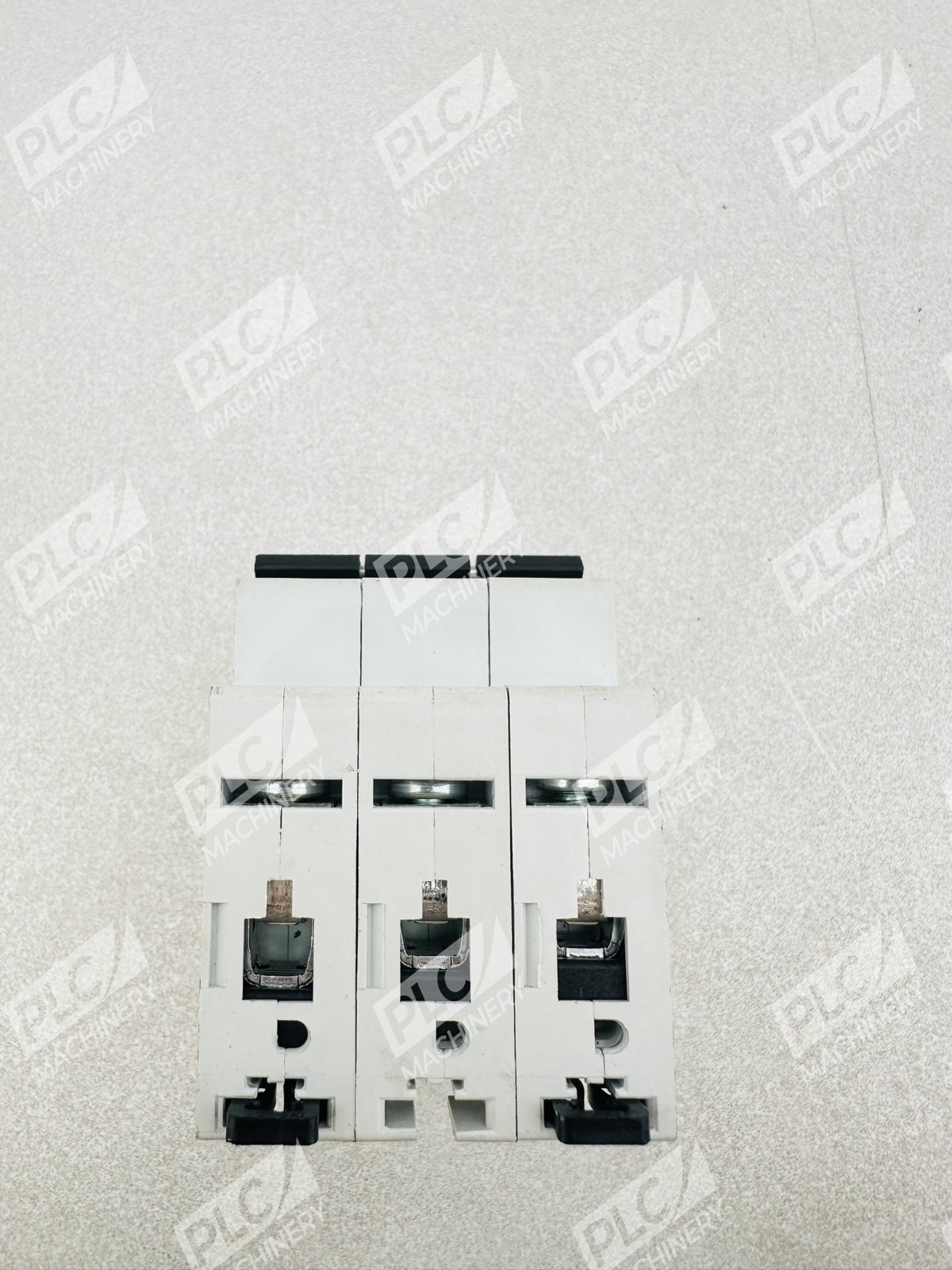

The Eaton FAZ-C15/3 is an industrial-grade thermal-magnetic miniature circuit breaker designed for supplementary protection in control panels and branch circuit applications. Eaton’s FAZ DIN rail mountable circuit breaker is designed for use in control panel applications. This 3-pole unit provides reliable overcurrent and short-circuit protection with C Curve tripping characteristic, making it suitable for circuits with moderate inrush currents.
Key Features
- Designed for branch service applications with thermal-magnetic overcurrent protection and current-limiting design
- Contact position indicator (red/green) and 17.7mm width of module per pole
- DIN rail mounting for secure panel installation
- Captive screws cannot be lost and features a trip-free mechanism

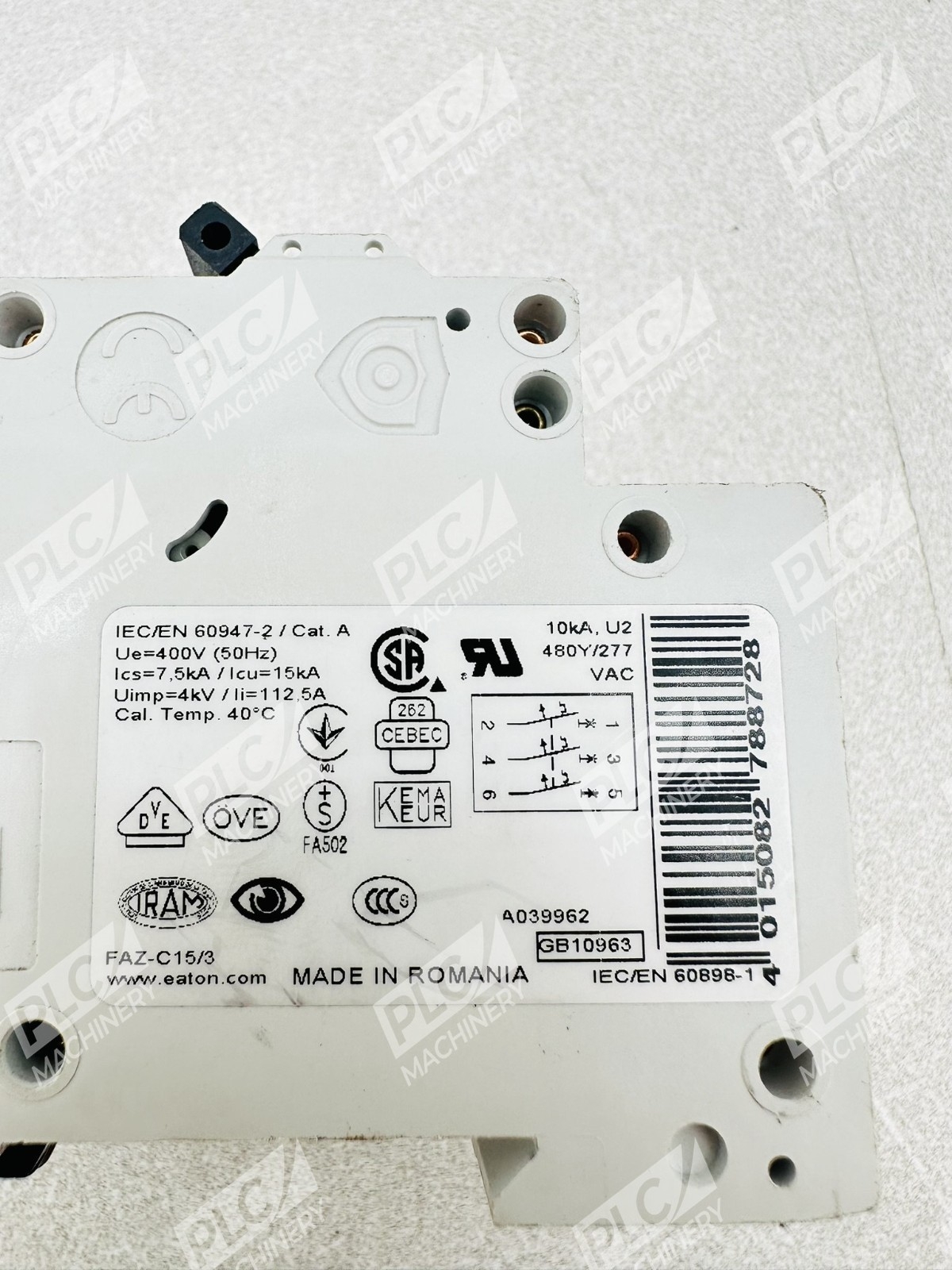

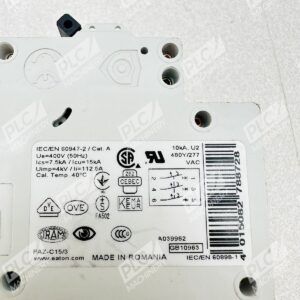

- Available with UL® 489, CSA® C22.2 No.5, UL 1077, CSA C22.2 No.235, and IEC 60947-2 certifications
Technical Specifications
- Current Rating: 15A
- Number of Poles: 3
- Tripping Characteristic: Type C
- Rated AC Voltage: 415V
- Rated DC Voltage: 60V dc
- Breaking Capacity: 15 kAIC
- Mounting Type: DIN Rail
- Terminal Type: Standard box terminals with multiple conductors
- Operating Frequency: 50-60 Hz
- Series: FAZ
- Actuator Style: Toggle
Typical Applications
- Supplementary protection for control circuits
- Lighting circuits with moderate inrush currents
- Branch service protection in industrial control panels
- Motor control and auxiliary equipment protection
- Machine tool control systems and automation equipment
Compatibility & Replacements
Compatible With
- Standard DIN rail mounting systems (35mm top hat rail)
- Control panel enclosures with 415V, 480Y/277V, or 240V supply systems
- Industrial automation systems requiring UL 1077 certified protection
- IEC 60947-2, CSA C22.2 No.235 compliant installations
Replaces / Drop-In Replacement For
- FAZ-C15/3-NA (North American variant)
- FAZ-C15/3-RT (Standard terminal configuration)
- Other 15A Type C miniature circuit breakers with equivalent 14 kA–15 kA breaking capacity in the FAZ series
Works With
- Eaton FAZ series accessory modules and mounting hardware
- Standard DIN rail termination standards (top hat rail)
- B, C, D, and Z characteristic breakers for coordinated system protection
- UL 489 and UL 1077 certified control system designs
