Overview

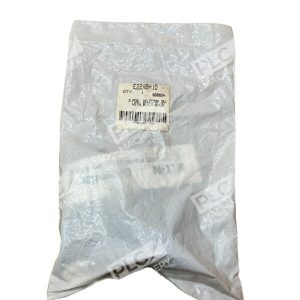

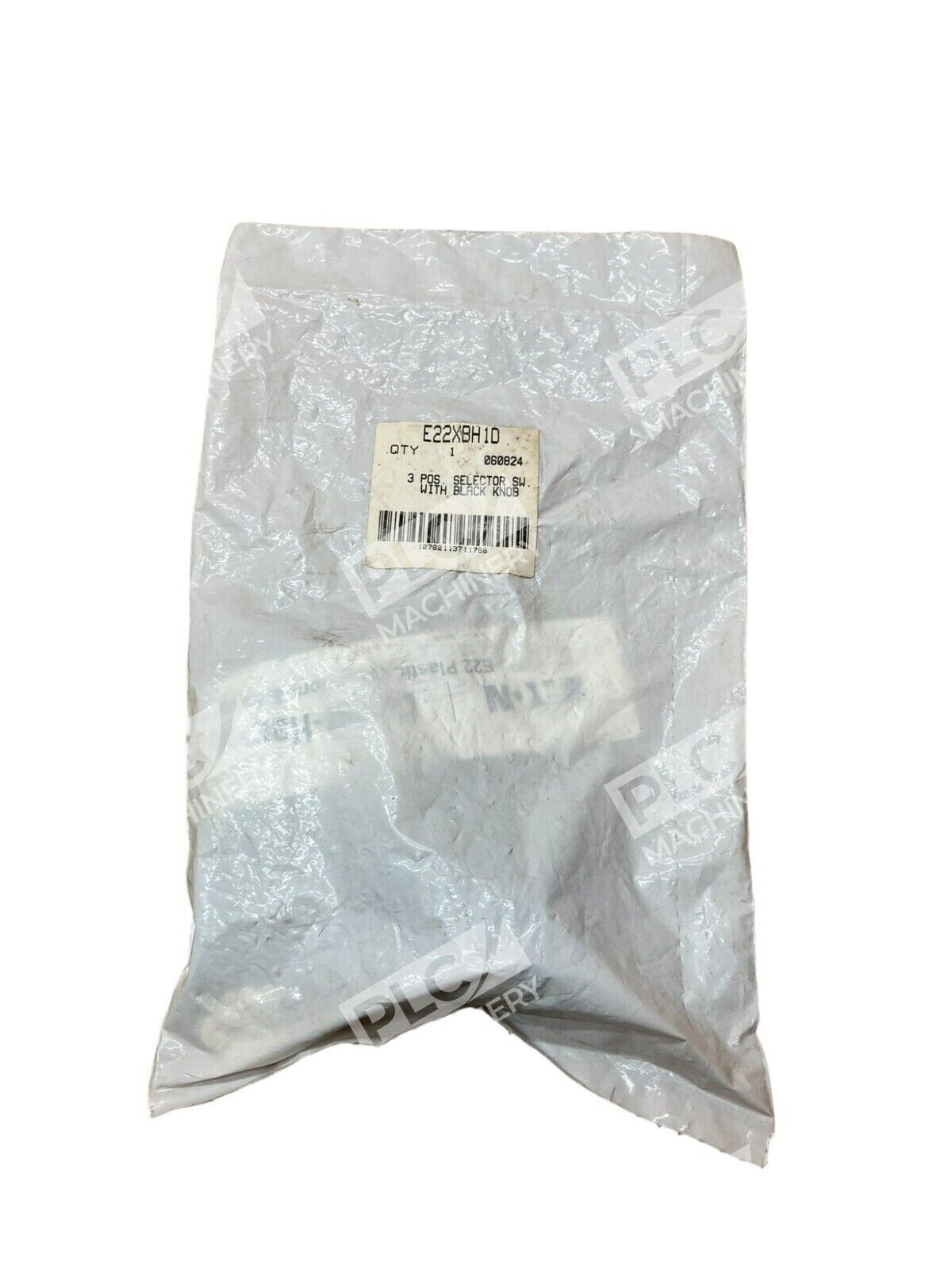

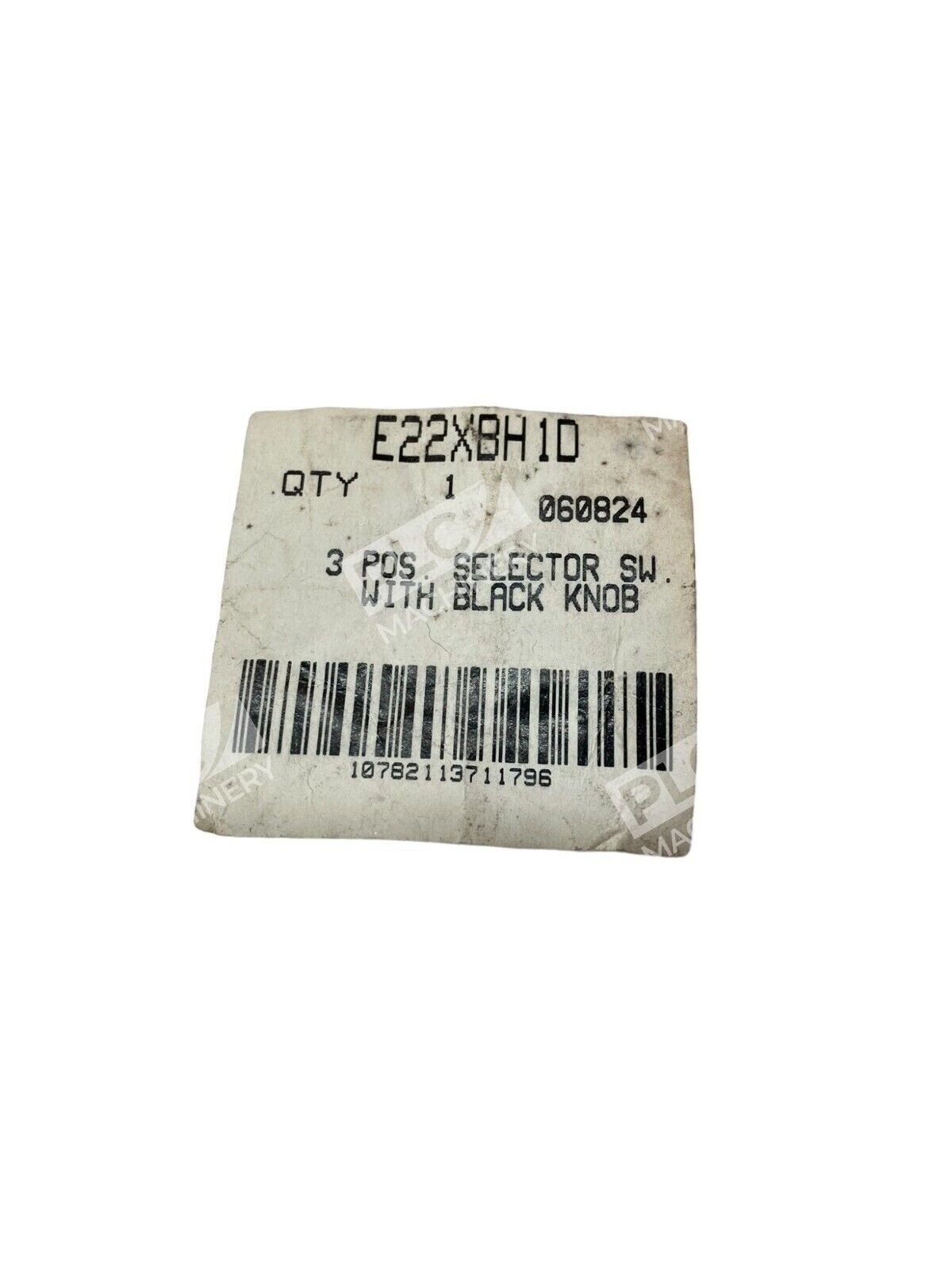

The Eaton E22XBH1D selector switch is a compact, heavy-duty operator for industrial control panels and enclosures. Part of the proven E22 series, this non-illuminated, 3-position unit features a black knob for manual operation and is designed to work with Eaton contact blocks and modular mounting systems. Its rugged construction and proven reliability make it suitable for machinery control, HVAC systems, pump stations, and other industrial automation applications where manual mode/auto/stop selection is required.
Key Features
- 3-Position Operation: Provides clear ON/OFF/AUTO or equivalent control logic selection
- Black Knob Operator: Ergonomic thumb-grip design with positive detent positions for reliable manual actuation
- 22.5 mm Cutout Diameter: Compact footprint suitable for standard control station cutouts and panel integration
- Non-Illuminated Design: Cost-effective operator requiring no electrical connections for the knob itself
- IP66 Rating: Sealed against water jets and dusty environments when properly mounted in an enclosure
- NEMA 3/3R/4/4X/12/13 Compliant: Meets standards for industrial enclosure applications
Technical Specifications
- Operator Type: Non-illuminated selector switch knob
- Positions: 3
- Cutout Diameter: 22.5 mm (0.89 in)
- Knob Style: Black colored, classical thumb-grip design
- Operating Frequency: Up to 2,000 operations per hour
- IP Rating: IP66 (in appropriate enclosure)
- Bezel Material: Glass-filled black nylon
- Series: Eaton E22
- Enclosure Compatibility: NEMA Type 3, 3R, 4, 4X, 12, 13
- Contact Arrangement: Compatible with Eaton E22 contact blocks (up to 2 blocks with standard three-way adapter)
Typical Applications
- Reversing motor starters and three-position forward-off-reverse control
- Pump station on-off-auto selector stations
- HVAC system mode selection (heating/off/cooling)
- Equipment startup sequence control
- Manual/automatic mode switching in manufacturing processes
- Transfer switch applications for dual-input control
Compatibility & Replacements
Compatible With
- Eaton E22 modular contact blocks (1NO/1NC, 2NO, 2NC configurations)
- Eaton three-way and five-way mounting adapters
- Standard 22.5 mm panel cutout openings
- Industrial control enclosures rated NEMA 3 through 13
- Eaton electromechanical control stations and control panel assemblies
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. Eaton selector switch operators within the E22 family may have alternate part numbers based on specific configurations (knob style, color, detent action).
Works With
- Eaton E22 contact blocks and auxiliary contact modules
- Standard DIN-rail and panel-mount enclosure systems
- Electromechanical control logic and hardwired motor starters
- Auxiliary relay modules and safety interlock devices compatible with E22 mounting footprint
