Overview

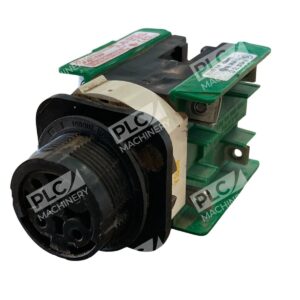

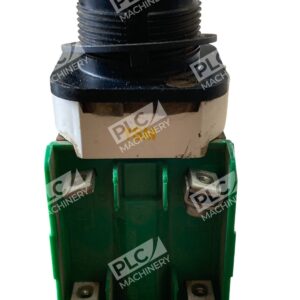

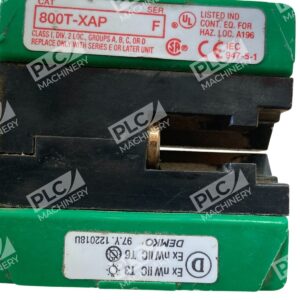

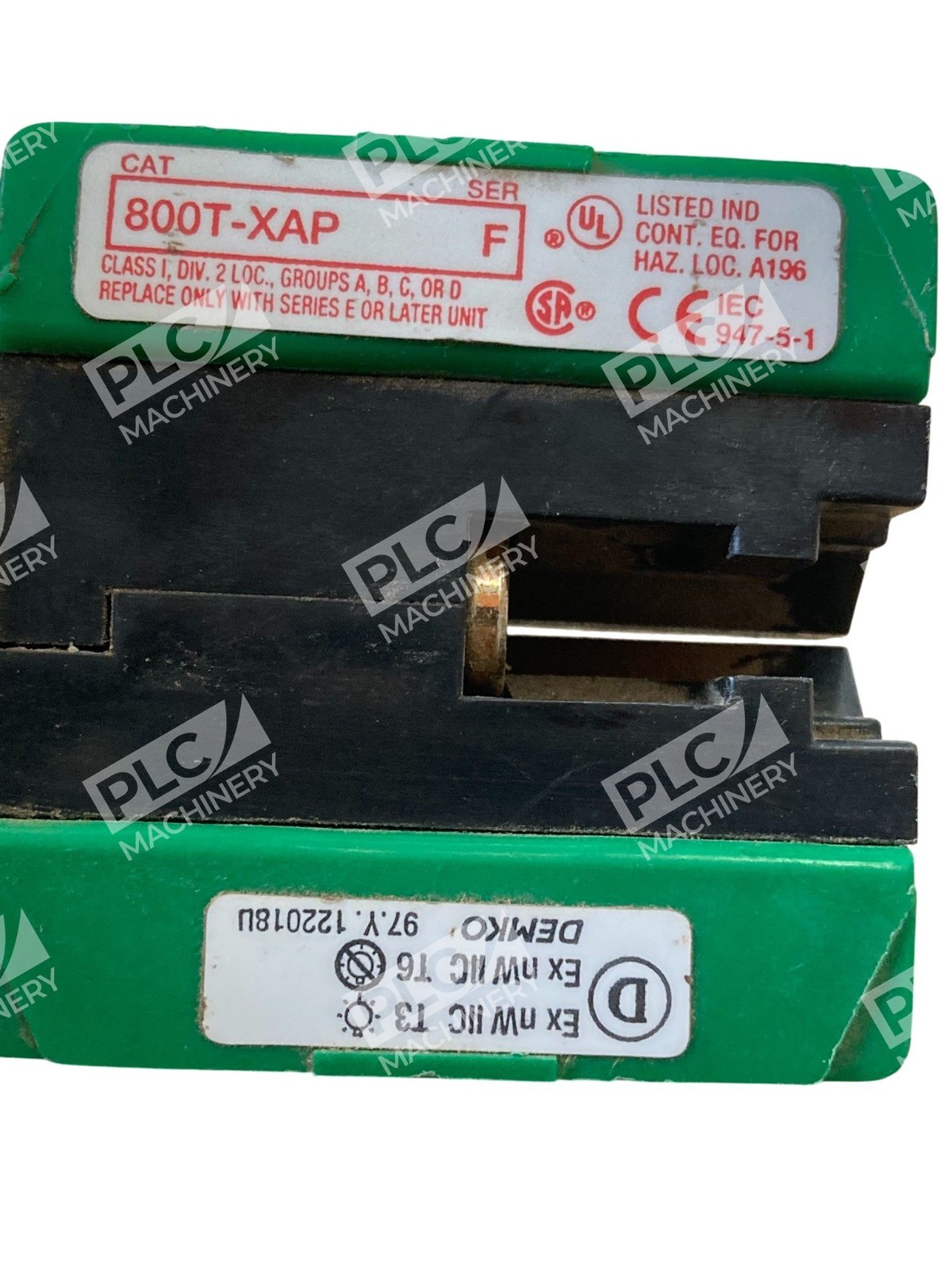

The Allen-Bradley 800T-XAP is an explosion-protected contact block for the 800T and 800H series 30mm selector switches and push buttons. This 30mm base-mounted, non-metallic contact block features 1 normally open and 1 normally closed sealed switch configuration. The sealed design and explosion-proof rating make it suitable for demanding industrial applications including hazardous location installations.
Key Features
- 30mm base mount with non-metallic construction and sealed switch configuration
- Groups A-B-C or D, Class 1, Division 2 explosion-proof rating
- 1 Normally Open / 1 Normally Closed contact configuration for versatile control logic
- Screw attachment mounting for secure installation
- Sealed contact design protects against environmental contamination and improves reliability
Technical Specifications
The 800T-XAP contact block integrates seamlessly into existing 800-series installations. Its sealed, non-metallic construction and proven contact design provide long service life in both standard and hazardous location applications.
Typical Applications
- Hazardous location selector switch circuits (Class 1, Division 2)
- Emergency stop and mode selection logic
- Pump and motor start/stop control with redundant contacts
- Process interlocking and safety circuits
- Oil and gas, chemical processing, and industrial manufacturing
Compatibility & Replacements

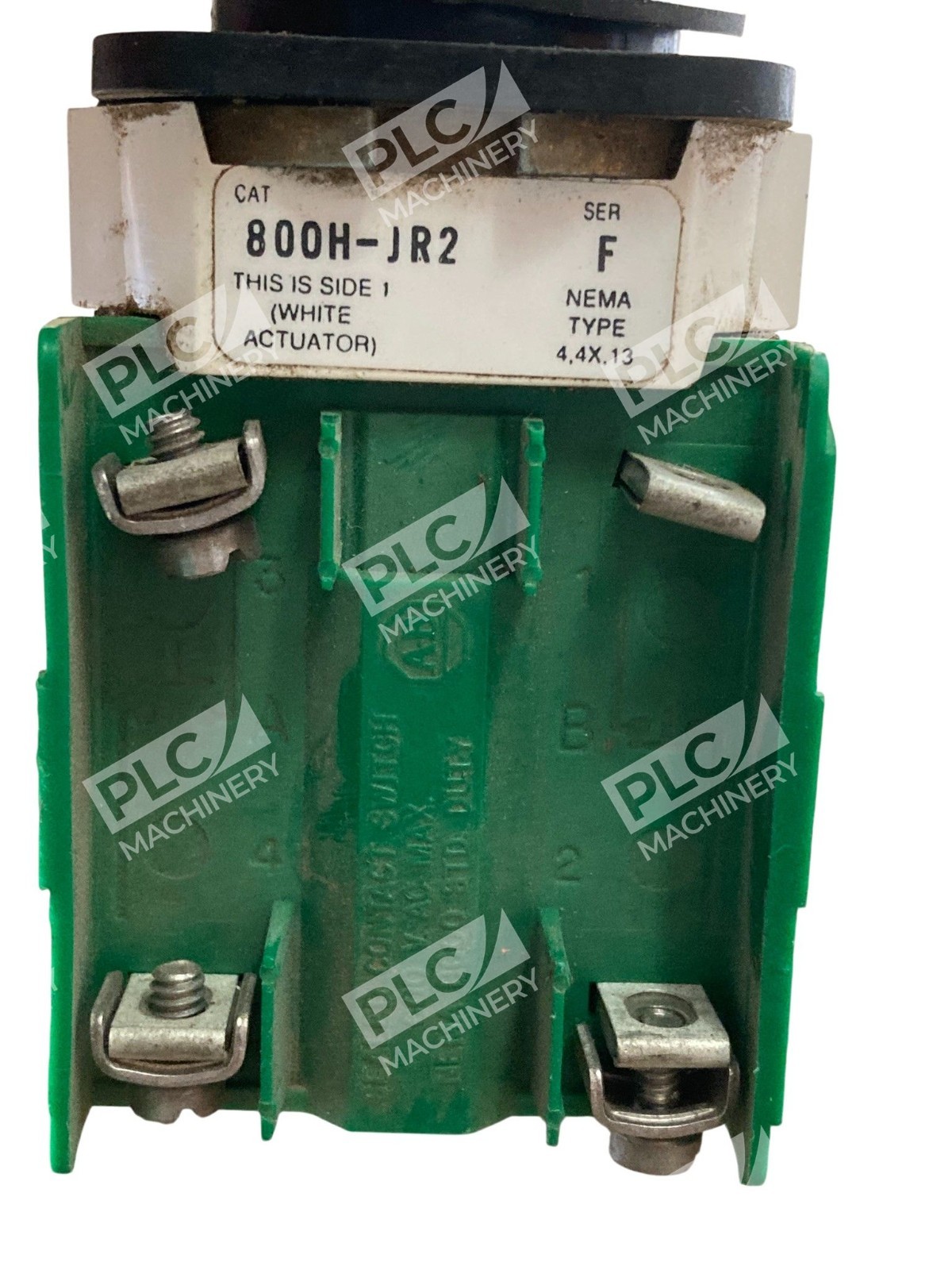

The 800T-XAP mounts directly to 800T and 800H series 30mm selector switch bases. It is compatible with standard Allen-Bradley 800-series cams and actuators. For applications requiring different contact configurations, consult Allen-Bradley or your distributor for alternative contact block options within the 800T/800H family.
