Overview

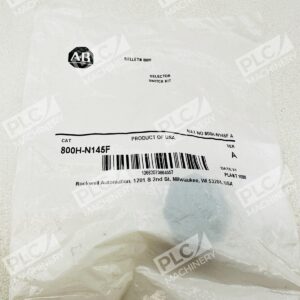

The Allen-Bradley 800H-N145F is a replacement selector switch knob and mounting ring assembly designed for 30mm Type 3 and 800H pilot device operators. This product is supplied as a lot of three units in new original packaging and is classified as an official Allen-Bradley pilot device component. As a direct replacement part, it enables straightforward maintenance and upgrade of existing 800H control systems without requiring additional modifications.
Key Features
- Official Allen-Bradley pilot device component for 800H control systems
- 30mm operator type with standard knob and mounting ring configuration
- Lot of 3 units—economical for maintaining multiple control stations
- New in original packaging
- Genuine OEM part with documented compatibility
- Lightweight design (0.06 lbs per unit) for easy installation
Technical Specifications
- Part Number: 800H-N145F
- Operator Size: 30mm
- Type: Selector Switch Knob & Mounting Ring
- Supplier: Allen-Bradley / Rockwell Automation
- Weight per Unit: 0.06 lbs
- Quantity: 3 units per lot
- Condition: New in Box (Series A)
- Material: Standard thermoplastic polyester resin
Typical Applications
- Industrial control panel maintenance and upgrade
- Manufacturing automation systems
- Motor control centers (MCC)
- Push-button operator replacement in control enclosures
- OEM equipment service and retrofit projects
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 800H push button operators
- 30mm Type 3 and Type 4X control stations
- Standard industrial control enclosures with 30mm openings
- Rockwell Automation pilot device systems
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 800H-N145F knob assemblies
- Earlier series and surplus 800H-N145F components
Works With
- Allen-Bradley 800H contact blocks and power modules
- Standard 30mm selector switch assemblies
- Industrial control systems using 800H-series operators
- Both AC and DC rated configurations (verify contact block selection)
