Overview

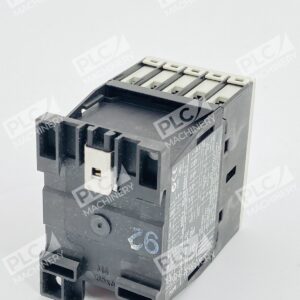

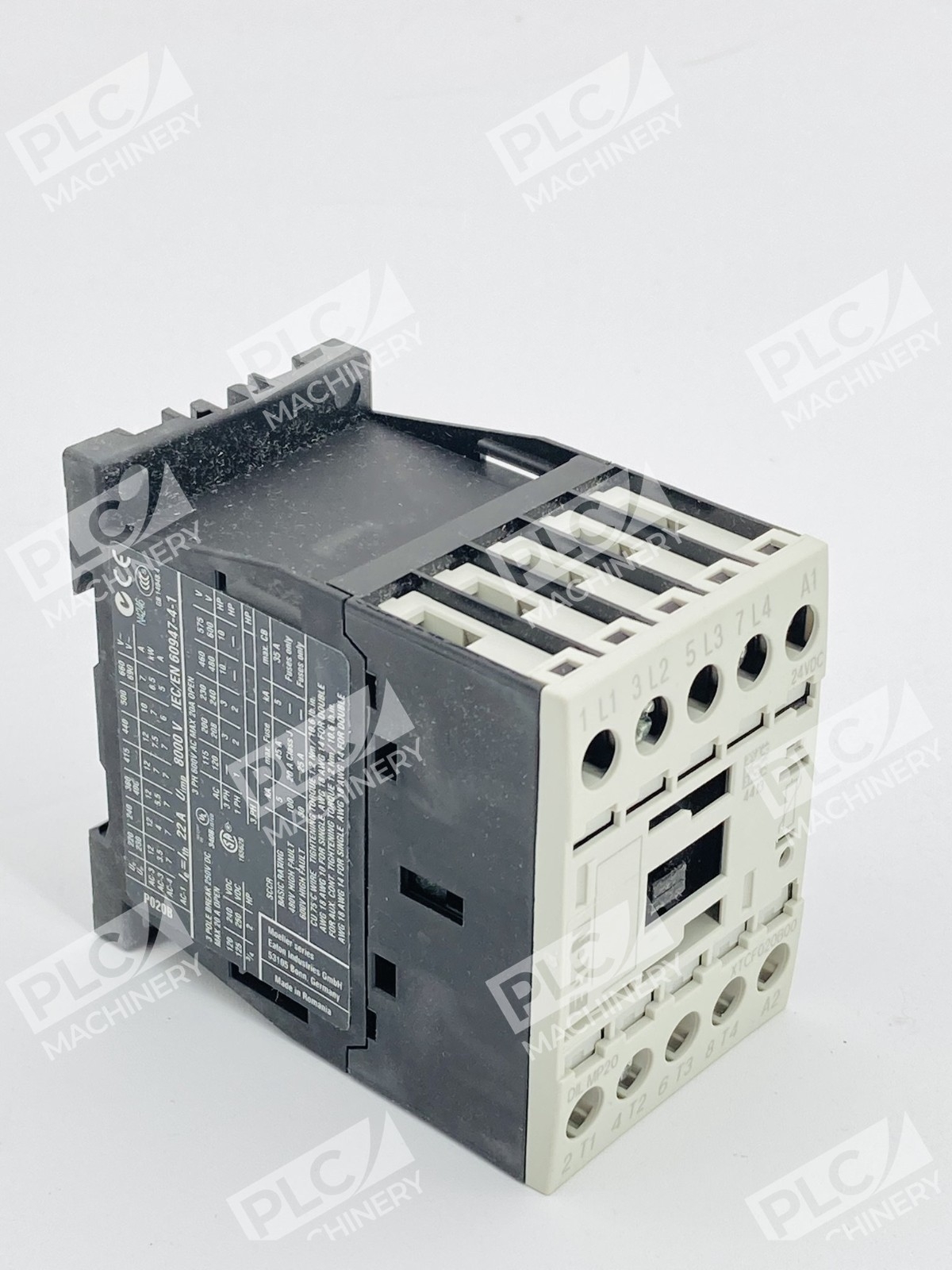

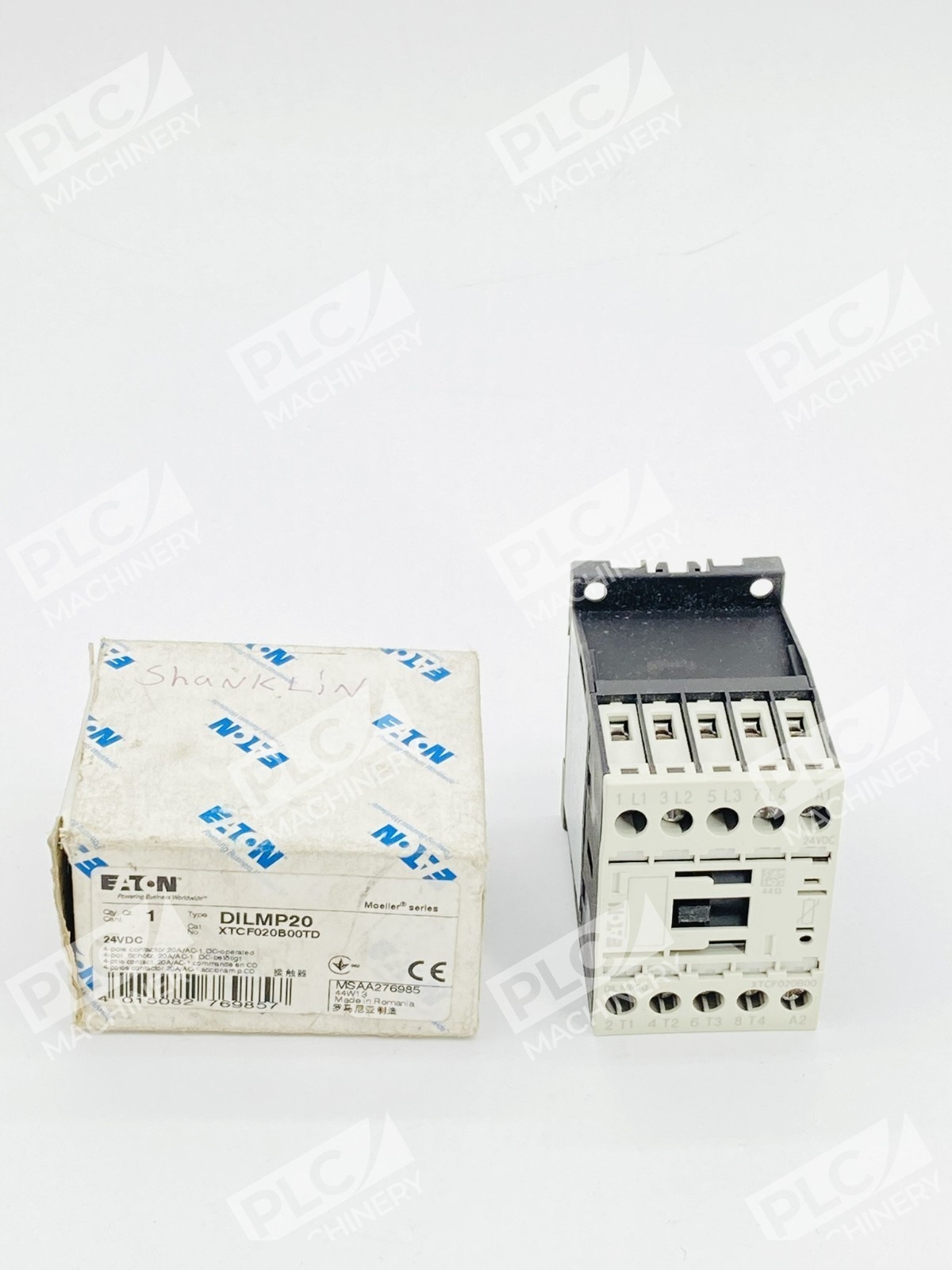

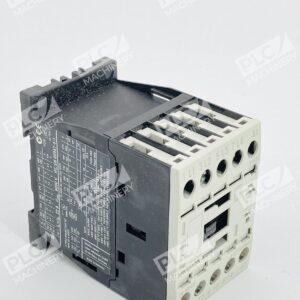

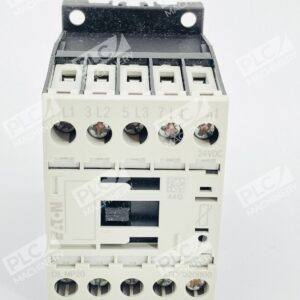

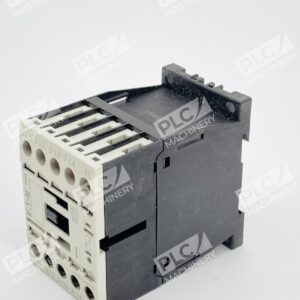

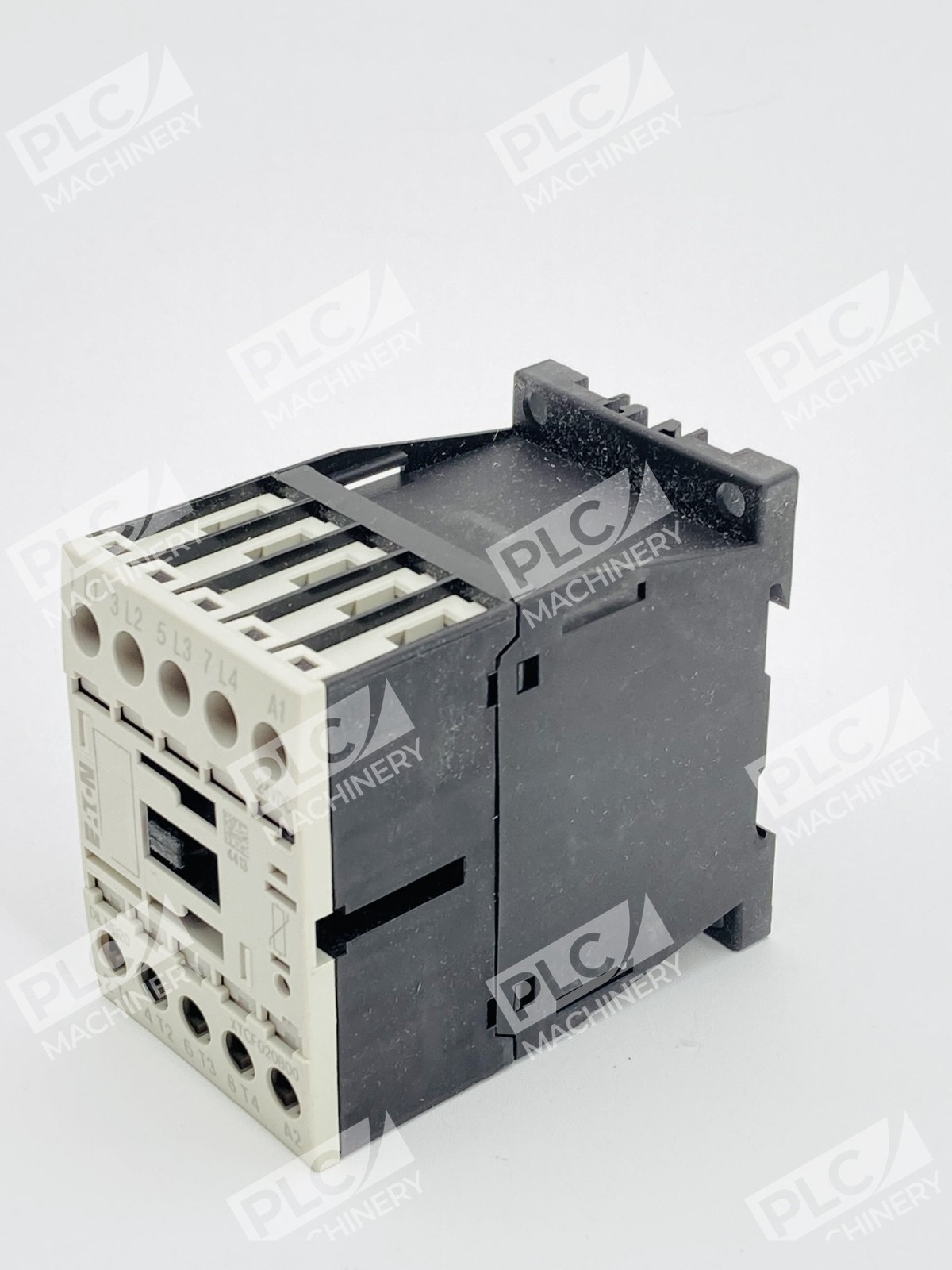

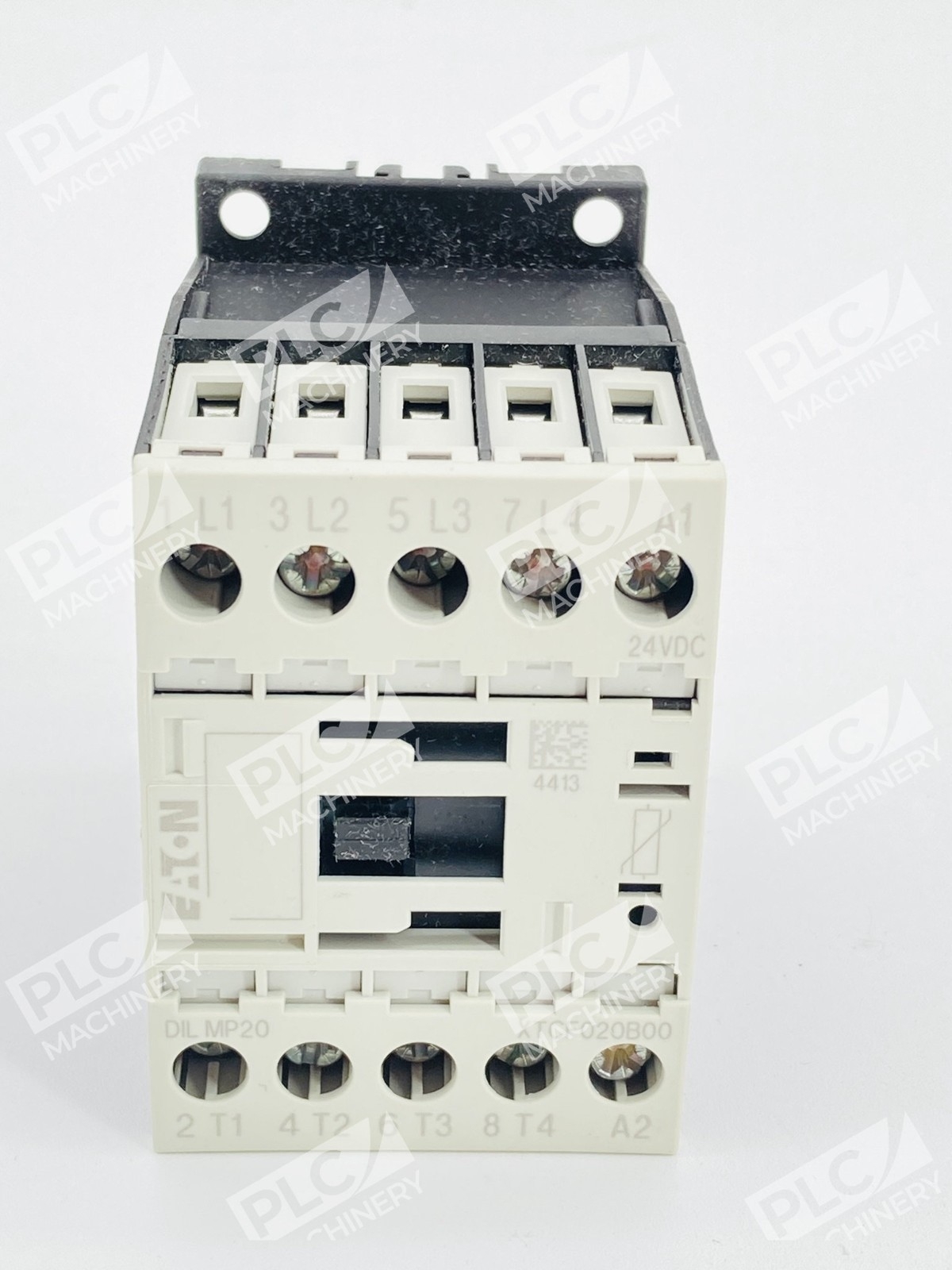

The Eaton XTCF020B00TD is a full voltage non-reversing IEC contactor from Eaton’s XT series, designed for direct-on-line motor starting and general purpose load switching. With its compact 45 mm Frame B footprint and 24Vdc coil, this 4-pole unit delivers reliable performance in industrial control systems where space and energy efficiency matter. The XTCF020B00TD is commonly used in manufacturing, HVAC, process automation, and machinery control cabinets.
Key Features
- 4-Pole Full Voltage Non-Reversing: Ideal for forward-only motor applications without reversing capability
- 20A Rated Current (AC-3): 12A at AC-3 duty, 22A at AC-1 duty provides margin for continuous industrial loads
- 24Vdc Control Coil: Standard low-voltage coil for reliable operation in 24Vdc control circuits
- Compact 45 mm Frame B: Space-saving design fits DIN rail or panel-mount applications
- Screw Terminals: Secure wire connections eliminate push-in contact reliability concerns
- UL, CSA, and CE Listed: Meets international safety standards for global deployment

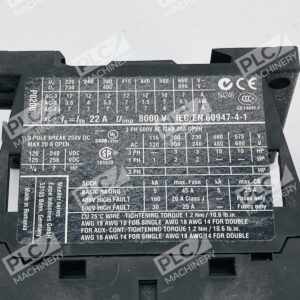

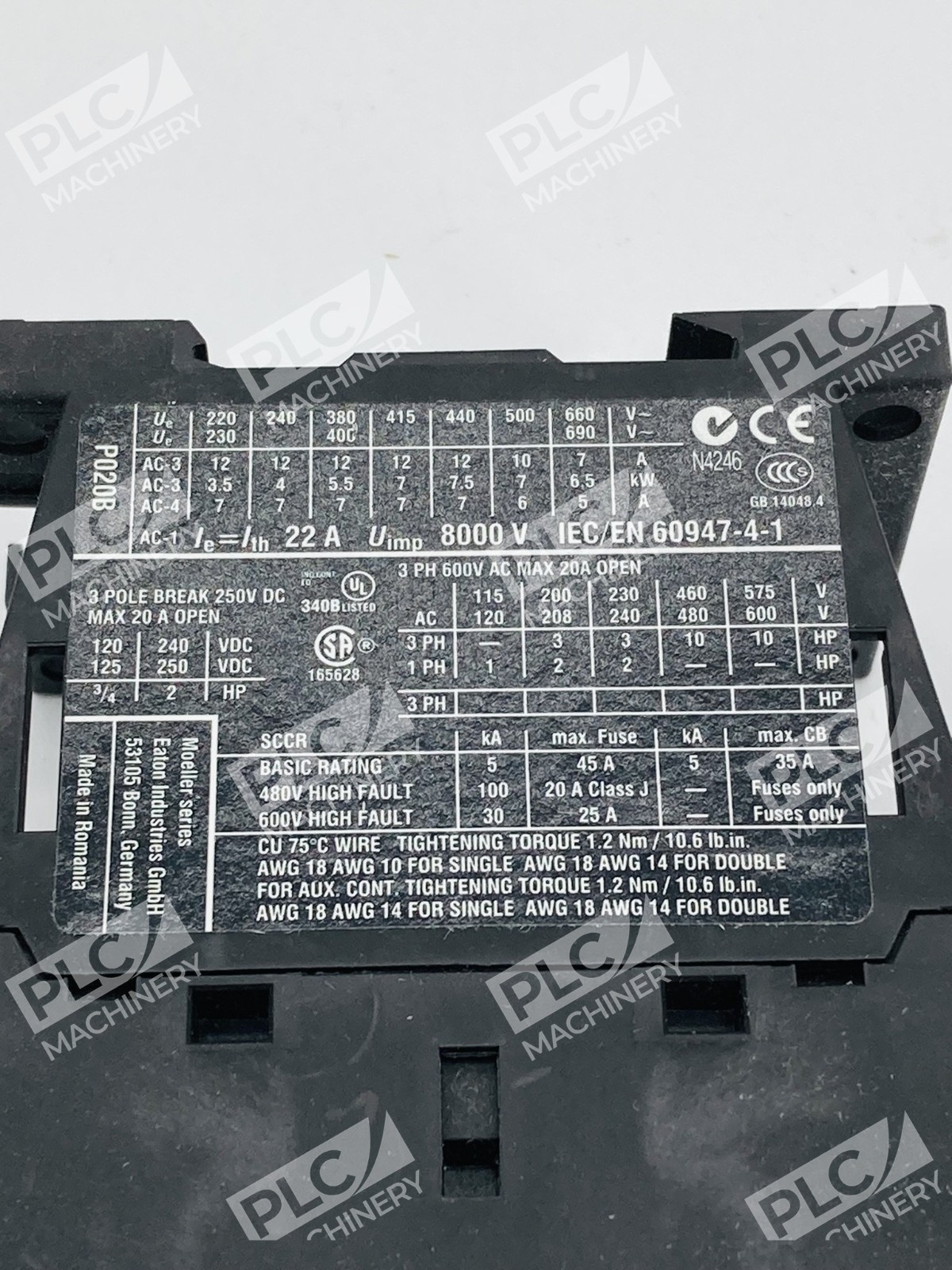

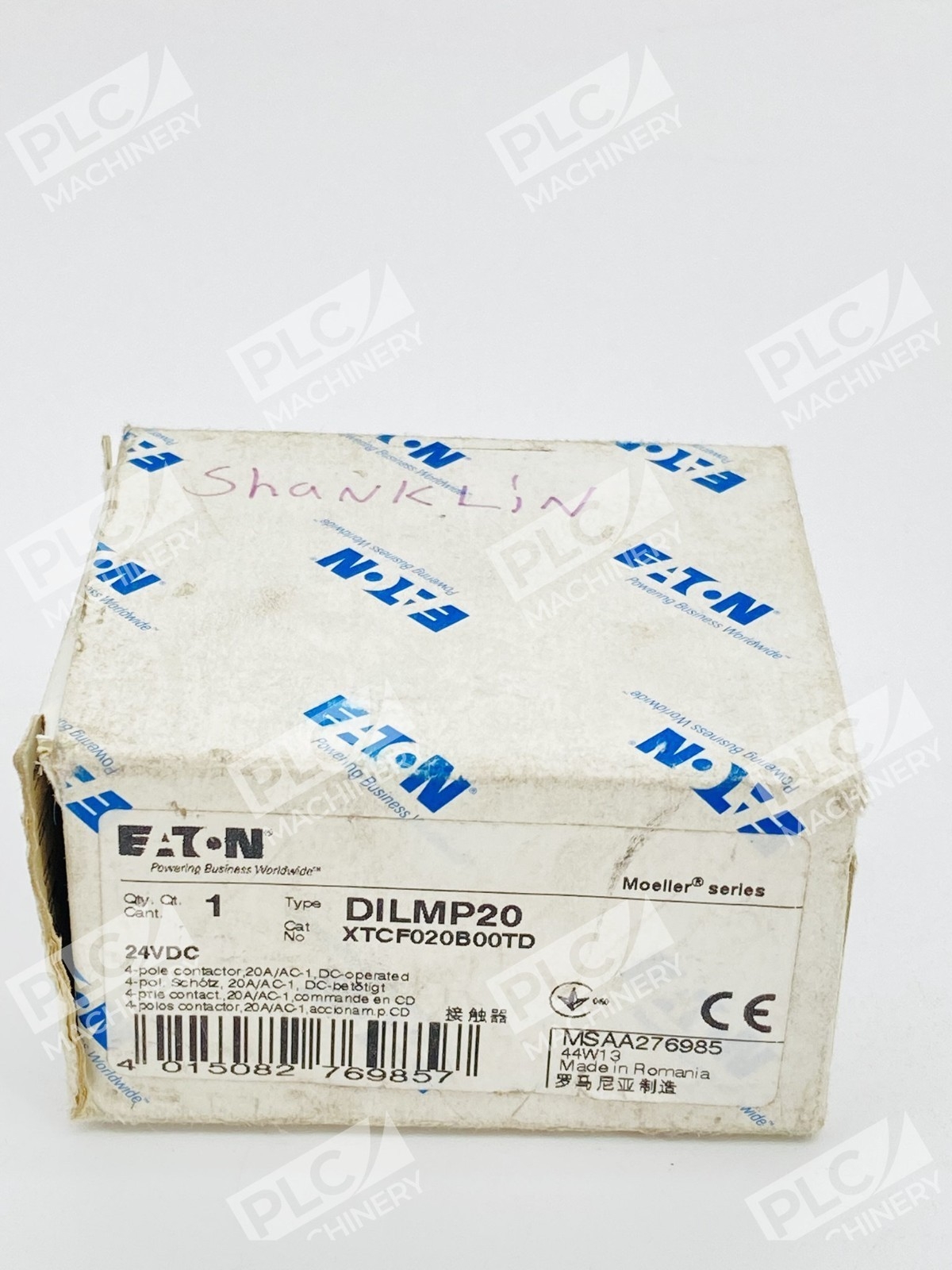

Technical Specifications
- Coil Voltage: 24 Vdc
- Rated Load Current: 20A (motor duty AC-3)
- AC-3 Rated Current: 12A
- AC-1 Rated Current: 22A (resistive/lighting loads)
- Poles: 4 (SPST per pole × 4)
- Frame Size: B (45 mm)
- Reversing: Non-reversing (Forward-only)
- Terminal Type: Screw terminals
- Horsepower Ratings: 1 hp @ 115V (1-ph), 2 hp @ 230V (1-ph), 3 hp @ 200/230V (3-ph), 10 hp @ 460/575V (3-ph)

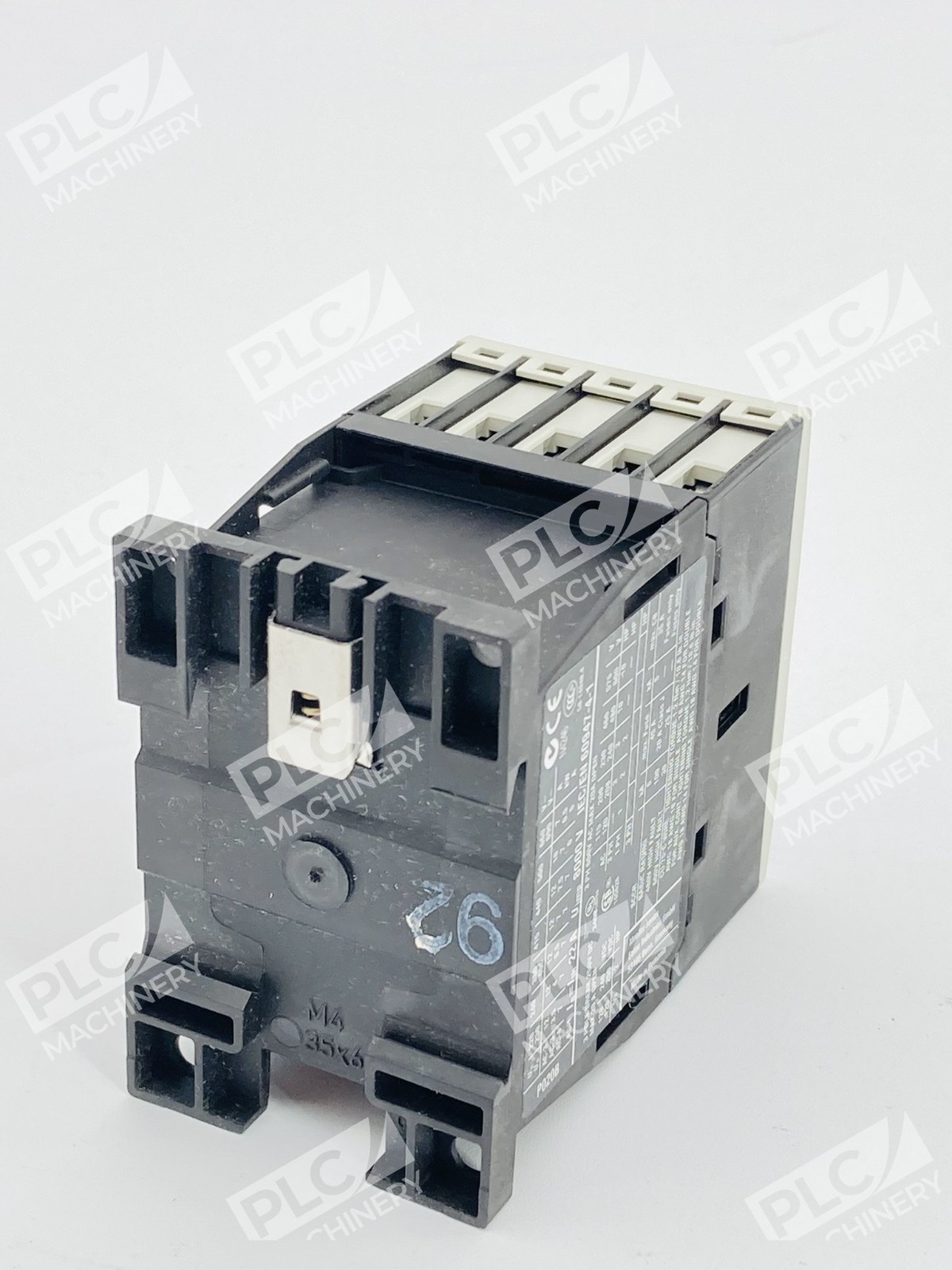

- Mounting: DIN rail or panel mount (35 mm DIN rail compatible)
- Certifications: UL, CSA, CE, ATEX, IEC EN 60947-4-1
- Operating Temperature Range: –25°C to +60°C
- Dimensions (H × W × D): 2.0″ × 1.77″ × 2.95″ (approximately 51 × 45 × 75 mm)
- Series: XT IEC
Typical Applications
The XTCF020B00TD excels in:
- Machine tool motor starting and load switching
- HVAC compressor and fan control circuits
- Pump and conveyor drive applications
- General industrial automation and control panels
- OEM equipment and packaged systems
- Low-voltage control cabinets in manufacturing environments
Compatibility & Replacements
Compatible With
- Eaton/Cutler-Hammer XT series control accessories (auxiliary contacts, coil suppression modules)
- 35 mm DIN rail mounting systems
- Panel-mount cabinetry rated for IEC contactors
- 24Vdc control voltage systems (PLC, relay logic, soft-starters)
- Standard industrial control transformers (480V → 24Vdc)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The XTCF020B00TD is part of the XT IEC series and may replace older DILMP or equivalent Moeller contactors if coil voltage and frame size match.
Works With
- Eaton XT series control relays and accessories
- IEC standard soft-starters and variable frequency drives (VFDs) in bypass mode
- 24Vdc PLC I/O modules and safety relays
- Standard DIN-rail mounted control equipment
- Pneumatic and manual pushbutton stations with 24Vdc circuit logic
