Overview

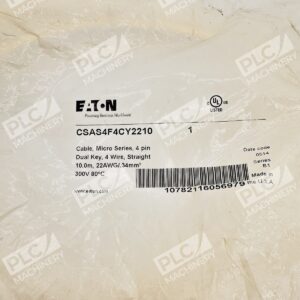

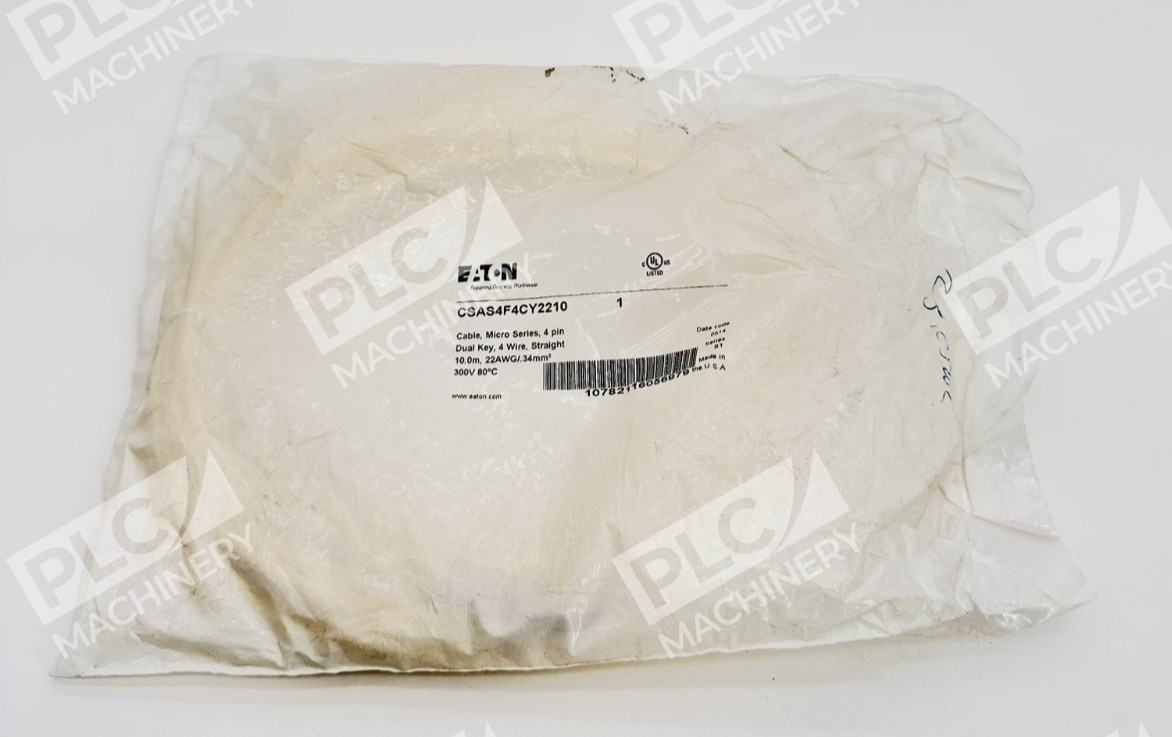

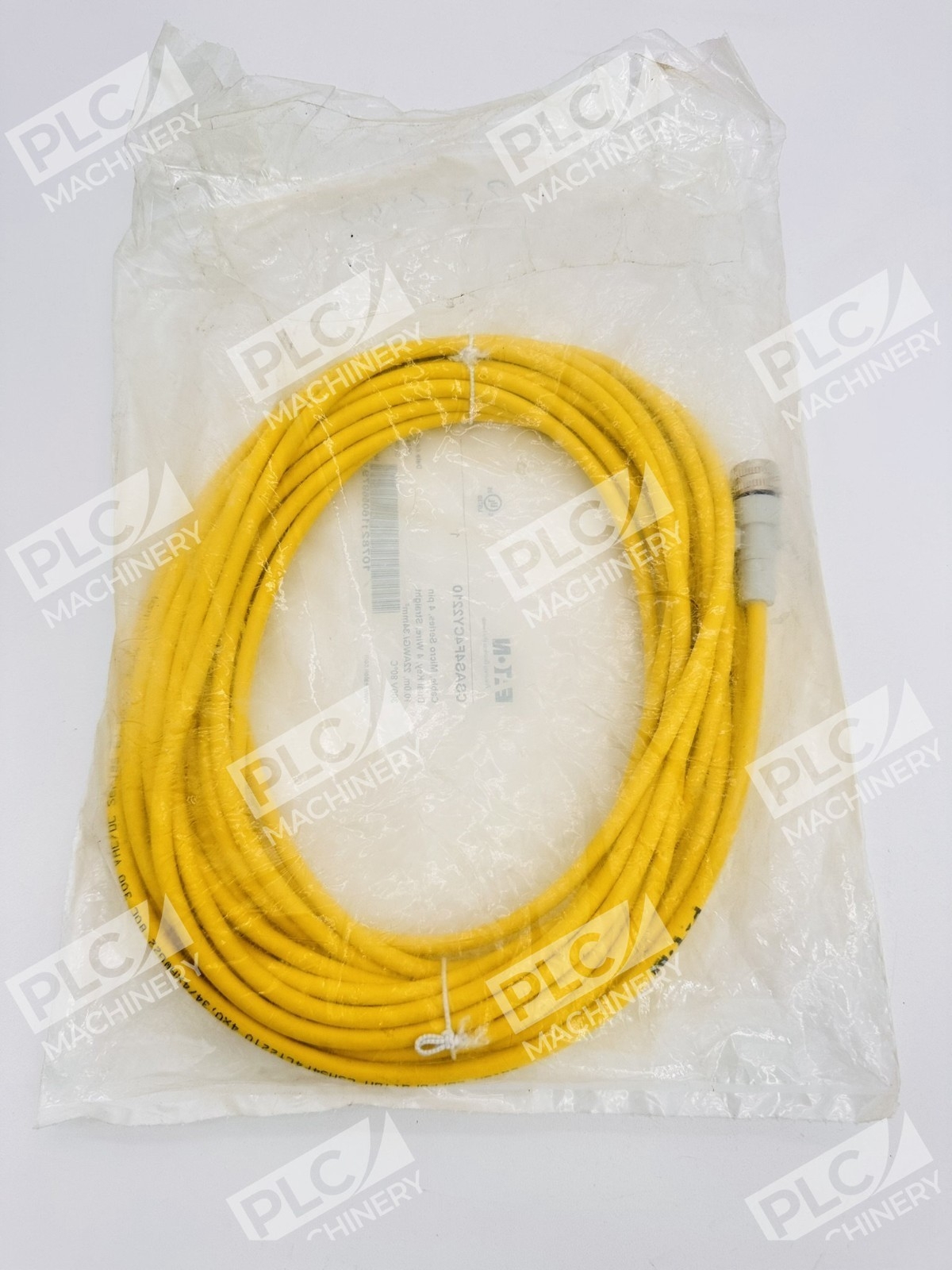

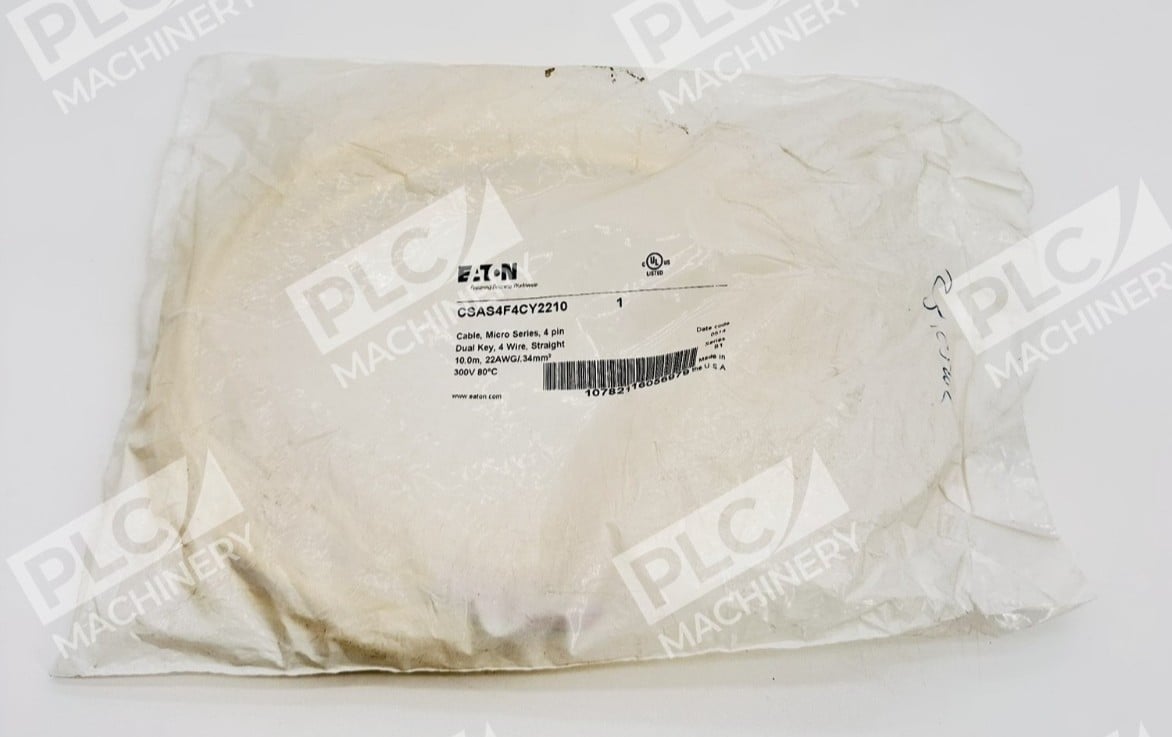

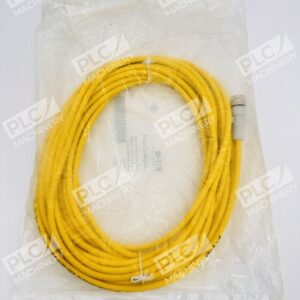

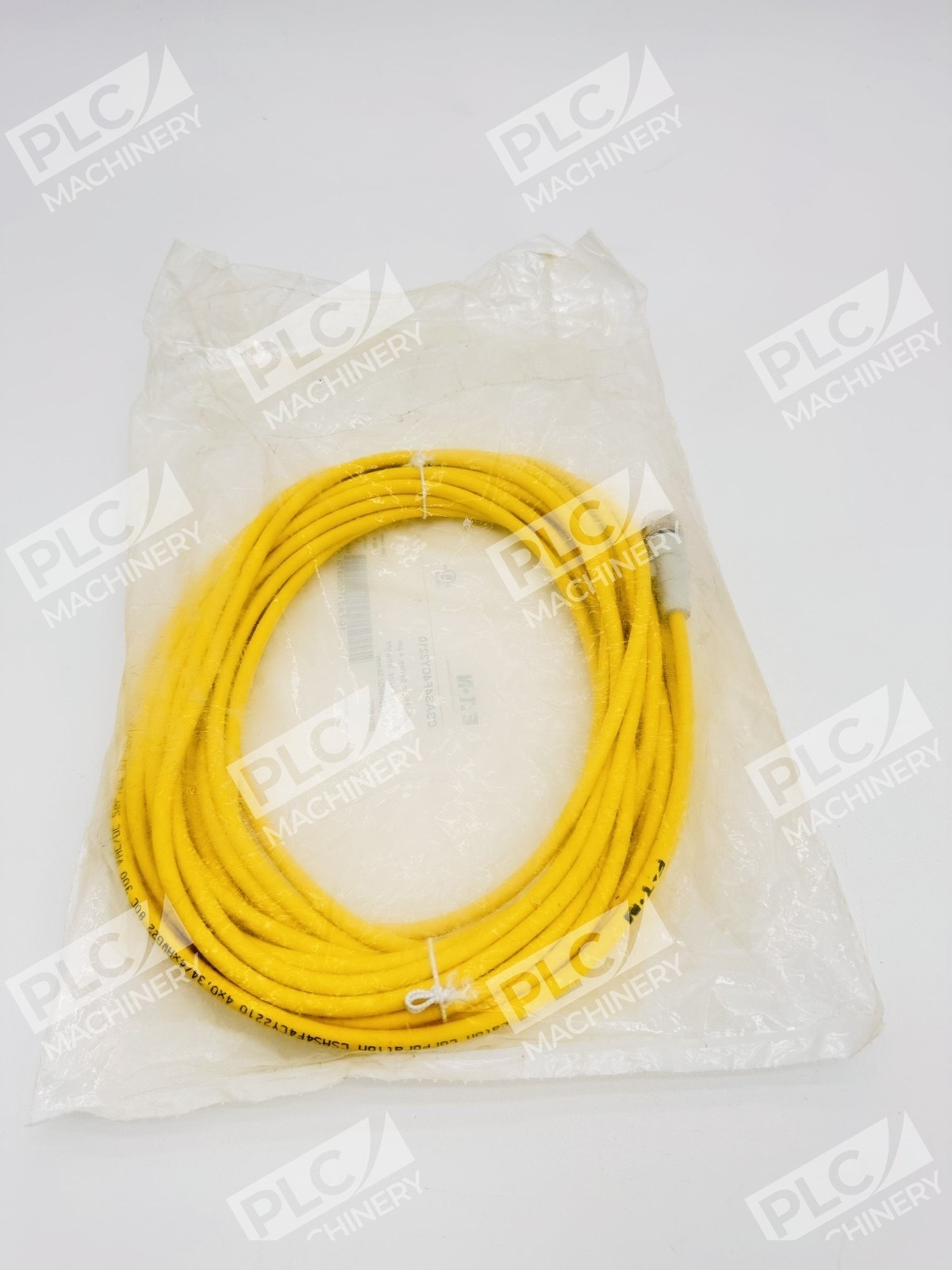

The Eaton CSAS4F4CY2210 is a Series B1 industrial cable assembly designed for real-time communication in motion control and PLC automation applications. With its 4-pin dual key connector format and 10-meter lead length, this cable ensures secure, keyed connections that prevent mating errors in critical control loops. Eaton Cutler-Hammer’s proven build quality makes this an ideal replacement or primary cable for servo drives, stepper motor interfaces, and proximity sensor networks.
Key Features
- 4-pin dual key connector prevents reverse polarity and misalignment
- Micro Series 4 configuration for compact, space-saving installations
- 4-wire internal construction optimized for industrial signal transmission
- 10-meter pre-assembled length reduces installation time and connector errors
- Rated for standard industrial temperature and humidity environments
- Robust outer jacket protects against abrasion and UV exposure
Technical Specifications
- Connector Type: 4-pin dual key micro series
- Connector Series: Series B1
- Cable Length: 10 meters
- Wire Count: 4 conductors
- Connector Configuration: Dual key
- Manufacturer: Eaton Cutler-Hammer
- Intended Use: Motion control, PLC automation, industrial sensor networks
Typical Applications
- Servo motor and stepper motor drive interfaces
- Proximity sensor and limit switch networks
- PLC analog and digital I/O signal connections
- Machine tool control systems and CNC equipment
- Industrial motion control cabinets and automation panels
- Factory automation conveyor and robotic systems
Compatibility & Replacements
Compatible With
- Eaton Cutler-Hammer motion control systems
- Industrial PLCs and automation controllers
- Standard servo drive interfaces supporting 4-pin micro connectors
- Motion control I/O modules and terminal blocks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Ensure mating connector gender and pinout match your existing installation.
Works With
- Allen-Bradley CompactLogix and ControlLogix PLC systems
- Eaton Cutler-Hammer XL Series drives
- Third-party motion control systems using standard 4-pin dual key micro connectors
- Industrial Ethernet and fieldbus networks via appropriate gateway modules
