Overview

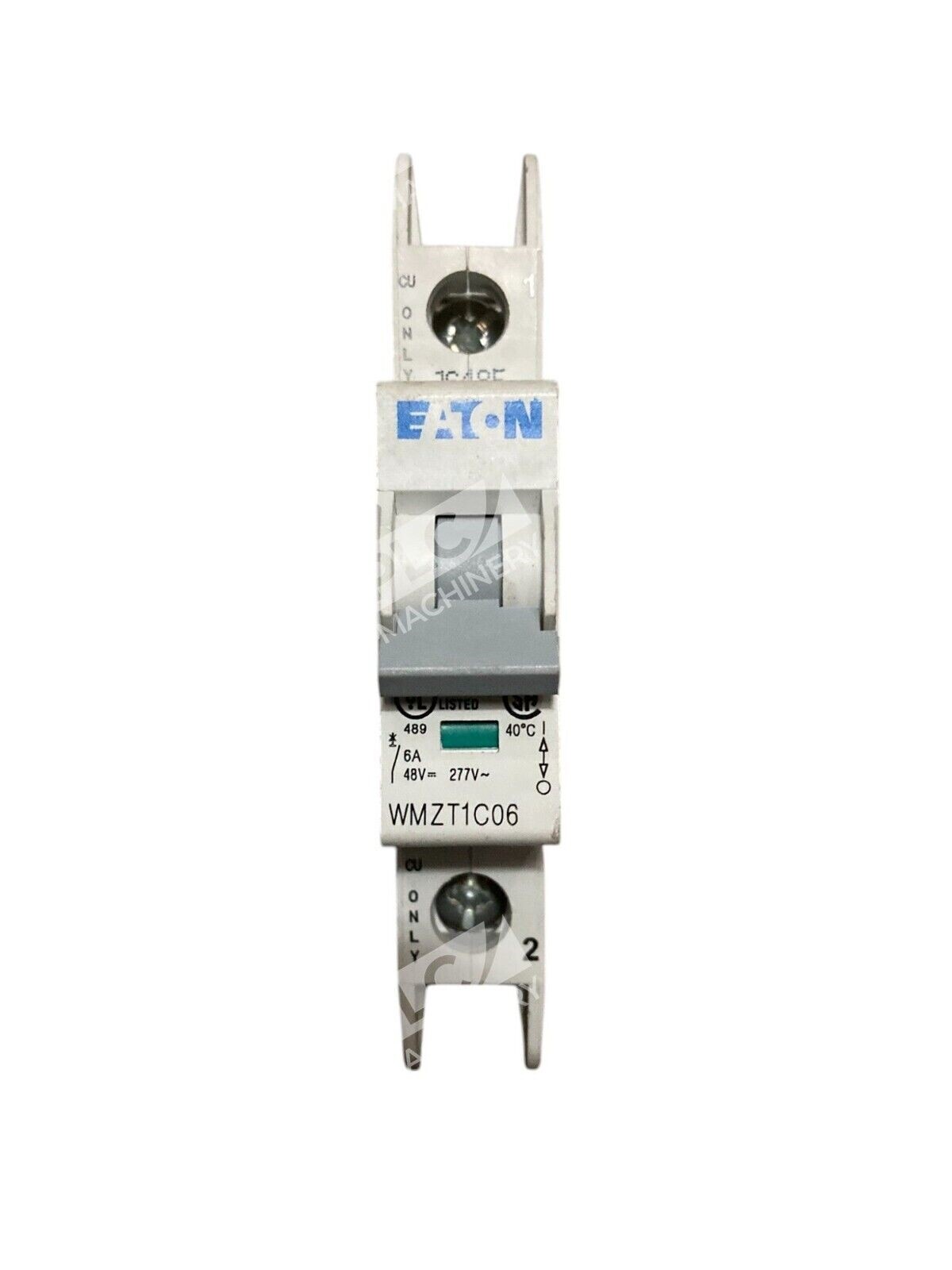

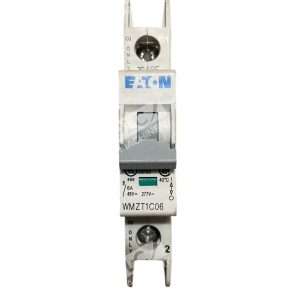

The Eaton WMZT1C06 is a current-limiting miniature circuit breaker designed for single-pole branch circuit protection. Part of Eaton’s WMZT series, this UL 489 listed breaker delivers compact, reliable overcurrent protection for control panels, motor circuits, and distribution systems. With a 6A current rating and C-curve response, the WMZT1C06 suits applications requiring moderate magnetic sensitivity.
Key Features
- Single-pole (1P) configuration with 6A rating
- C-curve trip characteristic (5–10× rated current)
- UL 489 listed with 10 kAIC short-circuit current rating
- Thermal-magnetic protection mechanism
- DIN rail mounted (35mm standard profile)
- Compact form factor for space-constrained panels
Technical Specifications
- Pole Configuration: 1-Pole
- Current Rating: 6A
- Trip Curve: C-Curve (5–10× In)
- Voltage Rating: 277/480Y VAC (per manufacturer specification)
- Interrupting Rating (SCCR): 10 kAIC @ UL 489
- Thermal-Magnetic Protection: Yes
- Mounting: 35mm DIN Rail
- Certifications: UL 489
- Series: WMZT (Eaton Miniature Circuit Breaker)
Typical Applications
- Branch circuit protection in industrial control systems
- Power distribution panels and sub-stations
- Motor control centers (MCC)
- Low-voltage switchgear
- Building automation and HVAC circuits
- Factory floor lighting and convenience outlet circuits
Compatibility & Replacements
Compatible With
- Standard 35mm DIN rail systems (EN 60715)
- Eaton WMZT series control panels and enclosures
- Industrial electrical distribution systems rated for 277/480Y VAC
- UL 489 compliant panel installations
Replaces / Drop-In Replacement For
- Earlier generations of 6A single-pole C-curve breakers in the WMZT family
- Verify compatibility with your system integrator before ordering as direct replacement depends on panel layout and terminal type
Works With
- UL 489 compliant circuit protection applications
- Thermal-magnetic trip logic; no digital/software coordination required
- Standard electrical panels employing IEC/EN 60715 DIN rail mounting
- Compatible with other WMZT series breakers in multi-pole configurations when installed in same panel
