Overview

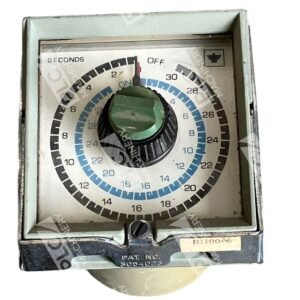

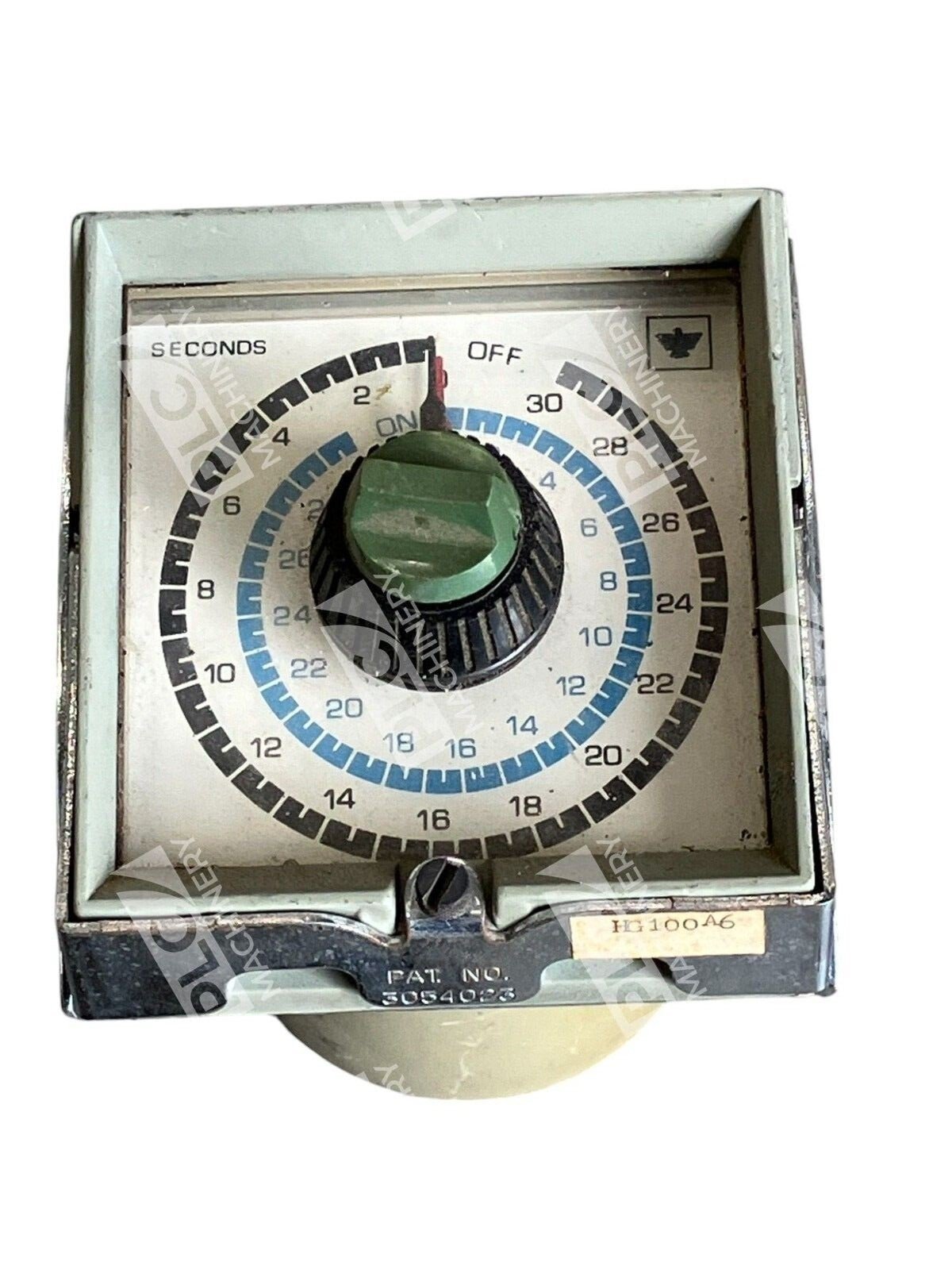

The Eagle Signal HG100A6 is an electromechanical repeat cycle timer designed for industrial applications requiring precise, repeatable timing control in the 0–30 second range. This panel-mount CYCL-FLEX timer operates at 120VAC/60Hz and provides a 30-second dial range. The unit includes a minimum setting of 0.5 seconds and is powered by a 2.5 VAC synchronous motor. Its robust mechanical design makes it well-suited for demanding manufacturing, packaging, and process control environments where electrical reset or repeat cycle timing is essential.
Key Features
- Repeat cycle operation with two-circuit settings allowing both symmetric and asymmetric cycle configuration
- Concentric dial design for clear, easy setting of ON and OFF times
- High-precision gear train and adjustable cam for accurate, adaptable timings
- CYCL-FLEX plug-in housing for robust, shock-resistant construction suitable for challenging industrial conditions
- Mechanical life rated at 10,000,000 operations
Technical Specifications
- Input Voltage: 120VAC, 60Hz
- Time Range: 0.5 seconds to 30 seconds
- Motor Type: 2.5 VAC Synchronous
- Operating Temperature Range: −20 to 140°F (−7 to 60°C)
- Series: HG1 CYCL-FLEX / FLEXOPULSE
- Mechanical Life: 10,000,000 operations
- Mounting: Panel-mount (CYCL-FLEX plug-in)
- Function: Repeat cycle timer with electric reset
Typical Applications
- Fast-cycle packaging and filling machines requiring synchronized timing
- Industrial process control where repeating on/off sequences are needed
- Conveyor and automation systems with short time intervals
- General-purpose manufacturing equipment timing control
Compatibility & Replacements
Compatible With
- Panel-mounted industrial control systems designed for CYCL-FLEX timers
- Standard 15-pin CYCL-FLEX timer sockets and panel cutouts
- 120VAC/60Hz industrial power supplies and control circuits
- Systems requiring analog, mechanical timing control (pre-PLC era and legacy equipment)
Replaces / Drop-In Replacement For
- Other HG100A6 units (direct equivalent)
- HG100A605 (same 30-second range, alternative model variant)
- Similar mechanical repeat cycle timers in the CYCL-FLEX/HG1 series requiring 0–30 second timing
Works With
- CYCL-FLEX timer socket assemblies and panel-mount hardware
- Traditional industrial relay logic control systems
- Analog control circuits and electromechanical machine controls
- Power supplies delivering stable 120VAC at 60Hz frequency
