Overview

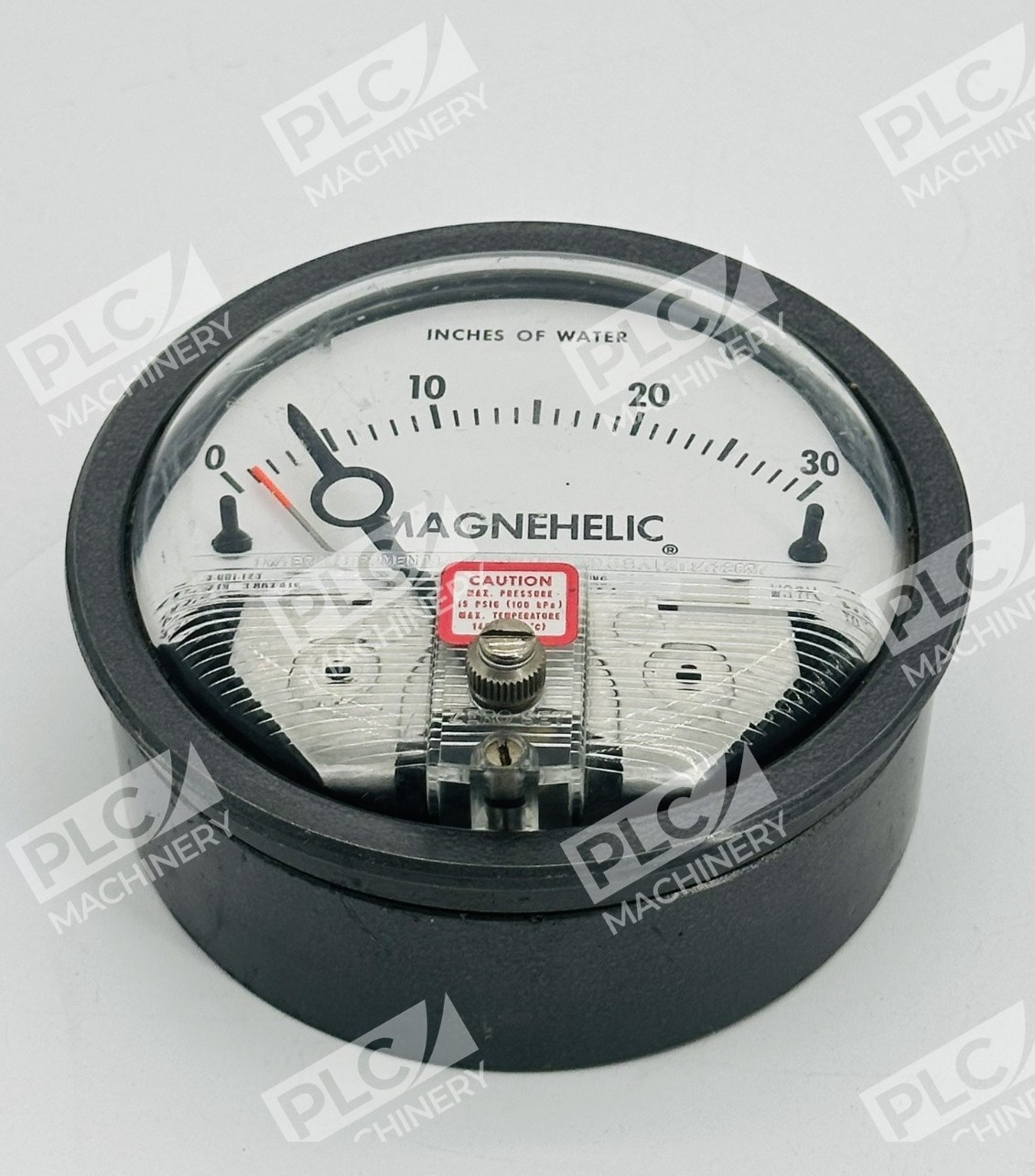

The Dwyer 2030C differential pressure gauge is a Series 2000 Magnehelic instrument designed for precise measurement of low-level air and non-corrosive gas pressures in positive, negative (vacuum), or differential modes. The simple, frictionless Magnehelic gauge movement quickly indicates air or noncorrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration, over-pressures and is weatherproof to IP67. This gauge requires no electrical power and eliminates the maintenance issues associated with liquid manometers.
Key Features
- Frictionless Magnetic Movement: No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
- Robust Construction: Body Material: Die Cast Aluminum with shock and vibration resistance
- Wide Application Range: Typical applications include filter monitoring, air velocity with Dwyer Pitot tube, blower vacuum monitoring, fan pressure indication, Duct, room or building pressures, clean room positive pressure indication.
- Easy Installation: Two 1/8″ NPT plugs for duplicate pressure taps, Two 1/8″ pipe thread to rubber tubing adapters, Three flush mounting adapters with screws.
- High Accuracy: ±2% full scale accuracy for reliable pressure measurement
Technical Specifications

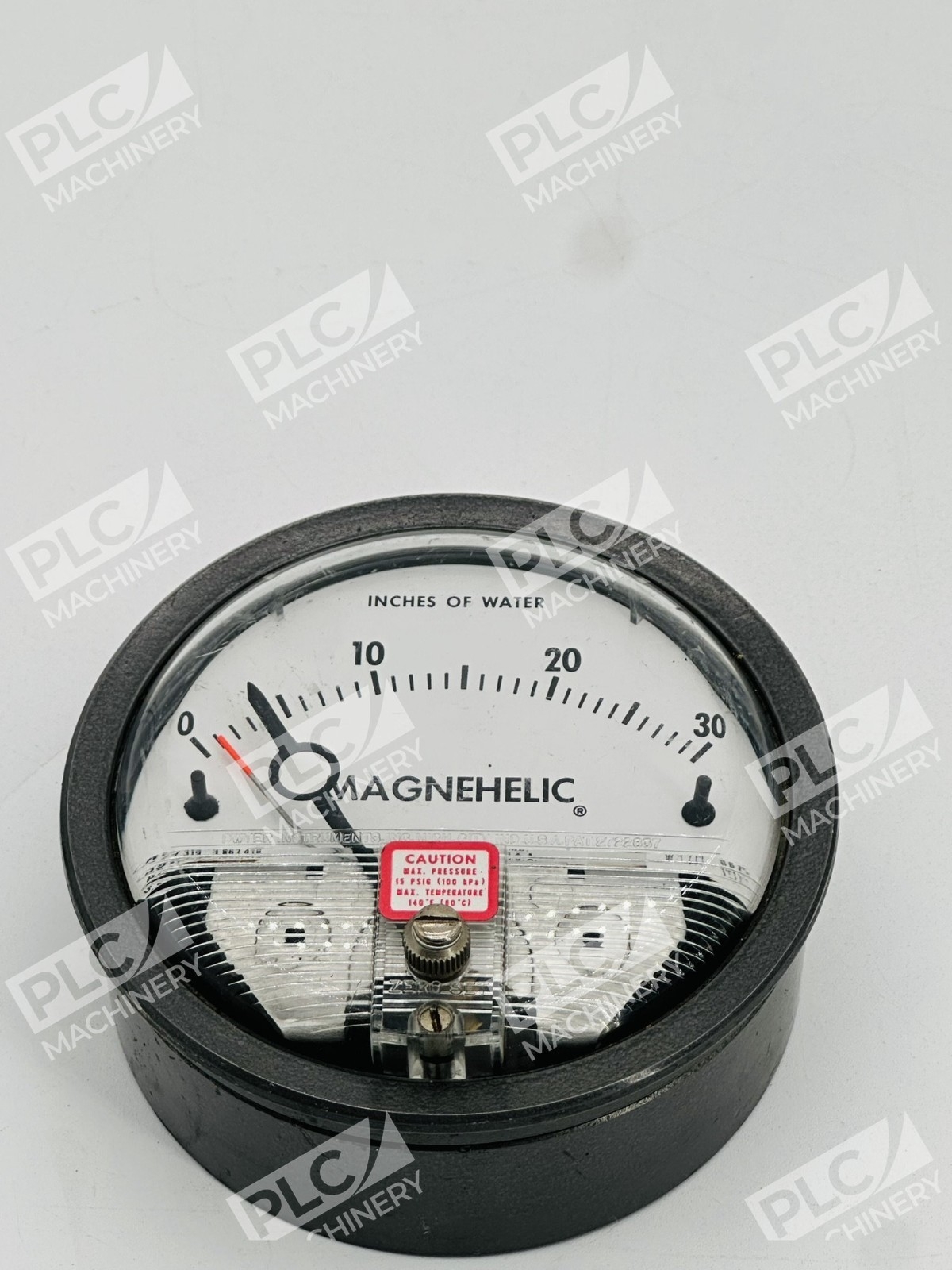

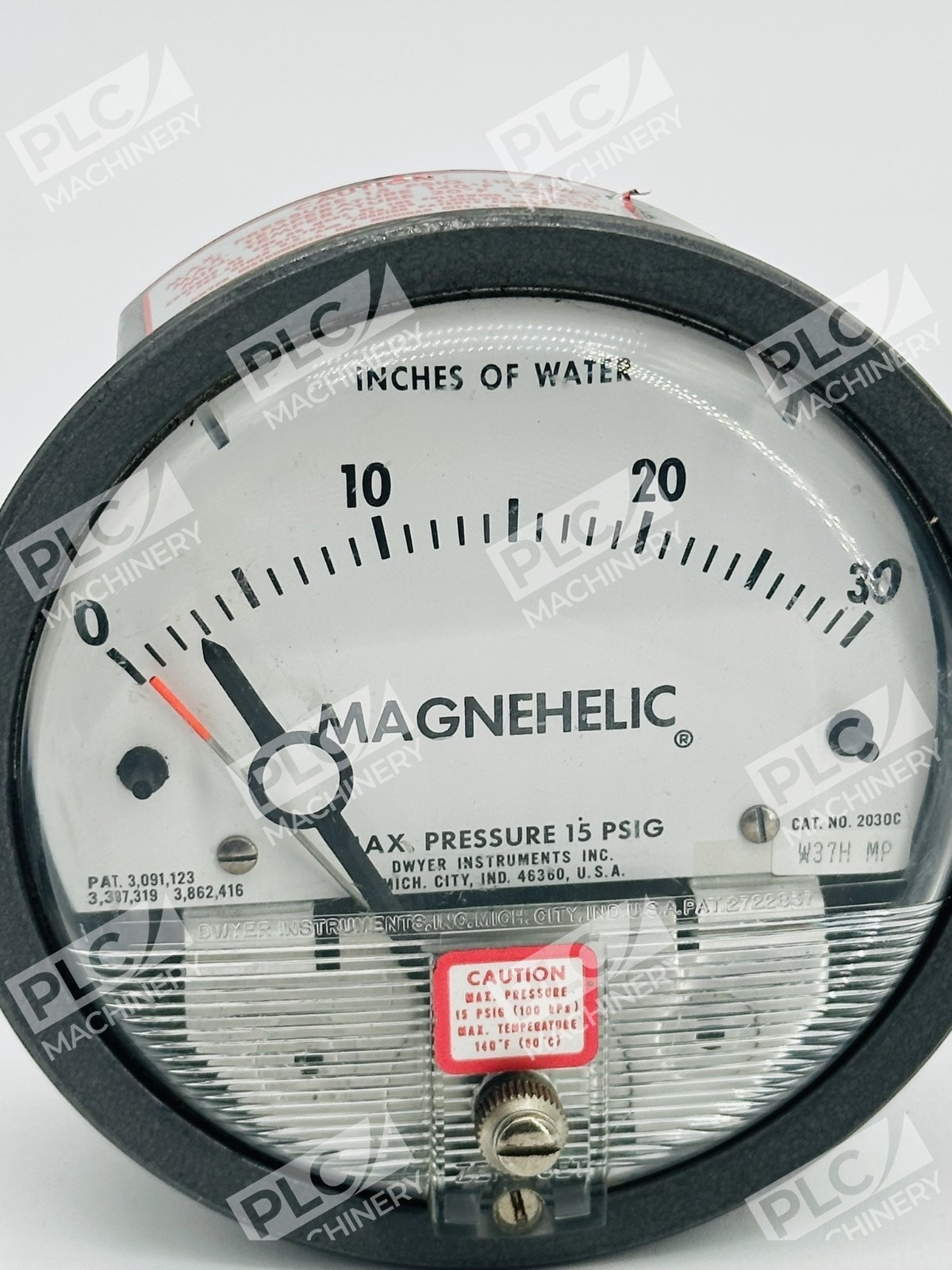

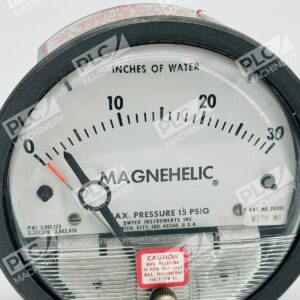

- Pressure Range: 0–30 inches water column (in H₂O)

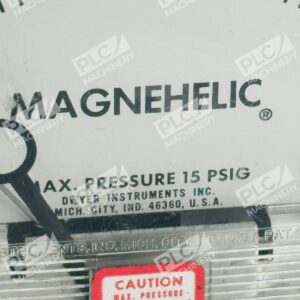

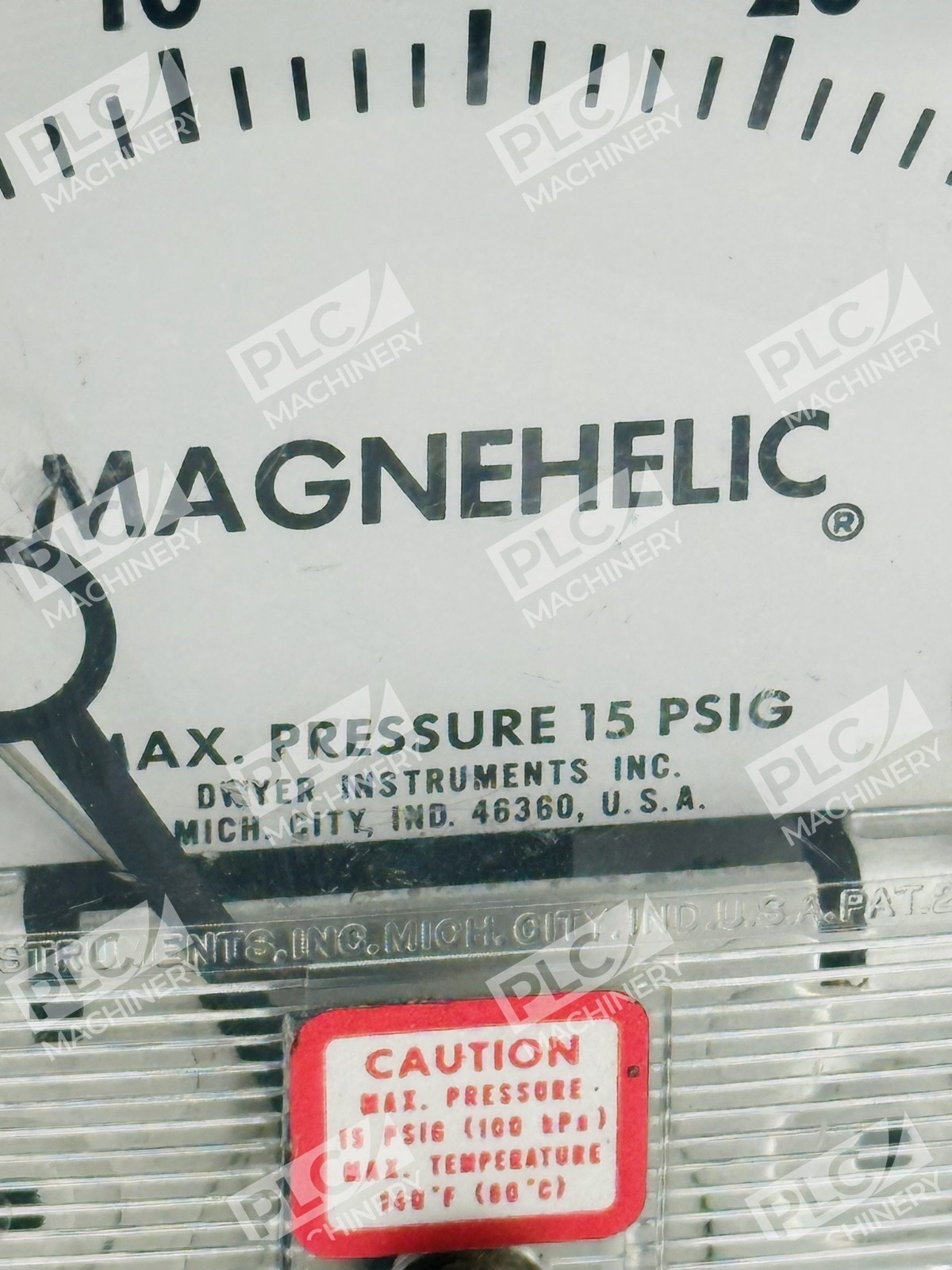

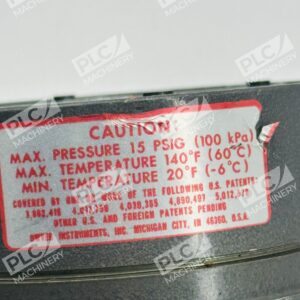

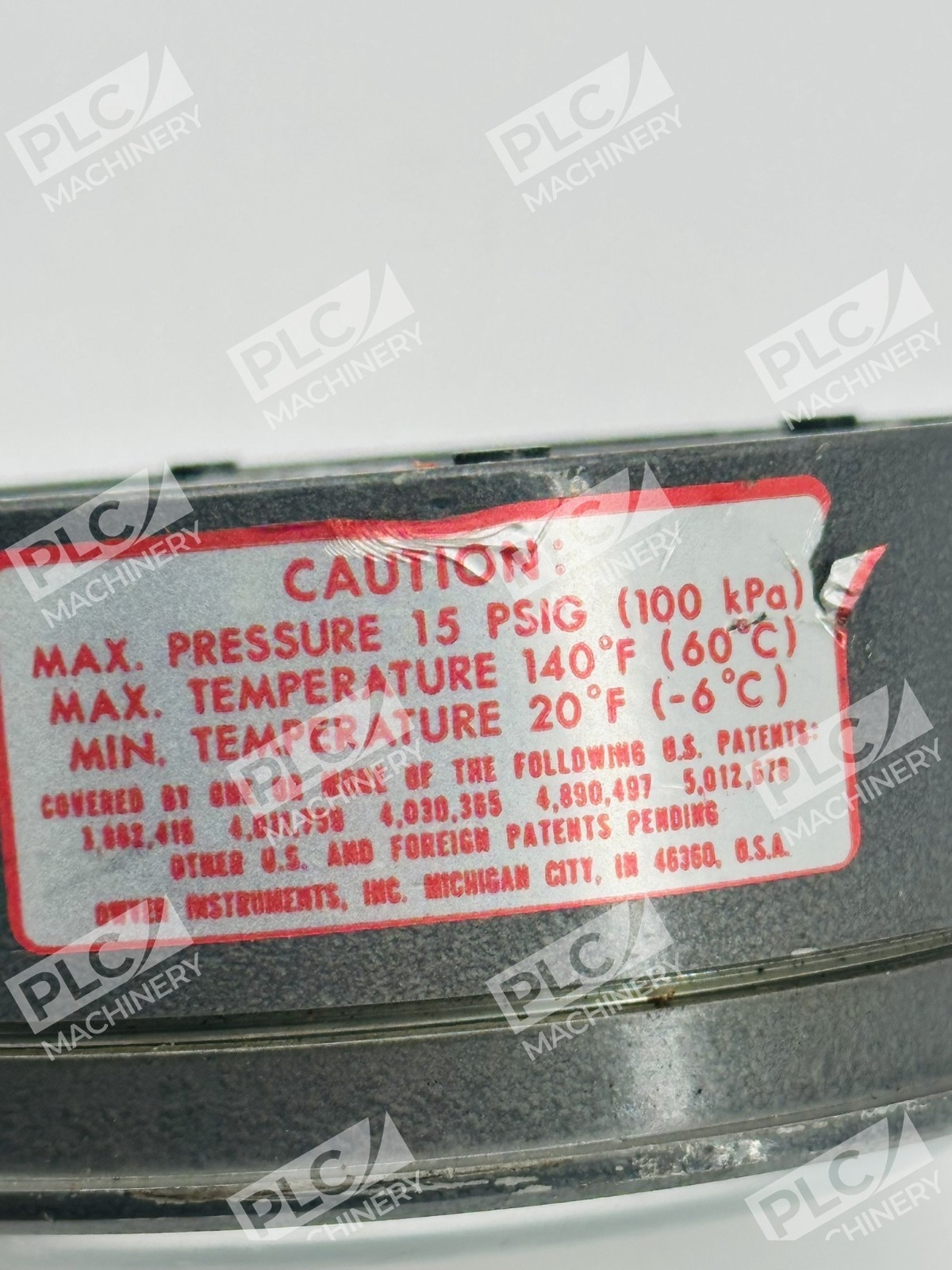

- Maximum Pressure: 15 psig
- Accuracy: ±2% of full scale at 70°F

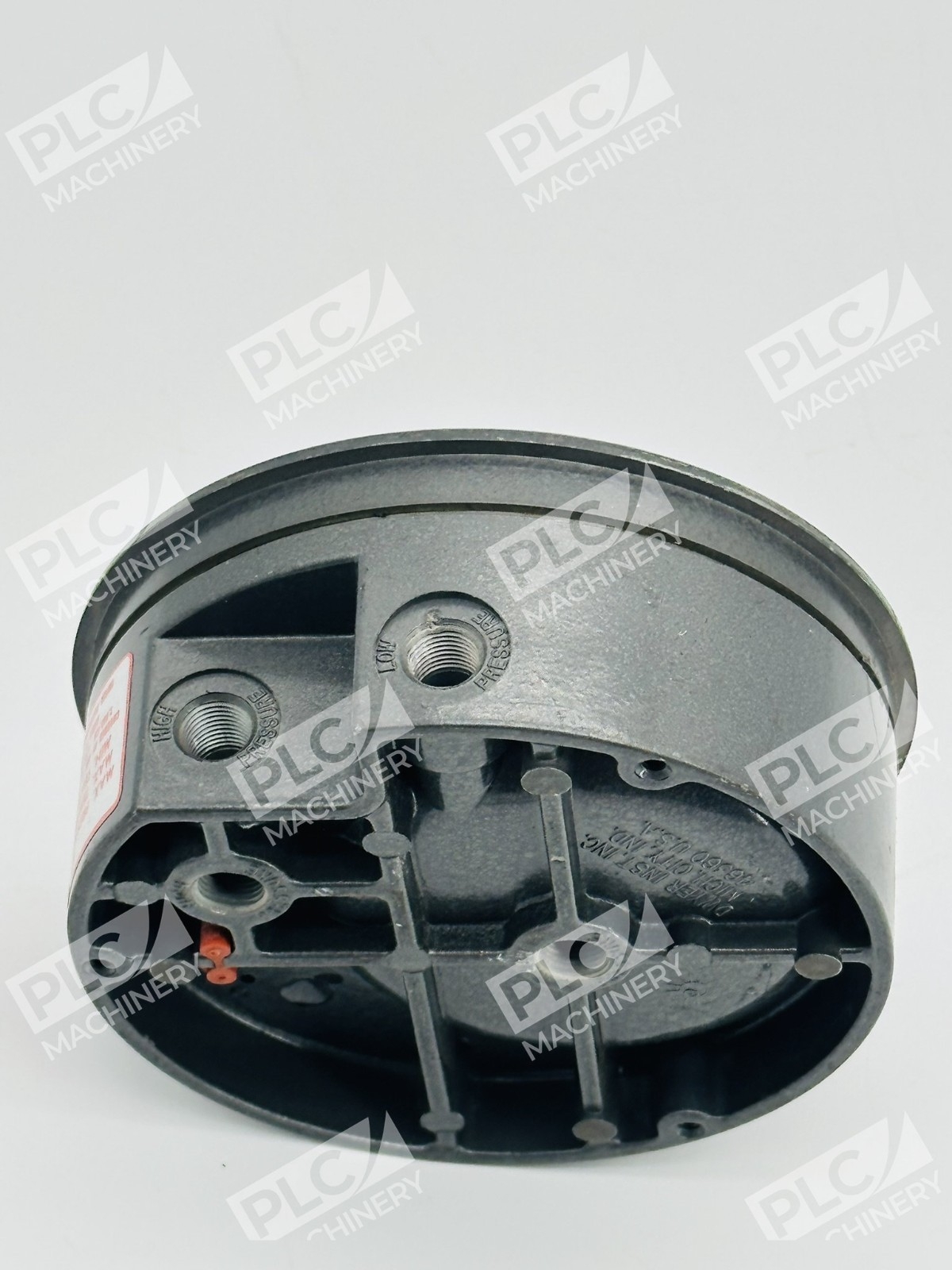

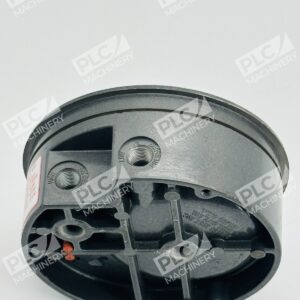

- Connection: 1/8″ NPT female process connections (duplicate high/low pressure taps)

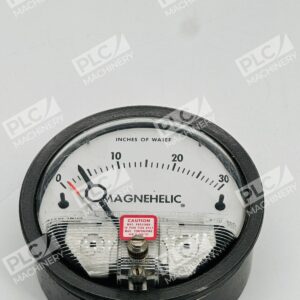

- Dial Size: 4 inches (102 mm) dial face

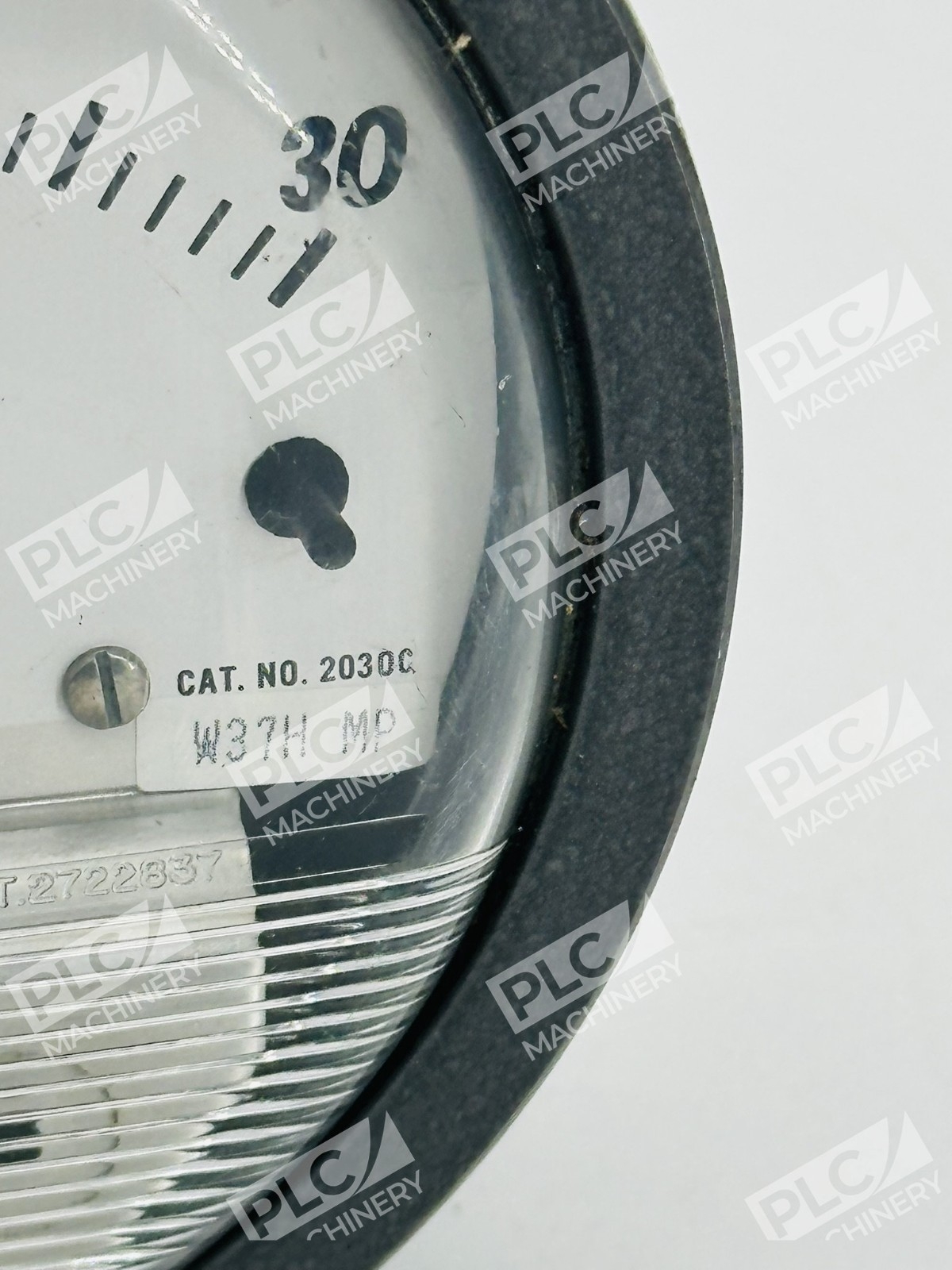

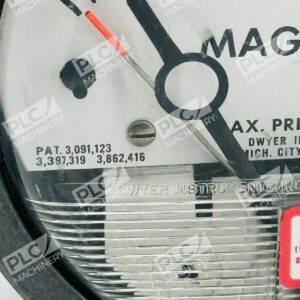

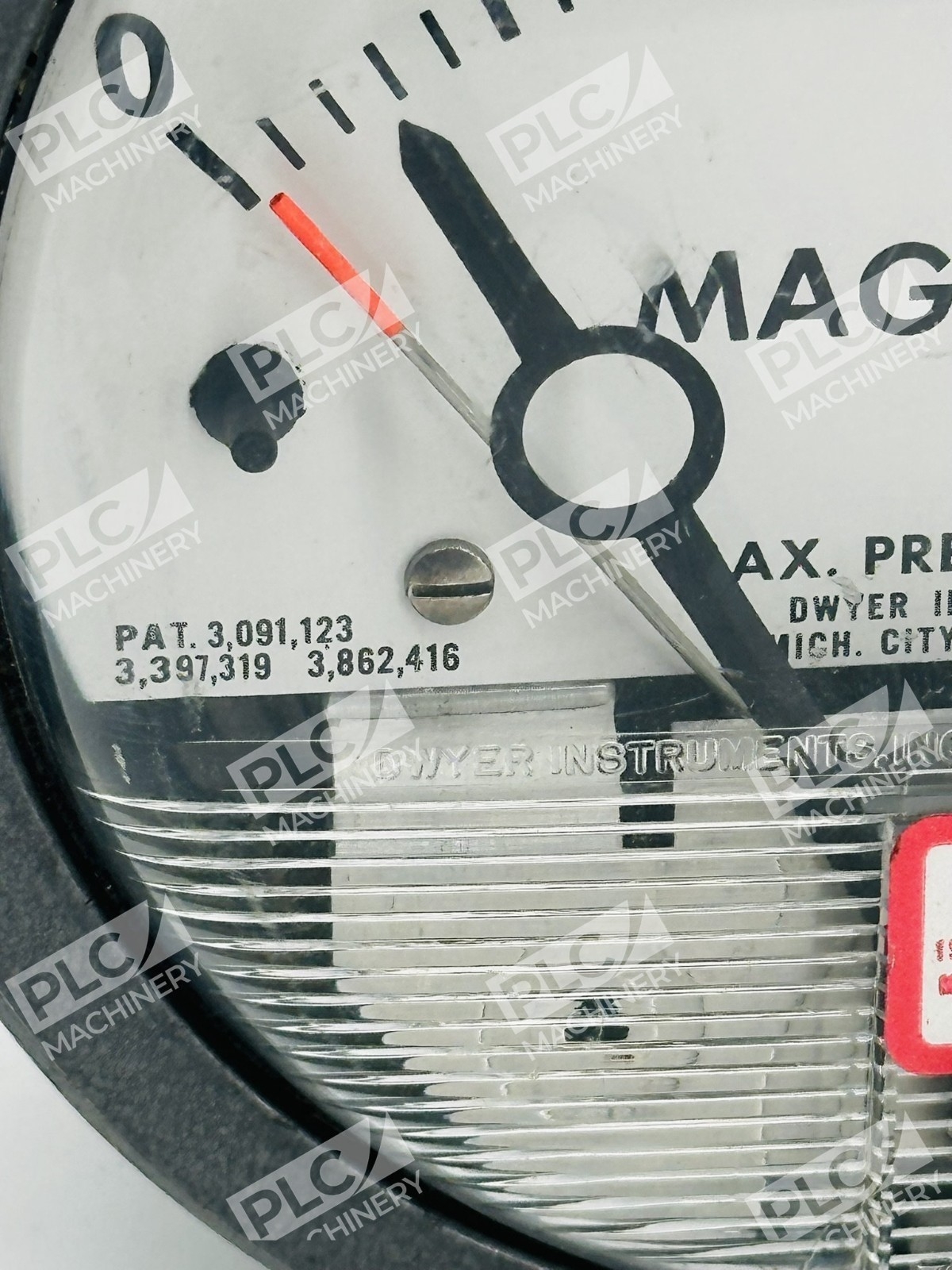

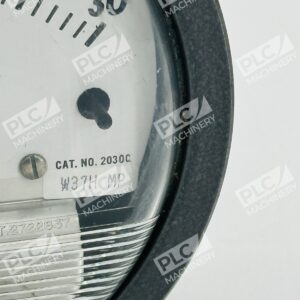

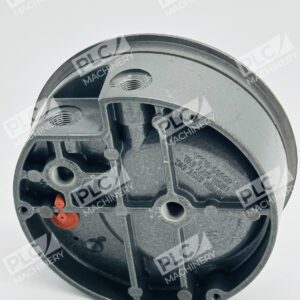

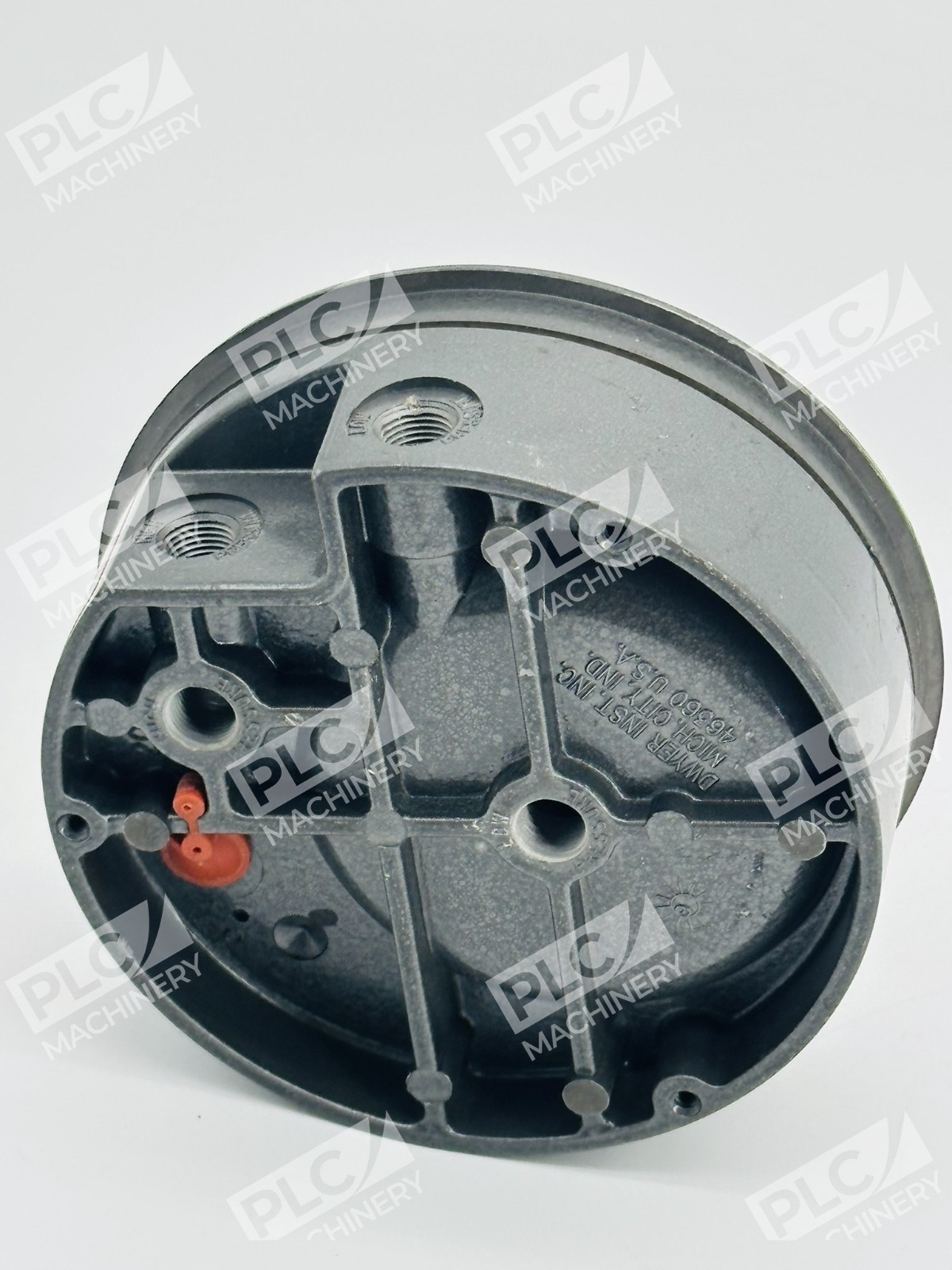

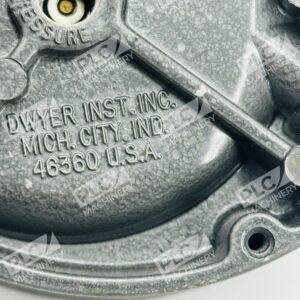

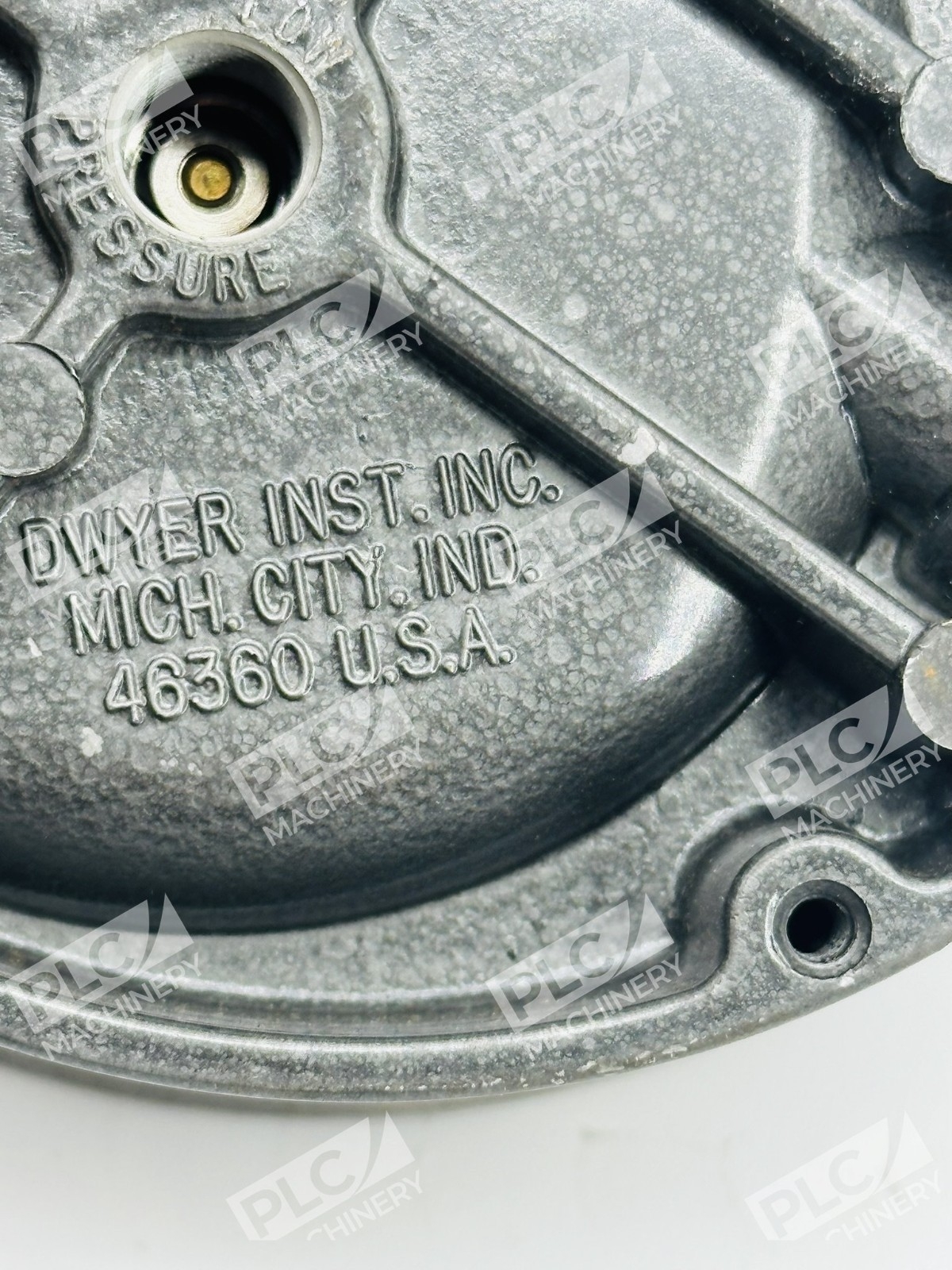

- Body Material: Die cast aluminum
- Operating Temperature Range: 20–140°F
- Media Compatibility: Clean dry air, inert gases, HVAC room air, non-corrosive gases
- Protection Rating: IP67 (weatherproof)
- Mounting: Surface flush mounting or 1/8″ NPT taps
Typical Applications
The Dwyer 2030C is ideal for:
- Air filter pressure drop monitoring
- HVAC duct and room pressure indication
- Blower and fan pressure monitoring
- Clean room positive pressure indication
- Furnace draft measurement
- Air velocity measurement with Pitot tubes
- Pressure drop measurement across orifice plates
- Liquid level monitoring in bubbler systems
Compatibility & Replacements
Compatible With
- Standard 1/8″ NPT threaded connections
- Dwyer pressure tap adapters and accessories
- Pitot tube assemblies for air velocity measurement
- Rubber and aluminum tubing (1/4″ and 3/16″ ID)
- Surface mounting brackets and stand-hang configurations
Replaces / Drop-In Replacement For
- Dwyer 2030 (non-suffix version)
- Other Series 2000 Magnehelic 0–30″ H₂O models with 1/8″ NPT connections
Works With
- Dwyer Pitot tube assemblies
- Dwyer filter monitoring kits
- Standard air tubing and fitting systems
- HVAC systems (no special software or integration required)
- Standalone pressure measurement (no controllers or data logging needed)
