Overview

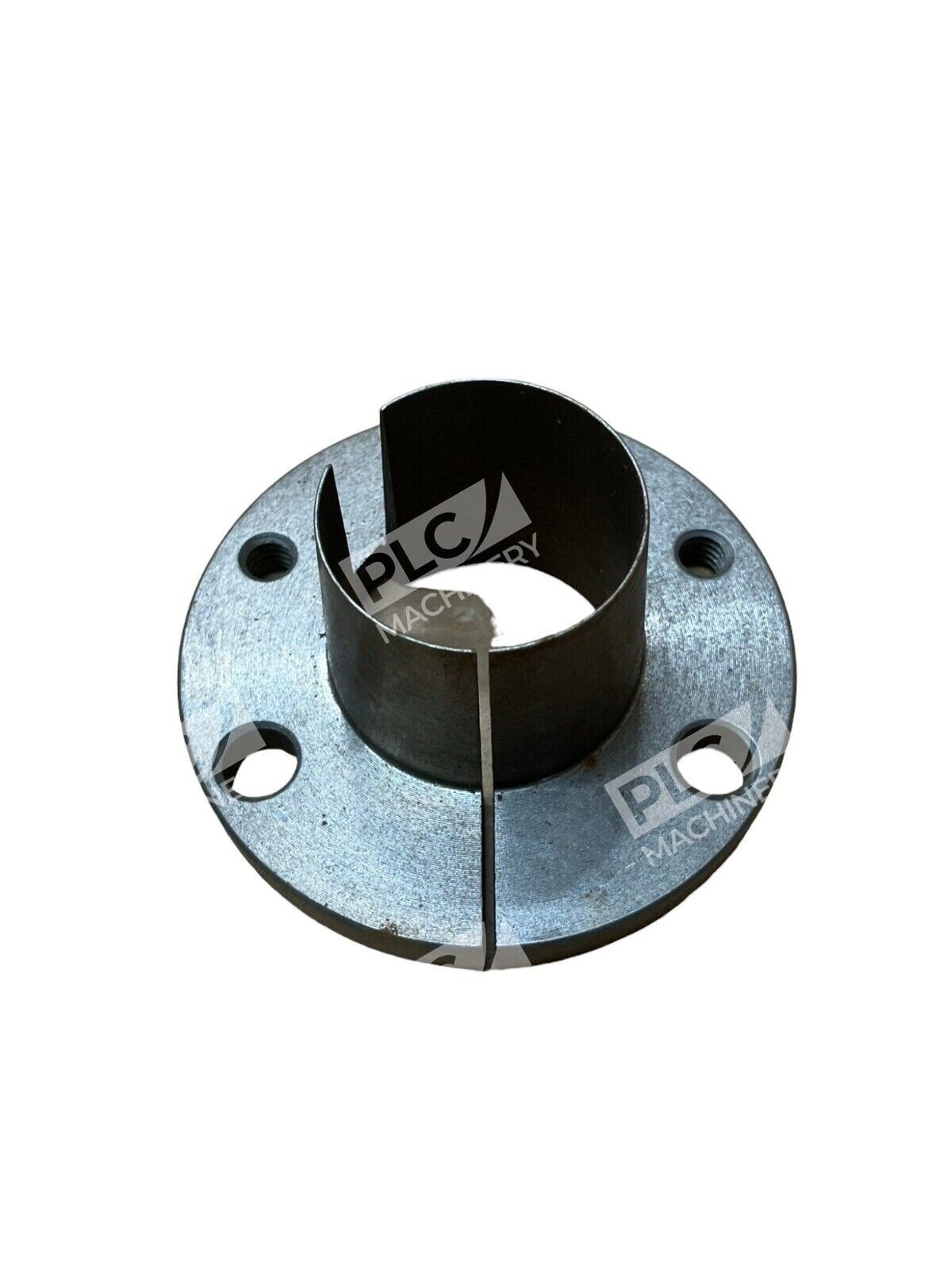

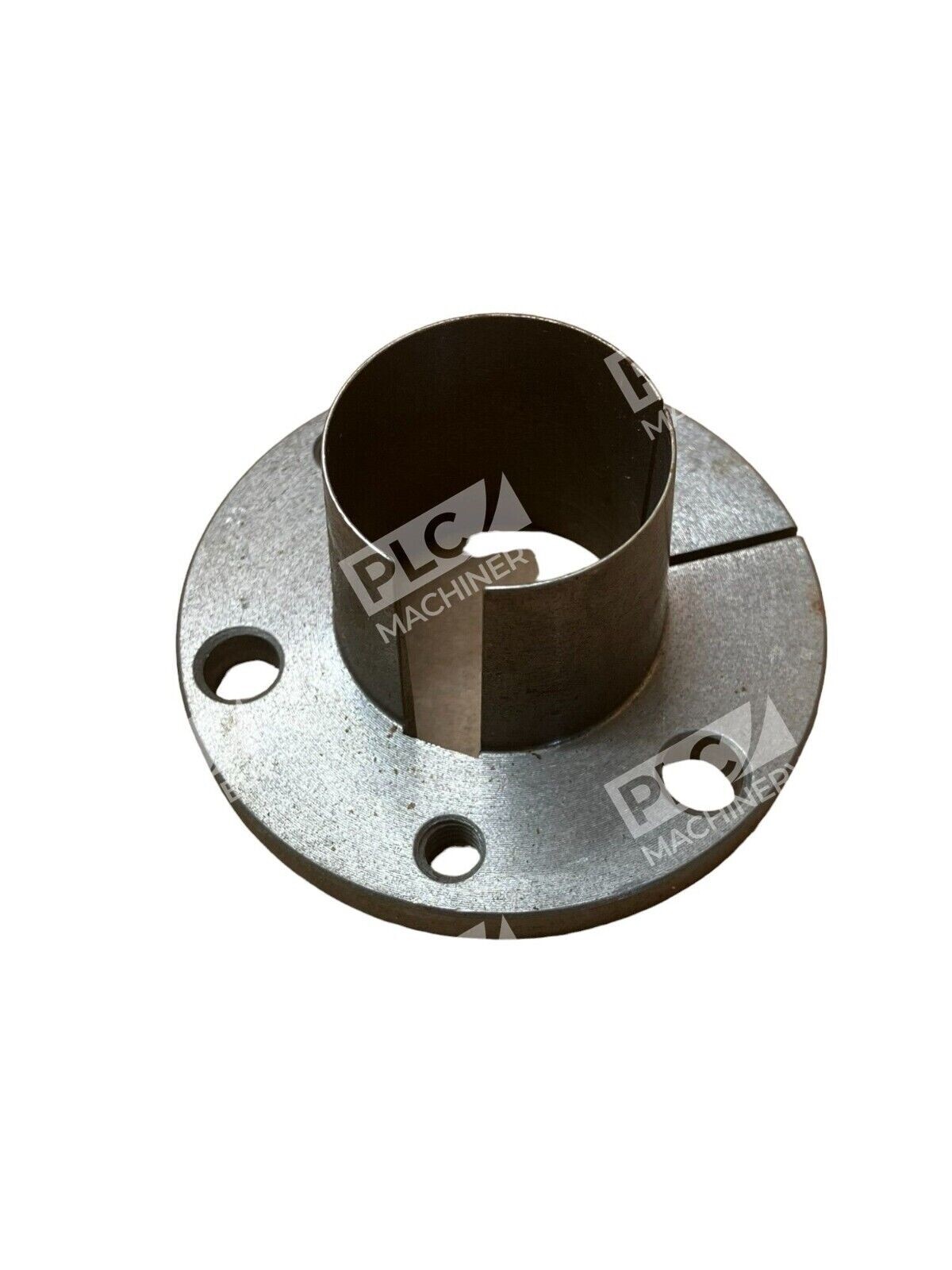

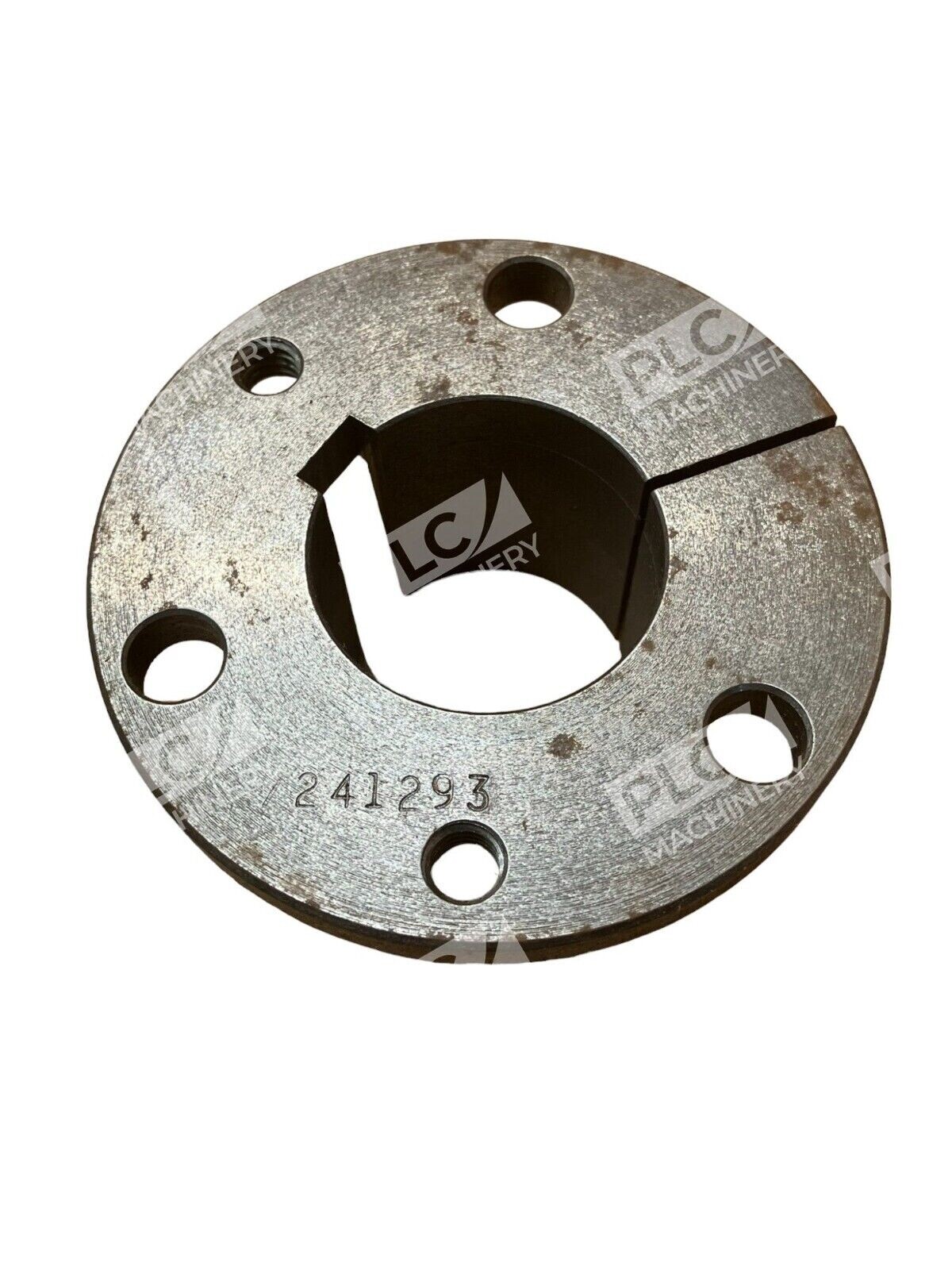

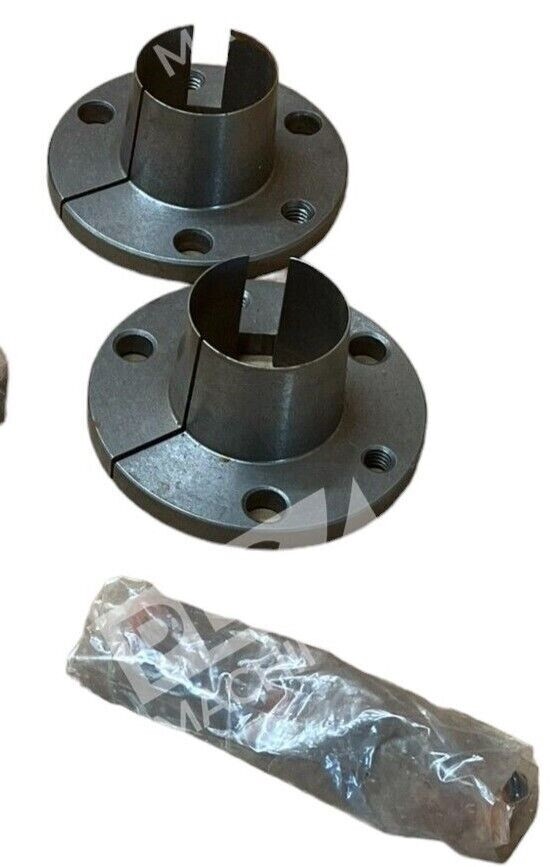

The Dodge TDT1 X 1-7/16 tapered bushing assembly (part 241292) is a precision-engineered replacement bushing for Torque-Arm TXT1 speed reducers. Built from ductile iron, this twin-tapered bushing provides reliable shaft support with maximum torque and shock load capability. The fully split design allows fast installation and removal while eliminating fretting and seizing problems.
Key Features
- Twin-tapered design for bi-directional shaft support
- Ductile iron construction for strength and durability
- Fully split bushing with clamp fit—no setscrews required
- Full-length shaft key for secure positioning
- Fast and simple installation and reliable demount
- Reduces wobble and accommodates undersized shafts
- Flanged bushing mount with removal screws for easy service
Technical Specifications
- Inside Diameter: 1-7/16 inches (36.5 mm)
- Material: Ductile Iron
- Design: Twin-tapered, fully split
- Mount Type: Flanged bushing mount
- Shaft Key: Full-length included
- Weight: 1.69 lbs
- Removal Method: Removal screws provided
- UPC: 782475140947
- Part Number: 241292
Typical Applications
The Dodge TDT1 X 1-7/16 tapered bushing is used in shaft-mounted speed reducer installations where reliable bushing support is critical. Common applications include conveyor drives, mixer applications, and other industrial power transmission systems utilizing Torque-Arm TXT1 reducers. The twin-tapered design absorbs shock loads and prevents shaft damage.
Compatibility & Replacements
Compatible With
- Dodge Torque-Arm TXT1 Speed Reducers
- 1-7/16 inch shaft applications
- Industrial shaft-mounted reducer installations
Replaces / Drop-In Replacement For
- Dodge 241292 tapered bushing assembly
- OEM equivalent TDT1 X 1-7/16 bushings
Works With
- Dodge Torque-Arm and Torque-Arm II reducer series
- Standard industrial motor shaft mounts
- NEMA-frame motor applications
