Overview

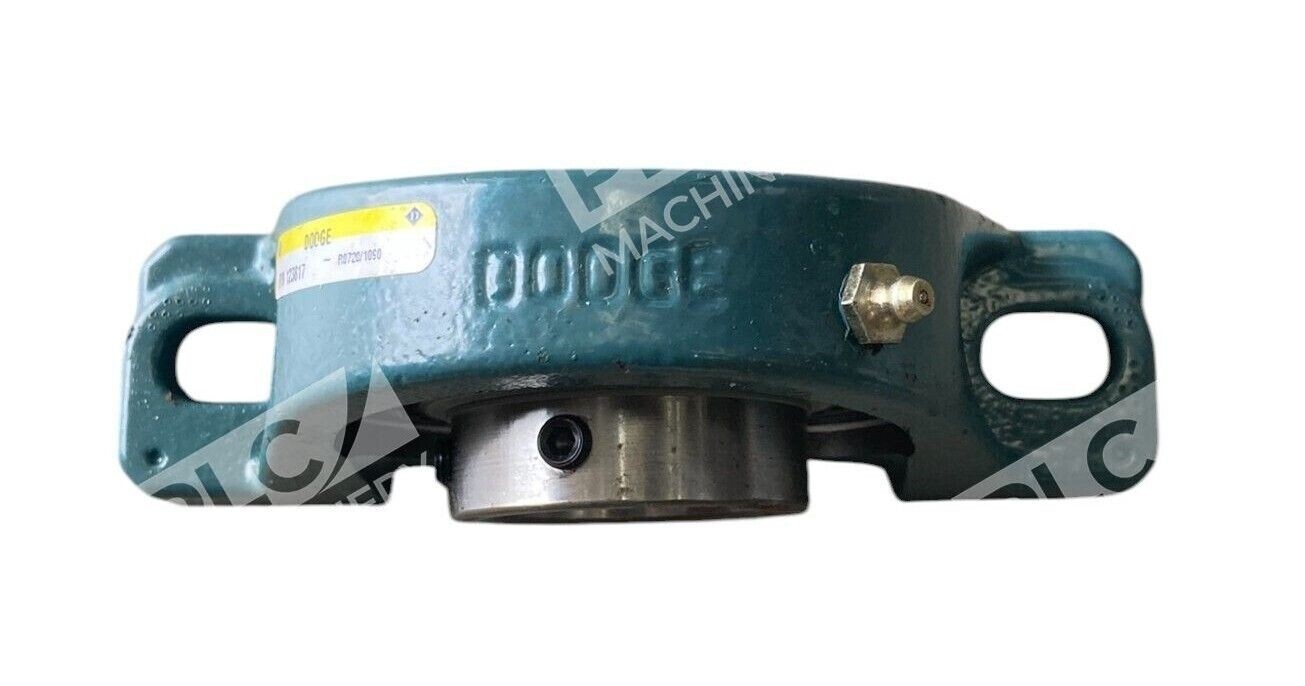

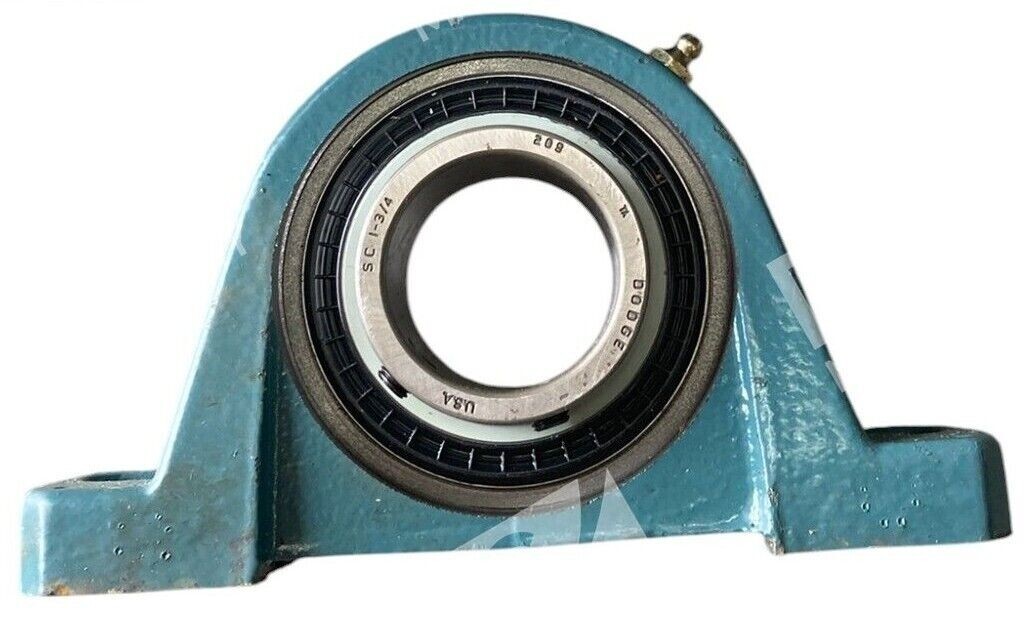

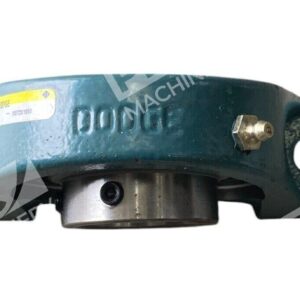

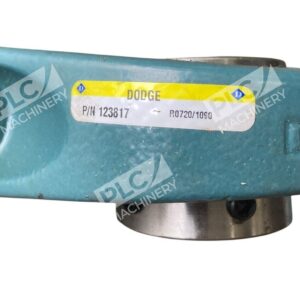

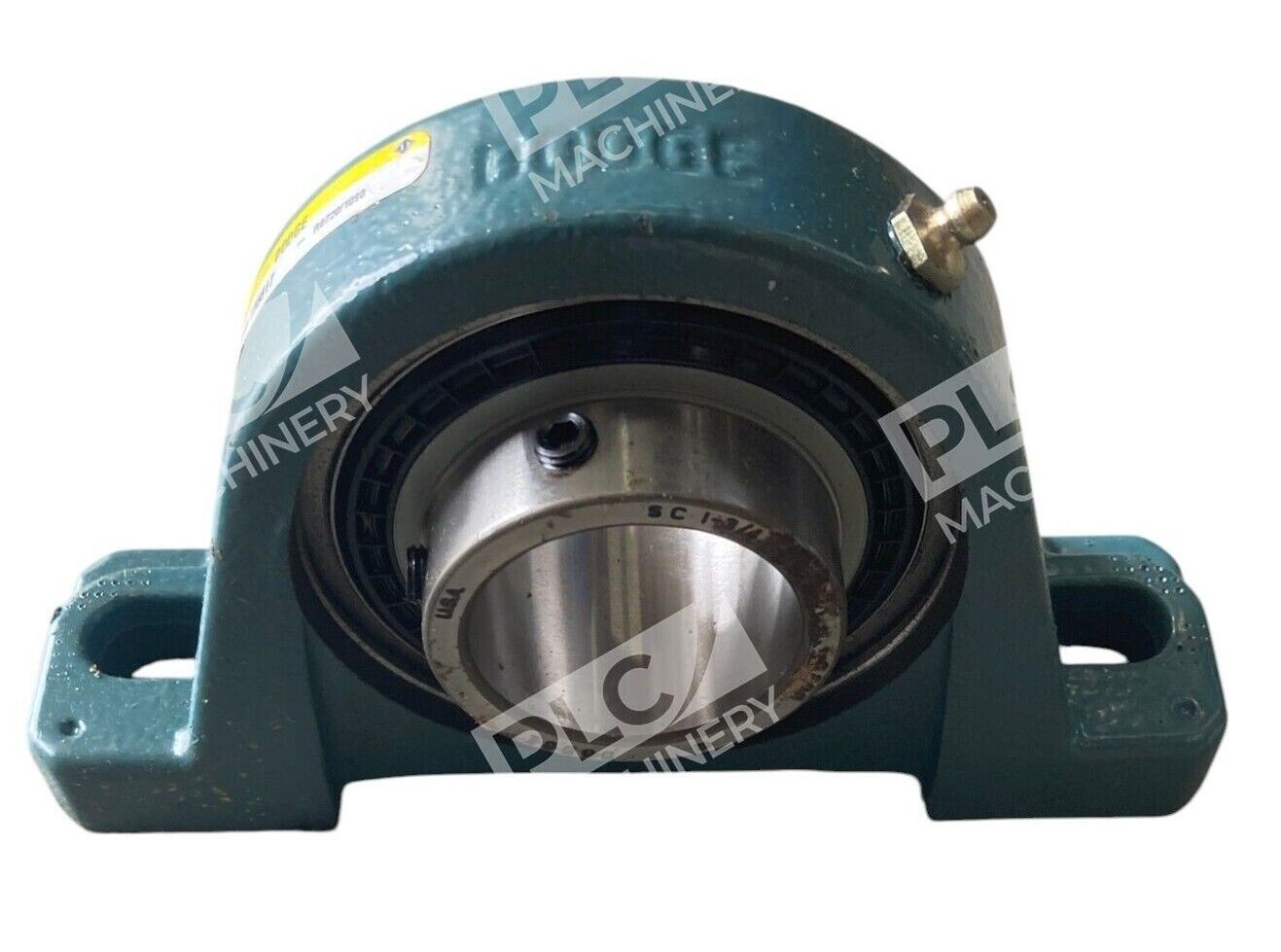

The Dodge 123817 pillow block bearing is a Series 209 normal-duty ball bearing unit designed for industrial machinery and power transmission applications. This 2-bolt mounted bearing features a 1-3/4 inch bore diameter, setscrew locking mechanism, and single-lip contact seal. The cast iron housing and powder-coated steel construction provide durability in demanding environments, making the Dodge 123817 an industry-standard drop-in replacement for mechanical drive systems.
Key Features
- Series 209 normal-duty ball bearing design rated for 7,891 lbs dynamic and 4,906 lbs static load
- Setscrew locking device ensures secure shaft retention without additional hardware
- Single-lip contact seal protects against contamination while minimizing friction loss
- Non-expansion (fixed) bearing type for rigid alignment in fixed-mounting applications
- Cast iron housing with powder-coated steel finish resists corrosion
- Two-bolt base mount with standard footprint for quick installation
- Operating temperature range 225°F to 400°F accommodates industrial process conditions
Technical Specifications
Bore diameter: 1-3/4 inch (44.45 mm) | Overall length: 7.44 inches | Overall height: 4.28 inches | Base width: 2 inches | Bolt center-to-center (variable): 5.5 to 6.19 inches | Base to bore centerline: 2-1/8 inches | Bolt hole diameter: 0.625 inches | Mounting type: 2-bolt flange base | Load rating: 7,891 lbs dynamic / 4,906 lbs static | Operating temperature: 225°F to 400°F | Housing material: Cast iron | Bearing insert: Ball bearing (52100 steel) | Locking mechanism: Setscrew | Seal type: Single-lip contact seal | Bearing type: Non-expansion (fixed)
Typical Applications
- Conveyor systems and power transmission shafts
- Industrial pump and motor mounting
- Agricultural equipment drive systems
- Textile and paper machinery
- Mining and material handling equipment
- HVAC and fan systems requiring fixed bearing support
Compatibility & Replacements
Compatible With
- 1-3/4 inch round and tapered shafts
- Industrial machinery requiring pillow block bearings with setscrew locks
- Mechanical drive systems operating up to 400°F
- Standard 2-bolt pillow block mounting flanges
Replaces / Drop-In Replacement For
- Browning VPS-228 (equivalent 1-3/4 inch 2-bolt pillow block bearing)
- SKF SNL 518 series comparable units
- NSK P2B-SC-112 interchange models
Works With
- 3/4 inch shaft diameter equipment (standard setscrew application)
- Fixed bearing mounting systems where radial and axial loads are controlled by separate components
- Industrial machinery using standard SAE 2-bolt flange configurations
